IslandPath Analysis: Gloeobacter violaceus PCC 7421

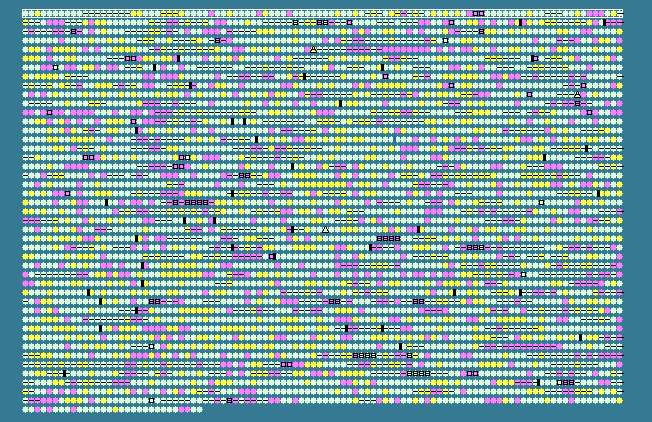

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 62.08   STD DEV: 4.75
Gloeobacter violaceus PCC 7421, complete genome - 1..4659019
4430 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 64.77	0	52..525	+	157	37519570	-	glr0001	-	hypothetical protein
2	 63.96	0	595..927	+	110	37519571	-	glr0002	-	transcription regulator ArsR
3	 67.77	+1	977..1792	+	271	37519572	-	glr0003	-	channel protein
4	 62.59	0	1799..2215	+	138	37519573	-	glr0004	-	arsenate reductase ArsC-like protein
5	 60.55	0	2212..2898	+	228	37519574	-	glr0005	-	arsenical resistance protein ArsH-like protein
6	 60.85	0	2933..3379	+	148	37519575	-	glr0006	-	hypothetical protein
7	 61.56	0	3492..3824	+	110	37519576	-	glr0007	-	transcription regulator ArsR
8	 59.53	0	4005..5027	+	340	37519577	-	glr0008	-	phosphate ABC transporter periplasmic phosphate-binding protein
9	 64.99	0	5096..6052	+	318	37519578	-	glr0009	-	phosphate ABC transporter permease protein
10	 61.75	0	6052..6966	+	304	37519579	-	glr0010	-	phosphate ABC transporter permease protein
11	 60.67	0	6960..7760	+	266	37519580	-	glr0011	-	phosphate ABC transporter ATP binding protein
12	 60.45	0	7984..8997	+	337	37519581	-	glr0012	-	phosphate ABC transporter periplasmic phosphate-binding protein
13	 60.47	0	9349..10380	+	343	37519582	-	glr0013	-	phosphate ABC transporter periplasmic phosphate-binding protein
14	 58.63	0	10503..11510	+	335	37519583	-	glr0014	-	phosphate ABC transporter periplasmic phosphate-binding protein
15	 60.87	0	11611..12627	+	338	37519584	-	glr0015	-	phosphate ABC transporter periplasmic phosphate-binding protein
16	 64.69	0	12781..13944	+	387	37519585	-	glr0016	-	phosphate ABC transporter periplasmic phosphate-binding protein
17	 58.91	0	14329..14934	+	201	37519586	-	glr0017	-	hypothetical protein
18	 64.39	0	14939..15508	-	189	37519587	-	gll0018	-	hypothetical protein
19	 66.16	0	15608..16990	-	460	37519588	-	gll0019	-	hypothetical protein
20	 66.01	0	17120..18490	-	456	37519589	-	gll0020	-	hypothetical protein
21	 62.65	0	18536..20353	-	605	37519590	-	gll0021	-	HlyB/MsbA family ABC transporter
22	 63.53	0	20457..21125	-	222	37519591	-	gll0022	-	two-component response regulator
23	 65.36	0	21151..22677	-	508	37519592	-	gll0023	-	two-component sensor histidine kinase
24	 68.82	+1	23077..23634	+	185	37519593	-	glr0024	-	hypothetical protein
25	 67.82	+1	23846..26275	-	809	37519594	-	gll0025	-	primosome assembly protein PriA
26	 68.09	+1	26350..26910	-	186	37519595	-	gll0026	-	hypothetical protein
27	 66.20	0	26907..27989	-	360	37519596	-	gll0027	-	hypothetical protein
28	 61.87	0	28214..28672	+	152	37519597	-	glr0028	-	hypothetical protein
29	 60.37	0	28697..29236	+	179	37519598	-	glr0029	-	hypothetical protein
30	 65.51	0	29214..29906	-	230	37519599	rpiA	gvip001	-	ribose 5-phosphate isomerase
31	 59.49	0	29929..30165	-	78	37519600	-	gsl0031	-	hypothetical protein
32	 58.46	0	30219..31022	-	267	37519601	-	gll0032	-	hypothetical protein
33	 61.71	0	31169..33247	+	692	37519602	-	glr0033	-	two-component hybrid sensor and regulator
34	 61.08	0	33259..35388	-	709	37519603	-	gll0034	-	replicative DNA helicase
35	 67.94	+1	35538..36401	+	287	37519604	-	glr0035	-	L-asparaginase
36	 59.06	0	36493..37110	-	205	37519605	-	gll0036	-	hypothetical protein
37	 65.41	0	37107..38303	-	398	37519606	-	gll0037	-	hypothetical protein
38	 63.71	0	38379..38750	-	123	37519607	-	gll0038	-	hypothetical protein
39	 65.06	0	38784..39467	-	227	37519608	-	gll0039	-	hypothetical protein
40	 56.61	-1	39755..39943	+	62	37519609	-	gsr0040	-	hypothetical protein
41	 66.62	0	40091..42412	+	773	37519610	recJ	gvip002	-	single-strand-DNA-specific exonuclease
42	 61.29	0	42391..42669	-	92	37519611	-	gsl0042	-	hypothetical protein
43	 63.27	0	43042..44337	+	431	37519612	purB	gvip003	-	adenylosuccinate lyase
44	 63.75	0	44494..44904	-	136	37519613	-	gll0044	-	hypothetical protein
45	 57.05	-1	45175..45621	+	148	37519614	-	glr0045	-	hypothetical protein
46	 62.68	0	45641..47422	-	593	37519615	-	gll0046	-	hypothetical protein
47	 61.49	0	47532..49289	-	585	37519616	-	gll0047	-	hypothetical protein
48	 63.89	0	49484..49807	+	107	37519617	-	glr0048	-	hypothetical protein
49	 59.88	0	49883..50044	-	53	37519618	-	gsl0049	-	hypothetical protein
50	 63.08	0	50393..51367	+	324	37519619	-	glr0050	-	hypothetical protein
51	 63.66	0	51413..52609	-	398	37519620	-	gll0051	-	Na+ ABC transporter permease protein
52	 64.76	0	52606..53340	-	244	37519621	-	gll0052	-	Na+ ABC transporter ATP-binding protein
53	 65.92	0	53346..54809	-	487	37519622	-	gll0053	-	hypothetical protein
54	 64.52	0	54893..55915	-	340	37519623	-	gll0054	-	serine/threonine kinase
55	 61.40	0	55984..57918	-	644	37519624	-	gll0055	-	two-component sensor histidine kinase
56	 66.92	+1	57986..59155	+	389	37519625	-	glr0056	-	hypothetical protein
57	 61.16	0	59206..59895	+	229	37519626	-	glr0057	-	hypothetical protein
58	 63.38	0	60314..61408	+	364	37519627	-	glr0058	-	hypothetical protein
59	 66.21	0	61425..62516	+	363	37519628	-	glr0059	-	hypothetical protein
60	 64.64	0	62566..63699	+	377	37519629	-	glr0060	-	hypothetical protein
61	 65.35	0	63740..64879	-	379	37519630	-	gll0061	-	hypothetical protein
62	 66.81	0	64964..65668	-	234	37519631	-	gll0062	-	two-component response regulator
63	 68.46	+1	65718..66386	-	222	37519632	upp	gll0063	-	uracil phosphoribosyltransferase
64	 58.56	0	66396..66827	-	143	37519633	-	gll0064	-	hypothetical protein
65	 62.56	0	66796..67233	-	145	37519634	-	gll0065	-	hypothetical protein
66	 66.05	0	67312..68277	-	321	37519635	-	gll0066	-	DNA polymerase III subunit delta
67	 65.02	0	68283..69554	-	423	37519636	-	gll0067	-	carboxyl-terminal processing protease
68	 64.10	0	69600..69989	-	129	37519637	-	gll0068	-	hypothetical protein
69	 68.47	+1	70061..71170	-	369	37519638	proB	gvip004	-	gamma-glutamyl kinase
70	 63.39	0	71182..71517	-	111	37519639	-	gll0070	-	hypothetical protein
71	 66.67	0	71624..72922	+	432	37519640	hemL	gvip005	-	glutamate-1-semialdehyde aminotransferase
72	 64.75	0	72977..73498	+	173	37519641	lspA	glr0072	-	lipoprotein signal peptidase
73	 68.81	+1	73503..74435	+	310	37519642	-	glr0073	-	pseudouridine synthase
74	 62.47	0	74440..75273	-	277	37519643	-	gll0074	-	hypothetical protein
75	 55.04	-1	75452..76285	+	277	37519644	-	glr0075	-	sugar-non-specific nuclease NucA-like protein
76	 57.55	0	76474..76791	+	105	37519645	-	glr0076	-	putative transposase
77	 51.67	-2	76791..77657	+	288	37519646	-	glr0077	-	putative transposase
78	 62.79	0	78023..78409	+	128	37519647	-	glr0078	-	hypothetical protein
79	 58.73	0	78478..79044	+	188	37519648	ycf4	gvip006	-	photosystem I assembly protein Ycf4
80	 63.83	0	79162..82194	+	1010	37519649	-	glr0080	-	putative alpha-mannosidase
81	 63.13	0	82256..82849	+	197	37519650	-	glr0081	-	hypothetical protein
82	 61.88	0	82929..84077	-	382	37519651	-	gll0082	-	glycosyltransferase
83	 61.69	0	84082..85326	-	414	37519652	-	gll0083	-	hypothetical protein
84	 65.27	0	85344..86129	-	261	37519653	recO	gll0084	-	DNA repair protein RecO
85	 66.05	0	86307..86954	+	215	37519654	rplC	gvip007	-	50S ribosomal protein L3
86	 63.71	0	86987..87628	+	213	37519655	rplD	gvip008	-	50S ribosomal protein L4
87	 59.08	0	87625..87927	+	100	37519656	rplW	gvip009	-	50S ribosomal protein L23
88	 63.54	0	88105..88680	+	191	37519657	-	glr0088	-	hypothetical protein
89	 62.22	0	88677..89216	-	179	37519658	-	gll0089	-	hypothetical protein
90	 59.87	0	89381..89851	+	156	37519659	-	glr0090	-	hypothetical protein
91	 64.86	0	89856..90407	-	183	37519660	-	gll0091	-	hypothetical protein
92	 65.42	0	90488..90808	+	106	37519661	-	glr0092	-	hypothetical protein
93	 66.81	0	90820..92208	+	462	37519662	-	glr0093	-	aminopeptidase P
94	 60.05	0	92607..94766	+	719	37519663	-	glr0094	-	hypothetical protein
95	 56.67	-1	94907..95146	+	79	37519664	-	gsr0095	-	cell growth regulatory protein
96	 53.27	-1	95140..95475	+	111	37519665	-	glr0096	-	cell growth regulatory protein
97	 58.02	0	95612..96085	-	157	37519666	-	gll0097	-	hypothetical protein
98	 60.50	0	96173..97906	+	577	37519667	-	glr0098	-	ABC transporter ATP-binding protein
99	 67.73	+1	97911..100268	-	785	37519668	-	gll0099	-	two-component hybrid sensor and regulator
100	 58.65	0	100300..101559	-	419	37519669	-	gll0100	-	hypothetical protein
62.08	MEAN

4.75	STD DEV
