IslandPath Analysis: Geobacter uraniireducens Rf4

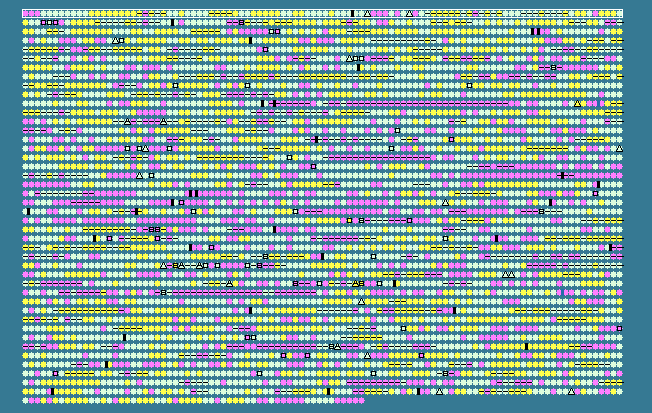

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 54.31   STD DEV: 5.82
Geobacter uraniireducens Rf4, complete genome - 1..5136364
4357 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 40.52	-2	46..1395	+	449	148262086	-	Gura_0001	-	chromosomal replication initiator protein DnaA
2	 38.16	-2	1611..2729	+	372	148262087	-	Gura_0002	-	DNA polymerase III, beta subunit
3	 43.74	-1	2810..3904	+	364	148262088	-	Gura_0003	-	DNA replication and repair protein RecF
4	 52.41	0	3913..6297	+	794	148262089	-	Gura_0004	-	DNA gyrase, B subunit
5	 56.66	0	6355..8853	+	832	148262090	-	Gura_0005	-	DNA gyrase, A subunit
6	 54.78	0	8937..10517	+	526	148262091	-	Gura_0006	-	hypothetical protein
7	 54.83	0	10587..11600	+	337	148262092	-	Gura_0007	-	glycerol-3-phosphate dehydrogenase (NAD(P)(+))
8	 51.25	0	11698..13974	+	758	148262093	-	Gura_0008	-	multi-sensor signal transduction histidine kinase
9	 55.60	0	13961..15487	+	508	148262094	-	Gura_0009	-	multi-sensor signal transduction histidine kinase
10	 53.99	0	15519..17333	+	604	148262095	-	Gura_0010	-	multi-sensor signal transduction histidine kinase
11	 51.77	0	17330..19510	+	726	148262096	-	Gura_0011	-	multi-sensor signal transduction histidine kinase
12	 58.90	0	19507..20433	+	308	148262097	-	Gura_0012	-	daunorubicin resistance ABC transporter ATPase subunit
13	 57.94	0	20508..21263	+	251	148262098	-	Gura_0013	-	ABC-2 type transporter
14	 58.38	0	21393..22466	+	357	148262099	-	Gura_0014	-	radical SAM domain-containing protein
15	 60.39	+1	22609..23628	+	339	148262100	-	Gura_0015	-	uroporphyrinogen decarboxylase
16	 62.88	+1	23781..24599	+	272	148262101	-	Gura_0016	-	hypothetical protein
17	 63.77	+1	24612..26720	-	702	148262102	-	Gura_0017	-	hypothetical protein
18	 63.11	+1	26740..27750	-	336	148262103	-	Gura_0018	-	alcohol dehydrogenase
19	 59.26	0	27963..28475	+	170	148262104	-	Gura_0019	-	membrane protein-like protein
20	 57.88	0	28392..29837	-	481	148262105	-	Gura_0020	-	heat shock protein DnaJ domain-containing protein
21	 46.38	-1	29988..30263	+	91	148262106	-	Gura_0021	-	hypothetical protein
22	 62.38	+1	30334..31056	-	240	148262107	-	Gura_0022	-	Hsp33 protein
23	 55.43	0	31207..31740	-	177	148262108	-	Gura_0023	-	hypothetical protein
24	 61.29	+1	31893..34271	-	792	148262109	-	Gura_0024	-	peptidase U32
25	 54.28	0	34313..34756	+	147	148262110	-	Gura_0025	-	histidine kinase
26	 54.40	0	34799..35287	-	162	148262111	-	Gura_0026	-	hypothetical protein
27	 60.10	0	35537..36556	-	339	148262112	-	Gura_0027	-	3-deoxy-7-phosphoheptulonate synthase
28	 53.48	0	37020..37580	+	186	148262113	-	Gura_0028	-	hypothetical protein
29	 54.73	0	37784..38554	+	256	148262114	-	Gura_0029	-	nucleic acid binding, OB-fold, tRNA/helicase-type
30	 56.49	0	38797..39258	+	153	148262115	-	Gura_0030	-	membrane protein-like protein
31	 57.08	0	39277..40569	+	430	148262116	-	Gura_0031	-	peptidase M16 domain-containing protein
32	 59.38	0	40640..41023	+	127	148262117	-	Gura_0032	-	cobalamin (vitamin B12) biosynthesis CbiX protein
33	 60.12	0	41023..41664	+	213	148262118	-	Gura_0033	-	precorrin-8X methylmutase CbiC/CobH
34	 60.54	+1	41685..42794	+	369	148262119	-	Gura_0034	-	cobalamin biosynthesis protein CbiD
35	 59.61	0	42881..44098	+	405	148262120	-	Gura_0035	-	precorrin-6y C5,15-methyltransferase (decarboxylating), CbiE subunit
36	 59.46	0	44215..44949	+	244	148262121	-	Gura_0036	-	precorrin-2 C20-methyltransferase
37	 53.56	0	45042..45308	+	88	148262122	-	Gura_0037	-	prevent-host-death family protein
38	 54.20	0	45296..45736	+	146	148262123	-	Gura_0038	-	PilT domain-containing protein
39	 62.03	+1	45854..46630	+	258	148262124	-	Gura_0039	-	precorrin-4 C11-methyltransferase
40	 58.00	0	46804..47865	+	353	148262125	-	Gura_0040	-	cobalamin (vitamin B12) biosynthesis CbiG protein
41	 60.03	0	47902..50265	+	787	148262126	-	Gura_0041	-	cobyric acid synthase CobQ
42	 62.31	+1	50335..51321	+	328	148262127	-	Gura_0042	-	cobalamin biosynthesis protein CobD
43	 60.34	+1	51562..52635	+	357	148262128	-	Gura_0043	-	putative L-threonine-O-3-phosphate decarboxylase
44	 51.74	0	52662..53492	-	276	148262129	-	Gura_0044	-	type IV pilus assembly PilZ
45	 54.55	0	54023..54451	+	142	148262130	-	Gura_0045	-	ferric uptake regulator family protein
46	 58.36	0	54448..55398	+	316	148262131	-	Gura_0046	-	periplasmic solute binding protein
47	 58.17	0	55389..56141	+	250	148262132	-	Gura_0047	-	ABC transporter related
48	 56.04	0	56242..57060	+	272	148262133	-	Gura_0048	-	ABC-3 protein
49	 53.60	0	57308..57751	+	147	148262134	-	Gura_0049	-	response regulator receiver protein
50	 55.86	0	57841..59163	+	440	148262135	-	Gura_0050	-	response regulator receiver modulated diguanylate cyclase with PAS/PAC sensor
51	 52.30	0	59228..61183	+	651	148262136	-	Gura_0051	-	multi-sensor signal transduction histidine kinase
52	 59.81	0	61234..62064	+	276	148262137	-	Gura_0052	-	extracellular solute-binding protein
53	 56.33	0	62244..63578	+	444	148262138	-	Gura_0053	-	integral membrane sensor signal transduction histidine kinase
54	 51.99	0	63613..65016	+	467	148262139	-	Gura_0054	-	response regulator receiver modulated diguanylate cyclase with PAS/PAC sensor
55	 56.12	0	65073..65603	+	176	148262140	-	Gura_0055	-	CMP/dCMP deaminase, zinc-binding
56	 56.62	0	66502..71754	+	1750	148262141	-	Gura_0056	-	hypothetical protein
57	 57.24	0	71880..72314	+	144	148262142	-	Gura_0057	-	hypothetical protein
58	 51.65	0	72314..73312	+	332	148262143	-	Gura_0058	-	integrase catalytic subunit
59	 41.75	-2	73425..74018	+	197	148262144	-	Gura_0059	-	hypothetical protein
60	 37.28	-2	74015..74977	+	320	148262145	-	Gura_0060	-	hypothetical protein
61	 40.99	-2	75182..75952	+	256	148262146	-	Gura_0061	-	hypothetical protein
62	 54.21	0	76021..76662	+	213	148262147	-	Gura_0062	-	hypothetical protein
63	 47.62	-1	76777..77028	-	83	148262148	-	Gura_0063	-	hypothetical protein
64	 52.15	0	77043..77855	-	270	148262149	-	Gura_0064	-	IstB ATP binding domain-containing protein
65	 54.45	0	77845..79293	-	482	148262150	-	Gura_0065	-	integrase catalytic subunit
66	 49.43	0	80297..85384	+	1695	148262151	-	Gura_0068	-	fibronectin, type III domain-containing protein
67	 51.20	0	85416..86372	+	318	148262152	-	Gura_0069	-	hypothetical protein
68	 53.60	0	86378..92233	+	1951	148262153	-	Gura_0070	-	APHP domain-containing protein
69	 62.29	+1	92423..93313	+	296	148262154	prpB	Gura_0071	-	2-methylisocitrate lyase
70	 60.05	0	93310..94428	+	372	148262155	-	Gura_0072	-	2-methylcitrate synthase/citrate synthase II
71	 61.41	+1	94436..95881	+	481	148262156	prpD	Gura_0073	-	2-methylcitrate dehydratase
72	 58.76	0	96022..96603	-	193	148262157	-	Gura_0074	-	ATP:corrinoid adenosyltransferase BtuR/CobO/CobP
73	 57.88	0	97075..103743	+	2222	148262158	-	Gura_0075	-	cytochrome C family protein
74	 57.66	0	103752..108068	+	1438	148262159	-	Gura_0076	-	cytochrome C family protein
75	 57.81	0	108130..115629	+	2499	148262160	-	Gura_0077	-	cytochrome C family protein
76	 49.19	0	115981..116289	-	102	148262161	-	Gura_0078	-	hypothetical protein
77	 56.28	0	116557..117519	+	320	148262162	-	Gura_0079	-	metal dependent phosphohydrolase
78	 58.33	0	117731..118162	+	143	148262163	-	Gura_0080	-	heavy metal transport/detoxification protein
79	 53.98	0	118220..118684	+	154	148262164	-	Gura_0081	-	membrane protein-like protein
80	 58.66	0	118684..119844	+	386	148262165	-	Gura_0082	-	hypothetical protein
81	 56.33	0	119949..120635	+	228	148262166	-	Gura_0083	-	ABC transporter related
82	 54.24	0	120705..121823	+	372	148262167	-	Gura_0084	-	integral membrane sensor signal transduction histidine kinase
83	 55.56	0	121820..123178	+	452	148262168	-	Gura_0085	-	two component, sigma-54 specific, Fis family transcriptional regulator
84	 55.11	0	123752..124279	-	175	148262169	-	Gura_0086	-	hypothetical protein
85	 57.25	0	124889..126163	+	424	148262170	-	Gura_0087	-	outer membrane efflux protein
86	 57.07	0	126274..127680	+	468	148262171	-	Gura_0088	-	RND family efflux transporter MFP subunit
87	 59.71	0	127924..131070	+	1048	148262172	-	Gura_0089	-	CzcA family heavy metal efflux protein
88	 52.41	0	131158..131634	+	158	148262173	-	Gura_0090	-	hypothetical protein
89	 56.66	0	131727..132635	+	302	148262174	-	Gura_0091	-	hypothetical protein
90	 51.26	0	132648..133082	+	144	148262175	-	Gura_0092	-	hypothetical protein
91	 59.65	0	133160..133672	+	170	148262176	-	Gura_0093	-	hypothetical protein
92	 55.68	0	134192..134974	+	260	148262177	-	Gura_0094	-	ECF subfamily RNA polymerase sigma-24 factor
93	 59.69	0	135043..135960	+	305	148262178	-	Gura_0095	-	alpha/beta hydrolase fold
94	 62.00	+1	136135..136734	+	199	148262179	-	Gura_0096	-	NAD(P)H dehydrogenase (quinone)
95	 51.03	0	136843..137520	+	225	148262180	-	Gura_0097	-	hypothetical protein
96	 50.14	0	137542..138237	-	231	148262181	-	Gura_0098	-	protein-disulfide isomerase-like protein
97	 62.07	+1	138711..139319	+	202	148262182	-	Gura_0099	-	ECF subfamily RNA polymerase sigma-24 factor
98	 66.76	+2	139319..140434	+	371	148262183	-	Gura_0100	-	putative transmembrane anti-sigma factor
99	 62.44	+1	140569..141348	+	259	148262184	-	Gura_0101	-	hypothetical protein
100	 52.91	0	141537..141914	+	125	148262185	-	Gura_0102	-	hypothetical protein
54.31	MEAN

5.82	STD DEV
