IslandPath Analysis: Geobacillus thermodenitrificans NG80-2

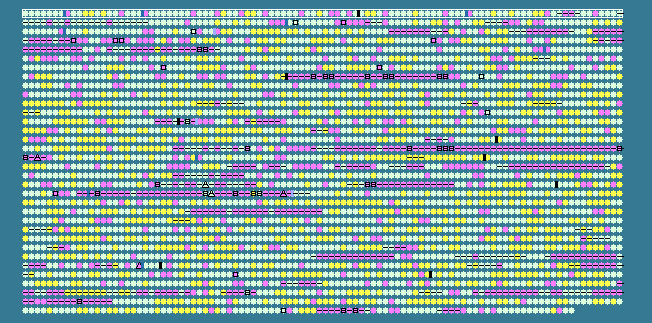

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 49.23   STD DEV: 5.50
Geobacillus thermodenitrificans NG80-2, complete genome - 1..3550319
3392 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 47.15	0	209..1561	+	450	138893680	dnaA	GTNG_0001	-	chromosomal replication initiation protein
2	 46.35	0	1733..2869	+	378	138893681	-	GTNG_0002	-	DNA polymerase III subunit beta
3	 46.40	0	3059..3280	+	73	138893682	-	GTNG_0003	-	hypothetical protein
4	 47.36	0	3292..4410	+	372	138893683	recF	GTNG_0004	-	recombination protein F
5	 50.86	0	4456..6378	+	640	138893684	gyrB	GTNG_0005	-	DNA gyrase subunit B
6	 49.53	0	6531..8999	+	822	138893685	-	GTNG_0006	-	DNA gyrase subunit A
7	 46.52	0	9128..10189	+	353	138893686	-	GTNG_0007	-	hypothetical protein
8	 42.45	-1	15924..16910	-	328	138893687	yaaC	GTNG_0008	-	YaaC
9	 51.33	0	17037..18503	+	488	138893688	guaB	GTNG_0009	-	inositol-5-monophosphate dehydrogenase
10	 47.61	0	18607..19965	+	452	138893689	-	GTNG_0010	-	D-alanine carboxypeptidase
11	 55.93	+1	20095..20979	+	294	138893690	-	GTNG_0011	-	pyridoxine biosynthesis protein
12	 53.91	0	21004..21591	+	195	138893691	-	GTNG_0012	-	glutamine amidotransferase subunit PdxT
13	 52.08	0	21871..23145	+	424	138893692	-	GTNG_0013	-	seryl-tRNA synthetase
14	 53.69	0	23402..24688	-	428	138893693	-	GTNG_0014	-	spore peptidoglycan hydrolase, N-acetylglucosaminidase
15	 52.47	0	24771..25256	+	161	138893694	-	GTNG_0015	-	cytosine deaminase
16	 50.54	0	25688..27367	+	559	138893695	dnaZX	GTNG_0016	-	DNA polymerase III subunits gamma and tau
17	 40.37	-1	27390..27716	+	108	138893696	-	GTNG_0017	-	hypothetical protein
18	 47.91	0	27726..28322	+	198	138893697	recR	GTNG_0018	-	recombination protein RecR
19	 46.22	0	28346..28570	+	74	138893698	-	GTNG_0019	-	putative cytoplasmic protein
20	 45.83	0	28649..28912	+	87	138893699	-	GTNG_0020	-	inhibitor of the pro-sigma K processing machinery
21	 38.14	-2	34706..35059	+	117	138893700	csfB	GTNG_0021	-	CsfB
22	 50.52	0	35262..36698	+	478	138893701	-	GTNG_0022	-	lysine decarboxylase-like protein
23	 50.00	0	36722..37399	+	225	138893702	tmk	GTNG_0023	-	thymidylate kinase
24	 50.45	0	37431..38423	+	330	138893703	-	GTNG_0024	-	DNA polymerase III subunit delta'
25	 47.46	0	38438..39265	+	275	138893704	-	GTNG_0025	-	Signal peptidase II
26	 46.01	0	39282..39644	+	120	138893705	-	GTNG_0026	-	DNA replication intiation control protein YabA
27	 46.13	0	39705..40454	+	249	138893706	-	GTNG_0027	-	methyltransferase
28	 50.33	0	40471..41376	+	301	138893707	-	GTNG_0028	-	Corrin/porphyrin methyltransferase
29	 44.22	0	41398..41691	-	97	138893708	-	GTNG_0029	-	transition state regulator
30	 49.00	0	42085..44037	+	650	138893709	-	GTNG_0030	-	methionine-tRNA ligase/methionyl-tRNA synthetase
31	 46.17	0	44179..44949	+	256	138893710	-	GTNG_0031	-	TatD family deoxyribonuclease
32	 47.12	0	45151..46383	+	410	138893711	-	GTNG_0032	-	hypothetical protein
33	 41.21	-1	46262..46642	+	126	138893712	-	GTNG_0033	-	hypothetical protein
34	 52.96	0	46671..47210	+	179	138893713	-	GTNG_0034	-	ribonuclease M5
35	 50.79	0	47203..48084	+	293	138893714	ksgA	GTNG_0035	-	dimethyladenosine transferase
36	 49.33	0	48178..49077	+	299	138893715	yabG	GTNG_0036	-	sporulation-specific protease YabG
37	 44.57	0	49260..49517	+	85	138893716	-	GTNG_0037	-	hypothetical protein
38	 53.33	0	49871..50050	+	59	138893717	-	GTNG_0038	-	small acid-soluble spore protein, minoralpha/beta-type SASP
39	 52.92	0	50288..51160	+	290	138893718	-	GTNG_0039	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
40	 48.48	0	51215..52039	+	274	138893719	-	GTNG_0040	-	purine operon repressor
41	 43.73	0	52092..52466	+	124	138893720	-	GTNG_0041	-	translation initiation inhibitor
42	 52.23	0	52591..52881	+	96	138893721	-	GTNG_0042	-	regulatory protein SpoVG
43	 50.72	0	53014..54393	+	459	138893722	-	GTNG_0043	-	glucosamine-1-phosphate acetyltransferase
44	 49.05	0	54406..55353	+	315	138893723	-	GTNG_0044	-	ribose-phosphate pyrophosphokinase
45	 52.45	0	55429..56061	+	210	138893724	-	GTNG_0045	-	50S ribosomal protein L25/general stress protein Ctc
46	 47.95	0	56122..56682	+	186	138893725	-	GTNG_0046	-	peptidyl-tRNA hydrolase
47	 41.56	-1	56785..57015	+	76	138893726	-	GTNG_0047	-	hypothetical protein
48	 49.26	0	57105..60638	+	1177	138893727	-	GTNG_0048	-	transcription-repair coupling factor
49	 49.35	0	60861..61397	+	178	138893728	-	GTNG_0049	-	stage V sporulation protein T
50	 52.79	0	61626..63182	+	518	138893729	-	GTNG_0050	-	stage V sporulation protein B-like protein
51	 51.40	0	63189..64649	+	486	138893730	-	GTNG_0051	-	tetrapyrrole methylase family protein, MazG family protein
52	 44.33	0	64661..64942	+	93	138893731	-	GTNG_0052	-	heat shock protein 15
53	 42.31	-1	65059..65370	+	103	138893732	-	GTNG_0053	-	hypothetical protein
54	 48.50	0	65367..65999	+	210	138893733	-	GTNG_0054	-	spore cortex biosynthesis protein
55	 44.89	0	66015..66386	+	123	138893734	-	GTNG_0055	-	cell-division initiation protein
56	 50.63	0	66507..66905	+	132	138893735	-	GTNG_0056	-	hypothetical protein
57	 48.10	0	67440..69917	+	825	138893736	-	GTNG_0057	-	Serine phosphatase
58	 53.44	0	69984..70724	+	246	138893737	-	GTNG_0058	-	hypothetical protein
59	 54.60	0	70687..71664	+	325	138893738	-	GTNG_0059	-	Serine/threonine-protein kinase
60	 49.39	0	71720..73114	+	464	138893739	mesJ	GTNG_0060	-	cell cycle protein MesJ
61	 43.59	-1	73126..73671	+	181	138893740	-	GTNG_0061	-	hypoxanthine-guanine phosphoribosyltransferase
62	 50.58	0	73766..75661	+	631	138893741	-	GTNG_0062	-	cell-division protein and general stress protein(class III heat-shock)
63	 46.72	0	75893..76669	+	258	138893742	coaA	GTNG_0063	-	pantothenate kinase
64	 51.85	0	76678..77568	+	296	138893743	hslO	GTNG_0064	-	Hsp33-like chaperonin
65	 51.78	0	77655..78581	+	308	138893744	-	GTNG_0065	-	O-acetyl-L-serine sulfhydrylase
66	 53.09	0	78696..80117	+	473	138893745	-	GTNG_0066	-	P-aminobenzoate synthase
67	 48.19	0	80120..80698	+	192	138893746	-	GTNG_0067	-	para-aminobenzoate/anthranilate synthase glutamine amidotransferase component II
68	 50.62	0	80698..81582	+	294	138893747	-	GTNG_0068	-	4-amino-4-deoxychorismate lyase
69	 50.53	0	81579..82433	+	284	138893748	-	GTNG_0069	-	dihydropteroate synthase
70	 51.54	0	82396..82785	+	129	138893749	-	GTNG_0070	-	dihydroneopterin aldolase
71	 43.94	0	82786..83313	+	175	138893750	-	GTNG_0071	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridinepyrophosphokinase
72	 48.65	0	83265..83486	+	73	138893751	-	GTNG_0072	-	Xre family transcriptional regulator
73	 49.80	0	83502..84503	+	333	138893752	-	GTNG_0073	-	nitrogen regulation transcriptional regulator
74	 47.54	0	84588..86072	+	494	138893753	lysS	GTNG_0074	-	lysyl-tRNA synthetase
75	 43.25	-1	92771..93244	+	157	138893754	-	GTNG_0075	-	transcriptional regulator
76	 48.09	0	93259..93807	+	182	138893755	-	GTNG_0076	-	ClpC ATPase
77	 49.36	0	93812..94903	+	363	138893756	-	GTNG_0077	-	ATP:guanido phosphotransferase
78	 51.56	0	94900..97335	+	811	138893757	-	GTNG_0078	-	negative regulator of genetic competence ClpC/MecB
79	 53.86	0	97410..98783	+	457	138893758	-	GTNG_0079	-	DNA repair protein RadA
80	 45.84	0	98989..100083	+	364	138893759	-	GTNG_0080	-	membrane-associated protein
81	 52.40	0	100105..100791	+	228	138893760	ispD	GTNG_0081	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
82	 53.83	0	100806..101288	+	160	138893761	ispF	GTNG_0082	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
83	 50.34	0	101498..102967	+	489	138893762	-	GTNG_0083	-	transfer RNA-Gln synthetase
84	 48.30	0	103341..104015	+	224	138893763	-	GTNG_0084	-	Serine acetyltransferase
85	 49.50	0	103993..105396	+	467	138893764	cysS	GTNG_0085	-	cysteinyl-tRNA synthetase
86	 53.03	0	105427..105822	+	131	138893765	-	GTNG_0086	-	hypothetical protein
87	 57.22	+1	105819..106559	+	246	138893766	-	GTNG_0087	-	23S rRNA methyltransferase
88	 44.83	0	106563..107075	+	170	138893767	-	GTNG_0088	-	putative cytoplasmic protein
89	 46.70	0	107145..107795	+	216	138893768	-	GTNG_0089	-	RNA polymerase factor sigma-70
90	 50.67	0	107902..108051	+	49	138893769	rpmG	GTNG_0090	-	50S ribosomal protein L33
91	 44.26	0	108092..108274	+	60	138893770	secE	GTNG_0091	-	preprotein translocase subunit SecE
92	 45.51	0	108382..108915	+	177	138893771	nusG	GTNG_0092	-	transcription antitermination protein NusG
93	 50.23	0	109156..109581	+	141	138893772	rplK	GTNG_0093	-	50S ribosomal protein L11
94	 47.44	0	109784..110485	+	233	138893773	rplA	GTNG_0094	-	50S ribosomal protein L1
95	 52.69	0	110736..111236	+	166	138893774	-	GTNG_0095	-	ribosomal protein L10
96	 41.94	-1	111284..111655	+	123	138893775	rplL	GTNG_0096	-	50S ribosomal protein L7/L12
97	 49.09	0	111761..112363	+	200	138893776	-	GTNG_0097	-	16S rRNA m(2)G 1207 methyltransferase
98	 50.52	0	112769..116341	+	1190	138893777	rpoB	GTNG_0098	-	DNA-directed RNA polymerase subunit beta
99	 52.49	0	116399..120052	+	1217	138893778	-	GTNG_0099	-	DNA-directed RNA polymerase subunit beta'
100	 46.99	0	120189..120437	+	82	138893779	-	GTNG_0100	-	50S ribosomal protein L7AE
49.23	MEAN

5.50	STD DEV
