IslandPath Analysis: Geobacter bemidjiensis Bem

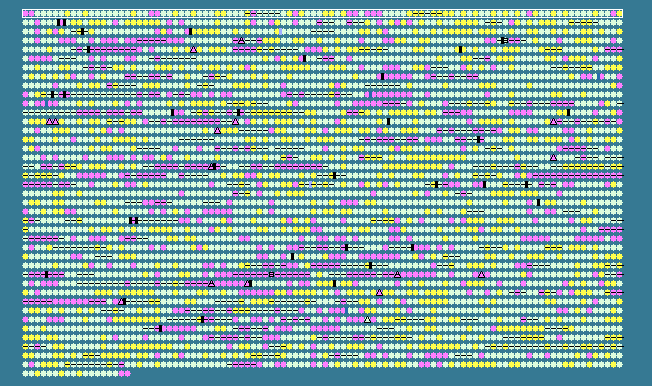

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 60.32   STD DEV: 4.83
Geobacter bemidjiensis Bem, complete genome - 1..4615150
4018 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 53.23	-1	166..1542	+	458	197116403	-	Gbem_0001	-	chromosomal replication initiator protein DnaA
2	 53.80	-1	1757..2875	+	372	197116404	-	Gbem_0002	-	DNA polymerase III, beta subunit
3	 58.45	0	3017..4111	+	364	197116405	-	Gbem_0003	-	DNA replication and repair protein RecF
4	 60.14	0	4120..6510	+	796	197116406	-	Gbem_0004	-	DNA gyrase, B subunit
5	 60.81	0	6866..9376	+	836	197116407	-	Gbem_0005	-	DNA gyrase, A subunit
6	 63.39	0	11070..12077	+	335	197116408	-	Gbem_0008	-	NAD-dependent glycerol-3-phosphate dehydrogenase domain protein
7	 60.79	0	12272..14536	+	754	197116409	-	Gbem_0009	-	multi-sensor signal transduction histidine kinase
8	 64.71	0	14523..16058	+	511	197116410	-	Gbem_0010	-	multi-sensor signal transduction histidine kinase
9	 62.94	0	16365..17357	+	330	197116411	-	Gbem_0011	-	histidine kinase
10	 62.29	0	17567..19714	+	715	197116412	-	Gbem_0012	-	multi-sensor signal transduction histidine kinase
11	 64.08	0	19747..20673	+	308	197116413	-	Gbem_0013	-	daunorubicin resistance ABC transporter ATPase subunit
12	 60.19	0	20695..21450	+	251	197116414	-	Gbem_0014	-	ABC-2 type transporter
13	 60.54	0	21667..22743	+	358	197116415	-	Gbem_0015	-	Radical SAM domain protein
14	 62.75	0	22877..23896	+	339	197116416	-	Gbem_0016	-	uroporphyrinogen decarboxylase
15	 58.81	0	24012..24965	+	317	197116417	-	Gbem_0017	-	magnesium and cobalt transport protein CorA
16	 63.33	0	25221..26090	+	289	197116418	-	Gbem_0018	-	histidine kinase
17	 59.93	0	26173..26454	+	93	197116419	-	Gbem_0019	-	Excinuclease ABC C subunit domain protein
18	 60.21	0	26479..27516	-	345	197116420	-	Gbem_0020	-	Di-haem cytochrome c peroxidase
19	 66.17	+1	27683..29092	-	469	197116421	-	Gbem_0021	-	glutamate synthase (NADPH), homotetrameric
20	 62.78	0	29089..29937	-	282	197116422	-	Gbem_0022	-	oxidoreductase FAD/NAD(P)-binding domain protein
21	 60.96	0	30217..31092	-	291	197116423	-	Gbem_0023	-	protein of unknown function DUF6 transmembrane
22	 48.15	-2	31125..31448	-	107	197116424	-	Gbem_0024	-	transcriptional modulator of MazE/toxin, MazF
23	 50.20	-2	31442..31696	-	84	197116425	-	Gbem_0025	-	transcriptional regulator/antitoxin, MazE
24	 62.28	0	31964..32806	-	280	197116426	-	Gbem_0026	-	oxidoreductase FAD/NAD(P)-binding domain protein
25	 60.93	0	32984..33994	-	336	197116427	-	Gbem_0027	-	4Fe-4S ferredoxin iron-sulfur binding domain protein
26	 64.55	0	34153..35097	-	314	197116428	-	Gbem_0028	-	4Fe-4S ferredoxin iron-sulfur binding domain protein
27	 63.45	0	35094..35621	-	175	197116429	-	Gbem_0029	-	methyl-viologen-reducing hydrogenase delta subunit
28	 63.21	0	35773..37770	-	665	197116430	-	Gbem_0030	-	4Fe-4S ferredoxin iron-sulfur binding domain protein
29	 64.26	0	37804..38757	-	317	197116431	-	Gbem_0031	-	protein of unknown function DUF224 cysteine-rich region domain protein
30	 60.85	0	38754..39338	-	194	197116432	-	Gbem_0032	-	heterodisulfide reductase subunit
31	 63.80	0	39897..41606	+	569	197116433	-	Gbem_0033	-	ABC transporter related protein
32	 63.58	0	41608..43419	+	603	197116434	-	Gbem_0034	-	ABC transporter related protein
33	 64.89	0	43462..45372	+	636	197116435	-	Gbem_0035	-	selenocysteine-specific translation elongation factor
34	 63.95	0	45505..47454	-	649	197116436	-	Gbem_0036	-	hypothetical protein
35	 61.66	0	47484..48302	-	272	197116437	-	Gbem_0037	-	ATPase associated with various cellular activities AAA_5
36	 58.33	0	48450..48629	-	59	197116438	-	Gbem_0038	-	hypothetical protein
37	 61.22	0	48629..49582	-	317	197116439	-	Gbem_0039	-	ferrochelatase
38	 63.89	0	49794..51341	-	515	197116440	-	Gbem_0040	-	methyl-accepting chemotaxis sensory transducer
39	 52.91	-1	51529..51717	-	62	197116441	-	Gbem_0041	-	hypothetical protein
40	 62.09	0	51985..52815	+	276	197116442	-	Gbem_0042	-	hypothetical protein
41	 61.85	0	52879..54498	+	539	197116443	-	Gbem_0043	-	cytochrome c oxidase, subunit I
42	 57.00	0	54495..55094	+	199	197116444	-	Gbem_0044	-	cytochrome c oxidase subunit III
43	 59.93	0	55211..55492	+	93	197116445	-	Gbem_0045	-	caa(3)-type oxidase, subunit IV
44	 60.82	0	55502..56407	+	301	197116446	-	Gbem_0046	-	cytochrome c oxidase, subunit II
45	 66.92	+1	56446..57222	+	258	197116447	-	Gbem_0047	-	UbiA prenyltransferase
46	 53.85	-1	57239..57433	+	64	197116448	-	Gbem_0048	-	hypothetical protein
47	 64.82	0	57638..58828	-	396	197116449	-	Gbem_0049	-	pyridoxal phosphate-dependent acyltransferase
48	 62.84	0	58851..59894	-	347	197116450	-	Gbem_0050	-	L-threonine 3-dehydrogenase
49	 57.78	0	60050..60229	+	59	197116451	-	Gbem_0051	-	hypothetical protein
50	 61.80	0	60472..63636	+	1054	197116452	-	Gbem_0052	-	multi-sensor hybrid histidine kinase
51	 64.67	0	63912..64913	+	333	197116453	-	Gbem_0053	-	OmpA/MotB domain protein
52	 64.09	0	65087..66094	-	335	197116454	-	Gbem_0054	-	peptidase M28
53	 61.97	0	66327..68432	+	701	197116455	-	Gbem_0055	-	protein of unknown function DUF323
54	 65.46	+1	68429..69586	+	385	197116456	-	Gbem_0056	-	aminotransferase class I and II
55	 55.66	0	69610..70254	+	214	197116457	-	Gbem_0057	-	hypothetical protein
56	 51.75	-1	70364..71047	-	227	197116458	-	Gbem_0058	-	RES domain protein
57	 57.11	0	71047..71454	-	135	197116459	-	Gbem_0059	-	hypothetical protein
58	 40.76	-2	72062..72829	-	255	197116460	-	Gbem_0060	-	hypothetical protein
59	 42.91	-2	73065..73868	-	267	197116461	-	Gbem_0061	-	FRG domain protein
60	 41.27	-2	73976..74794	-	272	197116462	-	Gbem_0062	-	Tetratricopeptide TPR_2 repeat protein
61	 62.35	0	74971..78072	-	1033	197116463	-	Gbem_0063	-	acriflavin resistance protein
62	 62.08	0	78069..79202	-	377	197116464	-	Gbem_0064	-	efflux transporter, RND family, MFP subunit
63	 61.66	0	79674..81410	-	578	197116465	-	Gbem_0065	-	histidine kinase
64	 61.54	0	81597..82259	+	220	197116466	-	Gbem_0066	-	transcriptional regulator, Crp/Fnr family
65	 66.27	+1	82695..83693	+	332	197116467	-	Gbem_0067	-	NADH ubiquinone oxidoreductase 20 kDa subunit
66	 67.80	+1	83690..84217	+	175	197116468	-	Gbem_0068	-	NADH dehydrogenase (ubiquinone) 30 kDa subunit
67	 67.13	+1	84214..85293	+	359	197116469	-	Gbem_0069	-	NADH-ubiquinone oxidoreductase chain 49kDa
68	 62.93	0	85302..85676	+	124	197116470	-	Gbem_0070	-	hydrogenase nickel insertion protein HypA
69	 65.79	+1	85657..86226	+	189	197116471	-	Gbem_0071	-	4Fe-4S ferredoxin iron-sulfur binding domain protein
70	 65.93	+1	86223..88130	+	635	197116472	-	Gbem_0072	-	carbon-monoxide dehydrogenase, catalytic subunit
71	 65.00	0	88176..88295	+	39	197116473	-	Gbem_0073	-	hypothetical protein
72	 68.47	+1	88292..89068	+	258	197116474	-	Gbem_0074	-	Cobyrinic acid ac-diamide synthase
73	 60.23	0	89459..90142	+	227	197116475	-	Gbem_0075	-	response regulator receiver modulated PilZ sensor protein
74	 64.07	0	90435..92633	+	732	197116476	-	Gbem_0076	-	UvrD/REP helicase
75	 63.28	0	92690..93427	+	245	197116477	-	Gbem_0077	-	hypothetical protein
76	 66.57	+1	93585..94586	+	333	197116478	-	Gbem_0078	-	4-hydroxythreonine-4-phosphate dehydrogenase
77	 62.81	0	94612..95571	+	319	197116479	-	Gbem_0079	-	glycosyl transferase family 51
78	 61.17	0	95859..96932	+	357	197116480	-	Gbem_0080	-	response regulator receiver modulated metal dependent phosphohydrolase
79	 64.14	0	96951..99365	+	804	197116481	-	Gbem_0081	-	diguanylate cyclase with PAS/PAC sensor
80	 62.89	0	99397..100401	-	334	197116482	-	Gbem_0082	-	thiamine biosynthesis protein
81	 64.26	0	101019..102677	+	552	197116483	-	Gbem_0083	-	General secretory system II protein E domain protein
82	 63.04	0	102690..103763	+	357	197116484	-	Gbem_0084	-	twitching motility protein
83	 67.26	+1	103767..104936	+	389	197116485	-	Gbem_0085	-	aminotransferase class I and II
84	 62.98	0	105215..106054	-	279	197116486	-	Gbem_0086	-	alpha/beta hydrolase fold
85	 55.71	0	106490..106708	+	72	197116487	-	Gbem_0087	-	hypothetical protein
86	 64.15	0	106762..110661	+	1299	197116488	-	Gbem_0088	-	multicopper oxidase type 2
87	 61.64	0	110803..111777	-	324	197116489	-	Gbem_0089	-	Rhodanese domain protein
88	 62.40	0	112025..113854	-	609	197116490	-	Gbem_0090	-	glucosamine--fructose-6-phosphate aminotransferase, isomerizing
89	 64.20	0	113940..115316	-	458	197116491	-	Gbem_0091	-	UDP-N-acetylglucosamine pyrophosphorylase
90	 58.29	0	115466..116026	+	186	197116492	-	Gbem_0092	-	hypothetical protein
91	 66.46	+1	116023..117495	+	490	197116493	-	Gbem_0093	-	Radical SAM domain protein
92	 63.64	0	117710..117874	+	54	197116494	-	Gbem_0094	-	hypothetical protein
93	 60.18	0	118311..120161	+	616	197116495	-	Gbem_0095	-	hypothetical protein
94	 62.91	0	120264..121301	-	345	197116496	-	Gbem_0096	-	guanosine monophosphate reductase
95	 62.98	0	121535..122782	+	415	197116497	-	Gbem_0097	-	major facilitator superfamily MFS_1
96	 65.20	+1	122824..123849	-	341	197116498	-	Gbem_0098	-	dihydrouridine synthase DuS
97	 60.77	0	123930..124421	-	163	197116499	-	Gbem_0099	-	peptidylprolyl isomerase FKBP-type
98	 57.41	0	124578..124793	+	71	197116500	-	Gbem_0100	-	hypothetical protein
99	 56.25	0	124808..125287	-	159	197116501	-	Gbem_0101	-	hypothetical protein
100	 64.66	0	125570..126217	+	215	197116502	-	Gbem_0102	-	protein of unknown function DUF480
60.32	MEAN

4.83	STD DEV
