IslandPath Analysis: Francisella tularensis subsp. tularensis WY96-3418

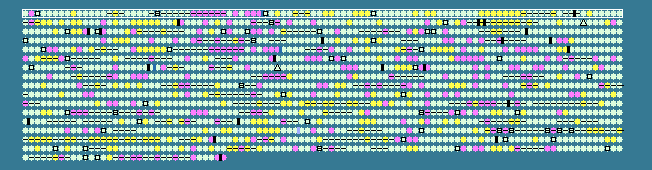

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 32.58   STD DEV: 3.43
Francisella tularensis subsp. tularensis WY96-3418, complete genome - 1..1898476
1634 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 31.17	0	46..1521	+	491	134301170	dnaA	FTW_0001	-	chromosomal replication initiator protein DnaA
2	 27.81	-1	1558..2661	+	367	134301171	dnaN	FTW_0002	-	DNA polymerase III, beta subunit
3	 31.10	0	3108..3988	-	293	134301172	-	FTW_0004	-	transposase ISFtu1
4	 32.06	0	4789..5181	+	130	134301173	-	FTW_0007	-	lipoprotein
5	 32.85	0	5202..5612	+	136	134301174	-	FTW_0008	-	hypothetical protein
6	 29.57	0	5615..6013	+	132	134301175	-	FTW_0009	-	hypothetical protein
7	 35.94	0	6084..7502	+	472	134301176	clcA	FTW_0010	-	chloride channel protein
8	 31.02	0	7519..8943	+	474	134301177	-	FTW_0011	-	metallocarboxypeptidase
9	 39.55	+2	9030..10220	+	396	134301178	trpB	FTW_0012	-	tryptophan synthase subunit beta
10	 35.43	0	10220..11029	+	269	134301179	trpA	FTW_0013	-	tryptophan synthase subunit alpha
11	 29.94	0	11084..11437	-	117	134301180	-	FTW_0014	-	hypothetical protein
12	 35.85	0	12455..15034	+	859	134301181	clpB	FTW_0017	-	AAA ATPase family protein
13	 35.66	0	17532..18692	+	386	134301182	purT	FTW_0020	-	phosphoribosylglycinamide formyltransferase 2
14	 33.18	0	18694..19350	-	218	134301183	-	FTW_0021	-	O-methyltransferase family protein
15	 31.31	0	19428..20069	-	213	134301184	-	FTW_0022	-	hypothetical protein
16	 37.04	+1	20301..20624	+	107	134301185	-	FTW_0023	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
17	 33.73	0	20787..21539	+	250	134301186	-	FTW_0024	-	acetyltransferase protein
18	 34.82	0	21553..22293	+	246	134301187	-	FTW_0025	-	acetyltransferase protein
19	 29.86	0	22299..23018	-	239	134301188	-	FTW_0026	-	hypothetical protein
20	 32.90	0	23083..24234	-	383	134301189	nhaA	FTW_0027	-	Na+/H+ antiporter NhaA
21	 33.11	0	24328..25224	+	298	134301190	-	FTW_0028	-	Rieske (2Fe-2S) domain-containing protein
22	 32.75	0	25290..25799	+	169	134301191	-	FTW_0029	-	putative B-type cytochrome subunit
23	 31.10	0	27236..28116	+	293	134301192	-	FTW_0033	-	transposase ISFtu1
24	 30.16	0	30375..33962	+	1195	134301193	pdpD1	FTW_0037	-	pathogenicity determinant protein D, pdpD
25	 32.25	0	34043..34597	+	184	134301194	iglA1	FTW_0038	-	intracellular growth locus, igl A
26	 31.16	0	34611..36131	+	506	134301195	iglB1	FTW_0039	-	intracellular growth locus B, IglB
27	 34.43	0	36142..36777	+	211	134301196	iglC1	FTW_0040	-	intracellular growth locus iglC
28	 29.32	0	36798..37994	+	398	134301197	iglD1	FTW_0041	-	intracellular growth locus iglD
29	 24.83	-2	38001..38576	-	191	134301198	-	FTW_0042	-	hypothetical protein
30	 26.41	-1	38594..42580	-	1328	134301199	pdpC1	FTW_0043	-	pathogenicity determinant protein pdpC
31	 23.71	-2	42620..43336	-	238	134301200	-	FTW_0044	-	hypothetical protein
32	 25.95	-1	43359..44510	-	383	134301201	-	FTW_0045	-	hypothetical protein
33	 28.04	-1	44532..45155	-	207	134301202	-	FTW_0046	-	hypothetical protein
34	 26.28	-1	45168..46598	-	476	134301203	-	FTW_0047	-	hypothetical protein
35	 33.33	0	46611..47132	-	173	134301204	-	FTW_0048	-	hypothetical protein
36	 24.32	-2	47133..48863	-	576	134301205	-	FTW_0049	-	hypothetical protein
37	 30.30	0	48868..49362	-	164	134301206	-	FTW_0050	-	hypothetical protein
38	 23.54	-2	49375..49752	-	125	134301207	-	FTW_0051	-	lipoprotein
39	 26.26	-1	49742..53023	-	1093	134301208	pdpB1	FTW_0052	-	pathogenicity deteminant protein pdpB1
40	 27.04	-1	53028..55490	-	820	134301209	pdpA1	FTW_0053	-	pathogenicity deteminant protein pdpA1
41	 30.99	0	61855..62735	+	293	134301210	-	FTW_0056	-	transposase ISFtu1
42	 33.33	0	63486..65207	+	573	134301211	kdpA	FTW_0059	-	potassium-transporting ATPase subunit A
43	 36.13	+1	65217..67256	+	679	134301212	kdpB	FTW_0060	-	K+-transporting ATPase, B subunit
44	 33.69	0	67273..67827	+	184	134301213	kdpC	FTW_0061	-	potassium-transporting ATPase C chain
45	 33.11	0	67931..70612	+	893	134301214	kdpD	FTW_0062	-	two component sensor protein KdpD
46	 41.46	+2	71556..72035	+	159	134301215	-	FTW_0064	-	hypothetical protein
47	 32.00	0	72482..73678	+	398	134301216	-	FTW_0065	-	tryptophan/tyrosine permease family protein
48	 37.21	+1	73754..74758	+	334	134301217	obgE	FTW_0066	-	GTPase ObgE
49	 33.07	0	74765..76639	+	624	134301218	-	FTW_0067	-	amino acid transporter
50	 35.15	0	78291..79718	-	475	134301219	nhaD	FTW_0070	-	Na+/H+ antiporter
51	 36.21	+1	79893..81074	+	393	134301220	-	FTW_0071	-	major facilitator superfamily multidrug resistance protein
52	 36.94	+1	81115..82446	-	443	134301221	-	FTW_0072	-	peptidase, U32 family protein
53	 33.66	0	82766..83386	+	206	134301222	-	FTW_0073	-	putative protein-L-isoaspartate O-methyltransferase
54	 36.01	+1	83395..84924	+	509	134301223	-	FTW_0074	-	TolC family outer membrane efflux protein
55	 31.62	0	84933..85574	+	213	134301224	-	FTW_0075	-	4'-phosphopantetheinyl transferase family protein
56	 37.56	+1	85585..86931	+	448	134301225	-	FTW_0076	-	glutamate decarboxylase
57	 36.89	+1	87025..88515	+	496	134301226	purF	FTW_0077	-	amidophosphoribosyltransferase
58	 39.12	+1	88515..92387	+	1290	134301227	purL	FTW_0078	-	phosphoribosylformylglycinamidine synthase
59	 30.99	0	92947..93827	+	293	134301228	-	FTW_0081	-	transposase ISFtu1
60	 33.69	0	95466..96305	+	279	134301229	-	FTW_0086	-	aldose 1-epimerase family protein
61	 30.43	0	96279..97106	-	275	134301230	-	FTW_0087	-	hypothetical protein
62	 33.33	0	97349..97747	-	132	134301231	-	FTW_0088	-	hypothetical protein
63	 35.49	0	98075..99373	+	432	134301232	purB	FTW_0089	-	adenylosuccinate lyase
64	 30.92	0	99407..99985	+	192	134301233	-	FTW_0090	-	hypothetical protein
65	 29.25	0	100072..101613	+	513	134301234	-	FTW_0091	-	antibiotic ABC transporter
66	 36.79	+1	101624..102694	+	356	134301235	-	FTW_0092	-	membrane fusion protein
67	 31.91	0	102777..103058	+	93	134301236	gatC	FTW_0093	-	Glu-tRNAGln amidotransferase C subunit
68	 37.48	+1	103067..104512	+	481	134301237	-	FTW_0094	-	glutamyl-tRNA(Gln) and/or aspartyl-tRNA(Asn) amidotransferase, A subunit
69	 36.92	+1	104515..105936	+	473	134301238	gatB	FTW_0095	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
70	 30.64	0	105951..106358	+	135	134301239	-	FTW_0096	-	hypothetical protein
71	 34.05	0	107913..109442	-	509	134301240	-	FTW_0100	-	hypothetical protein
72	 33.92	0	109528..110718	-	396	134301241	figD	FTW_0101	-	major facilitator transporter
73	 32.78	0	110734..111987	-	417	134301242	figC	FTW_0102	-	diaminopimelate decarboxylase
74	 31.04	0	111980..113242	-	420	134301243	figB	FTW_0103	-	major facilitator transporter
75	 32.50	0	113249..115168	-	639	134301244	figA	FTW_0104	-	IucA/IucC family siderophore biosynthesis protein
76	 32.86	0	115423..115845	-	140	134301245	fur	FTW_0105	-	ferric uptake regulation protein
77	 36.34	+1	116054..116452	+	132	134301246	nuoA	FTW_0106	-	NADH dehydrogenase I, A subunit
78	 43.61	+2	116443..116919	+	158	134301247	nuoB	FTW_0107	-	NADH dehydrogenase subunit B
79	 36.43	+1	116922..117566	+	214	134301248	nuoC	FTW_0108	-	NADH dehydrogenase I subunit C
80	 38.84	+1	117588..118841	+	417	134301249	nuoD	FTW_0109	-	NADH dehydrogenase subunit D
81	 36.20	+1	118851..119339	+	162	134301250	nuoE	FTW_0110	-	NADH dehydrogenase I, E subunit
82	 40.16	+2	119346..120620	+	424	134301251	nuoF	FTW_0111	-	NADH dehydrogenase I subunit F
83	 36.46	+1	120638..123004	+	788	134301252	nuoG	FTW_0112	-	NADH dehydrogenase subunit G
84	 36.50	+1	123006..124016	+	336	134301253	nuoH	FTW_0113	-	NADH dehydrogenase I, H subunit
85	 35.17	0	124030..124518	+	162	134301254	nuoI	FTW_0114	-	NADH dehydrogenase subunit I
86	 34.98	0	124523..125128	+	201	134301255	nuoJ	FTW_0115	-	NADH dehydrogenase I, J subunit
87	 32.08	0	125121..125438	+	105	134301256	nuoK	FTW_0116	-	NADH dehydrogenase I subunit K
88	 34.98	0	125448..127457	+	669	134301257	nuoL	FTW_0117	-	NADH dehydrogenase I, L subunit
89	 36.29	+1	127483..129072	+	529	134301258	nuoM	FTW_0118	-	NADH dehydrogenase I, M subunit
90	 35.47	0	129088..130539	+	483	134301259	nuoN	FTW_0119	-	NADH dehydrogenase I, subunit N
91	 30.77	0	130615..130809	+	64	134301260	-	FTW_0120	-	hypothetical protein
92	 35.75	0	132372..133406	+	344	134301261	hemE	FTW_0123	-	uroporphyrinogen decarboxylase
93	 35.32	0	133632..134084	+	150	134301262	-	FTW_0124	-	hypothetical protein
94	 34.42	0	134102..135571	+	489	134301263	nusA	FTW_0125	-	transcription elongation factor NusA
95	 38.03	+1	135610..138141	+	843	134301264	infB	FTW_0126	-	translation initiation factor IF-2
96	 32.41	0	138144..138575	+	143	134301265	rbfA	FTW_0127	-	ribosome-binding factor A
97	 34.68	0	138583..139848	+	421	134301266	hisS	FTW_0128	-	histidyl-tRNA synthetase
98	 34.03	0	139855..141153	+	432	134301267	-	FTW_0129	-	major facilitator transporter
99	 29.68	0	141156..142223	+	355	134301268	-	FTW_0130	-	AFG1 family ATPase
100	 34.09	0	142216..143145	+	309	134301269	rluC	FTW_0131	-	ribosomal large subunit pseudouridine synthase C
32.58	MEAN

3.43	STD DEV
