IslandPath Analysis: Francisella novicida U112

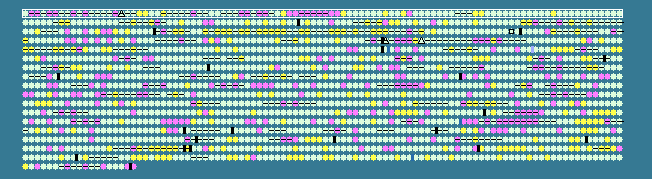

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 32.83   STD DEV: 3.29
Francisella tularensis subsp. novicida U112, complete genome - 1..1910031
1719 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 31.03	0	145..1620	+	491	118496616	dnaA	FTN_0001	-	chromosomal replication initiator protein
2	 27.81	-1	1657..2760	+	367	118496617	dnaN	FTN_0002	-	DNA polymerase III, beta subunit
3	 28.23	-1	2791..4044	-	417	118496618	-	FTN_0003	-	metabolite:H+ symporter (MHS) family protein
4	 30.97	0	4244..5767	+	507	118496619	-	FTN_0004	-	aspartate/glutamate transporter
5	 28.40	-1	5832..6803	+	323	118496620	corA	FTN_0005	-	divalent inorganic cation transporter
6	 26.50	-1	6816..7283	-	155	118496621	-	FTN_0006	-	hypothetical protein
7	 31.13	0	7361..7678	-	105	118496622	-	FTN_0007	-	hypothetical protein
8	 30.13	0	7768..8640	-	290	118496623	-	FTN_0008	-	10 TMS drug/metabolite exporter protein
9	 27.87	-1	8784..8966	+	60	118496624	-	FTN_0009	-	hypothetical protein
10	 31.95	0	9372..9806	-	144	118496625	-	FTN_0010	-	phage terminase, small subunit
11	 25.00	-2	10041..10220	-	59	118496626	-	FTN_0011	-	hypothetical protein
12	 33.33	0	10217..10438	-	73	118496627	-	FTN_0012	-	hypothetical protein
13	 34.67	0	10936..11835	-	299	118496628	-	FTN_0013	-	hypothetical protein
14	 29.77	0	11832..12728	-	298	118496629	-	FTN_0014	-	hypothetical protein
15	 35.00	0	12732..12911	-	59	118496630	-	FTN_0015	-	AlpA family regulatory protein
16	 24.89	-2	13107..13781	-	224	118496631	-	FTN_0016	-	hypothetical protein
17	 31.08	0	13786..15027	-	413	118496632	-	FTN_0017	-	phage integrase
18	 30.47	0	15685..16908	-	407	118496633	sdaC	FTN_0018	-	serine permease
19	 33.12	0	17049..17975	-	308	118496634	pyrB	FTN_0019	-	aspartate carbamoyltransferase
20	 36.59	+1	18117..21401	-	1094	118496635	carB	FTN_0020	-	carbamoyl phosphate synthase large subunit
21	 37.62	+1	21406..22572	-	388	118496636	carA	FTN_0021	-	carbamoyl phosphate synthase small subunit
22	 34.56	0	22992..24047	+	351	118496637	-	FTN_0022	-	histidine acid phosphatase
23	 31.28	0	24068..24748	-	226	118496638	tmpT	FTN_0023	-	thiopurine S-methyltransferase
24	 38.08	+1	24880..26226	+	448	118496639	pyrC	FTN_0024	-	dihydroorotase
25	 29.76	0	26210..26797	-	195	118496640	-	FTN_0025	-	hypothetical protein
26	 32.16	0	27076..27330	+	84	118496641	-	FTN_0026	-	hypothetical protein
27	 31.88	0	28044..28595	+	183	118496642	-	FTN_0027	-	hypothetical protein
28	 31.15	0	28711..29763	-	350	118496643	-	FTN_0028	-	hypothetical protein
29	 28.26	-1	29750..30715	-	321	118496644	-	FTN_0029	-	HlyD family membrane fusion protein
30	 29.41	-1	30802..31209	-	135	118496645	-	FTN_0030	-	hypothetical protein
31	 31.26	0	31335..32204	+	289	118496646	-	FTN_0031	-	LysR family transcriptional regulator
32	 33.97	0	32205..32831	-	208	118496647	-	FTN_0032	-	hypothetical protein
33	 31.88	0	32974..33522	+	182	118496648	-	FTN_0033	-	chorismate mutase
34	 35.73	0	33577..36951	-	1124	118496649	-	FTN_0034	-	hypothetical protein
35	 35.35	0	37218..37862	+	214	118496650	pyrF	FTN_0035	-	orotidine-5'-phosphate decarboxylase
36	 33.87	0	37864..38604	+	246	118496651	pyrD	FTN_0036	-	dihydroorotate oxidase
37	 24.06	-2	40003..40347	-	114	118496652	-	FTN_0037	-	hypothetical protein
38	 24.21	-2	40366..40650	-	94	118496653	-	FTN_0038	-	hypothetical protein
39	 32.39	0	40653..41078	-	141	118496654	-	FTN_0039	-	hypothetical protein
40	 25.59	-2	41093..44347	-	1084	118496655	-	FTN_0040	-	hypothetical protein
41	 28.64	-1	44366..46582	-	738	118496656	-	FTN_0041	-	hypothetical protein
42	 35.84	0	46882..47439	+	185	118496657	-	FTN_0042	-	hypothetical protein
43	 35.03	0	47436..48968	+	510	118496658	-	FTN_0043	-	hypothetical protein
44	 37.81	+1	49002..49649	+	215	118496659	-	FTN_0044	-	hypothetical protein
45	 27.87	-1	49665..50744	+	359	118496660	-	FTN_0045	-	hypothetical protein
46	 29.24	-1	50758..53736	+	992	118496661	-	FTN_0046	-	hypothetical protein
47	 26.93	-1	53754..57530	+	1258	118496662	-	FTN_0047	-	hypothetical protein
48	 29.24	-1	57540..58760	+	406	118496663	-	FTN_0048	-	hypothetical protein
49	 27.64	-1	58770..59594	+	274	118496664	-	FTN_0049	-	hypothetical protein
50	 27.89	-1	59569..61092	+	507	118496665	-	FTN_0050	-	hypothetical protein
51	 28.57	-1	61102..61710	+	202	118496666	-	FTN_0051	-	hypothetical protein
52	 25.05	-2	61717..63780	+	687	118496667	-	FTN_0052	-	hypothetical protein
53	 26.73	-1	63789..64394	+	201	118496668	-	FTN_0053	-	hypothetical protein
54	 38.85	+1	64387..64767	+	126	118496669	-	FTN_0054	-	hypothetical protein
55	 33.69	0	64847..65683	-	278	118496670	tyrA	FTN_0055	-	prephenate dehydrogenase
56	 31.28	0	65951..66388	-	145	118496671	dtd	FTN_0056	-	D-tyrosyl-tRNA deacylase
57	 33.82	0	66662..67894	-	410	118496672	-	FTN_0057	-	major facilitator transporter
58	 31.24	0	67913..69628	-	571	118496673	-	FTN_0058	-	beta-fructofuranosidase
59	 33.98	0	69704..70783	-	359	118496674	leuB	FTN_0059	-	3-isopropylmalate dehydrogenase
60	 32.46	0	70785..71354	-	189	118496675	leuD	FTN_0060	-	isopropylmalate isomerase small subunit
61	 36.81	+1	71357..72766	-	469	118496676	leuC	FTN_0061	-	isopropylmalate isomerase large subunit
62	 34.35	0	72768..74348	-	526	118496677	leuA	FTN_0062	-	2-isopropylmalate synthase
63	 33.33	0	74359..75246	-	295	118496678	ilvE	FTN_0063	-	branched-chain amino acid aminotransferase protein (class IV)
64	 36.90	+1	75645..78278	-	877	118496679	ppdK	FTN_0064	-	pyruvate phosphate dikinase
65	 29.21	-1	78555..78869	-	104	118496680	-	FTN_0065	-	hypothetical protein
66	 33.78	0	79068..81317	-	749	118496681	feoB	FTN_0066	-	ferrous iron transport protein B
67	 30.73	0	81418..82032	-	204	118496682	-	FTN_0067	-	hypothetical protein
68	 34.08	0	82047..82583	-	178	118496683	orn	FTN_0068	-	oligoribonuclease
69	 35.61	0	82586..83155	-	189	118496684	efp	FTN_0069	-	elongation factor P
70	 36.27	+1	83196..83603	-	135	118496685	pilE	FTN_0070	-	Type IV pili, pilus assembly protein
71	 33.98	0	83616..84539	-	307	118496686	-	FTN_0071	-	LPS fatty acid acyltransferase
72	 33.33	0	84600..85499	-	299	118496687	-	FTN_0072	-	LPS fatty acid acyltransferase
73	 33.88	0	85506..87161	-	551	118496688	-	FTN_0073	-	membrane protein of unknown function
74	 34.54	0	87170..87418	-	82	118496689	-	FTN_0074	-	hypothetical protein
75	 29.94	0	87394..87747	-	117	118496690	rnpA	FTN_0075	-	ribonuclease P protein component
76	 37.78	+1	87737..87871	-	44	118496691	rpmH	FTN_0076	-	50S ribosomal protein L34
77	 39.22	+1	87963..88421	-	152	118496692	-	FTN_0077	-	hypothetical protein
78	 35.27	0	88548..89321	+	257	118496693	aroE	FTN_0078	-	shikimate 5-dehydrogenase
79	 34.14	0	89393..90748	+	451	118496694	murC	FTN_0079	-	UDP-N-acetylmuramate-alanine ligase
80	 34.14	0	90741..91613	+	290	118496695	-	FTN_0080	-	SAM-dependent methyltransferase
81	 31.43	0	91624..92358	-	244	118496696	-	FTN_0081	-	hypothetical protein
82	 34.40	0	92435..92998	+	187	118496697	-	FTN_0082	-	HAD superfamily hydrolase
83	 32.94	0	93070..93828	+	252	118496698	-	FTN_0083	-	hypothetical protein
84	 31.47	0	93832..96573	+	913	118496699	-	FTN_0084	-	DNA/RNA helicase
85	 34.89	0	96649..97485	+	278	118496700	uspA	FTN_0085	-	universal stress protein
86	 34.07	0	97601..98830	+	409	118496701	-	FTN_0086	-	metabolite:H+ symporter (MHS) family protein
87	 32.04	0	98862..99479	+	205	118496702	-	FTN_0087	-	allophanate hydrolase subunit 1
88	 34.33	0	99479..100177	+	232	118496703	-	FTN_0088	-	hypothetical protein
89	 36.90	+1	100182..100994	+	270	118496704	-	FTN_0089	-	hydrolase subunit
90	 34.24	0	101001..102545	-	514	118496705	-	FTN_0090	-	acid phosphatase
91	 31.05	0	102854..103510	+	218	118496706	-	FTN_0091	-	hypothetical protein
92	 35.74	0	103528..104523	+	331	118496707	-	FTN_0092	-	inorganic phosphate transporter (PiT) family protein
93	 30.43	0	104604..105119	+	171	118496708	-	FTN_0093	-	cytochrome b561 family protein
94	 30.17	0	105126..106073	-	315	118496709	-	FTN_0094	-	LysR family transcriptional regulator
95	 34.98	0	106142..106807	-	221	118496710	-	FTN_0095	-	nitroreductase
96	 33.62	0	107210..107902	+	230	118496711	-	FTN_0096	-	hypothetical protein
97	 33.42	0	107899..109104	-	401	118496712	-	FTN_0097	-	hydroxy/aromatic amino acid permease (HAAAP) family protein
98	 31.72	0	109204..109821	+	205	118496713	gidB	FTN_0098	-	glucose-inhibited cell division protein
99	 34.08	0	109818..110486	+	222	118496714	-	FTN_0099	-	hypothetical protein
100	 30.97	0	110479..111495	-	338	118496715	-	FTN_0100	-	hypothetical protein
32.83	MEAN

3.29	STD DEV
