IslandPath Analysis: Francisella tularensis subsp. tularensis FSC198

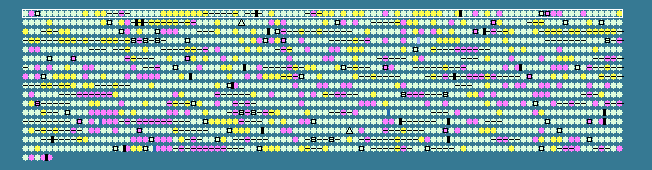

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 32.63   STD DEV: 3.37
Francisella tularensis subsp. tularensis FSC198, complete genome - 1..1892616
1605 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 30.90	0	1..1521	+	506	110669658	dnaA	FTF0001	-	chromosomal replication initiator protein dnaA
2	 27.90	-1	1558..2661	+	367	110669659	dnaN	FTF0002	-	DNA polymerase III, beta chain
3	 32.36	0	3204..3988	-	261	110669660	isftu1	FTF0004c	-	transposase
4	 34.08	0	4661..5869	+	402	110669661	-	FTF0006	-	MFS superfamily proline/ betaine transporter
5	 35.02	0	6044..7822	+	592	110669662	aspS	FTF0007	-	aspartyl-tRNA synthetase
6	 30.27	0	11450..12232	-	260	110669663	-	FTF0013c	-	lipoprotein
7	 33.33	0	12472..12870	-	132	110669664	-	FTF0014c	-	hypothetical protein
8	 35.72	0	13198..14496	+	432	110669665	purB	FTF0015	-	adenylosuccinate lyase
9	 30.92	0	14530..15108	+	192	110669666	-	FTF0016	-	hypothetical protein
10	 29.25	-1	15195..16736	+	513	110669667	-	FTF0017	-	hypothetical protein
11	 36.87	+1	16744..17817	+	357	110669668	-	FTF0018	-	secretion protein
12	 31.91	0	17900..18181	+	93	110669669	gatC	FTF0019	-	Glu-tRNAGln amidotransferase C subunit
13	 37.55	+1	18190..19635	+	481	110669670	gatA	FTF0020	-	glutamyl-tRNA(Gln) amidotransferase subunit A
14	 36.78	+1	19638..21059	+	473	110669671	gatB	FTF0021	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
15	 30.39	0	21074..21481	+	135	110669672	-	FTF0022	-	hypothetical protein
16	 32.54	0	21497..22378	-	293	110669673	-	FTF0023c	-	lipase/acyltransferase
17	 27.25	-1	22646..22990	-	114	110669674	-	FTF0024c	-	hypothetical protein
18	 33.99	0	23038..24567	-	509	110669675	-	FTF0025c	-	hypothetical protein
19	 34.01	0	24652..25842	-	396	110669676	-	FTF0026c	-	hypothetical protein
20	 32.85	0	25858..27111	-	417	110669677	lysA1	FTF0027c	-	diaminopimelate decarboxylase
21	 31.04	0	27104..28366	-	420	110669678	-	FTF0028c	-	hypothetical protein
22	 32.50	0	28373..30292	-	639	110669679	-	FTF0029c	-	hypothetical protein
23	 32.86	0	30545..30967	-	140	110669680	fur	FTF0030c	-	ferric uptake regulation protein
24	 36.34	+1	31176..31574	+	132	110669681	nuoA	FTF0031	-	NADH dehydrogenase I, A subunit
25	 43.61	+2	31565..32041	+	158	110669682	nuoB	FTF0032	-	NADH dehydrogenase subunit B
26	 36.71	+1	32038..32688	+	216	110669683	nuoC	FTF0033	-	NADH dehydrogenase I
27	 38.76	+1	32710..33963	+	417	110669684	nuoD	FTF0034	-	NADH dehydrogenase subunit D
28	 36.20	+1	33973..34461	+	162	110669685	nuoE	FTF0035	-	NADH dehydrogenase I, E subunit
29	 40.39	+2	34468..35742	+	424	110669686	nuoF	FTF0036	-	NADH dehydrogenase I, F subunit
30	 36.50	+1	35760..38126	+	788	110669687	nuoG	FTF0037	-	NADH dehydrogenase subunit G
31	 36.60	+1	38128..39138	+	336	110669688	nuoH	FTF0038	-	NADH dehydrogenase I, H subunit
32	 34.97	0	39152..39640	+	162	110669689	nuoI	FTF0039	-	NADH dehydrogenase subunit I
33	 34.98	0	39645..40250	+	201	110669690	nuoJ	FTF0040	-	NADH dehydrogenase I, J subunit
34	 33.03	0	40228..40560	+	110	110669691	nuoK	FTF0041	-	NADH dehydrogenase I, K subunit
35	 34.98	0	40570..42579	+	669	110669692	nuoL	FTF0042	-	NADH dehydrogenase I, L subunit
36	 36.35	+1	42605..44194	+	529	110669693	nuoM	FTF0043	-	NADH dehydrogenase I, M subunit
37	 35.46	0	44204..45661	+	485	110669694	nuoN	FTF0044	-	NADH dehydrogenase I, N subunit
38	 30.77	0	45737..45931	+	64	110669695	-	FTF0045	-	hypothetical protein
39	 35.75	0	47478..48512	+	344	110669696	hemE	FTF0047	-	uroporphyrinogen decarboxylase
40	 35.29	0	48732..49190	+	152	110669697	-	FTF0048	-	hypothetical protein
41	 34.35	0	49208..50677	+	489	110669698	nusA	FTF0049	-	transcription elongation factor NusA
42	 37.98	+1	50716..53256	+	846	110669699	infB	FTF0050	-	translation initiation factor IF-2
43	 32.41	0	53259..53690	+	143	110669700	rbfA	FTF0051	-	ribosome-binding factor A
44	 34.68	0	53698..54963	+	421	110669701	hisS	FTF0052	-	histidyl-tRNA synthetase
45	 34.03	0	54970..56268	+	432	110669702	-	FTF0053	-	major facilitator transporter
46	 29.59	0	56271..57338	+	355	110669703	-	FTF0054	-	ATPase
47	 34.19	0	57331..58260	+	309	110669704	rluC	FTF0055	-	ribosomal large subunit pseudouridine synthase C
48	 35.10	0	58262..59566	-	434	110669705	-	FTF0056c	-	major facilitator transporter
49	 26.85	-1	59643..60074	+	143	110669706	-	FTF0057	-	hypothetical protein
50	 37.12	+1	60127..60918	+	263	110669707	atpB	FTF0058	-	F0F1 ATP synthase subunit A
51	 41.18	+2	60969..61274	+	101	110669708	atpE	FTF0059	-	F0F1 ATP synthase subunit C
52	 37.79	+1	61320..61790	+	156	110669709	atpF	FTF0060	-	F0F1 ATP synthase subunit B
53	 32.57	0	61810..62334	+	174	110669710	atpH	FTF0061	-	F0F1 ATP synthase subunit delta
54	 38.59	+1	62353..63894	+	513	110669711	atpA	FTF0062	-	F0F1 ATP synthase subunit alpha
55	 34.89	0	63909..64805	+	298	110669712	atpG	FTF0063	-	F0F1 ATP synthase subunit gamma
56	 38.78	+1	64815..66191	+	458	110669713	atpD	FTF0064	-	F0F1 ATP synthase subunit beta
57	 38.36	+1	66204..66641	+	145	110669714	atpC	FTF0065	-	F0F1 ATP synthase subunit epsilon
58	 31.89	0	66852..69695	+	947	110669715	-	FTF0066	-	hypothetical protein
59	 35.15	0	69712..70041	-	109	110669716	-	FTF0067c	-	glutaredoxin-like protein
60	 33.85	0	70177..70755	+	192	110669717	sodB	FTF0068	-	superoxide dismutase
61	 29.03	-1	70763..70948	-	61	110669718	-	FTF0069c	-	hypothetical protein
62	 32.78	0	70960..72225	-	421	110669719	ampG	FTF0070c	-	major facilitator superfamily tranporter
63	 36.47	+1	72314..73588	-	424	110669720	gltA	FTF0071c	-	citrate synthase
64	 35.02	0	73831..74304	+	157	110669721	sdhC	FTF0072	-	succinate dehydrogenase, cytochrome b556
65	 34.96	0	74280..74648	+	122	110669722	sdhD	FTF0073	-	succinate dehydrogenase hydrophobic membrane anchor protein
66	 39.97	+2	74661..76454	+	597	110669723	sdhA	FTF0074	-	succinate dehydrogenase, catalytic and NAD/flavoprotein subunit
67	 36.18	+1	76472..77173	+	233	110669724	sdhB	FTF0075	-	succinate dehydrogenase iron-sulfur subunit
68	 36.27	+1	77191..80016	+	941	110669725	kgd	FTF0076	-	alpha-ketoglutarate decarboxylase
69	 37.96	+1	80042..81511	+	489	110669726	sucB	FTF0077	-	dihydrolipoamide succinyltransferase component of 2-oxoglutarate dehydrogenase complex
70	 39.02	+1	81551..82078	+	175	110669727	apt	FTF0078	-	adenine phosphoribosyltransferase
71	 34.68	0	82089..83420	+	443	110669728	mrsA	FTF0079	-	phosphoglucosamine mutase
72	 34.65	0	83423..84184	+	253	110669729	tpiA	FTF0080	-	triosephosphate isomerase
73	 38.98	+1	84172..84525	+	117	110669730	secG	FTF0081	-	preprotein translocase subunit SecG
74	 33.12	0	85736..86212	+	158	110669731	-	FTF0083	-	hypothetical protein
75	 30.62	0	86209..87351	-	380	110669732	hemN	FTF0084c	-	oxygen-independent coproporphyrinogen III oxidase
76	 27.25	-1	87356..87733	-	125	110669733	-	FTF0085c	-	hypothetical protein
77	 31.40	0	87803..88681	+	292	110669734	-	FTF0086	-	hypothetical protein
78	 37.28	+1	88786..91599	+	937	110669735	acnA	FTF0087	-	aconitate hydratase
79	 36.05	+1	91694..92722	+	342	110669736	pilT	FTF0088	-	Type IV pili nucleotide-binding protein
80	 25.50	-2	93784..94230	-	148	110669737	-	FTF0090c	-	hypothetical protein
81	 30.74	0	94241..95203	-	320	110669738	appB	FTF0091c	-	cytochrome oxidase bd-II, subunit II
82	 32.77	0	96819..97700	+	293	110669739	-	FTF0093	-	hypothetical protein
83	 31.65	0	97697..99124	-	475	110669740	qseC	FTF0094c	-	sensor histidine kinase
84	 33.54	0	99240..100196	+	318	110669741	-	FTF0095	-	hypothetical protein
85	 34.20	0	100438..101478	+	346	110669742	-	FTF0096	-	hypothetical protein
86	 31.14	0	101612..102157	+	181	110669743	-	FTF0097	-	hypothetical protein
87	 32.36	0	102231..103015	-	261	110669744	isftu1	FTF0098c	-	transposase
88	 29.03	-1	103117..103860	+	247	110669745	isftu2	FTF0099	-	transposase
89	 27.12	-1	104530..105543	+	337	110669746	-	FTF0101	-	hypothetical protein
90	 28.01	-1	106988..107569	-	193	110669747	-	FTF0103c	-	hypothetical protein
91	 34.82	0	107814..109091	-	425	110669748	-	FTF0104c	-	major facilitator transporter
92	 35.81	0	109223..112336	-	1037	110669749	-	FTF0105c	-	AcrB/AcrD/AcrF family transporter
93	 33.48	0	112336..113709	-	457	110669750	-	FTF0106c	-	RND efflux transporter
94	 28.86	-1	113722..114213	-	163	110669751	dsbB	FTF0107c	-	disulfide bond formation protein
95	 32.59	0	114253..115335	-	360	110669752	cca	FTF0108c	-	tRNA CCA-pyrophosphorylase
96	 34.43	0	115440..117269	+	609	110669753	msbA	FTF0109	-	Lipid A transport protein, ABC transporter,ATP-binding and membrane protein
97	 32.61	0	117275..118243	+	322	110669754	lpxK	FTF0110	-	tetraacyldisaccharide 4'-kinase
98	 35.00	0	118339..121032	+	897	110669755	polA	FTF0111	-	DNA polymerase I
99	 34.62	0	121052..121828	+	258	110669756	-	FTF0112	-	pantothenate kinase
100	 36.63	+1	121833..123077	+	414	110669757	deoB	FTF0113	-	phosphopentomutase
32.63	MEAN

3.37	STD DEV
