IslandPath Analysis: Francisella tularensis subsp. tularensis SCHU S4

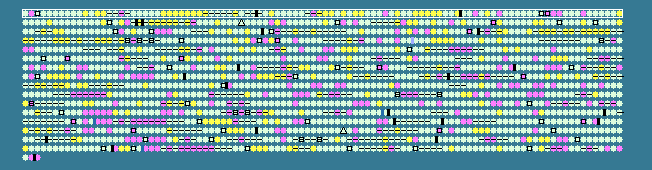

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 32.63   STD DEV: 3.37
Francisella tularensis subsp. tularensis Schu 4, complete genome - 1..1892819
1603 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 30.90	0	1..1521	+	506	56707188	dnaA	FTT0001	-	chromosomal replication initiator protein dnaA
2	 27.90	-1	1558..2661	+	367	56707189	dnaN	FTT0002	-	DNA polymerase III, beta chain
3	 32.36	0	3204..3988	-	261	56707190	isftu1	FTT0004c	-	transposase
4	 34.08	0	4661..5869	+	402	56707191	-	FTT0006	-	MFS superfamily proline/ betaine transporter
5	 35.02	0	6044..7822	+	592	56707192	aspS	FTT0007	-	aspartyl-tRNA synthetase
6	 30.27	0	11434..12216	-	260	56707193	-	FTT0013c	-	lipoprotein
7	 33.33	0	12456..12854	-	132	56707194	-	FTT0014c	-	hypothetical protein
8	 35.72	0	13182..14480	+	432	56707195	purB	FTT0015	-	adenylosuccinate lyase
9	 30.92	0	14514..15092	+	192	56707196	-	FTT0016	-	hypothetical protein
10	 29.25	-1	15179..16720	+	513	56707197	-	FTT0017	-	hypothetical protein
11	 36.87	+1	16728..17801	+	357	56707198	-	FTT0018	-	secretion protein
12	 31.91	0	17884..18165	+	93	56707199	gatC	FTT0019	-	Glu-tRNAGln amidotransferase C subunit
13	 37.55	+1	18174..19619	+	481	56707200	gatA	FTT0020	-	glutamyl-tRNA(Gln) amidotransferase subunit A
14	 36.78	+1	19622..21043	+	473	56707201	gatB	FTT0021	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
15	 30.39	0	21058..21465	+	135	56707202	-	FTT0022	-	hypothetical protein
16	 32.54	0	21481..22362	-	293	56707203	-	FTT0023c	-	lipase/acyltransferase
17	 27.25	-1	22630..22974	-	114	56707204	-	FTT0024c	-	hypothetical protein
18	 33.99	0	23022..24551	-	509	56707205	-	FTT0025c	-	hypothetical protein
19	 34.01	0	24636..25826	-	396	56707206	-	FTT0026c	-	hypothetical protein
20	 32.85	0	25842..27095	-	417	56707207	lysA	FTT0027c	-	diaminopimelate decarboxylase
21	 31.04	0	27088..28350	-	420	56707208	-	FTT0028c	-	hypothetical protein
22	 32.50	0	28357..30276	-	639	56707209	-	FTT0029c	-	hypothetical protein
23	 32.86	0	30529..30951	-	140	56707210	fur	FTT0030c	-	ferric uptake regulation protein
24	 36.34	+1	31160..31558	+	132	56707211	nuoA	FTT0031	-	NADH dehydrogenase I, A subunit
25	 43.61	+2	31549..32025	+	158	56707212	nuoB	FTT0032	-	NADH dehydrogenase subunit B
26	 36.71	+1	32022..32672	+	216	56707213	nuoC	FTT0033	-	NADH dehydrogenase I
27	 38.76	+1	32694..33947	+	417	56707214	nuoD	FTT0034	-	NADH dehydrogenase subunit D
28	 36.20	+1	33957..34445	+	162	56707215	nuoE	FTT0035	-	NADH dehydrogenase I, E subunit
29	 40.39	+2	34452..35726	+	424	56707216	nuoF	FTT0036	-	NADH dehydrogenase I, F subunit
30	 36.50	+1	35744..38110	+	788	56707217	nuoG	FTT0037	-	NADH dehydrogenase subunit G
31	 36.60	+1	38112..39122	+	336	56707218	nuoH	FTT0038	-	NADH dehydrogenase I, H subunit
32	 34.97	0	39136..39624	+	162	56707219	nuoI	FTT0039	-	NADH dehydrogenase subunit I
33	 34.98	0	39629..40234	+	201	56707220	nuoJ	FTT0040	-	NADH dehydrogenase I, J subunit
34	 33.03	0	40212..40544	+	110	56707221	nuoK	FTT0041	-	NADH dehydrogenase I, K subunit
35	 34.98	0	40554..42563	+	669	56707222	nuoL	FTT0042	-	NADH dehydrogenase I, L subunit
36	 36.35	+1	42589..44178	+	529	56707223	nuoM	FTT0043	-	NADH dehydrogenase I, M subunit
37	 35.46	0	44188..45645	+	485	56707224	nuoN	FTT0044	-	NADH dehydrogenase I, N subunit
38	 30.77	0	45721..45915	+	64	56707225	-	FTT0045	-	hypothetical protein
39	 35.75	0	47462..48496	+	344	56707226	hemE	FTT0047	-	uroporphyrinogen decarboxylase
40	 35.29	0	48716..49174	+	152	56707227	-	FTT0048	-	hypothetical protein
41	 34.35	0	49192..50661	+	489	56707228	nusA	FTT0049	-	transcription elongation factor NusA
42	 37.98	+1	50700..53240	+	846	56707229	infB	FTT0050	-	translation initiation factor IF-2
43	 32.41	0	53243..53674	+	143	56707230	rbfA	FTT0051	-	ribosome-binding factor A
44	 34.68	0	53682..54947	+	421	56707231	hisS	FTT0052	-	histidyl-tRNA synthetase
45	 34.03	0	54954..56252	+	432	56707232	-	FTT0053	-	major facilitator transporter
46	 29.59	0	56255..57322	+	355	56707233	-	FTT0054	-	ATPase
47	 34.19	0	57315..58244	+	309	56707234	rluC	FTT0055	-	ribosomal large subunit pseudouridine synthase C
48	 35.10	0	58246..59550	-	434	56707235	-	FTT0056c	-	major facilitator transporter
49	 26.85	-1	59627..60058	+	143	56707236	-	FTT0057	-	hypothetical protein
50	 37.12	+1	60111..60902	+	263	56707237	atpB	FTT0058	-	F0F1 ATP synthase subunit A
51	 41.18	+2	60953..61258	+	101	56707238	atpE	FTT0059	-	F0F1 ATP synthase subunit C
52	 37.79	+1	61304..61774	+	156	56707239	atpF	FTT0060	-	F0F1 ATP synthase subunit B
53	 32.57	0	61794..62318	+	174	56707240	atpH	FTT0061	-	F0F1 ATP synthase subunit delta
54	 38.59	+1	62337..63878	+	513	56707241	atpA	FTT0062	-	F0F1 ATP synthase subunit alpha
55	 34.89	0	63893..64789	+	298	56707242	atpG	FTT0063	-	F0F1 ATP synthase subunit gamma
56	 38.78	+1	64799..66175	+	458	56707243	atpD	FTT0064	-	F0F1 ATP synthase subunit beta
57	 38.36	+1	66188..66625	+	145	56707244	atpC	FTT0065	-	F0F1 ATP synthase subunit epsilon
58	 31.89	0	66836..69679	+	947	56707245	-	FTT0066	-	hypothetical protein
59	 35.15	0	69696..70025	-	109	56707246	-	FTT0067c	-	glutaredoxin-like protein
60	 33.85	0	70161..70739	+	192	56707247	sodB	FTT0068	-	superoxide dismutase (Fe)
61	 29.03	-1	70747..70932	-	61	56707248	-	FTT0069c	-	hypothetical protein
62	 32.78	0	70944..72209	-	421	56707249	ampG	FTT0070c	-	major facilitator superfamily tranporter
63	 36.47	+1	72298..73572	-	424	56707250	gltA	FTT0071c	-	citrate synthase
64	 35.02	0	73815..74288	+	157	56707251	sdhC	FTT0072	-	succinate dehydrogenase, cytochrome b556
65	 34.96	0	74264..74632	+	122	56707252	sdhD	FTT0073	-	succinate dehydrogenase hydrophobic membrane anchor protein
66	 39.97	+2	74645..76438	+	597	56707253	sdhA	FTT0074	-	succinate dehydrogenase, catalytic and NAD/flavoprotein subunit
67	 36.18	+1	76456..77157	+	233	56707254	sdhB	FTT0075	-	succinate dehydrogenase iron-sulfur subunit
68	 36.27	+1	77175..80000	+	941	56707255	kgd	FTT0076	-	alpha-ketoglutarate decarboxylase
69	 37.96	+1	80026..81495	+	489	56707256	sucB	FTT0077	-	dihydrolipoamide succinyltransferase component of 2-oxoglutarate dehydrogenase complex
70	 39.02	+1	81535..82062	+	175	56707257	apt	FTT0078	-	adenine phosphoribosyltransferase
71	 34.68	0	82073..83404	+	443	56707258	mrsA	FTT0079	-	phosphoglucosamine mutase
72	 34.65	0	83407..84168	+	253	56707259	tpiA	FTT0080	-	triosephosphate isomerase
73	 38.98	+1	84156..84509	+	117	56707260	secG	FTT0081	-	preprotein translocase subunit SecG
74	 33.12	0	85720..86196	+	158	56707261	-	FTT0083	-	hypothetical protein
75	 30.62	0	86193..87335	-	380	56707262	hemN	FTT0084c	-	oxygen-independent coproporphyrinogen III oxidase
76	 27.25	-1	87340..87717	-	125	56707263	-	FTT0085c	-	hypothetical protein
77	 31.40	0	87787..88665	+	292	56707264	-	FTT0086	-	hypothetical protein
78	 37.28	+1	88770..91583	+	937	56707265	acnA	FTT0087	-	aconitate hydratase
79	 36.05	+1	91678..92706	+	342	56707266	pilT	FTT0088	-	Type IV pili nucleotide-binding protein
80	 25.50	-2	93768..94214	-	148	56707267	-	FTT0090c	-	hypothetical protein
81	 30.74	0	94225..95187	-	320	56707268	appB	FTT0091c	-	cytochrome oxidase bd-II, subunit II
82	 32.77	0	96803..97684	+	293	56707269	-	FTT0093	-	hypothetical protein
83	 31.65	0	97681..99108	-	475	56707270	qseC	FTT0094c	-	sensor histidine kinase
84	 33.54	0	99224..100180	+	318	56707271	-	FTT0095	-	hypothetical protein
85	 34.20	0	100422..101462	+	346	56707272	-	FTT0096	-	hypothetical protein
86	 31.14	0	101596..102141	+	181	56707273	-	FTT0097	-	hypothetical protein
87	 32.36	0	102215..102999	-	261	56707274	isftu1	FTT0098c	-	transposase
88	 29.03	-1	103101..103844	+	247	56707275	isftu2	FTT0099	-	transposase
89	 27.12	-1	104514..105527	+	337	56707276	-	FTT0101	-	hypothetical protein
90	 28.01	-1	106972..107553	-	193	56707277	-	FTT0103c	-	hypothetical protein
91	 34.82	0	107798..109075	-	425	56707278	-	FTT0104c	-	major facilitator transporter
92	 35.81	0	109207..112320	-	1037	56707279	-	FTT0105c	-	AcrB/AcrD/AcrF family transporter
93	 33.48	0	112320..113693	-	457	56707280	-	FTT0106c	-	RND efflux transporter
94	 28.86	-1	113706..114197	-	163	56707281	dsbB	FTT0107c	-	disulfide bond formation protein
95	 32.59	0	114237..115319	-	360	56707282	cca	FTT0108c	-	tRNA CCA-pyrophosphorylase
96	 34.43	0	115424..117253	+	609	56707283	valA	FTT0109	-	Lipid A transport protein, ABC transporter,ATP-binding and membrane protein
97	 32.61	0	117259..118227	+	322	56707284	valB	FTT0110	-	tetraacyldisaccharide 4'-kinase
98	 35.00	0	118323..121016	+	897	56707285	polA	FTT0111	-	DNA polymerase I
99	 34.62	0	121036..121812	+	258	56707286	-	FTT0112	-	pantothenate kinase
100	 36.63	+1	121817..123061	+	414	56707287	deoB	FTT0113	-	phosphopentomutase
32.63	MEAN

3.37	STD DEV
