IslandPath Analysis: Frankia sp. EAN1pec

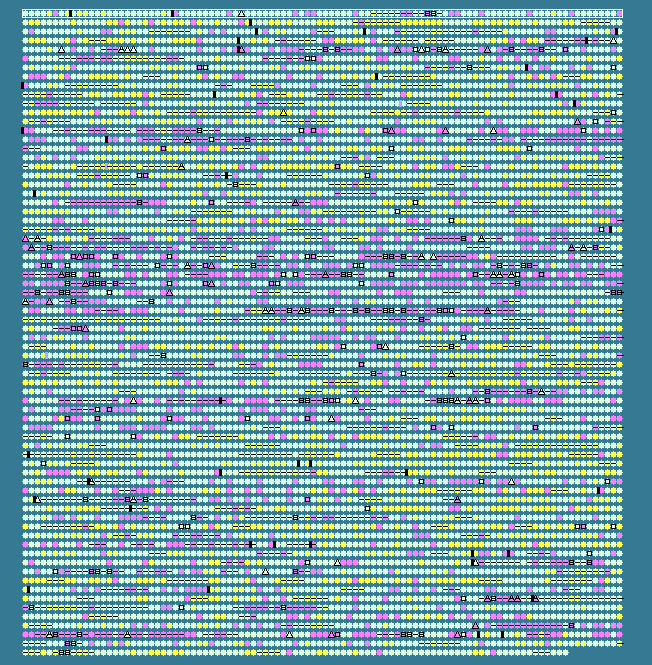

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 70.93   STD DEV: 4.05
Frankia sp. EAN1pec, complete genome - 1..8982042
7191 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 69.07	0	71..1654	+	527	158311868	-	Franean1_0001	-	chromosomal replication initiator protein DnaA
2	 67.55	0	2937..3959	+	340	158311869	-	Franean1_0002	-	hypothetical protein
3	 72.09	0	3956..5116	+	386	158311870	-	Franean1_0003	-	DNA polymerase III, beta subunit
4	 72.85	0	5118..6491	+	457	158311871	-	Franean1_0004	-	DNA replication and repair protein RecF
5	 75.09	+1	6712..7245	+	177	158311872	-	Franean1_0005	-	hypothetical protein
6	 66.77	-1	7555..9513	+	652	158311873	-	Franean1_0006	-	DNA gyrase subunit B
7	 68.70	0	9711..12224	+	837	158311874	-	Franean1_0007	-	DNA gyrase subunit A
8	 75.95	+1	12333..14270	+	645	158311875	-	Franean1_0008	-	hypothetical protein
9	 70.71	0	15245..15862	+	205	158311876	-	Franean1_0009	-	hypothetical protein
10	 75.42	+1	15821..17065	-	414	158311877	-	Franean1_0010	-	hypothetical protein
11	 74.83	0	17052..17921	-	289	158311878	-	Franean1_0011	-	methyltransferase type 11
12	 73.28	0	17915..19291	-	458	158311879	-	Franean1_0012	-	glycosyl transferase group 1
13	 72.26	0	19531..19959	-	142	158311880	-	Franean1_0013	-	OsmC family protein
14	 77.02	+1	20169..20873	+	234	158311881	-	Franean1_0014	-	TetR family transcriptional regulator
15	 72.65	0	20881..21498	-	205	158311882	-	Franean1_0015	-	endopeptidase Clp
16	 73.19	0	21745..22848	-	367	158311883	-	Franean1_0016	-	secretory lipase
17	 70.51	0	23241..24332	+	363	158311884	-	Franean1_0017	-	SNARE associated Golgi protein
18	 68.14	0	24683..25021	-	112	158311885	-	Franean1_0018	-	nitrogen regulatory protein P-II
19	 72.19	0	25136..25678	+	180	158311886	-	Franean1_0019	-	PEBP family protein
20	 70.30	0	25853..26017	+	54	158311887	-	Franean1_0020	-	hypothetical protein
21	 67.74	0	26159..26716	-	185	158311888	-	Franean1_0021	-	binding-protein-dependent transport systems inner membrane component
22	 67.78	0	26953..28206	-	417	158311889	-	Franean1_0022	-	extracellular solute-binding protein
23	 68.60	0	28203..29546	-	447	158311890	-	Franean1_0023	-	spermidine/putrescine ABC transporter ATPase subunit
24	 77.12	+1	29898..30662	+	254	158311891	-	Franean1_0024	-	mycothiol-dependent maleylpyruvate isomerase
25	 71.09	0	30889..31950	+	353	158311892	-	Franean1_0025	-	cobyrinic acid ac-diamide synthase
26	 65.43	-1	35609..36013	-	134	158311893	-	Franean1_0027	-	hypothetical protein
27	 67.75	0	36044..36967	-	307	158311894	-	Franean1_0028	-	hypothetical protein
28	 73.09	0	37290..37865	+	191	158311895	-	Franean1_0029	-	hypothetical protein
29	 72.80	0	37862..38839	+	325	158311896	-	Franean1_0030	-	hypothetical protein
30	 72.18	0	39584..40471	-	295	158311897	-	Franean1_0031	-	hypothetical protein
31	 68.66	0	40475..41677	-	400	158311898	-	Franean1_0032	-	protein-L-isoaspartate(D-aspartate) O-methyltransferase
32	 73.22	0	42120..42485	-	121	158311899	-	Franean1_0033	-	hypothetical protein
33	 68.92	0	42461..43171	-	236	158311900	-	Franean1_0034	-	hypothetical protein
34	 70.65	0	43221..43496	-	91	158311901	-	Franean1_0035	-	hypothetical protein
35	 67.36	0	43699..44568	+	289	158311902	-	Franean1_0036	-	helix-turn-helix domain-containing protein
36	 70.48	0	44565..44774	+	69	158311903	-	Franean1_0037	-	hypothetical protein
37	 70.77	0	45693..46814	+	373	158311904	-	Franean1_0038	-	integrase family protein
38	 72.86	0	46811..47149	+	112	158311905	-	Franean1_0039	-	XRE family transcriptional regulator
39	 74.39	0	47146..48660	+	504	158311906	-	Franean1_0040	-	hypothetical protein
40	 69.11	0	48701..49600	-	299	158311907	-	Franean1_0041	-	aminoglycoside phosphotransferase
41	 69.48	0	49995..50705	+	236	158311908	-	Franean1_0042	-	resolvase domain-containing protein
42	 70.22	0	51034..56460	+	1808	158311909	-	Franean1_0043	-	hypothetical protein
43	 72.11	0	56470..56763	+	97	158311910	-	Franean1_0044	-	hypothetical protein
44	 70.85	0	56774..60883	+	1369	158311911	-	Franean1_0045	-	hypothetical protein
45	 67.54	0	61226..61570	-	114	158311912	-	Franean1_0046	-	hypothetical protein
46	 66.67	-1	61583..61909	-	108	158311913	-	Franean1_0047	-	hypothetical protein
47	 69.61	0	61929..62132	+	67	158311914	-	Franean1_0048	-	hypothetical protein
48	 65.03	-1	62283..63137	-	284	158311915	-	Franean1_0049	-	hypothetical protein
49	 63.56	-1	63167..63649	-	160	158311916	-	Franean1_0050	-	hypothetical protein
50	 68.26	0	63682..65379	+	565	158311917	-	Franean1_0051	-	hypothetical protein
51	 70.13	0	65379..66158	+	259	158311918	-	Franean1_0052	-	short-chain dehydrogenase/reductase SDR
52	 68.63	0	66165..67283	-	372	158311919	-	Franean1_0053	-	hypothetical protein
53	 71.52	0	67290..68258	-	322	158311920	-	Franean1_0054	-	putative O-methyltransferase
54	 72.73	0	68240..69427	-	395	158311921	-	Franean1_0055	-	lanthionine synthetase C family protein
55	 72.43	0	69424..72531	-	1035	158311922	-	Franean1_0056	-	lantibiotic dehydratase domain-containing protein
56	 64.58	-1	72610..72801	-	63	158311923	-	Franean1_0057	-	hypothetical protein
57	 69.51	0	72866..74167	-	433	158311924	-	Franean1_0058	-	protein-L-isoaspartate(D-aspartate) O-methyltransferase
58	 67.57	0	74912..76456	+	514	158311925	-	Franean1_0059	-	serine/threonine protein kinase
59	 75.96	+1	76584..76895	-	103	158311926	-	Franean1_0060	-	hypothetical protein
60	 67.99	0	76974..77804	+	276	158311927	-	Franean1_0061	-	hypothetical protein
61	 69.62	0	77817..79001	+	394	158311928	-	Franean1_0062	-	hypothetical protein
62	 72.67	0	80009..80491	-	160	158311929	-	Franean1_0064	-	hypothetical protein
63	 69.65	0	80561..80929	+	122	158311930	-	Franean1_0065	-	hypothetical protein
64	 55.35	-2	81495..82970	-	491	158311931	-	Franean1_0066	-	peptidase S8 and S53 subtilisin kexin sedolisin
65	 51.85	-2	82991..83287	-	98	158311932	-	Franean1_0067	-	hypothetical protein
66	 72.16	0	83438..83728	-	96	158311933	-	Franean1_0068	-	hypothetical protein
67	 68.75	0	83908..84387	+	159	158311934	-	Franean1_0069	-	hypothetical protein
68	 66.99	0	84437..85057	-	206	158311935	-	Franean1_0070	-	IS630 family transposase
69	 69.63	0	84982..85521	-	179	158311936	-	Franean1_0071	-	IS630 family transposase
70	 73.66	0	86789..89791	+	1000	158311937	-	Franean1_0072	-	LuxR family transcriptional regulator
71	 69.68	0	90092..91351	+	419	158311938	-	Franean1_0073	-	glycosyl transferase family protein
72	 66.58	-1	91442..92632	+	396	158311939	-	Franean1_0074	-	Rieske (2Fe-2S) domain-containing protein
73	 67.25	0	92648..93160	+	170	158311940	-	Franean1_0075	-	hypothetical protein
74	 68.27	0	93263..93886	+	207	158311941	-	Franean1_0076	-	hypothetical protein
75	 68.87	0	94301..95116	-	271	158311942	-	Franean1_0077	-	short-chain dehydrogenase/reductase SDR
76	 71.86	0	95113..95979	-	288	158311943	-	Franean1_0078	-	short-chain dehydrogenase/reductase SDR
77	 67.21	0	96103..96657	+	184	158311944	-	Franean1_0079	-	PadR-like family transcriptional regulator
78	 72.63	0	97102..97470	-	122	158311945	-	Franean1_0080	-	hypothetical protein
79	 68.57	0	97795..99000	-	401	158311946	-	Franean1_0081	-	integral membrane sensor signal transduction histidine kinase
80	 68.33	0	98997..99656	-	219	158311947	-	Franean1_0082	-	two component transcriptional regulator
81	 71.83	0	99828..100331	+	167	158311948	-	Franean1_0083	-	hypothetical protein
82	 70.17	0	100328..101554	+	408	158311949	-	Franean1_0084	-	peptidoglycan binding domain-containing protein
83	 70.06	0	101551..102258	+	235	158311950	-	Franean1_0085	-	ABC transporter related
84	 70.84	0	102255..103571	+	438	158311951	-	Franean1_0086	-	hypothetical protein
85	 63.45	-1	103928..104269	+	113	158311952	-	Franean1_0087	-	hypothetical protein
86	 69.04	0	104451..105926	-	491	158311953	-	Franean1_0088	-	aldo/keto reductase
87	 73.20	0	106070..106681	+	203	158311954	-	Franean1_0089	-	ECF subfamily RNA polymerase sigma-24 factor
88	 71.79	0	106678..107595	+	305	158311955	-	Franean1_0090	-	hypothetical protein
89	 74.92	0	107696..108688	-	330	158311956	-	Franean1_0091	-	alcohol dehydrogenase
90	 72.10	0	108808..109800	-	330	158311957	-	Franean1_0092	-	GntR family transcriptional regulator
91	 71.38	0	110033..110944	+	303	158311958	-	Franean1_0093	-	alpha/beta hydrolase fold
92	 67.38	0	111434..112696	+	420	158311959	-	Franean1_0094	-	amidohydrolase 2
93	 73.11	0	112875..113852	-	325	158311960	-	Franean1_0095	-	alcohol dehydrogenase
94	 73.63	0	113892..114695	-	267	158311961	-	Franean1_0096	-	enoyl-CoA hydratase/isomerase
95	 67.94	0	114692..115714	-	340	158311962	-	Franean1_0097	-	aminoglycoside phosphotransferase
96	 68.05	0	115711..117012	-	433	158311963	-	Franean1_0098	-	acyl-CoA dehydrogenase domain-containing protein
97	 73.46	0	117226..118992	-	588	158311964	-	Franean1_0099	-	diguanylate cyclase
98	 71.52	0	119081..119740	-	219	158311965	-	Franean1_0100	-	TetR family transcriptional regulator
99	 73.73	0	119884..121128	-	414	158311966	-	Franean1_0101	-	hypothetical protein
100	 64.40	-1	121434..122270	+	278	158311967	-	Franean1_0102	-	undecaprenyl pyrophosphate phosphatase
70.93	MEAN

4.05	STD DEV
