IslandPath Analysis: Fervidobacterium nodosum Rt17-B1

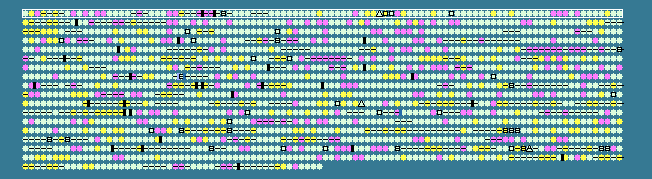

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.13   STD DEV: 3.24
Fervidobacterium nodosum Rt17-B1, complete genome - 1..1948941
1750 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 33.26	0	43..1377	+	444	154248706	-	Fnod_0001	-	chromosomal replication initiator protein DnaA
2	 41.53	+1	1453..1635	+	60	154248707	-	Fnod_0002	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
3	 31.23	-1	1976..3829	+	617	154248708	-	Fnod_0003	-	hypothetical protein
4	 38.96	+1	3826..4926	+	366	154248709	-	Fnod_0004	-	basic membrane lipoprotein
5	 37.74	0	5136..6701	+	521	154248710	-	Fnod_0005	-	ABC transporter related
6	 38.84	+1	6698..7732	+	344	154248711	-	Fnod_0006	-	inner-membrane translocator
7	 37.71	0	7729..8688	+	319	154248712	-	Fnod_0007	-	inner-membrane translocator
8	 34.09	0	8734..9132	+	132	154248713	-	Fnod_0008	-	hypothetical protein
9	 26.61	-2	9261..9617	+	118	154248714	-	Fnod_0009	-	hypothetical protein
10	 35.87	0	9745..10020	+	91	154248715	-	Fnod_0010	-	histone family protein DNA-binding protein
11	 31.57	-1	10098..11342	-	414	154248716	-	Fnod_0011	-	metal dependent phosphohydrolase
12	 35.10	0	11361..13514	-	717	154248717	-	Fnod_0012	-	hypothetical protein
13	 29.80	-1	13511..14161	-	216	154248718	-	Fnod_0013	-	hypothetical protein
14	 29.31	-1	14158..15102	-	314	154248719	-	Fnod_0014	-	putative metal dependent phosphohydrolase
15	 32.16	0	15115..15969	-	284	154248720	-	Fnod_0015	-	putative adenylate/guanylate cyclase
16	 33.43	0	16022..17008	-	328	154248721	-	Fnod_0016	-	putative Chase2 sensor protein
17	 36.50	0	17156..17566	+	136	154248722	-	Fnod_0017	-	hypothetical protein
18	 35.70	0	17594..19282	+	562	154248723	-	Fnod_0018	-	sigma-54 dependent trancsriptional regulator
19	 33.76	0	19623..19859	+	78	154248724	-	Fnod_0019	-	hypothetical protein
20	 30.14	-1	19856..20074	+	72	154248725	-	Fnod_0020	-	hypothetical protein
21	 32.82	0	20095..20289	+	64	154248726	-	Fnod_0021	-	hypothetical protein
22	 36.80	0	20360..22552	-	730	154248727	-	Fnod_0022	-	fibronectin type III domain-containing protein
23	 36.64	0	22692..23990	-	432	154248728	-	Fnod_0023	-	UDP-glucose 6-dehydrogenase
24	 33.61	0	24184..27396	+	1070	154248729	-	Fnod_0024	-	polysaccharide export protein
25	 30.68	-1	27434..29395	+	653	154248730	-	Fnod_0025	-	lipopolysaccharide biosynthesis protein
26	 31.03	-1	29466..31289	-	607	154248731	-	Fnod_0026	-	hypothetical protein
27	 38.81	+1	33078..33278	+	66	154248732	-	Fnod_0028	-	cold-shock DNA-binding domain-containing protein
28	 35.29	0	33345..33548	-	67	154248733	-	Fnod_0029	-	FmdB family regulatory protein
29	 34.08	0	33673..34611	+	312	154248734	-	Fnod_0030	-	insertion element protein
30	 28.62	-2	34748..36253	-	501	154248735	-	Fnod_0031	-	diguanylate cyclase
31	 29.32	-1	36521..37318	-	265	154248736	-	Fnod_0032	-	pseudouridine synthase
32	 25.52	-2	37355..38467	+	370	154248737	-	Fnod_0033	-	hypothetical protein
33	 34.58	0	38748..39227	-	159	154248738	-	Fnod_0034	-	rubrerythrin
34	 36.38	0	39353..40303	+	316	154248739	-	Fnod_0035	-	ISCpe7, transposase
35	 32.65	0	40363..40803	-	146	154248740	-	Fnod_0036	-	cell wall biogenesis enzyme-like protein
36	 35.36	0	42584..43027	-	147	154248741	-	Fnod_0038	-	nucleoside-diphosphate kinase
37	 32.59	0	43009..43548	-	179	154248742	-	Fnod_0039	-	hypothetical protein
38	 34.11	0	43548..45608	-	686	154248743	-	Fnod_0040	-	glycosyl transferase family protein
39	 32.47	0	45605..46066	-	153	154248744	-	Fnod_0041	-	methylated-DNA--protein-cysteine methyltransferase
40	 35.67	0	46149..46661	+	170	154248745	-	Fnod_0042	-	CMP/dCMP deaminase zinc-binding
41	 37.83	0	46648..47469	+	273	154248746	-	Fnod_0043	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
42	 34.17	0	47466..48062	+	198	154248747	-	Fnod_0044	-	pyruvate ferredoxin/flavodoxin oxidoreductase
43	 32.68	0	48049..48510	+	153	154248748	-	Fnod_0045	-	diacylglycerol kinase
44	 37.09	0	48483..49520	+	345	154248749	-	Fnod_0046	-	chemotaxis-specific methylesterase
45	 32.55	0	49571..50977	+	468	154248750	-	Fnod_0047	-	S-layer domain-containing protein
46	 35.74	0	51074..52153	+	359	154248751	-	Fnod_0048	-	iron-containing alcohol dehydrogenase
47	 35.77	0	52238..53302	-	354	154248752	-	Fnod_0049	-	inner-membrane translocator
48	 37.07	0	53304..54347	-	347	154248753	-	Fnod_0050	-	inner-membrane translocator
49	 37.50	0	54340..55947	-	535	154248754	-	Fnod_0051	-	ABC transporter related
50	 38.78	+1	56049..57167	-	372	154248755	-	Fnod_0052	-	lipoprotein
51	 38.35	0	57450..59321	+	623	154248756	-	Fnod_0053	-	indolepyruvate ferredoxin oxidoreductase
52	 36.89	0	59318..59908	+	196	154248757	-	Fnod_0054	-	pyruvate ferredoxin/flavodoxin oxidoreductase
53	 37.72	0	59953..61638	+	561	154248758	-	Fnod_0055	-	pyruvate flavodoxin/ferredoxin oxidoreductase domain-containing protein
54	 38.51	+1	61695..62525	+	276	154248759	-	Fnod_0056	-	pyruvate ferredoxin/flavodoxin oxidoreductase, beta subunit
55	 36.86	0	62522..63514	+	330	154248760	-	Fnod_0057	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
56	 31.63	-1	65239..66294	-	351	154248761	-	Fnod_0060	-	nuclease
57	 34.31	0	66294..67730	-	478	154248762	-	Fnod_0061	-	glycosyl transferase group 1
58	 38.77	+1	67873..69141	+	422	154248763	-	Fnod_0062	-	hypothetical protein
59	 43.66	+2	69205..70395	-	396	154248764	-	Fnod_0063	-	aspartate aminotransferase
60	 37.90	0	70723..71619	-	298	154248765	-	Fnod_0064	-	integrase catalytic region
61	 38.85	+1	71706..72122	-	138	154248766	-	Fnod_0065	-	transposase IS3/IS911 family protein
62	 33.81	0	72266..73525	-	419	154248767	-	Fnod_0066	-	transposase IS116/IS110/IS902 family protein
63	 31.15	-1	75432..77036	+	534	154248768	-	Fnod_0069	-	diguanylate cyclase
64	 38.67	+1	77379..78371	+	330	154248769	-	Fnod_0070	-	aspartate-semialdehyde dehydrogenase
65	 34.01	0	78377..79114	+	245	154248770	-	Fnod_0071	-	diaminopimelate epimerase
66	 38.14	0	79107..80021	+	304	154248771	-	Fnod_0072	-	dihydrodipicolinate synthase
67	 34.26	0	80018..80665	+	215	154248772	-	Fnod_0073	-	dihydrodipicolinate reductase
68	 37.47	0	80687..81436	+	249	154248773	-	Fnod_0074	-	tetrahydrodipicolinate succinyltransferase domain-containing protein
69	 38.82	+1	81443..82645	+	400	154248774	-	Fnod_0075	-	aspartate kinase
70	 35.98	0	82678..83811	+	377	154248775	-	Fnod_0076	-	aminotransferase class-III
71	 32.25	0	83783..84523	-	246	154248776	-	Fnod_0077	-	cobalt transport protein
72	 34.08	0	84648..85586	+	312	154248777	-	Fnod_0078	-	ISCpe7, transposase
73	 33.33	0	85627..86187	-	186	154248778	-	Fnod_0079	-	hypothetical protein
74	 35.97	0	86229..86987	-	252	154248779	-	Fnod_0080	-	hypothetical protein
75	 36.76	0	87016..88125	-	369	154248780	-	Fnod_0081	-	amidohydrolase
76	 32.66	0	88275..89162	-	295	154248781	-	Fnod_0082	-	hypothetical protein
77	 33.95	0	89338..90477	+	379	154248782	-	Fnod_0083	-	putative esterase
78	 34.42	0	90506..91516	+	336	154248783	-	Fnod_0084	-	hypothetical protein
79	 39.87	+1	91670..92938	+	422	154248784	-	Fnod_0085	-	serine hydroxymethyltransferase
80	 36.00	0	92960..94195	+	411	154248785	-	Fnod_0086	-	hypothetical protein
81	 32.96	0	94226..95290	-	354	154248786	-	Fnod_0087	-	DNA integrity scanning protein DisA
82	 39.17	+1	95422..96363	+	313	154248787	-	Fnod_0088	-	ROK family protein
83	 33.33	0	96411..96845	+	144	154248788	-	Fnod_0089	-	outer membrane chaperone Skp (OmpH)
84	 33.20	0	96882..97607	+	241	154248789	-	Fnod_0090	-	ABC transporter related
85	 32.82	0	97642..98229	+	195	154248790	-	Fnod_0091	-	uncharacterized protein-like protein
86	 36.91	0	98231..98593	+	120	154248791	-	Fnod_0092	-	response regulator receiver protein
87	 32.76	0	98580..99974	+	464	154248792	-	Fnod_0093	-	stage II sporulation E family protein
88	 36.92	0	100018..100575	+	185	154248793	-	Fnod_0094	-	translation elongation factor P
89	 29.84	-1	100603..100917	+	104	154248794	-	Fnod_0095	-	hypothetical protein
90	 29.58	-1	100961..101386	+	141	154248795	-	Fnod_0096	-	transcription antitermination protein NusB
91	 29.84	-1	101460..101975	+	171	154248796	-	Fnod_0097	-	hypothetical protein
92	 34.06	0	102004..102831	+	275	154248797	-	Fnod_0098	-	dihydropteroate synthase
93	 31.57	-1	102828..103565	+	245	154248798	-	Fnod_0099	-	RNA-binding S4 domain-containing protein
94	 34.38	0	103633..104685	-	350	154248799	-	Fnod_0100	-	von Willebrand factor type A
95	 38.51	+1	104699..105181	-	160	154248800	-	Fnod_0101	-	hypothetical protein
96	 33.80	0	105361..105789	-	142	154248801	-	Fnod_0102	-	heat shock protein Hsp20
97	 37.06	0	106115..107026	-	303	154248802	-	Fnod_0103	-	phosphoglycerate dehydrogenase
98	 40.77	+1	107028..108170	-	380	154248803	-	Fnod_0104	-	aminotransferase class V
99	 37.46	0	108588..109823	+	411	154248804	-	Fnod_0105	-	GntR family transcriptional regulator
100	 38.08	0	109825..110898	+	357	154248805	-	Fnod_0106	-	butyrate kinase
35.13	MEAN

3.24	STD DEV
