IslandPath Analysis: Escherichia coli ATCC 8739

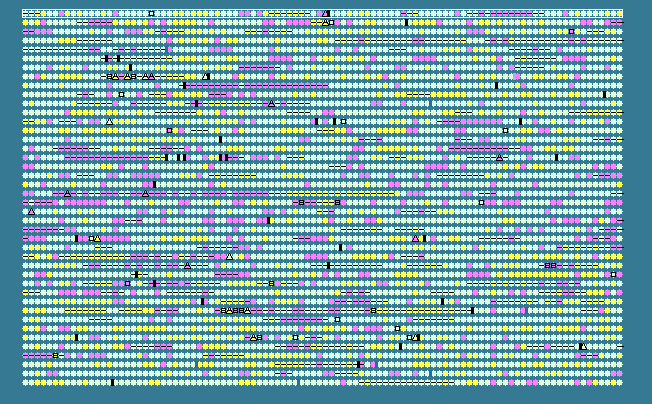

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.29   STD DEV: 4.70
Escherichia coli ATCC 8739, complete genome - 1..4746218
4200 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 53.85	0	48..1451	+	467	170018062	-	EcolC_0001	-	chromosomal replication initiator protein DnaA
2	 54.31	0	1456..2556	+	366	170018063	-	EcolC_0002	-	DNA polymerase III, beta subunit
3	 54.93	0	2556..3629	+	357	170018064	-	EcolC_0003	-	DNA replication and repair protein RecF
4	 55.20	0	3658..6072	+	804	170018065	-	EcolC_0004	-	DNA gyrase, B subunit
5	 50.63	0	6312..6710	+	132	170018066	-	EcolC_0005	-	hypothetical protein
6	 50.80	0	6825..7637	+	270	170018067	-	EcolC_0006	-	Cof-like hydrolase
7	 42.92	-1	7683..8339	-	218	170018068	-	EcolC_0007	-	putative replicase
8	 55.36	0	8617..9306	+	229	170018069	-	EcolC_0008	-	GntR domain-containing protein
9	 54.15	0	9303..10181	+	292	170018070	-	EcolC_0009	-	2-dehydro-3-deoxygalactonokinase
10	 59.39	+1	10165..10782	+	205	170018071	-	EcolC_0010	-	KDPG and KHG aldolase
11	 53.00	0	10779..11927	+	382	170018072	-	EcolC_0011	-	mandelate racemase/muconate lactonizing protein
12	 53.67	0	12047..13339	+	430	170018073	-	EcolC_0012	-	d-galactonate transporter
13	 50.89	0	13336..14400	-	354	170018074	-	EcolC_0013	-	hypothetical protein
14	 55.14	0	14501..15715	+	404	170018075	-	EcolC_0014	-	hypothetical protein
15	 50.74	0	15717..16124	-	135	170018076	-	EcolC_0015	-	hypothetical protein
16	 47.10	0	16355..16768	+	137	170018077	-	EcolC_0016	-	heat shock protein Hsp20
17	 48.95	0	16880..17308	+	142	170018078	-	EcolC_0017	-	heat shock protein Hsp20
18	 52.89	0	17504..19165	+	553	170018079	-	EcolC_0018	-	YidE/YbjL duplication
19	 51.32	0	19162..19878	-	238	170018080	-	EcolC_0019	-	GntR family transcriptional regulator
20	 52.01	0	20174..21790	+	538	170018081	-	EcolC_0020	-	PTS system, alpha-glucoside-specific IIBC subunit
21	 52.99	0	21790..23112	+	440	170018082	-	EcolC_0021	-	glycoside hydrolase family protein
22	 51.36	0	23681..24889	+	402	170018083	-	EcolC_0023	-	IS605 family transposase OrfB
23	 52.01	0	25060..25407	+	115	170018084	-	EcolC_0024	-	isocitrate dehydrogenase (NADP(+))
24	 50.41	0	25397..25759	+	120	170018085	-	EcolC_0025	-	hypothetical protein
25	 53.82	0	25756..26253	+	165	170018086	-	EcolC_0026	-	putative transcriptional regulator
26	 57.05	+1	26261..27445	-	394	170018087	-	EcolC_0027	-	major facilitator superfamily multidrug/H(+) antiporter
27	 56.25	+1	28583..30271	+	562	170018088	-	EcolC_0028	-	acetolactate synthase, large subunit, biosynthetic type
28	 48.45	0	30275..30565	+	96	170018089	-	EcolC_0029	-	acetolactate synthase, small subunit
29	 58.88	+1	30640..31230	+	196	170018090	-	EcolC_0030	-	two component LuxR family transcriptional regulator
30	 57.22	+1	31230..32732	+	500	170018091	-	EcolC_0031	-	integral membrane sensor signal transduction histidine kinase
31	 54.92	0	32742..34061	+	439	170018092	-	EcolC_0032	-	phosphoglycerate transporter
32	 52.59	0	34199..35590	+	463	170018093	-	EcolC_0033	-	phosphoglycerate transporter
33	 54.78	0	35635..37401	-	588	170018094	-	EcolC_0034	-	adenine deaminase
34	 48.31	0	37576..38910	+	444	170018095	-	EcolC_0035	-	xanthine/uracil/vitamin C permease
35	 52.76	0	38963..39415	+	150	170018096	-	EcolC_0036	-	hypothetical protein
36	 52.21	0	39461..40816	+	451	170018097	-	EcolC_0037	-	major facilitator transporter
37	 42.86	-1	40857..41150	-	97	170018098	-	EcolC_0038	-	putative transport protein
38	 47.37	0	41372..42190	+	272	170018099	-	EcolC_0039	-	YaeC family lipoprotein
39	 48.81	0	42194..43117	-	307	170018100	-	EcolC_0040	-	carboxylate/amino acid/amine transporter
40	 46.33	-1	43228..44412	-	394	170018101	-	EcolC_0041	-	sugar efflux transporter
41	 61.18	+2	45542..47875	-	777	170018102	-	EcolC_0043	-	P4 family phage/plasmid primase
42	 60.12	+1	47890..48210	-	106	170018103	-	EcolC_0044	-	putative protein encoded in prophage
43	 57.02	+1	48346..48801	-	151	170018104	-	EcolC_0045	-	hypothetical protein
44	 51.04	0	48794..49081	-	95	170018105	-	EcolC_0046	-	hypothetical protein
45	 56.18	+1	49074..49664	-	196	170018106	-	EcolC_0047	-	putative bacteriophage protein
46	 58.80	+1	49661..49927	-	88	170018107	-	EcolC_0048	-	phage transcriptional regulator, AlpA
47	 57.69	+1	50480..51214	+	244	170018108	-	EcolC_0049	-	hypothetical protein
48	 48.56	0	51214..51456	+	80	170018109	-	EcolC_0050	-	transcriptional activator Ogr/delta
49	 53.01	0	51480..52043	+	187	170018110	-	EcolC_0051	-	polarity suppression protein
50	 31.41	-2	52323..54089	-	588	170018111	-	EcolC_0052	-	hypothetical protein
51	 41.50	-2	54119..55294	-	391	170018112	-	EcolC_0053	-	integrase family protein
52	 49.39	0	55844..57226	+	460	170018113	-	EcolC_0054	-	sugar (glycoside-Pentoside-hexuronide) transporter
53	 52.09	0	57236..59554	+	772	170018114	-	EcolC_0055	-	glycoside hydrolase family protein
54	 54.21	0	59607..61316	-	569	170018115	-	EcolC_0056	-	AsmA family protein
55	 54.96	0	61437..62828	-	463	170018116	-	EcolC_0057	-	uracil-xanthine permease
56	 53.65	0	63108..64313	+	401	170018117	-	EcolC_0058	-	sodium/glutamate symporter
57	 56.77	+1	64482..66563	-	693	170018118	-	EcolC_0059	-	ATP-dependent DNA helicase RecG
58	 55.36	0	66569..67258	-	229	170018119	-	EcolC_0060	-	tRNA guanosine-2'-O-methyltransferase
59	 53.86	0	67265..69373	-	702	170018120	-	EcolC_0061	-	(p)ppGpp synthetase I, SpoT/RelA
60	 53.26	0	69392..69667	-	91	170018121	-	EcolC_0062	-	DNA-directed RNA polymerase, omega subunit
61	 49.04	0	69722..70345	-	207	170018122	-	EcolC_0063	-	guanylate kinase
62	 52.70	0	70603..72285	+	560	170018123	-	EcolC_0064	-	DNA ligase (NAD(+))
63	 53.40	0	72282..72899	-	205	170018124	-	EcolC_0065	-	hypothetical protein
64	 47.64	0	73190..74014	-	274	170018125	-	EcolC_0066	-	DNA-damage-inducible protein
65	 53.70	0	74235..75098	-	287	170018126	-	EcolC_0067	-	YicC domain-containing protein
66	 56.62	+1	75225..75941	+	238	170018127	-	EcolC_0068	-	ribonuclease PH
67	 52.34	0	76007..76648	+	213	170018128	-	EcolC_0069	-	orotate phosphoribosyltransferase
68	 53.10	0	76685..77281	-	198	170018129	-	EcolC_0070	-	TetR family transcriptional regulator
69	 54.47	0	77388..77846	-	152	170018130	-	EcolC_0071	-	deoxyuridine 5'-triphosphate nucleotidohydrolase Dut
70	 53.32	0	77824..79044	-	406	170018131	-	EcolC_0072	-	phosphopantothenoylcysteine decarboxylase/phosphopantothenate--cysteine ligase
71	 47.91	0	79240..79884	+	214	170018132	-	EcolC_0073	-	DNA repair protein RadC
72	 53.16	0	80101..80337	+	78	170018133	-	EcolC_0074	-	ribosomal protein L28
73	 39.88	-2	80358..80525	+	55	170018134	-	EcolC_0075	-	ribosomal protein L33
74	 54.20	0	80623..81432	+	269	170018135	-	EcolC_0076	-	formamidopyrimidine-DNA glycosylase
75	 53.12	0	81471..81950	-	159	170018136	-	EcolC_0077	-	pantetheine-phosphate adenylyltransferase
76	 54.30	0	81958..83235	-	425	170018137	-	EcolC_0078	-	3-deoxy-D-manno-octulosonic-acid transferase domain-containing protein
77	 47.21	0	83684..84706	+	340	170018138	-	EcolC_0079	-	lipopolysaccharide heptosyltransferase III
78	 48.36	0	84703..85827	+	374	170018139	-	EcolC_0080	-	glycosyl transferase group 1
79	 47.49	0	85820..86617	+	265	170018140	-	EcolC_0081	-	lipopolysaccharide kinase
80	 38.45	-2	86633..87649	+	338	170018141	-	EcolC_0082	-	lipopolysaccharide 3-alpha-galactosyltransferase
81	 35.64	-2	87666..88661	+	331	170018142	-	EcolC_0083	-	lipopolysaccharide glucosyltransferase I
82	 34.92	-2	88671..89363	+	230	170018143	-	EcolC_0084	-	lipopolysaccharide core biosynthesis protein
83	 36.94	-2	89389..90414	+	341	170018144	-	EcolC_0085	-	lipopolysaccharide glucosyltransferase I
84	 32.42	-2	90499..91482	+	327	170018145	-	EcolC_0086	-	glycosyl transferase family protein
85	 33.17	-2	91528..92781	+	417	170018146	-	EcolC_0087	-	O-antigen polymerase
86	 51.54	0	92851..93822	-	323	170018147	-	EcolC_0088	-	lipopolysaccharide heptosyltransferase I
87	 53.96	0	93826..94872	-	348	170018148	-	EcolC_0089	-	lipopolysaccharide heptosyltransferase II
88	 51.13	0	94882..95814	-	310	170018149	-	EcolC_0090	-	ADP-L-glycero-D-manno-heptose-6-epimerase
89	 54.64	0	96028..97224	+	398	170018150	-	EcolC_0091	-	2-amino-3-ketobutyrate coenzyme A ligase
90	 52.53	0	97234..98259	+	341	170018151	-	EcolC_0092	-	L-threonine 3-dehydrogenase
91	 46.09	-1	98498..99532	+	344	170018152	-	EcolC_0093	-	glycosyl transferase family protein
92	 52.60	0	99519..100478	-	319	170018153	-	EcolC_0094	-	protein of unknown function DUF610 YibQ
93	 56.67	+1	100482..101741	-	419	170018154	-	EcolC_0095	-	peptidase M23B
94	 53.20	0	101775..103319	-	514	170018155	-	EcolC_0096	-	phosphoglycerate mutase, 2,3-bisphosphoglycerate-independent
95	 49.77	0	103564..103995	+	143	170018156	-	EcolC_0097	-	rhodanese domain-containing protein
96	 51.19	0	104137..104388	+	83	170018157	-	EcolC_0098	-	glutaredoxin 3
97	 51.28	0	104451..104918	+	155	170018158	-	EcolC_0099	-	protein-export protein SecB
98	 56.57	+1	104918..105937	+	339	170018159	-	EcolC_0100	-	glycerol-3-phosphate dehydrogenase (NAD(P)(+))
99	 53.16	0	106017..106838	+	273	170018160	-	EcolC_0101	-	serine O-acetyltransferase
100	 55.06	0	106891..107364	-	157	170018161	-	EcolC_0102	-	RNA methyltransferase
51.29	MEAN

4.70	STD DEV
