IslandPath Analysis: Escherichia coli HS

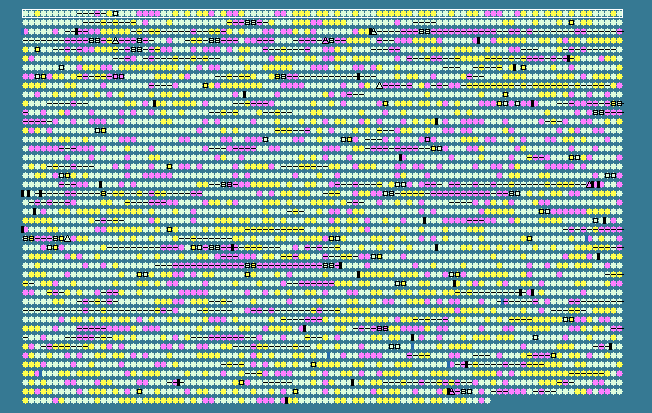

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.69 STD DEV: 5.39
Escherichia coli HS, complete genome - 1..4643538
4378 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 51.52	0	190..255	+	21	157159468	thrL	EcHS_A0002	-	thr operon leader peptide
2	 53.15	0	336..2798	+	820	157159469	thrA	EcHS_A0003	-	bifunctional aspartokinase I/homeserine dehydrogenase I
3	 55.84	0	2800..3732	+	310	157159470	thrB	EcHS_A0004	-	homoserine kinase
4	 53.07	0	3733..5019	+	428	157159471	thrC	EcHS_A0005	-	threonine synthase
5	 52.80	0	5309..5719	-	136	157159472	-	EcHS_A0006	-	hypothetical protein
6	 49.29	0	5682..6458	-	258	157159473	-	EcHS_A0007	-	hypothetical protein
7	 53.04	0	6528..7958	-	476	157159474	agcS	EcHS_A0008	-	amino acid carrier protein
8	 51.26	0	8237..9190	+	317	157159475	tal2	EcHS_A0009	-	transaldolase B
9	 53.91	0	9305..9892	+	195	157159476	mog	EcHS_A0010	-	molybdenum cofactor biosynthesis protein
10	 53.09	0	9927..10493	-	188	157159477	-	EcHS_A0011	-	hypothetical protein
11	 51.12	0	10642..11355	-	237	157159478	-	EcHS_A0012	-	hypothetical protein
12	 47.90	0	11381..11785	-	134	157159479	-	EcHS_A0013	-	hypothetical protein
13	 42.00	-1	11920..12069	-	49	157159480	-	EcHS_A0014	-	hypothetical protein
14	 51.28	0	12162..14078	+	638	157159481	dnaK	EcHS_A0015	-	molecular chaperone DnaK
15	 55.00	0	14167..15297	+	376	157159482	dnaJ	EcHS_A0016	-	chaperone protein DnaJ
16	 51.93	0	15560..16672	-	370	157159483	-	EcHS_A0017	-	IS186, transposase
17	 51.43	0	16750..16959	-	69	157159484	-	EcHS_A0018	-	putative Hok/gef family protein
18	 51.41	0	17488..18654	+	388	157159485	nhaA	EcHS_A0019	-	pH-dependent sodium/proton antiporter
19	 47.56	0	18720..19619	+	299	157159486	nhaR	EcHS_A0020	-	transcriptional activator NhaR
20	 36.41	-2	19658..20437	-	259	157159487	-	EcHS_A0021	-	hypothetical protein
21	 31.74	-2	22207..22770	-	187	157159488	-	EcHS_A4640	-	hypothetical protein
22	 30.02	-2	22812..23627	-	271	157159489	-	EcHS_A0024	-	hypothetical protein
23	 46.59	0	24111..24374	-	87	157159490	rpsT	EcHS_A0025	-	30S ribosomal protein S20
24	 48.86	0	24477..24695	+	72	157159491	-	EcHS_A0026	-	hypothetical protein
25	 53.40	0	24703..25644	+	313	157159492	ribF	EcHS_A0027	-	bifunctional riboflavin kinase/FMN adenylyltransferase
26	 55.56	0	25687..28503	+	938	157159493	ileS	EcHS_A0028	-	isoleucyl-tRNA synthetase
27	 52.93	0	28503..28997	+	164	157159494	lspA	EcHS_A0029	-	lipoprotein signal peptidase
28	 54.44	0	29085..29534	+	149	157159495	fkpB	EcHS_A0030	-	FKBP-type 16 kDa peptidyl-prolyl cis-trans isomerase
29	 54.15	0	29536..30486	+	316	157159496	ispH	EcHS_A0031	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
30	 56.28	+1	30552..31466	+	304	157159497	rihC	EcHS_A0032	-	ribonucleoside hydrolase RihC
31	 54.26	0	31633..32454	+	273	157159498	dapB	EcHS_A0033	-	dihydrodipicolinate reductase
32	 27.98	-2	32496..32663	-	55	157159499	-	EcHS_A0034	-	hypothetical protein
33	 53.18	0	32910..34058	+	382	157159500	carA	EcHS_A0035	-	carbamoyl phosphate synthase small subunit
34	 56.27	+1	34076..37297	+	1073	157159501	carB	EcHS_A0036	-	carbamoyl phosphate synthase large subunit
35	 35.62	-2	37305..37523	-	72	157159502	-	EcHS_A0037	-	hypothetical protein
36	 46.72	0	37558..37953	+	131	157159503	caiF	EcHS_A0038	-	DNA-binding transcriptional activator CaiF
37	 55.16	0	38039..38629	-	196	157159504	caiE	EcHS_A0039	-	carnitine operon protein CaiE
38	 52.91	0	38635..39528	-	297	157159505	caiD	EcHS_A0040	-	carnitinyl-CoA dehydratase
39	 51.05	0	39529..41097	-	522	157159506	-	EcHS_A0041	-	putative crotonobetaine/carnitine-CoA ligase
40	 52.46	0	41156..42373	-	405	157159507	caiB	EcHS_A0042	-	crotonobetainyl-CoA:carnitine CoA-transferase
41	 54.16	0	42502..43644	-	380	157159508	caiA	EcHS_A0043	-	crotonobetainyl-CoA dehydrogenase
42	 51.55	0	43675..45189	-	504	157159509	caiT	EcHS_A0044	-	L-carnitine/gamma-butyrobetaine antiporter
43	 28.43	-2	45204..45305	+	33	157159510	-	EcHS_A0045	-	hypothetical protein
44	 29.73	-2	45484..45594	+	36	157159511	-	EcHS_A0046	-	hypothetical protein
45	 52.40	0	45663..46433	+	256	157159512	fixA	EcHS_A0047	-	putative electron transfer flavoprotein FixA
46	 56.16	+1	46448..47389	+	313	157159513	fixB	EcHS_A0048	-	putative electron transfer flavoprotein FixB
47	 55.01	0	47440..48726	+	428	157159514	fixC	EcHS_A0049	-	putative oxidoreductase FixC
48	 57.29	+1	48723..49010	+	95	157159515	fixX	EcHS_A0050	-	ferredoxin homolog FixX
49	 53.45	0	49069..50400	+	443	157159516	-	EcHS_A0051	-	major facilitator family transporter
50	 54.99	0	50508..51038	+	176	157159517	kefF	EcHS_A0052	-	glutathione-regulated potassium-efflux system ancillary protein KefF
51	 55.45	0	51031..52893	+	620	157159518	kefC	EcHS_A0053	-	glutathione-regulated potassium-efflux system protein KefC
52	 53.54	0	53085..53564	+	159	157159519	folA	EcHS_A0054	-	dihydrofolate reductase
53	 55.40	0	53642..54484	-	280	157159520	apaH	EcHS_A0055	-	diadenosine tetraphosphatase
54	 51.85	0	54491..54868	-	125	157159521	apaG	EcHS_A0056	-	ApaG
55	 53.28	0	54871..55692	-	273	157159522	ksgA	EcHS_A0057	-	dimethyladenosine transferase
56	 56.16	+1	55689..56678	-	329	157159523	pdxA	EcHS_A0058	-	4-hydroxythreonine-4-phosphate dehydrogenase
57	 53.61	0	56678..57964	-	428	157159524	surA	EcHS_A0059	-	peptidyl-prolyl cis-trans isomerase SurA
58	 51.38	0	58017..60371	-	784	157159525	imp	EcHS_A0060	-	organic solvent tolerance protein
59	 52.70	0	60626..61441	+	271	157159526	djlA	EcHS_A0061	-	Dna-J like membrane chaperone protein
60	 54.24	0	61558..62217	-	219	157159527	-	EcHS_A0062	-	23S rRNA/tRNA pseudouridine synthase A
61	 54.83	0	62229..65135	-	968	157159528	rapA	EcHS_A0063	-	ATP-dependent helicase HepA
62	 55.10	0	65300..67651	-	783	157159529	polB	EcHS_A0064	-	DNA polymerase II
63	 55.32	0	67726..68421	-	231	157159530	araD	EcHS_A0065	-	L-ribulose-5-phosphate 4-epimerase
64	 55.09	0	68590..70092	-	500	157159531	araA	EcHS_A0066	-	L-arabinose isomerase
65	 58.32	+1	70103..71803	-	566	157159532	araB	EcHS_A0067	-	ribulokinase
66	 52.79	0	72142..73020	+	292	157159533	araC	EcHS_A0068	-	DNA-binding transcriptional regulator AraC
67	 54.64	0	73106..73870	+	254	157159534	-	EcHS_A0069	-	hypothetical protein
68	 56.65	+1	73984..74682	-	232	157159535	thiQ	EcHS_A0070	-	thiamine transporter ATP-binding subunit
69	 58.41	+1	74666..76276	-	536	157159536	thiP	EcHS_A0071	-	thiamine transporter membrane protein
70	 53.66	0	76252..77235	-	327	157159537	thiB	EcHS_A0072	-	thiamine transporter substrate binding subunit
71	 52.50	0	77279..77398	-	39	157159538	-	EcHS_A0073	-	putative lipoprotein
72	 54.71	0	77399..79054	-	551	157159539	sgrR	EcHS_A0074	-	transcriptional regulator SgrR
73	 48.35	0	79376..80554	+	392	157159540	setA	EcHS_A0075	-	sugar efflux transporter A
74	 51.32	0	80603..81208	-	201	157159541	leuD	EcHS_A0076	-	isopropylmalate isomerase small subunit
75	 55.75	0	81219..82619	-	466	157159542	leuC	EcHS_A0077	-	isopropylmalate isomerase large subunit
76	 55.59	0	82622..83713	-	363	157159543	leuB	EcHS_A0078	-	3-isopropylmalate dehydrogenase
77	 52.74	0	83713..85284	-	523	157159544	leuA	EcHS_A0079	-	2-isopropylmalate synthase
78	 47.13	0	85377..85463	-	28	157159545	leuL	EcHS_A0080	-	leu operon leader peptide
79	 45.82	0	86123..87067	+	314	157159546	leuO	EcHS_A0081	-	leucine transcriptional activator
80	 27.64	-2	87103..87225	-	40	157159547	-	EcHS_A0082	-	hypothetical protein
81	 52.87	0	87385..89109	+	574	157159548	ilvI	EcHS_A0083	-	acetolactate synthase 3 catalytic subunit
82	 50.41	0	89112..89603	+	163	157159549	ilvH	EcHS_A0084	-	acetolactate synthase 3 regulatory subunit
83	 39.39	-2	89655..89786	+	43	157159550	-	EcHS_A0085	-	hypothetical protein
84	 54.93	0	89783..90787	+	334	157159551	fruR	EcHS_A0086	-	DNA-binding transcriptional regulator FruR
85	 52.51	0	91389..91847	+	152	157159552	mraZ	EcHS_A0087	-	cell division protein MraZ
86	 55.63	0	91849..92790	+	313	157159553	mraW	EcHS_A0088	-	S-adenosyl-methyltransferase MraW
87	 50.27	0	92787..93152	+	121	157159554	ftsL	EcHS_A0089	-	cell division protein FtsL
88	 54.22	0	93168..94934	+	588	157159555	ftsI	EcHS_A0090	-	peptidoglycan synthetase FtsI
89	 56.52	+1	94921..96408	+	495	157159556	murE	EcHS_A0091	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
90	 55.26	0	96405..97763	+	452	157159557	murF	EcHS_A0092	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alanine ligase
91	 53.37	0	97757..98839	+	360	157159558	mraY	EcHS_A0093	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
92	 54.90	0	98842..100158	+	438	157159559	murD	EcHS_A0094	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
93	 53.01	0	100158..101402	+	414	157159560	ftsW	EcHS_A0095	-	cell division protein FtsW
94	 55.99	0	101399..102466	+	355	157159561	murG	EcHS_A0096	-	N-acetylglucosaminyl transferase
95	 54.40	0	102520..103995	+	491	157159562	murC	EcHS_A0097	-	UDP-N-acetylmuramate--L-alanine ligase
96	 51.79	0	103988..104908	+	306	157159563	ddlB	EcHS_A0098	-	D-alanine--D-alanine ligase
97	 53.55	0	104910..105740	+	276	157159564	ftsQ	EcHS_A0099	-	cell division protein FtsQ
98	 52.18	0	105737..106999	+	420	157159565	ftsA	EcHS_A0100	-	cell division protein FtsA
99	 54.17	0	107060..108211	+	383	157159566	ftsZ	EcHS_A0101	-	cell division protein FtsZ
100	 51.09	0	108312..109229	+	305	157159567	lpxC	EcHS_A0102	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
50.69	MEAN

5.39	STD DEV
