IslandPath Analysis: Escherichia coli 536

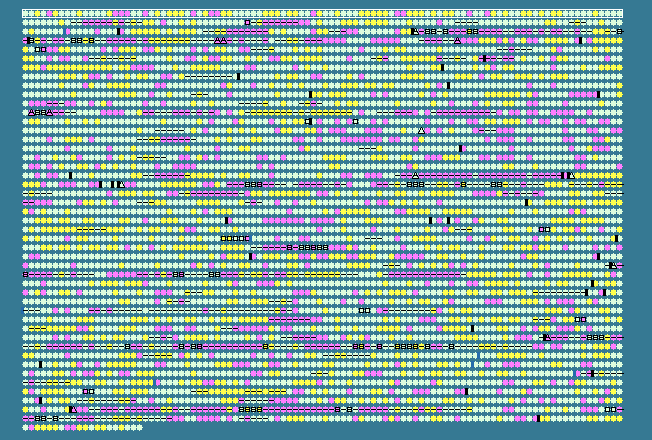

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 51.52	0	190..255	+	21	110640214	-	ECP_0001	-	thr operon leader peptide
2	 52.78	0	336..2798	+	820	110640215	thrA	ECP_0002	-	bifunctional aspartokinase I/homeserine dehydrogenase I
3	 55.84	+1	2800..3732	+	310	110640216	-	ECP_0003	-	homoserine kinase
4	 51.98	0	3733..5019	+	428	110640217	-	ECP_0004	-	threonine synthase
5	 41.11	-1	5058..5237	+	59	110640218	-	ECP_0005	-	hypothetical protein
6	 54.17	0	5243..5530	+	95	110640219	-	ECP_0006	-	putative periplasmic protein YaaX
7	 49.03	0	5580..6356	-	258	110640220	-	ECP_0007	-	hypothetical protein
8	 53.53	0	6426..7856	-	476	110640221	-	ECP_0008	-	putative transporter YaaJ
9	 51.57	0	8137..9090	+	317	110640222	-	ECP_0009	-	transaldolase B
10	 54.08	0	9205..9792	+	195	110640223	mogA	ECP_0010	-	molybdenum cofactor biosynthesis protein
11	 53.09	0	9997..10563	-	188	110640224	-	ECP_0011	-	hypothetical protein
12	 50.98	0	10712..11425	-	237	110640225	-	ECP_0012	-	hypothetical protein
13	 48.15	0	11451..11855	-	134	110640226	-	ECP_0013	-	hypothetical protein
14	 51.07	0	12227..14143	+	638	110640227	-	ECP_0014	-	molecular chaperone DnaK
15	 54.26	0	14202..15362	+	386	110640228	-	ECP_0015	-	chaperone protein DnaJ
16	 40.03	-2	16234..16995	+	253	110640230	-	ECP_0017	-	hypothetical protein
17	 45.11	-1	17015..18508	+	497	110640231	-	ECP_0018	-	putative secreted sulfatase
18	 43.57	-1	18637..19896	+	419	110640232	-	ECP_0019	-	putative cytoplasmic protein
19	 50.47	0	20131..21297	+	388	110640233	nhaA	ECP_0020	-	pH-dependent sodium/proton antiporter
20	 47.35	0	21357..22262	+	301	110640234	nhaR	ECP_0021	-	transcriptional activator NhaR
21	 46.21	0	22358..22621	-	87	110640235	rpsT	ECP_0022	-	30S ribosomal protein S20
22	 52.76	0	22950..23891	+	313	110640236	-	ECP_0023	-	bifunctional riboflavin kinase/FMN adenylyltransferase
23	 54.56	0	23934..26750	+	938	110640237	ileS	ECP_0024	-	isoleucyl-tRNA synthetase
24	 52.32	0	26750..27244	+	164	110640238	lspA	ECP_0025	-	lipoprotein signal peptidase
25	 54.67	0	27352..27801	+	149	110640239	-	ECP_0026	-	FKBP-type 16 kDa peptidyl-prolyl cis-trans isomerase
26	 54.97	0	27803..28768	+	321	110640240	-	ECP_0027	-	LytB protein
27	 54.43	0	28818..29732	+	304	110640241	-	ECP_0028	-	ribonucleoside hydrolase RihC
28	 53.53	0	29899..30720	+	273	110640242	-	ECP_0029	-	dihydrodipicolinate reductase
29	 30.04	-2	30781..31023	+	80	110640243	-	ECP_0030	-	hypothetical protein
30	 53.09	0	31176..32324	+	382	110640244	-	ECP_0031	-	carbamoyl phosphate synthase small subunit
31	 55.92	+1	32342..35560	+	1072	110640245	carB	ECP_0032	-	carbamoyl phosphate synthase large subunit
32	 36.07	-2	35568..35786	-	72	110640246	-	ECP_0033	-	hypothetical protein
33	 46.72	0	35821..36216	+	131	110640247	-	ECP_0034	-	DNA-binding transcriptional activator CaiF
34	 55.50	0	36335..36925	-	196	110640248	-	ECP_0035	-	carnitine operon protein CaiE
35	 54.45	0	36931..37716	-	261	110640249	-	ECP_0036	-	carnitinyl-CoA dehydratase
36	 50.73	0	37825..39393	-	522	110640250	caiC	ECP_0037	-	putative crotonobetaine/carnitine-CoA ligase
37	 52.79	0	39451..40668	-	405	110640251	-	ECP_0038	-	crotonobetainyl-CoA:carnitine CoA-transferase
38	 53.72	0	40786..41928	-	380	110640252	-	ECP_0039	-	crotonobetainyl-CoA dehydrogenase
39	 52.41	0	41959..43473	-	504	110640253	-	ECP_0040	-	L-carnitine/gamma-butyrobetaine antiporter
40	 51.88	0	43946..44716	+	256	110640254	-	ECP_0041	-	putative electron transfer flavoprotein FixA
41	 56.16	+1	44731..45672	+	313	110640255	fixB	ECP_0042	-	putative electron transfer flavoprotein FixB
42	 54.47	0	45723..47009	+	428	110640256	-	ECP_0043	-	putative oxidoreductase FixC
43	 56.25	+1	47006..47293	+	95	110640257	-	ECP_0044	-	ferredoxin-like protein
44	 53.53	0	47352..48683	+	443	110640258	-	ECP_0045	-	metabolite transport protein YaaU
45	 54.43	0	48791..49321	+	176	110640259	-	ECP_0046	-	glutathione-regulated potassium-efflux system ancillary protein KefF
46	 55.61	0	49314..51176	+	620	110640260	-	ECP_0047	-	glutathione-regulated potassium-efflux system protein KefC
47	 53.12	0	51368..51847	+	159	110640261	folA	ECP_0048	-	dihydrofolate reductase
48	 48.29	0	51933..52166	+	77	110640262	-	ECP_0049	-	putative antitoxin of gyrase inhibiting toxin-antitoxin system
49	 46.03	0	52169..52483	+	104	110640263	-	ECP_0050	-	putative toxin of gyrase inhibiting toxin-antitoxin system
50	 55.48	0	52480..53328	-	282	110640264	apaH	ECP_0051	-	diadenosine tetraphosphatase
51	 51.85	0	53335..53712	-	125	110640265	apaG	ECP_0052	-	ApaG
52	 53.77	0	53715..54536	-	273	110640266	ksgA	ECP_0053	-	dimethyladenosine transferase
53	 56.04	+1	54533..55501	-	322	110640267	pdxA	ECP_0054	-	4-hydroxythreonine-4-phosphate dehydrogenase
54	 51.85	0	56860..59214	-	784	110640268	-	ECP_0057	-	organic solvent tolerance protein
55	 52.33	0	59469..60284	+	271	110640269	djlA	ECP_0058	-	DNA-J like membrane chaperone protein
56	 53.79	0	60402..61061	-	219	110640270	-	ECP_0059	-	23S rRNA/tRNA pseudouridine synthase A
57	 55.28	0	61073..63979	-	968	110640271	-	ECP_0060	-	ATP-dependent helicase HepA
58	 55.53	0	64144..66495	-	783	110640272	-	ECP_0061	-	DNA polymerase II
59	 55.60	0	66570..67265	-	231	110640273	araD	ECP_0062	-	L-ribulose-5-phosphate 4-epimerase
60	 55.02	0	67550..69052	-	500	110640274	-	ECP_0063	-	L-arabinose isomerase
61	 57.85	+1	69063..70763	-	566	110640275	-	ECP_0064	-	ribulokinase
62	 52.72	0	71102..71947	+	281	110640276	-	ECP_0065	-	DNA-binding transcriptional regulator AraC
63	 33.69	-2	72461..73309	+	282	110640277	-	ECP_0066	-	hypothetical protein
64	 30.97	-2	73316..73738	+	140	110640278	-	ECP_0067	-	hypothetical protein
65	 54.51	0	73893..74657	+	254	110640279	-	ECP_0068	-	DedA family integral membrane protein
66	 56.94	+1	74771..75469	-	232	110640280	thiQ	ECP_0069	-	thiamine transporter ATP-binding subunit
67	 57.91	+1	75453..77063	-	536	110640281	thiP	ECP_0070	-	thiamine transporter membrane protein
68	 51.83	0	77039..78022	-	327	110640282	tbpA	ECP_0071	-	thiamine transporter substrate binding subunit
69	 55.07	0	78186..79841	-	551	110640283	-	ECP_0072	-	transcriptional regulator SgrR
70	 51.82	0	80169..80774	-	201	110640284	leuD	ECP_0073	-	isopropylmalate isomerase small subunit
71	 55.60	0	80785..82185	-	466	110640285	-	ECP_0074	-	isopropylmalate isomerase large subunit
72	 54.76	0	82188..83279	-	363	110640286	-	ECP_0075	-	3-isopropylmalate dehydrogenase
73	 52.93	0	83279..84850	-	523	110640287	-	ECP_0076	-	2-isopropylmalate synthase
74	 47.13	0	84942..85028	-	28	110640288	-	ECP_0077	-	leu operon leader peptide
75	 46.35	0	85686..86630	+	314	110640289	leuO	ECP_0078	-	leucine transcriptional activator
76	 53.16	0	86948..88672	+	574	110640290	-	ECP_0079	-	acetolactate synthase 3 catalytic subunit
77	 50.00	0	88675..89166	+	163	110640291	ilvH	ECP_0080	-	acetolactate synthase 3 regulatory subunit
78	 45.98	0	89178..89264	+	28	110640292	-	ECP_0081	-	fruR/shl operon leader peptide
79	 55.12	0	89346..90350	+	334	110640293	-	ECP_0082	-	DNA-binding transcriptional regulator FruR
80	 52.29	0	90952..91410	+	152	110640294	-	ECP_0083	-	cell division protein MraZ
81	 55.63	0	91412..92353	+	313	110640295	mraW	ECP_0084	-	S-adenosyl-methyltransferase MraW
82	 50.55	0	92350..92715	+	121	110640296	-	ECP_0085	-	cell division protein FtsL
83	 53.88	0	92731..94497	+	588	110640297	-	ECP_0086	-	peptidoglycan synthetase FtsI precursor
84	 56.85	+1	94484..95971	+	495	110640298	murE	ECP_0087	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
85	 54.30	0	95968..97326	+	452	110640299	murF	ECP_0088	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alanine ligase
86	 53.28	0	97320..98402	+	360	110640300	mraY	ECP_0089	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
87	 55.43	0	98405..99721	+	438	110640301	murD	ECP_0090	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
88	 52.61	0	99721..100965	+	414	110640302	-	ECP_0091	-	cell division protein FtsW
89	 56.09	+1	100962..102029	+	355	110640303	murG	ECP_0092	-	N-acetylglucosaminyl transferase
90	 54.34	0	102083..103558	+	491	110640304	murC	ECP_0093	-	UDP-N-acetylmuramate--L-alanine ligase
91	 51.25	0	103551..104471	+	306	110640305	ddl	ECP_0094	-	D-alanine--D-alanine ligase
92	 53.31	0	104473..105303	+	276	110640306	-	ECP_0095	-	cell division protein FtsQ
93	 52.02	0	105300..106562	+	420	110640307	ftsA	ECP_0096	-	cell division protein FtsA
94	 53.82	0	106623..107774	+	383	110640308	-	ECP_0097	-	cell division protein FtsZ
95	 51.20	0	107875..108792	+	305	110640309	lpxC	ECP_0098	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
96	 54.39	0	109023..109535	+	170	110640310	-	ECP_0099	-	SecA regulator SecM
97	 51.92	0	109597..112302	+	901	110640311	secA	ECP_0100	-	preprotein translocase subunit SecA
98	 49.37	0	112362..112760	+	132	110640312	-	ECP_0101	-	nucleoside triphosphate pyrophosphohydrolase
99	 51.52	0	112848..113045	-	65	110640313	-	ECP_0102	-	zinc-binding protein
100	 51.34	0	113055..113798	-	247	110640314	-	ECP_0103	-	hypothetical protein
50.53	MEAN

5.23	STD DEV
