IslandPath Analysis: Escherichia coli CFT073

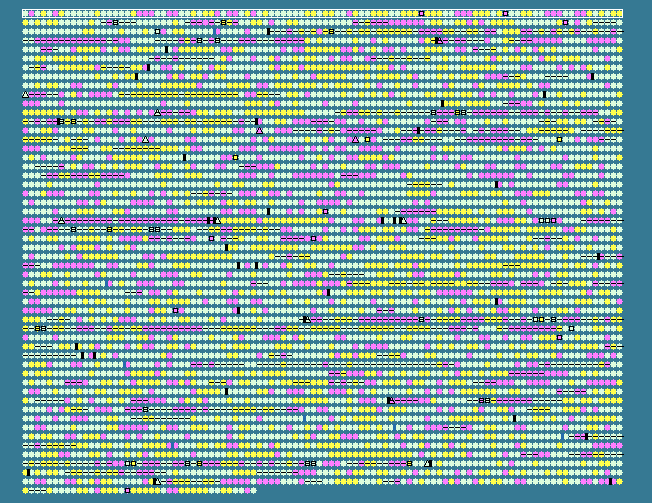

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 50.18   STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 51.52	0	190..255	+	21	26245918	thrL	c5491	-	thr operon leader peptide
2	 46.03	0	534..911	+	125	26245919	-	c0002	-	hypothetical protein
3	 52.53	0	985..3510	+	841	26245920	thrA	c0003	-	bifunctional aspartokinase I/homeserine dehydrogenase I
4	 55.52	0	3512..4444	+	310	26245921	thrB	c0004	-	homoserine kinase
5	 52.76	0	4445..5731	+	428	26245922	thrC	c0005	-	threonine synthase
6	 40.67	-1	5799..5948	+	49	26245923	-	c0006	-	hypothetical protein
7	 53.87	0	5945..6241	+	98	26245924	yaaX	c0007	-	hypothetical protein
8	 53.41	0	6021..6269	-	82	26245925	-	c0008	-	hypothetical protein
9	 52.27	0	6060..6323	+	87	26245926	-	c0009	-	hypothetical protein
10	 48.65	0	6301..7077	-	258	26245927	yaaA	c0010	-	hypothetical protein
11	 53.46	0	7147..8577	-	476	26245928	yaaJ	c0011	-	putative transporter yaaJ
12	 51.99	0	8856..9809	+	317	161486342	talB	c0012	-	transaldolase B
13	 54.15	0	9921..10511	+	196	26245930	mogA	c0013	-	molybdenum cofactor biosynthesis protein
14	 52.73	0	10716..11282	-	188	26245932	yaaH	c0015	-	hypothetical protein
15	 50.98	0	11431..12144	-	237	26245933	yaaW	c0016	-	hypothetical protein
16	 47.65	0	12170..12574	-	134	26245934	yaaI	c0017	-	hypothetical protein
17	 50.91	0	12904..14940	-	678	26245935	-	c0018	-	putative glutamate dehydrogenase
18	 51.07	0	12946..14862	+	638	26245936	dnaK	c0019	-	molecular chaperone DnaK
19	 54.82	0	14951..16081	+	376	26245937	dnaJ	c0020	-	chaperone protein DnaJ
20	 40.03	-1	16953..17714	+	253	26245938	-	c0021	-	hypothetical protein
21	 44.77	0	17698..19227	+	509	26245939	-	c0022	-	hypothetical protein
22	 43.41	-1	19356..20615	+	419	26245940	-	c0023	-	hypothetical protein
23	 50.47	0	20850..22016	+	388	26245941	nhaA	c0024	-	pH-dependent sodium/proton antiporter
24	 47.44	0	22082..22981	+	299	161486341	nhaR	c0025	-	transcriptional activator NhaR
25	 41.86	-1	22948..23076	-	42	26245943	-	c0026	-	hypothetical protein
26	 46.21	0	23077..23340	-	87	26245944	rpsT	c0027	-	30S ribosomal protein S20
27	 48.86	0	23443..23661	+	72	26245945	yaaY	c0028	-	hypothetical protein
28	 52.87	0	23669..24610	+	313	26245946	ribF	c0029	-	bifunctional riboflavin kinase/FMN adenylyltransferase
29	 54.77	0	24653..27469	+	938	26245947	ileS	c0030	-	isoleucyl-tRNA synthetase
30	 52.32	0	27469..27963	+	164	26245948	lspA	c0031	-	lipoprotein signal peptidase
31	 54.44	0	28071..28520	+	149	26245949	slpA	c0032	-	FKBP-type 16 kDa peptidyl-prolyl cis-trans isomerase
32	 55.73	0	28522..29472	+	316	161486340	ispH	c0033	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
33	 44.54	-1	30475..30840	+	121	26245951	-	c0036	-	hypothetical protein
34	 53.28	0	31001..31822	+	273	26245952	dapB	c0037	-	dihydrodipicolinate reductase
35	 25.60	-2	31864..32031	-	55	26245953	-	c0038	-	hypothetical protein
36	 38.41	-2	32101..32238	+	45	26245954	-	c0039	-	hypothetical protein
37	 53.06	0	32251..33426	+	391	26245955	carA	c0040	-	carbamoyl phosphate synthase small subunit
38	 56.18	+1	33444..36665	+	1073	26245956	carB	c0041	-	carbamoyl phosphate synthase large subunit
39	 36.07	-2	36673..36891	-	72	26245957	-	c0042	-	hypothetical protein
40	 46.72	0	36926..37321	+	131	161486339	caiF	c0043	-	DNA-binding transcriptional activator CaiF
41	 55.07	0	37440..38051	-	203	26245959	caiE	c0044	-	carnitine operon protein CaiE
42	 52.80	0	38036..38929	-	297	26245960	caiD	c0045	-	carnitinyl-CoA dehydratase
43	 50.80	0	38930..40498	-	522	26245961	caiC	c0046	-	putative crotonobetaine/carnitine-CoA ligase
44	 52.46	0	40556..41773	-	405	26245962	caiB	c0047	-	crotonobetainyl-CoA:carnitine CoA-transferase
45	 53.46	0	41901..43043	-	380	26245963	caiA	c0048	-	crotonobetainyl-CoA dehydrogenase
46	 52.41	0	43074..44588	-	504	26245964	caiT	c0049	-	L-carnitine/gamma-butyrobetaine antiporter
47	 51.75	0	45061..45831	+	256	161486338	fixA	c0050	-	putative electron transfer flavoprotein FixA
48	 54.31	0	46809..48095	+	428	26245966	fixC	c0053	-	putative oxidoreductase FixC
49	 57.29	+1	48092..48379	+	95	26245967	fixX	c0054	-	ferredoxin-like protein
50	 53.60	0	48438..49769	+	443	26245968	yaaU	c0055	-	metabolite transporter
51	 54.43	0	49877..50407	+	176	26245969	yabF	c0056	-	glutathione-regulated potassium-efflux system ancillary protein KefF
52	 55.45	0	50400..52262	+	620	26245970	kefC	c0057	-	glutathione-regulated potassium-efflux system protein KefC
53	 52.20	0	52319..52933	+	204	26245971	folA	c0058	-	dihydrofolate reductase
54	 48.72	0	53019..53252	+	77	26245972	-	c0059	-	putative antitoxin of gyrase inhibiting toxin-antitoxin system
55	 46.03	0	53255..53569	+	104	26245973	-	c0060	-	putative toxin of gyrase inhibiting toxin-antitoxin system
56	 55.48	0	53566..54414	-	282	26245974	apaH	c0061	-	diadenosine tetraphosphatase
57	 51.98	0	54385..54738	+	117	26245975	-	c0062	-	hypothetical protein
58	 52.12	0	54421..54798	-	125	26245976	apaG	c0063	-	ApaG
59	 53.77	0	54801..55622	-	273	26245977	ksgA	c0064	-	dimethyladenosine transferase
60	 55.76	+1	55619..56608	-	329	26245978	pdxA	c0065	-	4-hydroxythreonine-4-phosphate dehydrogenase
61	 53.77	0	56608..57894	-	428	26245979	surA	c0066	-	peptidyl-prolyl cis-trans isomerase SurA
62	 51.72	0	57947..60301	-	784	26245980	imp	c0067	-	organic solvent tolerance protein
63	 52.45	0	60556..61371	+	271	161486337	djlA	c0068	-	DNA-J like membrane chaperone protein
64	 54.24	0	61489..62148	-	219	26245982	yabO	c0069	-	23S rRNA/tRNA pseudouridine synthase A
65	 55.07	0	62160..65066	-	968	26245983	hepA	c0070	-	ATP-dependent helicase HepA
66	 55.44	0	65231..67582	-	783	26245984	polB	c0071	-	DNA polymerase II
67	 46.08	0	67723..68232	+	169	26245985	-	c0072	-	transposase
68	 55.60	0	68369..69064	-	231	26245986	araD	c0073	-	L-ribulose-5-phosphate 4-epimerase
69	 55.22	0	69349..70851	-	500	26245987	araA	c0074	-	L-arabinose isomerase
70	 58.14	+1	70862..72562	-	566	26245988	araB	c0075	-	ribulokinase
71	 52.96	0	72901..73746	+	281	26245989	araC	c0076	-	DNA-binding transcriptional regulator AraC
72	 47.15	0	74011..74133	+	40	26245990	-	c0077	-	hypothetical protein
73	 34.18	-2	74258..74494	+	78	26245991	-	c0078	-	hypothetical protein
74	 33.51	-2	74536..75108	+	190	26245992	-	c0079	-	hypothetical protein
75	 31.21	-2	75115..75537	+	140	26245993	-	c0080	-	hypothetical protein
76	 54.77	0	75692..76456	+	254	26245994	yabI	c0081	-	hypothetical protein
77	 56.53	+1	76570..77289	-	239	26245995	thiQ	c0082	-	thiamine transporter ATP-binding subunit
78	 57.98	+1	77252..78862	-	536	26245996	thiP	c0083	-	thiamine transporter membrane protein
79	 51.83	0	78838..79821	-	327	161486336	tbpA	c0084	-	thiamine transporter substrate binding subunit
80	 55.34	0	79985..81661	-	558	26245998	yabN	c0085	-	transcriptional regulator SgrR
81	 46.27	0	82026..82535	+	169	26245999	-	c0086	-	transposase
82	 51.82	0	82679..83284	-	201	26246000	leuD	c0087	-	isopropylmalate isomerase small subunit
83	 52.69	0	82730..82915	+	61	26246001	-	c0088	-	hypothetical protein
84	 55.60	0	83295..84695	-	466	26246002	leuC	c0089	-	isopropylmalate isomerase large subunit
85	 54.85	0	84698..85789	-	363	161486335	leuB	c0090	-	3-isopropylmalate dehydrogenase
86	 52.91	0	85789..87402	-	537	26246004	leuA	c0091	-	2-isopropylmalate synthase
87	 47.13	0	87451..87537	-	28	26246005	leuL	c5492	-	leu operon leader peptide
88	 30.08	-2	87996..88118	+	40	26246006	-	c0092	-	hypothetical protein
89	 46.21	0	88177..89139	+	320	161486334	leuO	c0093	-	leucine transcriptional activator
90	 24.81	-2	89175..89303	-	42	26246008	-	c0094	-	hypothetical protein
91	 53.16	0	89457..91181	+	574	161486333	ilvI	c0095	-	acetolactate synthase 3 catalytic subunit
92	 50.00	0	91184..91675	+	163	161486332	ilvH	c0096	-	acetolactate synthase 3 regulatory subunit
93	 45.98	0	91687..91773	+	28	26246011	fruL	c5493	-	hypothetical protein
94	 39.39	-1	91727..91858	+	43	26246012	-	c0097	-	hypothetical protein
95	 55.12	0	91855..92859	+	334	26246013	fruR	c0098	-	DNA-binding transcriptional regulator FruR
96	 52.73	0	93425..93919	+	164	26246014	yabB	c0099	-	cell division protein MraZ
97	 55.31	0	93921..94862	+	313	26246015	mraW	c0100	-	S-adenosyl-methyltransferase MraW
98	 50.55	0	94859..95224	+	121	26246016	ftsL	c0101	-	cell division protein FtsL
99	 53.71	0	95240..97006	+	588	26246017	ftsI	c0102	-	peptidoglycan synthetase ftsI precursor
100	 57.06	+1	96993..98480	+	495	26246018	murE	c0103	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
50.18	MEAN

5.55	STD DEV
