IslandPath Analysis: Erwinia tasmaniensis

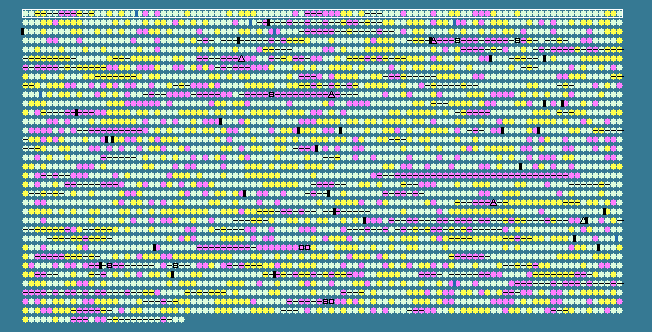

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 54.04   STD DEV: 5.84
Erwinia tasmaniensis, complete genome - 1..3883467
3427 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 54.42	0	1..441	-	146	188532166	mioC	ETA_00010	-	Protein mioC, involved in modulation of initiation at oriC
2	 52.16	0	655..1116	-	153	188532167	asnC	ETA_00020	-	AsnC-family transcriptional regulator
3	 59.17	0	1234..3393	-	719	188532168	-	ETA_00030	-	Conserved hypothetical protein (DUF323)
4	 58.59	0	3457..4917	-	486	188532169	viaA	ETA_00040	-	Protein viaA (VWA-domain protein interacting with AAA ATPase)
5	 55.69	0	4914..6407	-	497	188532170	ravA	ETA_00050	-	Regulatory ATPase variant A
6	 57.46	0	6666..8534	+	622	188532171	kup	ETA_00060	-	Low affinity potassium transport system protein kup (Kup system potassium uptake protein)
7	 43.96	-1	8670..13910	-	1746	188532172	-	ETA_00070	-	hypothetical protein
8	 39.59	-2	14202..18806	-	1534	188532173	-	ETA_00080	-	hypothetical protein
9	 43.67	-1	18809..20134	-	441	188532174	-	ETA_00090	-	hypothetical protein
10	 57.82	0	20550..21431	-	293	188532175	budR	ETA_00100	-	HTH-type transcriptional regulator BudR (Bud operon transcriptional regulator)
11	 55.68	0	21536..22318	+	260	188532176	budA	ETA_00110	-	Acetolactate decarboxylase
12	 60.89	+1	22337..24016	+	559	188532177	budB	ETA_00120	-	Acetolactate synthase, catabolic
13	 54.40	0	24221..24652	+	143	188532178	rbsD	ETA_00130	-	D-ribose high-affinity transport system
14	 55.84	0	24660..26165	+	501	188532179	rbsA	ETA_00140	-	D-ribose high-affinity transport protein
15	 57.79	0	26168..27136	+	322	188532180	rbsC	ETA_00150	-	Ribose transport permease system protein
16	 57.37	0	27162..28043	+	293	188532181	rbsB	ETA_00160	-	D-ribose-binding periplasmic protein
17	 59.35	0	28105..29034	+	309	188532182	rbsK	ETA_00170	-	Ribokinase
18	 56.50	0	29046..30038	+	330	188532183	rbsR	ETA_00180	-	Transcriptional repressor for rbs operon (GalR/LacI family)
19	 55.01	0	30035..31432	-	465	188532184	mdtD	ETA_00190	-	Putative MFS family transport protein
20	 52.48	0	37163..37726	-	187	188532185	mobA	ETA_00200	-	Molybdopterin-guanine dinucleotide biosynthesis protein A
21	 46.67	-1	37777..38046	+	89	188532186	yihD	ETA_00210	-	Conserved hypothetical protein YihD
22	 50.65	0	38125..39117	+	330	188532187	yihE	ETA_00220	-	Conserved hypothetical protein YihE
23	 48.41	0	39167..39796	+	209	188532188	dsbA	ETA_00230	-	Thiol:disulfide interchange protein DsbA
24	 55.13	0	40199..42988	+	929	188532189	polA	ETA_00240	-	DNA polymerase I
25	 54.19	0	43473..44129	-	218	188532190	engB	ETA_00250	-	Probable GTP-binding protein EngB
26	 55.99	0	44660..45202	+	180	188532191	yihI	ETA_00260	-	Conserved hypothetical protein YihI
27	 52.84	0	45446..46819	+	457	188532192	hemN	ETA_00270	-	O2-independent coproporphyrinogen III oxidase
28	 58.23	0	46878..48287	-	469	188532193	ntrC	ETA_00280	-	Nitrogen assimilation regulatory protein
29	 56.00	0	48295..49344	-	349	188532194	ntrB	ETA_00290	-	Two-component nitrogen regulation protein
30	 54.89	0	49540..50949	-	469	188532195	glnA	ETA_00300	-	Glutamine synthetase
31	 54.17	0	51386..53209	+	607	188532196	typA	ETA_00310	-	GTP-binding protein typA/bipA (Tyrosine phosphorylated protein A)
32	 53.30	0	53460..54065	+	201	188532197	yihX	ETA_00320	-	Putative haloacid dehalogenase-like hydrolase
33	 54.18	0	54067..54939	+	290	188532198	-	ETA_00330	-	tRNA-processing ribonuclease BN
34	 56.85	0	54936..55373	+	145	188532199	dtd	ETA_00340	-	D-tyrosyl-tRNA (Tyr) deacylase
35	 58.38	0	55370..56371	+	333	188532200	-	ETA_00350	-	Putative acetyltransferase
36	 53.74	0	56379..57260	-	293	188532201	rluF	ETA_00360	-	Ribosomal large subunit pseudouridine synthase F
37	 58.32	0	57343..59067	-	574	188532202	yicH	ETA_00370	-	Conserved hypothetical protein YicH
38	 58.53	0	59148..60536	-	462	188532203	yicE	ETA_00380	-	Putative purine/xanthine transport protein
39	 61.38	+1	60781..62862	-	693	188532204	recG	ETA_00390	-	ATP-dependent DNA helicase
40	 55.46	0	62862..63557	-	231	188532205	spoU	ETA_00400	-	Putative tRNA/rRNA methyltransferase
41	 53.77	0	63654..65777	-	707	188532206	spoT	ETA_00410	-	Guanosine-3',5'-bis(diphosphate) 3'-pyrophosphohydrolase
42	 50.72	0	65797..66072	-	91	188532207	rpoZ	ETA_00420	-	DNA-directed RNA polymerase omega chain
43	 50.80	0	66129..66752	-	207	188532208	gmk	ETA_00430	-	Guanylate kinase
44	 55.75	0	67015..68700	+	561	188532209	-	ETA_00440	-	Putative NAD-dependent DNA ligase
45	 51.62	0	68697..69314	-	205	188532210	yicG	ETA_00450	-	Conserved hypothetical protein YicG
46	 42.02	-2	69779..70423	+	214	188532211	-	ETA_00460	-	Bacterial regulatory protein, LuxR
47	 55.43	0	70770..72131	-	453	188532212	-	ETA_00470	-	Putative MFS tranporter precursor
48	 48.97	0	72297..72635	-	112	188532213	phnA	ETA_00480	-	Probable phosphonoacetate hydrolase
49	 48.94	0	73332..73754	+	140	188532214	-	ETA_00490	-	Putative acetyltransferase
50	 49.41	0	73834..74679	-	281	188532215	-	ETA_00500	-	Probable transcriptional regulator
51	 43.00	-1	74698..75090	+	130	188532216	-	ETA_00510	-	hypothetical protein
52	 43.62	-1	76307..76588	+	93	188532217	-	ETA_00550	-	hypothetical protein
53	 33.47	-2	76701..77414	+	237	188532218	-	ETA_00560	-	hypothetical protein
54	 58.10	0	78312..79175	-	287	188532219	-	ETA_00580	-	Predicted uncharacterized stress-induced protein
55	 57.58	0	79322..79750	+	142	188532220	-	ETA_00590	-	hypothetical protein
56	 52.66	0	79790..80974	-	394	188532221	nupC2	ETA_00600	-	Nucleoside permease
57	 60.67	+1	81188..81904	+	238	188532222	rph	ETA_00610	-	Ribonuclease PH (tRNA nucleotidyltransferase)
58	 53.74	0	81961..82602	+	213	188532223	pyrE	ETA_00620	-	Orotate phosphoribosyltransferase (OPRTase)
59	 51.93	0	82676..83272	-	198	188532224	ttk	ETA_00630	-	Putative transcriptional regulator
60	 57.08	0	83386..83844	-	152	188532225	dut	ETA_00640	-	Deoxyuridine 5'-triphosphate nucleotidohydrolase (dUTP pyrophosphatase)
61	 57.12	0	83822..85036	-	404	188532226	dfp	ETA_00650	-	Flavoprotein affecting synthesis of DNA and pantothenate metabolism
62	 52.38	0	85232..85903	+	223	188532227	radC	ETA_00660	-	DNA repair protein RadC
63	 51.90	0	86200..86436	+	78	188532228	rpmB	ETA_00670	-	50S ribosomal protein L28
64	 42.26	-2	86453..86620	+	55	188532229	rpmG	ETA_00680	-	50S ribosomal subunit protein L33
65	 56.91	0	86727..87536	+	269	188532230	mutM	ETA_00690	-	Formamidopyrimidine-DNA glycosylase
66	 57.23	0	87546..88022	-	158	188532231	coaD	ETA_00700	-	Phosphopantetheine adenylyltransferase
67	 57.40	0	88019..88795	-	258	188532232	-	ETA_00710	-	Lipopolysaccharide core biosynthesis glycosyl transferase
68	 56.08	0	88796..90070	-	424	188532233	kdtA	ETA_00720	-	3-deoxy-D-manno-octulosonic-acid transferase
69	 46.58	-1	90163..90396	-	77	188532234	-	ETA_00730	-	hypothetical protein
70	 53.55	0	90421..91434	+	337	188532235	-	ETA_00740	-	Glycosyl transferase, family 9
71	 56.38	0	91431..92528	-	365	188532236	-	ETA_00750	-	Glycosyl transferase, group 1
72	 58.07	0	92532..93659	-	375	188532237	-	ETA_00760	-	Glycosyl transferase, group 1
73	 57.82	0	93656..94729	-	357	188532238	waaQ	ETA_00770	-	Putative heptosyl III transferase WaaQ (Glycosyl transferase, family 9)
74	 52.56	0	94891..95847	+	318	188532239	walW	ETA_00780	-	Lipopolysaccharide biosynthesis protein
75	 50.91	0	95849..96952	+	367	188532240	-	ETA_00790	-	Glycosyl transferase, family 9
76	 47.81	-1	96965..97945	-	326	188532241	-	ETA_00800	-	Predicted glycosyl transferase, family 2
77	 45.78	-1	97939..99183	-	414	188532242	waaL	ETA_00810	-	Lipid A core, surface polymer ligase WaaL
78	 48.93	0	99197..100369	-	390	188532243	-	ETA_00820	-	Glycosyl transferase, group 1
79	 58.39	0	100366..101331	-	321	188532244	waaC	ETA_00830	-	Heptosyltransferase I WaaC
80	 57.21	0	101332..102378	-	348	188532245	waaF	ETA_00840	-	ADP-heptose--lps heptosyltransferase II
81	 51.88	0	102393..103325	-	310	188532246	waaD	ETA_00850	-	ADP-L-glycero-D-manno-heptose-6-epimerase
82	 57.02	0	103499..104431	-	310	188532247	yigQ	ETA_00860	-	Putative periplasmic protein of unknown function
83	 57.65	0	104432..105739	-	435	188532248	-	ETA_00870	-	Putative exported peptidase
84	 51.39	0	106091..106522	+	143	188532249	-	ETA_00880	-	hypothetical protein
85	 52.38	0	106563..106814	+	83	188532250	grxC	ETA_00890	-	Glutaredoxin 3
86	 51.95	0	106900..107361	+	153	188532251	secB	ETA_00900	-	Protein-export protein SecB
87	 56.27	0	107361..108380	+	339	188532252	gpsA	ETA_00910	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
88	 55.47	0	108446..109267	+	273	188532253	cysE	ETA_00920	-	Serine acetyltransferase
89	 55.27	0	109382..109855	-	157	188532254	cspR	ETA_00930	-	rRNA methyltransferase CspR (SpoU class)
90	 56.67	0	109894..111273	-	459	188532255	cpxA	ETA_00940	-	Sensory kinase in two-component regulatory system with CpxR
91	 52.99	0	111270..111971	-	233	188532256	cpxR	ETA_00950	-	Two-component response regulator
92	 52.16	0	112124..112633	+	169	188532257	cpxP	ETA_00960	-	Periplasmic repressor of cpx regulon by interaction with CpxA
93	 56.15	0	112760..113662	+	300	188532258	fieF	ETA_00970	-	Cation-efflux pump FieF
94	 52.86	0	113871..114833	+	320	188532259	pfkA	ETA_00980	-	6-phosphofructokinase isozyme I
95	 52.12	0	114978..115967	+	329	188532260	sbp	ETA_00990	-	Periplasmic sulphate binding protein
96	 51.25	0	116152..116910	+	252	188532261	cdh	ETA_01000	-	CDP-diacylglycerol pyrophosphatase
97	 53.93	0	116982..117986	-	334	188532262	rbn	ETA_01010	-	Predicted membrane protein
98	 59.86	0	118160..119011	-	283	188532263	pab	ETA_01020	-	Putative antibiotic biosynthesis protein
99	 58.93	0	119111..120571	-	486	188532264	-	ETA_01030	-	Putative aminotransferase
100	 53.26	0	120703..121284	+	193	188532265	-	ETA_01040	-	Lysine exporter protein (LYSE/YGGA)
54.04	MEAN

5.84	STD DEV
