IslandPath Analysis: Ehrlichia ruminantium str. Gardel

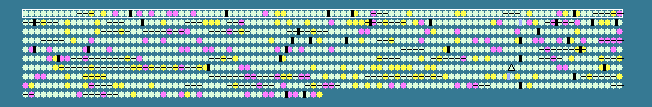

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 30.14   STD DEV: 3.39
Ehrlichia ruminantium str. Gardel, complete genome - 1..1499920
950 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 32.13	0	16..849	-	277	58616728	nadC	ERGA_CDS_00010	-	nicotinate-nucleotide pyrophosphorylase
2	 26.70	-1	957..1544	+	195	58616729	-	ERGA_CDS_00020	-	hypothetical protein
3	 30.23	0	1552..2034	-	160	58616730	ruvC	ERGA_CDS_00030	-	crossover junction endodeoxyribonuclease RuvC
4	 32.24	0	2222..3046	-	274	58616731	coxC	ERGA_CDS_00040	-	putative cytochrome c oxidase polypeptide III
5	 32.44	0	3141..4148	-	335	58616732	hemE	ERGA_CDS_00050	-	uroporphyrinogen decarboxylase
6	 27.84	0	4565..5437	+	290	58616733	-	ERGA_CDS_00060	-	hypothetical protein
7	 27.19	0	5434..5970	-	178	58616734	-	ERGA_CDS_00070	-	hypothetical protein
8	 30.13	0	6339..7523	-	394	161986614	-	ERGA_CDS_00080	-	hypothetical protein
9	 27.07	0	7804..8553	+	249	58616736	-	ERGA_CDS_00090	-	hypothetical protein
10	 30.80	0	8568..9515	+	315	58616737	nadA	ERGA_CDS_00100	-	quinolinate synthetase
11	 32.01	0	9675..10052	-	125	58616738	fdxA	ERGA_CDS_00110	-	ferredoxin
12	 37.60	+2	10263..11528	+	421	58616739	-	ERGA_CDS_00120	-	hypothetical protein
13	 31.00	0	12170..14572	-	800	58616740	virD4	ERGA_CDS_00130	-	putative virD4 protein
14	 33.83	+1	14613..15611	-	332	58616741	virB11	ERGA_CDS_00140	-	VirB11 protein
15	 33.04	0	15635..16975	-	446	58616742	virB10	ERGA_CDS_00150	-	VirB10 protein
16	 26.62	-1	16996..17799	-	267	58616743	trbG	ERGA_CDS_00160	-	putative conjugal transfer protein trbG precursor
17	 30.19	0	17783..18481	-	232	58616744	-	ERGA_CDS_00170	-	hypothetical protein
18	 28.32	0	18637..19752	-	371	58616745	ribA	ERGA_CDS_00180	-	GTP cyclohydrolase II
19	 28.45	0	21573..22637	-	354	58616746	-	ERGA_CDS_00190	-	hypothetical protein
20	 23.75	-1	22713..23192	-	159	58616747	-	ERGA_CDS_00200	-	hypothetical protein
21	 33.08	0	23282..24079	-	265	58616748	dapF	ERGA_CDS_00210	-	diaminopimelate epimerase
22	 23.61	-1	24314..24745	-	143	58616749	-	ERGA_CDS_00220	-	hypothetical protein
23	 30.72	0	25823..27010	+	395	58616750	pgk	ERGA_CDS_00230	-	phosphoglycerate kinase
24	 29.22	0	28450..29616	-	388	58616751	xseA	ERGA_CDS_00240	-	putative exodeoxyribonuclease VII large subunit
25	 26.09	-1	29613..29819	-	68	58616752	xseA	ERGA_CDS_00250	-	hypothetical protein
26	 26.40	-1	29816..30493	-	225	58616753	-	ERGA_CDS_00260	-	hypothetical protein
27	 32.98	0	30762..31616	+	284	161986613	dapD	ERGA_CDS_00270	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
28	 30.76	0	32080..33399	+	439	58616755	trmE	ERGA_CDS_00280	-	tRNA modification GTPase TrmE
29	 24.29	-1	33677..34096	-	139	58616756	-	ERGA_CDS_00290	-	hypothetical protein
30	 29.71	0	35319..35870	-	183	58616757	dfp	ERGA_CDS_00300	-	phosphopantothenoylcysteine decarboxylase
31	 29.74	0	35960..37993	+	677	58616758	recG	ERGA_CDS_00310	-	ATP-dependent DNA helicase RecG
32	 27.83	0	40366..41328	+	320	58616759	-	ERGA_CDS_00320	-	hypothetical protein
33	 31.36	0	43475..43930	-	151	58616760	dksA	ERGA_CDS_00330	-	DNAK suppressor protein
34	 28.05	0	44043..44705	+	220	58616761	ccmb	ERGA_CDS_00340	-	Heme exporter protein B
35	 30.44	0	44840..45772	+	310	58616762	zitB	ERGA_CDS_00350	-	Zinc transporter zitB
36	 26.83	0	46232..46861	+	209	58616763	-	ERGA_CDS_00360	-	hypothetical protein
37	 31.94	0	47509..47796	-	95	58616764	rpsT	ERGA_CDS_00370	-	30S ribosomal protein S20
38	 30.39	0	49747..52329	-	860	58616765	polA	ERGA_CDS_00380	-	DNA polymerase I
39	 28.48	0	53546..53854	+	102	58616766	-	ERGA_CDS_00390	-	hypothetical protein
40	 31.26	0	54184..55101	+	305	58616767	argF	ERGA_CDS_00400	-	ornithine carbamoyltransferase
41	 22.95	-2	55818..56000	+	60	58616768	-	ERGA_CDS_00410	-	hypothetical protein
42	 28.60	0	56001..57119	+	372	58616769	recF	ERGA_CDS_00420	-	recombination protein F
43	 34.22	+1	57685..58476	-	263	58616770	-	ERGA_CDS_00430	-	hypothetical protein
44	 33.70	+1	58496..59041	-	181	58616771	def	ERGA_CDS_00440	-	peptide deformylase
45	 30.85	0	59124..59849	+	241	58616772	plsC	ERGA_CDS_00450	-	putative 1-acyl-sn-glycerol-3-phosphate acyltransferase
46	 31.64	0	60680..61327	+	215	58616773	rpe	ERGA_CDS_00460	-	ribulose-phosphate 3-epimerase
47	 30.58	0	62865..63662	+	265	58616774	-	ERGA_CDS_00470	-	hypothetical protein
48	 28.75	0	63672..64391	+	239	58616775	mkl	ERGA_CDS_00480	-	ribonucleotide ABC transporter ATP-binding protein
49	 28.93	0	64828..66759	+	643	58616776	-	ERGA_CDS_00490	-	hypothetical protein
50	 28.02	0	67363..68340	-	325	58616777	ispB	ERGA_CDS_00500	-	octaprenyl-diphosphate synthase
51	 31.92	0	68778..70190	-	470	58616778	glnA	ERGA_CDS_00510	-	glutamine synthetase I
52	 31.82	0	70559..71815	+	418	58616779	tyrS	ERGA_CDS_00520	-	tyrosyl-tRNA synthetase
53	 31.60	0	71837..73051	+	404	58616780	hemA	ERGA_CDS_00530	-	5-aminolevulinate synthase
54	 28.39	0	73398..73781	-	127	58616781	-	ERGA_CDS_00540	-	hypothetical protein
55	 28.05	0	74623..75492	+	289	58616782	secF	ERGA_CDS_00550	-	preprotein translocase subunit SecF
56	 35.88	+1	76965..77867	-	300	58616783	fbaB	ERGA_CDS_00560	-	fructose-bisphosphate aldolase
57	 32.08	0	78279..88625	+	3448	58616784	-	ERGA_CDS_00570	-	hypothetical protein
58	 30.79	0	89185..90405	+	406	58616785	pdhC	ERGA_CDS_00580	-	branched-chain alpha-keto acid dehydrogenase subunit E2
59	 20.97	-2	90937..91122	+	61	58616786	-	ERGA_CDS_00590	-	hypothetical protein
60	 33.09	0	92566..94221	+	551	58616787	-	ERGA_CDS_00600	-	hypothetical protein
61	 29.65	0	95412..96824	+	470	58616788	-	ERGA_CDS_00610	-	hypothetical protein
62	 32.93	0	98323..100317	+	664	58616789	-	ERGA_CDS_00620	-	hypothetical protein
63	 33.48	0	100658..103450	+	930	58616790	-	ERGA_CDS_00630	-	hypothetical protein
64	 27.66	0	103705..103986	-	93	58616791	-	ERGA_CDS_00640	-	hypothetical protein
65	 33.77	+1	105004..106590	+	528	58616792	guaA	ERGA_CDS_00650	-	bifunctional GMP synthase/glutamine amidotransferase protein
66	 32.77	0	107966..109213	+	415	58616793	gltA	ERGA_CDS_00660	-	citrate synthase
67	 29.08	0	111594..112793	+	399	58616794	-	ERGA_CDS_00670	-	hypothetical protein
68	 32.80	0	115219..117657	+	812	58616795	valS	ERGA_CDS_00680	-	valyl-tRNA synthetase
69	 27.43	0	117706..117993	+	95	58616796	-	ERGA_CDS_00690	-	hypothetical protein
70	 26.74	-1	118042..118329	+	95	58616797	-	ERGA_CDS_00700	-	hypothetical protein
71	 31.10	0	119882..120328	-	148	58616798	smpB	ERGA_CDS_00710	-	SsrA-binding protein
72	 32.08	0	120352..120987	-	211	58616799	ribB	ERGA_CDS_00720	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
73	 33.93	+1	121007..121507	-	166	58616800	greA	ERGA_CDS_00730	-	transcription elongation factor greA
74	 34.06	+1	121540..123063	-	507	58616801	atpA	ERGA_CDS_00740	-	F0F1 ATP synthase subunit alpha
75	 31.40	0	123066..123635	-	189	58616802	atpH	ERGA_CDS_00750	-	ATP synthase delta chain
76	 26.67	-1	124559..124828	-	89	58616803	-	ERGA_CDS_00760	-	hypothetical protein
77	 28.74	0	124819..126060	-	413	58616804	-	ERGA_CDS_00770	-	hypothetical protein
78	 29.60	0	126057..126833	-	258	58616805	-	ERGA_CDS_00780	-	hypothetical protein
79	 31.23	0	126842..128077	-	411	58616806	lolC	ERGA_CDS_00790	-	lipoprotein releasing system transmembrane protein lolC
80	 27.45	0	129371..130390	+	339	58616807	-	ERGA_CDS_00800	-	hypothetical protein
81	 29.16	0	131680..133596	+	638	58616808	cycK	ERGA_CDS_00810	-	cytochrome c-type biogenesis protein CycK
82	 27.52	0	133771..134613	+	280	58616809	-	ERGA_CDS_00820	-	hypothetical protein
83	 30.41	0	136833..138233	-	466	58616810	purF	ERGA_CDS_00830	-	amidophosphoribosyltransferase
84	 28.40	0	138795..139442	-	215	58616811	pth	ERGA_CDS_00840	-	peptidyl-tRNA hydrolase
85	 34.85	+1	139402..140061	-	219	58616812	rplY	ERGA_CDS_00850	-	50S ribosomal protein L25/general stress protein Ctc
86	 28.14	0	141570..142262	-	230	58616813	comF	ERGA_CDS_00860	-	putative competence protein F (DNA transformation protein comF)
87	 31.42	0	142263..143414	-	383	58616814	dapE	ERGA_CDS_00870	-	succinyl-diaminopimelate desuccinylase
88	 33.27	0	145200..146909	-	569	58616815	kefB	ERGA_CDS_00880	-	glutathione-regulated potassium-efflux system protein kefB
89	 29.97	0	146923..147546	-	207	58616816	-	ERGA_CDS_00890	-	hypothetical protein
90	 26.18	-1	147595..148083	-	162	58616817	-	ERGA_CDS_00900	-	hypothetical protein
91	 37.04	+2	149881..150879	-	332	58616818	pdhB	ERGA_CDS_00910	-	pyruvate dehydrogenase subunit beta
92	 28.89	0	152183..154006	-	607	58616819	-	ERGA_CDS_00920	-	hypothetical protein
93	 34.87	+1	154194..155621	+	475	58616820	tldD	ERGA_CDS_00930	-	TldD protein
94	 32.33	0	156165..157256	-	363	58616821	-	ERGA_CDS_00940	-	translation-associated GTPase
95	 31.89	0	157895..158449	-	184	58616822	ispF	ERGA_CDS_00950	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
96	 31.14	0	159569..160297	-	242	58616823	ispD	ERGA_CDS_00960	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
97	 32.25	0	160567..164076	+	1169	58616824	-	ERGA_CDS_00970	-	hypothetical protein
98	 32.82	0	164156..165520	+	454	58616825	-	ERGA_CDS_00980	-	hypothetical protein
99	 34.31	+1	166021..166533	-	170	58616826	purE	ERGA_CDS_00990	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
100	 24.13	-1	166523..167065	-	180	58616827	-	ERGA_CDS_01000	-	hypothetical protein
30.14	MEAN

3.39	STD DEV
