IslandPath Analysis: Dictyoglomus thermophilum H-6-12

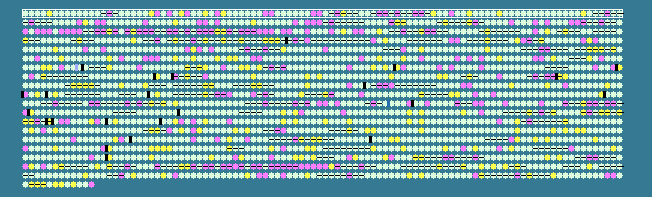

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 33.57   STD DEV: 3.14
Dictyoglomus thermophilum H-6-12, complete genome - 1..1959987
1912 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 36.92	+1	48..521	+	157	206901546	purE_1	DICTH_0001	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
2	 32.06	0	514..1530	+	338	206900410	purC	DICTH_0002	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
3	 36.27	0	2148..2795	+	215	206901477	-	DICTH_0003	-	MgtC family protein
4	 32.66	0	2813..3550	+	245	206900496	-	DICTH_0004	-	metallo-beta-lactamase superfamily protein
5	 37.56	+1	3718..5610	+	630	206901245	-	DICTH_0005	-	oligopeptide ABC transporter, periplasmic oligopeptide-binding protein
6	 31.34	0	5721..6473	+	250	206901890	-	DICTH_0006	-	hypothetical protein
7	 32.79	0	6487..7224	+	245	206900995	-	DICTH_0007	-	tetratricopeptide repeat domain protein
8	 36.11	0	7229..8236	+	335	206900359	-	DICTH_0008	-	endoglucanase H
9	 34.33	0	8288..9697	-	469	206901726	-	DICTH_0009	-	mannan endo-1,4-beta-mannosidase
10	 33.84	0	9775..10167	-	130	206900955	-	DICTH_0010	-	transcriptional regulator, MerR family
11	 35.09	0	10145..10657	-	170	206901591	-	DICTH_0011	-	flavodoxin
12	 31.51	0	10796..11671	+	291	206900772	-	DICTH_0012	-	cobalt/zinc/cadmium cation efflux pump protein
13	 34.58	0	11661..13430	+	589	206900394	-	DICTH_0013	-	radical SAM
14	 35.97	0	13446..13862	+	138	206901084	-	DICTH_0014	-	hypothetical protein
15	 28.69	-1	14023..14388	-	121	206900461	-	DICTH_0015	-	hypothetical protein
16	 33.92	0	14682..15698	-	338	206901297	-	DICTH_0016	-	transcriptional regulator
17	 36.41	0	15922..17709	+	595	206900737	-	DICTH_0017	-	ABC-type dipeptide/oligopeptide/nickel transport system, periplasmic component
18	 34.55	0	17742..18728	+	328	206900417	-	DICTH_0018	-	ABC-type dipeptide/oligopeptide/nickel transport system, permease component
19	 31.93	0	18725..19579	+	284	206901482	-	DICTH_0019	-	ABC-type dipeptide/oligopeptide/nickel transport system, permease component
20	 33.23	0	19579..20541	+	320	206900936	-	DICTH_0020	-	ABC-type dipeptide/oligopeptide/nickel transport system, ATPase component
21	 33.92	0	20554..21570	+	338	206901550	-	DICTH_0021	-	ABC-type dipeptide/oligopeptide/nickel transport system, ATPase component
22	 37.60	+1	21923..23845	+	640	206900928	-	DICTH_0022	-	oligopeptide ABC transporter, periplasmic oligopeptide-binding protein
23	 27.86	-1	23962..24162	+	66	206901798	-	DICTH_0023	-	hypothetical protein
24	 33.56	0	24164..25060	+	298	206901432	-	DICTH_0024	-	ABC transporter, ATP-binding protein
25	 28.79	-1	25057..25827	+	256	206900120	-	DICTH_0025	-	hypothetical protein
26	 34.02	0	25828..26997	+	389	206901690	-	DICTH_0026	-	putative glycosyltransferase
27	 38.58	+1	27315..28286	+	323	206900375	-	DICTH_0027	-	tricarboxylate-binding protein
28	 30.02	-1	28350..28802	+	150	206900640	-	DICTH_0028	-	hypothetical protein
29	 36.25	0	28825..30300	+	491	206901758	-	DICTH_0029	-	tricarboxylate transport membrane protein RctA
30	 35.42	0	30317..31420	+	367	206900601	-	DICTH_0030	-	hypothetical protein
31	 37.06	+1	31433..32614	+	393	206900561	-	DICTH_0031	-	oxidoreductase family, NAD-binding Rossmann fold protein
32	 35.38	0	32674..33651	+	325	206900941	-	DICTH_0032	-	trap dicarboxylate transporter, dctp subunit, putative
33	 27.45	-1	33815..33967	+	50	206901766	-	DICTH_0033	-	hypothetical protein
34	 38.75	+1	34162..35730	+	522	206902006	-	DICTH_0034	-	glutamate synthase domain protein
35	 32.85	0	35786..36619	-	277	206900134	-	DICTH_0035	-	hypothetical protein
36	 30.93	0	36742..37950	+	402	206901691	-	DICTH_0036	-	hypothetical protein
37	 30.86	0	37947..38876	+	309	206900819	-	DICTH_0037	-	putative K+-dependent Na+/Ca+ exchanger
38	 36.45	0	38921..40621	-	566	206900899	-	DICTH_0038	-	polysaccharide ABC transporter substrate-binding protein
39	 34.46	0	40719..41609	-	296	206901748	-	DICTH_0039	-	transmembrane lipoprotein
40	 33.22	0	41620..42534	-	304	206900620	-	DICTH_0040	-	transmembrane lipoprotein
41	 29.13	-1	42685..44421	+	578	206900482	-	DICTH_0041	-	histidine kinase
42	 29.91	-1	44411..45901	+	496	206900096	-	DICTH_0042	-	two-component response regulator
43	 36.60	0	50412..51818	-	468	206901912	-	DICTH_0043	-	tissue alpha-L-fucosidase
44	 31.33	0	52007..52405	+	132	206901125	-	DICTH_0044	-	CrcB protein
45	 32.23	0	52402..52764	+	120	206900292	-	DICTH_0045	-	camphor resistance CrcB protein
46	 35.44	0	52842..55169	-	775	206901358	-	DICTH_0046	-	alpha-xylosidase
47	 34.41	0	55182..57965	-	927	206901468	-	DICTH_0047	-	glucan 1,4-beta-glucosidase
48	 32.03	0	58156..59079	+	307	206900413	-	DICTH_0049	-	hypothetical protein
49	 29.61	-1	59057..59809	-	250	206901480	-	DICTH_0048	-	para-aminobenzoate synthase component II
50	 29.81	-1	59815..61149	-	444	206901275	-	DICTH_0050	-	anthranilate synthase component I
51	 30.50	0	61146..61709	-	187	206901947	-	DICTH_0051	-	para-aminobenzoate synthase glutamine amidotransferase component II
52	 31.95	0	61828..62334	+	168	206901537	-	DICTH_0052	-	hypothetical protein
53	 29.57	-1	62397..63512	-	371	206901423	-	DICTH_0053	-	hypothetical protein
54	 39.45	+1	63516..64022	-	168	206901783	-	DICTH_0054	-	flavodoxin
55	 34.42	0	64288..65571	+	427	206900689	-	DICTH_0055	-	bacterial extracellular solute-binding protein, putative
56	 32.08	0	65674..66549	+	291	206901085	-	DICTH_0056	-	multiple sugar-binding transport system permease
57	 30.11	-1	66549..67385	+	278	206900954	-	DICTH_0057	-	multiple sugar-binding transport system permease
58	 32.17	0	67431..68888	+	485	206901362	-	DICTH_0058	-	raffinose invertase
59	 33.23	0	68909..69895	-	328	206900254	-	DICTH_0059	-	transcriptional regulator
60	 29.40	-1	70388..71023	+	211	206901087	-	DICTH_0060	-	transcriptional regulator, AcrR family
61	 29.17	-1	73360..73623	-	87	206901183	cas2_1	DICTH_0061	-	CRISPR-associated protein Cas2
62	 31.09	0	73626..74606	-	326	206900365	cas1_1	DICTH_0062	-	CRISPR-associated protein Cas1, HMARI/TNEAP subtype
63	 29.43	-1	74611..75123	-	170	206901975	cas4_1	DICTH_0063	-	CRISPR-associated protein Cas4
64	 30.20	-1	75144..77411	-	755	206901121	cas3_1	DICTH_0064	-	CRISPR-associated helicase Cas3
65	 31.20	0	77389..78090	-	233	206901693	cas5t	DICTH_0065	-	CRISPR-associated protein Cas5, Tneap subtype
66	 29.89	-1	78077..78976	-	299	206900844	cst2	DICTH_0066	-	CRISPR-associated regulatory protein, DevR family
67	 27.43	-1	78992..80668	-	558	206901511	cst1	DICTH_0067	-	CRISPR-associated CXXC_CXXC protein Cst1
68	 31.84	0	80670..81473	-	267	206901703	cas6_1	DICTH_0068	-	CRISPR-associated protein Cas6
69	 37.45	+1	81674..82864	+	396	206901145	-	DICTH_0069	-	alcohol dehydrogenase II
70	 34.39	0	82944..83984	+	346	206900528	-	DICTH_0070	-	hypothetical protein
71	 34.17	0	83974..84573	+	199	206901707	-	DICTH_0071	-	hypothetical membrane protein
72	 29.49	-1	84586..85887	+	433	206900389	-	DICTH_0072	-	deoxyribodipyrimidine photolyase
73	 33.33	0	85902..86951	+	349	206901171	-	DICTH_0073	-	hypothetical protein
74	 35.10	0	86941..87564	+	207	206900099	-	DICTH_0074	-	hypothetical membrane protein
75	 37.67	+1	87619..88056	-	145	206901225	-	DICTH_0075	-	hypothetical protein
76	 34.32	0	88204..89922	+	572	206900137	-	DICTH_0076	-	prokaryotic N-terminal methylation motif domain protein
77	 34.76	0	89975..91162	+	395	206901995	-	DICTH_0078	-	methyltransferase
78	 31.55	0	91157..92332	-	391	206900662	-	DICTH_0077	-	fusion HD-GYP domain and HD-hydrolase domain
79	 31.98	0	92440..93987	-	515	206900409	-	DICTH_0079	-	RNA-metabolising metallo-beta-lactamase family
80	 40.12	+2	94049..94549	+	166	206901727	-	DICTH_0080	-	nitroreductase
81	 34.07	0	94534..95214	+	226	206900407	-	DICTH_0081	-	ribosomal large subunit pseudouridine synthase C
82	 31.79	0	95241..95693	+	150	206901621	-	DICTH_0082	-	hypothetical protein
83	 30.45	0	95718..96098	+	126	206900761	-	DICTH_0083	-	lipoprotein, putative
84	 36.08	0	98169..98459	+	96	206900343	-	DICTH_0086	-	PTS system, mannitol/fructose-specific enzyme II, B component
85	 36.18	0	98491..99756	+	421	206901636	-	DICTH_0087	-	integral membrane protein
86	 35.19	0	99823..100092	+	89	206900145	-	DICTH_0088	-	PTS system phosphocarrier protein Hpr
87	 31.73	0	100097..101719	+	540	206901188	ptsI	DICTH_0089	-	phosphoenolpyruvate-protein phosphotransferase
88	 30.95	0	101839..102426	+	195	206900935	-	DICTH_0090	-	transcriptional regulator, TetR family
89	 32.46	0	102445..104496	+	683	206900157	-	DICTH_0091	-	hypothetical protein
90	 31.11	0	104496..105845	+	449	206901206	-	DICTH_0092	-	hypothetical protein
91	 31.37	0	105848..106306	-	152	206900546	-	DICTH_0093	-	small multidrug export protein
92	 32.98	0	106324..107460	-	378	206901659	-	DICTH_0094	-	acyl-coenzyme A:6-aminopenicillanic acid acyl-transferase subfamily, putative
93	 35.58	0	107559..109382	+	607	206900577	-	DICTH_0095	-	hypothetical protein
94	 38.17	+1	109416..111794	+	792	206901937	xfp	DICTH_0096	-	D-xylulose 5-phosphate/D-fructose 6-phosphate phosphoketolase
95	 31.56	0	111969..113435	+	488	206900922	-	DICTH_0097	-	clostripain family
96	 31.86	0	113491..114102	+	203	206900129	-	DICTH_0098	-	hypothetical protein
97	 34.97	0	114221..114403	+	60	206901366	-	DICTH_0099	-	hypothetical protein
98	 29.26	-1	114474..115259	+	261	206900518	-	DICTH_0100	-	hypothetical protein
99	 32.96	0	115267..115536	+	89	206900132	-	DICTH_0101	-	hypothetical protein
100	 31.20	0	115520..116035	+	171	206901919	-	DICTH_0102	-	hypothetical protein
33.57	MEAN

3.14	STD DEV
