IslandPath Analysis: Dehalococcoides sp. BAV1

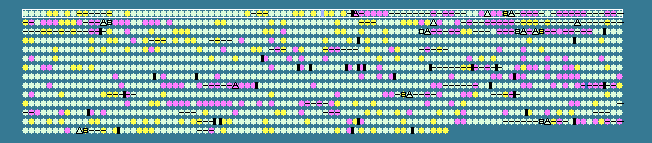

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 47.53   STD DEV: 3.61
Dehalococcoides sp. BAV1, complete genome - 1..1341892
1371 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 49.51	0	245..1579	+	444	147668653	-	DehaBAV1_0001	-	chromosomal replication initiator protein DnaA
2	 50.75	0	1910..3184	+	424	147668654	obgE	DehaBAV1_0002	-	GTPase ObgE
3	 48.94	0	3172..3786	+	204	147668655	-	DehaBAV1_0003	-	nicotinate-nucleotide adenylyltransferase
4	 50.86	0	3868..5796	-	642	147668656	-	DehaBAV1_0004	-	DNA gyrase subunit B
5	 51.30	+1	6001..8187	-	728	147668657	-	DehaBAV1_0005	-	(p)ppGpp synthetase I, SpoT/RelA
6	 51.47	+1	8315..9571	+	418	147668658	hisS	DehaBAV1_0006	-	histidyl-tRNA synthetase
7	 48.20	0	9568..10731	+	387	147668659	-	DehaBAV1_0007	-	saccharopine dehydrogenase
8	 52.90	+1	10728..11330	-	200	147668660	-	DehaBAV1_0008	-	acyl-phosphate glycerol-3-phosphate acyltransferase
9	 49.19	0	11384..12304	-	306	147668661	-	DehaBAV1_0009	-	branched-chain amino acid aminotransferase
10	 51.32	+1	12458..13630	-	390	147668662	-	DehaBAV1_0010	-	DNA-directed DNA polymerase
11	 51.32	+1	13630..13818	-	62	147668663	-	DehaBAV1_0011	-	hypothetical protein
12	 48.46	0	13889..14701	-	270	147668664	-	DehaBAV1_0012	-	orotidine 5'-phosphate decarboxylase
13	 47.13	0	14849..15544	+	231	147668665	-	DehaBAV1_0013	-	hypothetical protein
14	 45.66	0	15583..16377	+	264	147668666	-	DehaBAV1_0014	-	hypothetical protein
15	 51.86	+1	16423..17739	+	438	147668667	-	DehaBAV1_0015	-	FolC bifunctional protein
16	 44.91	0	17722..17937	-	71	147668668	-	DehaBAV1_0016	-	hypothetical protein
17	 44.70	0	17951..18214	-	87	147668669	-	DehaBAV1_0017	-	hypothetical protein
18	 52.16	+1	18517..18978	+	153	147668670	-	DehaBAV1_0018	-	D-tyrosyl-tRNA deacylase
19	 44.99	0	19030..19458	+	142	147668671	-	DehaBAV1_0019	-	ferric uptake regulator family protein
20	 47.54	0	19849..20601	-	250	147668672	-	DehaBAV1_0020	-	hypothetical protein
21	 47.29	0	20704..21090	+	128	147668673	-	DehaBAV1_0021	-	hypothetical protein
22	 46.81	0	21172..21312	-	46	147668674	-	DehaBAV1_0022	-	hypothetical protein
23	 50.48	0	21369..23759	-	796	147668675	-	DehaBAV1_0023	-	DNA internalization-related competence protein ComEC/Rec2
24	 49.10	0	23756..24256	-	166	147668676	-	DehaBAV1_0024	-	DNA uptake protein and related DNA-binding protein-like protein
25	 50.45	0	24434..25099	-	221	147668677	-	DehaBAV1_0025	-	TrkA domain-containing protein
26	 49.14	0	25104..25508	-	134	147668678	-	DehaBAV1_0026	-	TrkA domain-containing protein
27	 44.99	0	25512..25940	-	142	147668679	-	DehaBAV1_0027	-	UspA domain-containing protein
28	 50.62	0	26017..27462	-	481	147668680	-	DehaBAV1_0028	-	cation transporter
29	 49.60	0	27466..28830	-	454	147668681	trkA	DehaBAV1_0029	-	potassium transporter peripheral membrane component
30	 46.35	0	29308..29937	+	209	147668682	-	DehaBAV1_0030	-	hypothetical protein
31	 50.00	0	29930..30931	+	333	147668683	-	DehaBAV1_0031	-	phosphate transporter
32	 49.51	0	30928..31545	-	205	147668684	-	DehaBAV1_0032	-	guanylate kinase
33	 47.42	0	31526..31816	-	96	147668685	-	DehaBAV1_0033	-	hypothetical protein
34	 50.77	0	32025..32873	+	282	147668686	-	DehaBAV1_0034	-	ferredoxin--NADP(+) reductase subunit alpha
35	 51.00	0	32866..34263	+	465	147668687	-	DehaBAV1_0035	-	putative oxidoreductase
36	 46.38	0	34260..34466	-	68	147668688	-	DehaBAV1_0036	-	hypothetical protein
37	 48.31	0	34582..35115	-	177	147668689	-	DehaBAV1_0037	-	hypothetical protein
38	 51.23	+1	35186..35794	-	202	147668690	-	DehaBAV1_0038	-	methyltransferase type 11
39	 47.69	0	35805..35999	-	64	147668691	-	DehaBAV1_0039	-	hypothetical protein
40	 51.88	+1	36141..36512	+	123	147668692	-	DehaBAV1_0040	-	hypothetical protein
41	 52.13	+1	36648..37094	+	148	147668693	-	DehaBAV1_0041	-	C_GCAxxG_C_C family protein
42	 50.82	0	37091..38194	-	367	147668694	-	DehaBAV1_0042	-	translation-associated GTPase
43	 46.50	0	38216..38458	-	80	147668695	-	DehaBAV1_0043	-	hypothetical protein
44	 49.85	0	38586..39614	+	342	147668696	-	DehaBAV1_0044	-	DNA polymerase III, delta subunit
45	 48.53	0	39616..40227	+	203	147668697	-	DehaBAV1_0045	-	hypothetical protein
46	 53.17	+1	40262..41269	+	335	147668698	-	DehaBAV1_0046	-	glucokinase
47	 52.45	+1	41385..44000	+	871	147668699	-	DehaBAV1_0047	-	alanyl-tRNA synthetase
48	 47.01	0	44047..44448	+	133	147668700	-	DehaBAV1_0048	-	Holliday junction resolvase YqgF
49	 51.48	+1	44470..45648	+	392	147668701	-	DehaBAV1_0049	-	queuine tRNA-ribosyltransferase
50	 50.31	0	45743..46885	+	380	147668702	-	DehaBAV1_0050	-	iron-containing alcohol dehydrogenase
51	 51.35	+1	50498..52972	+	824	147668703	-	DehaBAV1_0051	-	ATPase
52	 51.76	+1	53418..54812	+	464	147668704	-	DehaBAV1_0052	-	DNA repair protein RadA
53	 50.58	0	54799..55482	+	227	147668705	-	DehaBAV1_0053	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
54	 52.74	+1	55488..55961	+	157	147668706	-	DehaBAV1_0054	-	2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
55	 48.03	0	55965..57338	+	457	147668707	-	DehaBAV1_0055	-	cysteinyl-tRNA synthetase
56	 44.04	0	57557..58555	+	332	147668708	-	DehaBAV1_0056	-	phage integrase family protein
57	 40.60	-1	58582..59448	-	288	147668709	-	DehaBAV1_0057	-	hypothetical protein
58	 36.13	-2	59840..60553	-	237	147668710	-	DehaBAV1_0058	-	hypothetical protein
59	 34.41	-2	60568..60753	-	61	147668711	-	DehaBAV1_0059	-	XRE family transcriptional regulator
60	 37.39	-2	60861..61205	+	114	147668712	-	DehaBAV1_0060	-	hypothetical protein
61	 41.21	-1	61286..66757	-	1823	147668713	-	DehaBAV1_0061	-	metallophosphoesterase
62	 44.40	0	67261..68091	-	276	147668714	-	DehaBAV1_0062	-	hypothetical protein
63	 49.66	0	68088..68522	-	144	147668715	-	DehaBAV1_0063	-	hypothetical protein
64	 44.15	0	68535..68987	-	150	147668716	-	DehaBAV1_0064	-	hypothetical protein
65	 50.33	0	68993..69451	-	152	147668717	-	DehaBAV1_0065	-	hypothetical protein
66	 49.56	0	69766..70215	-	149	147668718	-	DehaBAV1_0066	-	hypothetical protein
67	 46.21	0	70367..70630	+	87	147668719	-	DehaBAV1_0067	-	hypothetical protein
68	 46.23	0	70591..71598	+	335	147668720	-	DehaBAV1_0068	-	hypothetical protein
69	 43.76	-1	71595..73340	+	581	147668721	-	DehaBAV1_0069	-	hypothetical protein
70	 44.35	0	73340..73684	+	114	147668722	-	DehaBAV1_0070	-	hypothetical protein
71	 43.83	-1	74225..74767	-	180	147668723	-	DehaBAV1_0071	-	hypothetical protein
72	 38.05	-2	75294..75611	-	105	147668724	-	DehaBAV1_0072	-	hypothetical protein
73	 48.58	0	75785..76420	-	211	147668725	-	DehaBAV1_0073	-	resolvase domain-containing protein
74	 48.89	0	76799..79402	-	867	147668726	-	DehaBAV1_0074	-	hypothetical protein
75	 48.21	0	79846..80181	-	111	147668727	-	DehaBAV1_0075	-	hypothetical protein
76	 50.18	0	80178..80450	-	90	147668728	-	DehaBAV1_0076	-	hypothetical protein
77	 40.71	-1	81298..81921	+	207	147668729	-	DehaBAV1_0077	-	phage repressor like transcriptional regulator
78	 45.21	0	82056..83015	+	319	147668730	-	DehaBAV1_0078	-	phage integrase family protein
79	 39.19	-2	83602..84609	-	335	147668731	-	DehaBAV1_0079	-	DNA-cytosine methyltransferase
80	 34.39	-2	84613..85461	-	282	147668732	-	DehaBAV1_0080	-	Type II site-specific deoxyribonuclease
81	 53.33	+1	85925..86209	+	94	147668733	-	DehaBAV1_0082	-	transposase IS3/IS911 family protein
82	 49.94	0	86347..87135	+	262	147668734	-	DehaBAV1_0083	-	integrase catalytic subunit
83	 45.40	0	87298..88449	-	383	147668735	-	DehaBAV1_0084	-	hypothetical protein
84	 42.49	-1	89033..89578	-	181	147668736	-	DehaBAV1_0085	-	hypothetical protein
85	 43.43	-1	89582..89908	-	108	147668737	-	DehaBAV1_0086	-	hypothetical protein
86	 42.14	-1	89909..90487	-	192	147668738	-	DehaBAV1_0087	-	hypothetical protein
87	 44.76	0	91006..92598	-	530	147668739	-	DehaBAV1_0088	-	hypothetical protein
88	 49.40	0	92675..93010	-	111	147668740	-	DehaBAV1_0089	-	hypothetical protein
89	 47.33	0	93066..93458	-	130	147668741	-	DehaBAV1_0090	-	single-strand binding protein/primosomal replication protein n
90	 43.12	-1	93499..93825	-	108	147668742	-	DehaBAV1_0091	-	hypothetical protein
91	 42.50	-1	93922..94554	+	210	147668743	-	DehaBAV1_0092	-	XRE family transcriptional regulator
92	 36.18	-2	94704..95195	+	163	147668744	-	DehaBAV1_0093	-	hypothetical protein
93	 31.94	-2	95226..96302	+	358	147668745	-	DehaBAV1_0094	-	hypothetical protein
94	 29.44	-2	96364..97416	+	350	147668746	-	DehaBAV1_0095	-	hypothetical protein
95	 45.29	0	97959..98744	-	261	147668747	-	DehaBAV1_0096	-	hypothetical protein
96	 44.50	0	98940..99575	-	211	147668748	-	DehaBAV1_0097	-	resolvase domain-containing protein
97	 45.10	0	99572..100531	-	319	147668749	-	DehaBAV1_0098	-	hypothetical protein
98	 41.27	-1	100651..100776	+	41	147668750	-	DehaBAV1_0099	-	hypothetical protein
99	 41.00	-1	100821..101420	-	199	147668751	-	DehaBAV1_0100	-	hypothetical protein
100	 50.93	0	101503..101718	+	71	147668752	-	DehaBAV1_0101	-	XRE family transcriptional regulator
47.53	MEAN

3.61	STD DEV
