IslandPath Analysis: Deinococcus radiodurans R1

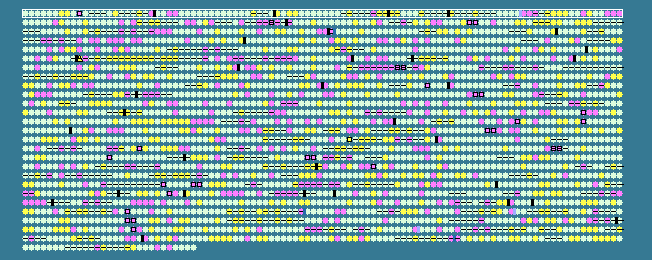

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 67.25   STD DEV: 4.30
Deinococcus radiodurans R1 chromosome 1, complete sequence - 1..2648638
2629 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 63.79	0	1..1182	-	393	15805043	-	DR_0001	-	DNA polymerase III, beta subunit
2	 64.47	0	1904..3268	-	454	15805044	-	DR_0002	-	chromosomal replication initiator protein
3	 66.78	0	3412..4287	+	291	15805045	-	DR_0003	-	hypothetical protein
4	 67.90	0	4378..5430	+	350	15805046	-	DR_0004	-	MutT/nudix family protein
5	 69.91	0	5438..6115	+	225	15805047	-	DR_0005	-	hypothetical protein
6	 67.05	0	6162..6944	-	260	15805048	-	DR_0006	-	hypothetical protein
7	 71.09	0	6986..7822	+	278	15805049	-	DR_0007	-	hypothetical protein
8	 71.76	+1	7819..8859	+	346	15805050	-	DR_0008	-	hypothetical protein
9	 68.14	0	8925..10283	+	452	15805051	-	DR_0009	-	hypothetical protein
10	 59.77	-1	10413..11615	+	400	15807617	-	DR_0010	-	putative transposase
11	 65.99	0	11855..12736	-	293	15805052	-	DR_0011	-	hypothetical protein
12	 68.51	0	13333..14199	-	288	15805053	-	DR_0012	-	chromosome partitioning protein
13	 69.70	0	14183..15073	-	296	15805054	-	DR_0013	-	chromosome partitioning ATPase Soj
14	 69.29	0	15101..15862	-	253	15805055	-	DR_0014	-	gidB protein
15	 65.27	0	15859..16215	-	118	15805056	-	DR_0015	-	hypothetical protein
16	 72.06	+1	16307..17047	-	246	15805057	-	DR_0016	-	hypothetical protein
17	 66.91	0	17147..17557	-	136	15805058	-	DR_0017	-	hypothetical protein
18	 68.77	0	17568..18185	-	205	15805059	-	DR_0018	-	hypothetical protein
19	 69.39	0	18182..19063	-	293	15805060	-	DR_0019	-	hypothetical protein
20	 72.15	+1	19258..20643	+	461	15805061	-	DR_0020	-	ribonuclease II family protein
21	 65.17	0	20768..21034	+	88	15805062	-	DR_0021	-	hypothetical protein
22	 61.33	-1	21162..21761	-	199	15805063	-	DR_0022	-	hypothetical protein
23	 69.48	0	22233..22766	+	177	15805064	-	DR_0023	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
24	 70.53	0	22763..23875	+	370	15805065	-	DR_0024	-	phosphoribosylaminoimidazole carboxylase, ATPase subunit
25	 63.42	0	23983..25182	+	399	15805066	-	DR_0025	-	hypothetical protein
26	 62.72	-1	25273..26082	+	269	15805067	-	DR_0026	-	methyltransferase, putative
27	 66.22	0	26166..27968	-	600	15805068	-	DR_0027	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
28	 66.97	0	28040..29674	+	544	15805069	-	DR_0028	-	aminotransferase, putative
29	 66.40	0	29796..30941	+	381	15805070	-	DR_0029	-	2-oxo acid dehydrogenase, E1 component, alpha subunit
30	 66.47	0	30938..31972	+	344	15805071	-	DR_0030	-	2-oxo acid dehydrogenase, E1 component, beta subunit
31	 66.26	0	32002..32244	+	80	15805072	-	DR_0031	-	hypothetical protein
32	 67.24	0	32248..33825	+	525	15805073	-	DR_0032	-	branched-chain alpha-keto acid dehydrogenase subunit E2
33	 65.40	0	33903..34376	-	157	15805074	-	DR_0033	-	hypothetical protein
34	 65.52	0	34348..34695	+	115	15805075	-	DR_0034	-	hypothetical protein
35	 66.01	0	34829..36046	+	405	15805076	-	DR_0035	-	adenylosuccinate synthetase
36	 65.59	0	36181..36831	+	216	15805077	folE	DR_0036	-	GTP cyclohydrolase I
37	 64.85	0	36859..37464	+	201	15805078	-	DR_0037	-	hypothetical protein
38	 66.13	0	37446..38756	+	436	15805079	-	DR_0038	-	serine hydroxymethyltransferase
39	 71.34	0	38823..39977	+	384	15805080	-	DR_0039	-	hypothetical protein
40	 68.13	0	39999..40475	-	158	15805081	-	DR_0040	-	hypothetical protein
41	 70.29	0	40458..41036	+	192	15805082	-	DR_0041	-	hypothetical protein
42	 66.02	0	41050..41823	+	257	15805083	-	DR_0042	-	hypothetical protein
43	 73.54	+1	41990..42775	-	261	15805084	-	DR_0043	-	hypothetical protein
44	 68.97	0	42772..43899	-	375	15805085	-	DR_0044	-	N-acylamino acid racemase
45	 71.85	+1	43942..44520	+	192	15805086	-	DR_0045	-	hypothetical protein
46	 72.58	+1	44596..45102	+	168	15805087	-	DR_0046	-	hypothetical protein
47	 67.17	0	45124..45321	+	65	15805088	-	DR_0047	-	hypothetical protein
48	 67.06	0	45318..46082	+	254	15805089	-	DR_0048	-	hypothetical protein
49	 69.36	0	46123..47349	+	408	15805090	-	DR_0049	-	hypothetical protein
50	 67.82	0	47370..47891	-	173	15805091	-	DR_0050	-	hypothetical protein
51	 64.15	0	47912..48268	-	118	15805092	-	DR_0051	-	HesB/YadR/YfhF family protein
52	 69.44	0	48296..49051	-	251	15805093	-	DR_0052	-	hypothetical protein
53	 67.07	0	49054..49548	-	164	15805094	-	DR_0053	-	hypothetical protein
54	 67.26	0	49657..49992	+	111	15805095	-	DR_0054	-	hypothetical protein
55	 71.92	+1	49989..50939	+	316	15805096	-	DR_0055	-	repressor protein, putative
56	 70.28	0	51060..52361	+	433	15805097	-	DR_0056	-	benzoate membrane transport protein, putative
57	 69.41	0	52370..52624	-	84	15805098	-	DR_0057	-	hypothetical protein
58	 67.45	0	52646..54421	-	591	15805099	-	DR_0058	-	serine/threonine protein kinase, putative
59	 62.46	-1	54831..55115	+	94	15805100	-	DR_0059	-	hypothetical protein
60	 73.66	+1	55152..55580	+	142	15805101	-	DR_0060	-	hypothetical protein
61	 74.81	+1	55573..57009	+	478	15805102	-	DR_0061	-	hypothetical protein
62	 72.34	+1	57231..58217	-	328	15805103	-	DR_0062	-	ABC transporter, ATP-binding protein
63	 71.09	0	58272..59153	-	293	15805104	-	DR_0063	-	hypothetical protein
64	 66.67	0	59243..60433	-	396	15805105	-	DR_0064	-	hypothetical protein
65	 69.30	0	60568..63186	+	872	15805106	-	DR_0065	-	ATP-dependent helicase, putative
66	 70.58	0	63356..64147	-	263	15805107	-	DR_0066	-	aminoglycoside 3`-phosphotransferase
67	 74.84	+1	64184..65113	+	309	15805108	-	DR_0067	-	hypothetical protein
68	 65.33	0	65110..65484	+	124	15805109	-	DR_0068	-	hypothetical protein
69	 66.39	0	65586..65948	+	120	15805110	-	DR_0069	-	hypothetical protein
70	 66.67	0	66004..66603	+	199	15805111	-	DR_0070	-	hypothetical protein
71	 67.06	0	66759..68792	-	677	15805112	-	DR_0071	-	peptidyl-prolyl cis-trans isomerase
72	 71.30	0	69032..69571	+	179	15805113	-	DR_0072	-	hypothetical protein
73	 68.79	0	69707..71875	-	722	15805114	-	DR_0073	-	phosphate acetyltransferase
74	 68.86	0	71920..72513	-	197	15805115	-	DR_0074	-	TetR family transcriptional regulator
75	 67.82	0	72681..77084	+	1467	15805116	-	DR_0075	-	hypothetical protein
76	 73.63	+1	77159..78364	+	401	15805117	-	DR_0076	-	molybdopterin biosynthesis MoeA
77	 67.27	0	78380..79201	-	273	15805118	aroE	DR_0077	-	shikimate 5-dehydrogenase
78	 66.88	0	79205..80125	-	306	15805119	-	DR_0078	-	N-acetyl-gamma-glutamyl-phosphate reductase
79	 64.73	0	80122..80637	-	171	15805120	-	DR_0079	-	MutT/nudix family protein
80	 65.35	0	80645..81706	-	353	15805121	-	DR_0080	-	ornithine carbamoyltransferase
81	 65.69	0	81769..82482	-	237	15805122	-	DR_0081	-	hypothetical protein
82	 67.74	0	82517..82981	-	154	15805123	-	DR_0082	-	hypothetical protein
83	 63.96	0	83069..84322	-	417	15805124	-	DR_0083	-	2-oxoglutarate dehydrogenase, dihydrolipoamide succinyltransferase E2 component
84	 63.25	0	86474..87790	-	438	15805125	obgE	DR_0084	-	GTPase ObgE
85	 61.96	-1	87904..88179	-	91	15805126	rpmA	DR_0085	-	50S ribosomal protein L27
86	 61.18	-1	88194..88703	-	169	15805127	-	DR_0086	-	ribosomal protein L21
87	 65.19	0	88873..89346	-	157	15805128	-	DR_0087	-	transcriptional regulator NrdR
88	 70.80	0	89343..90140	-	265	15805129	-	DR_0088	-	short chain dehydrogenase/reductase family oxidoreductase
89	 72.79	+1	90184..91260	-	358	15805130	-	DR_0089	-	hypothetical protein
90	 75.82	+1	91257..91955	-	232	15805131	-	DR_0090	-	hypothetical protein
91	 72.42	+1	91945..92883	-	312	15805132	-	DR_0091	-	hypothetical protein
92	 69.93	0	92880..93155	-	91	15805133	-	DR_0092	-	MutT/nudix family protein
93	 67.64	0	93152..94687	-	511	15805134	-	DR_0093	-	phytoene dehydrogenase, putative
94	 58.06	-2	94950..95495	+	181	15805135	-	DR_0094	-	hypothetical protein
95	 70.83	0	95577..97403	-	608	15805136	-	DR_0095	-	ABC transporter, ATP-binding protein
96	 70.49	0	97501..99252	-	583	15805137	-	DR_0096	-	ABC transporter ATP-binding protein
97	 68.42	0	99317..99886	-	189	15805138	-	DR_0097	-	hypothetical protein
98	 61.49	-1	100030..100338	+	102	15805139	rpsF	DR_0098	-	30S ribosomal protein S6
99	 60.19	-1	100371..100802	+	143	15805140	-	DR_0099	-	single-stranded DNA-binding protein
100	 63.23	0	100829..101361	+	177	15807618	ssb	DR_0100	-	single-stranded DNA-binding protein
67.25	MEAN

4.30	STD DEV
