IslandPath Analysis: Deinococcus geothermalis DSM 11300

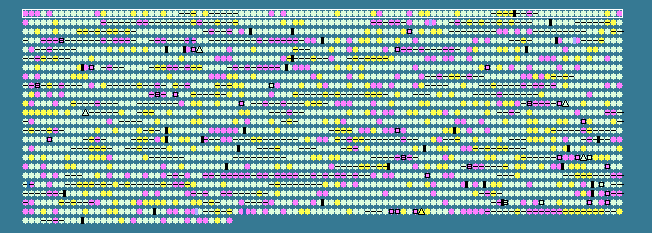

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.82 STD DEV: 3.70
Deinococcus geothermalis DSM 11300, complete genome - 1..2467205
2335 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 58.67	-2	222..1634	+	470	94984110	-	Dgeo_0001	-	chromosomal replication initiator protein DnaA
2	 43.75	-2	1599..1838	-	79	94984111	-	Dgeo_0002	-	hypothetical protein
3	 62.05	-1	2025..3107	+	360	94984112	-	Dgeo_0003	-	DNA polymerase III, beta subunit
4	 64.38	0	3245..4513	+	422	94984113	-	Dgeo_0004	-	phosphopyruvate hydratase
5	 62.87	-1	4600..6048	+	482	94984114	-	Dgeo_0005	-	pyruvate kinase
6	 65.14	0	6295..7536	-	413	94984115	-	Dgeo_0006	-	tyrosyl-tRNA synthetase
7	 69.40	0	7665..8285	+	206	94984116	-	Dgeo_0007	-	MOSC domain-containing protein
8	 64.31	0	8301..8852	+	183	94984117	-	Dgeo_0008	-	hypothetical protein
9	 69.17	0	8833..9510	+	225	94984118	-	Dgeo_0009	-	hypothetical protein
10	 63.70	0	9612..11432	-	606	94984119	-	Dgeo_0010	-	glucosamine--fructose-6-phosphate aminotransferase, isomerizing
11	 69.07	0	11803..13008	-	401	94984120	-	Dgeo_0011	-	methionine gamma-lyase
12	 67.59	0	13036..13686	-	216	94984121	-	Dgeo_0012	-	hypothetical protein
13	 61.75	-1	13862..14044	+	60	94984122	rpmF	Dgeo_0013	-	50S ribosomal protein L32
14	 72.14	+1	14304..15089	+	261	94984123	-	Dgeo_0014	-	response regulator receiver/SARP domain-containing protein
15	 69.26	0	15138..15407	+	89	94984124	-	Dgeo_0015	-	hypothetical protein
16	 65.95	0	15559..16119	+	186	94984125	-	Dgeo_0016	-	cytochrome c oxidase, subunit II
17	 64.57	0	16130..17893	+	587	94984126	-	Dgeo_0017	-	cytochrome c oxidase, subunit I
18	 69.78	0	17893..18309	+	138	94984127	-	Dgeo_0018	-	cytochrome c, class I
19	 72.97	+1	18407..19438	+	343	94984128	-	Dgeo_0019	-	A/G-specific adenine glycosylase
20	 66.19	0	19494..20324	+	276	94984129	-	Dgeo_0020	-	undecaprenyl diphosphate synthase
21	 71.61	+1	20373..22334	+	653	94984130	-	Dgeo_0021	-	HRDC
22	 66.67	0	22331..22666	-	111	94984131	-	Dgeo_0022	-	hypothetical protein
23	 70.19	0	22666..23487	-	273	94984132	-	Dgeo_0023	-	ABC transporter related
24	 71.08	+1	23480..24499	-	339	94984133	-	Dgeo_0024	-	transport system permease protein
25	 65.98	0	24503..25372	-	289	94984134	-	Dgeo_0025	-	periplasmic binding protein
26	 67.29	0	25679..26323	-	214	94984135	-	Dgeo_0026	-	phospholipid/glycerol acyltransferase
27	 68.25	0	26392..26643	-	83	94984136	-	Dgeo_0027	-	hypothetical protein
28	 67.51	0	27484..27840	-	118	94984137	-	Dgeo_0029	-	hypothetical protein
29	 70.37	0	27906..28526	-	206	94984138	-	Dgeo_0030	-	hypothetical protein
30	 69.77	0	28523..29392	-	289	94984139	-	Dgeo_0031	-	hypothetical protein
31	 71.42	+1	29584..30993	+	469	94984140	-	Dgeo_0032	-	ribonuclease II
32	 63.92	0	31038..31328	+	96	94984141	-	Dgeo_0033	-	hypothetical protein
33	 66.28	0	31472..32503	+	343	94984142	-	Dgeo_0034	-	peptidyl-arginine deiminase
34	 67.35	0	32488..33663	+	391	94984143	-	Dgeo_0035	-	hypothetical protein
35	 64.86	0	33677..34561	+	294	94984144	-	Dgeo_0036	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
36	 69.91	0	34598..35398	-	266	94984145	-	Dgeo_0037	-	tRNA pseudouridine synthase A
37	 68.88	0	35401..36393	+	330	94984146	-	Dgeo_0038	-	peptidase M23B
38	 70.18	0	36398..36625	+	75	94984147	-	Dgeo_0039	-	hypothetical protein
39	 69.34	0	36626..37411	-	261	94984148	-	Dgeo_0040	-	stationary-phase survival protein SurE
40	 66.34	0	37477..38694	-	405	94984149	-	Dgeo_0041	-	alcohol dehydrogenase GroES-like protein
41	 68.84	0	38691..39425	-	244	94984150	-	Dgeo_0042	-	cyclase/dehydrase
42	 61.38	-1	39684..40118	+	144	94984151	-	Dgeo_0043	-	response regulator receiver protein
43	 67.28	0	40286..40609	+	107	94984152	-	Dgeo_0044	-	multisubunit Na+/H+ antiporter MnhE subunit-like protein
44	 61.66	-1	40596..41294	-	232	94984153	-	Dgeo_0045	-	hypothetical protein
45	 67.34	0	41414..42151	+	245	94984154	-	Dgeo_0046	-	polysaccharide deacetylase
46	 68.60	0	42215..42886	-	223	94984155	-	Dgeo_0047	-	hypothetical protein
47	 68.65	0	43033..44091	+	352	94984156	-	Dgeo_0048	-	permease YjgP/YjgQ
48	 68.66	0	44102..45205	+	367	94984157	-	Dgeo_0049	-	permease YjgP/YjgQ
49	 68.36	0	45266..46681	+	471	94984158	-	Dgeo_0050	-	cyclopropane-fatty-acyl-phospholipid synthase
50	 68.51	0	46701..48812	-	703	94984159	-	Dgeo_0051	-	phosphate acetyltransferase
51	 69.44	0	48809..49996	-	395	94984160	-	Dgeo_0052	-	acetate kinase
52	 69.78	0	50064..50513	-	149	94984161	-	Dgeo_0053	-	hypothetical protein
53	 70.85	+1	50524..52458	-	644	94984162	-	Dgeo_0054	-	hypothetical protein
54	 70.25	0	52487..54076	-	529	94984163	-	Dgeo_0055	-	hypothetical protein
55	 66.81	0	54073..54783	-	236	94984164	-	Dgeo_0056	-	roadblock/LC7 domain-contain protein
56	 66.92	0	54859..56049	+	396	94984165	-	Dgeo_0057	-	pyridoxal phosphate-dependent acyltransferase, putative
57	 68.06	0	56125..56844	+	239	94984166	-	Dgeo_0058	-	ubiquinone/menaquinone biosynthesis methyltransferases
58	 68.41	0	57092..58465	+	457	94984167	-	Dgeo_0059	-	Alpha,alpha-trehalose-phosphate synthase (UDP-forming)
59	 71.97	+1	58462..59178	+	238	94984168	-	Dgeo_0060	-	HAD family hydrolase
60	 61.32	-1	59257..59499	+	80	94984169	-	Dgeo_0061	-	hypothetical protein
61	 69.07	0	59640..60263	+	207	94984170	-	Dgeo_0062	-	phosphoglycerate mutase
62	 67.58	0	60394..61812	-	472	94984171	-	Dgeo_0063	-	amidophosphoribosyltransferase
63	 68.36	0	61809..64049	-	746	94984172	-	Dgeo_0064	-	phosphoribosylformylglycinamidine synthase II
64	 66.67	0	64046..64714	-	222	94984173	-	Dgeo_0065	-	phosphoribosylformylglycinamidine synthase I
65	 61.63	-1	64711..64968	-	85	94984174	-	Dgeo_0066	-	phosphoribosylformylglycinamidine synthetase PurS
66	 64.05	0	65028..65753	-	241	94984175	-	Dgeo_0067	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
67	 72.07	+1	66048..66899	-	283	94984176	-	Dgeo_0068	-	HemK family modification methylase
68	 71.24	+1	66937..67527	-	196	94984177	-	Dgeo_0069	-	single-stranded nucleic acid binding R3H
69	 66.50	0	67615..68199	-	194	94984178	-	Dgeo_0070	-	peptidylprolyl isomerase
70	 68.88	0	68257..69522	-	421	94984179	-	Dgeo_0071	-	peptidase M29, aminopeptidase II
71	 69.05	0	69773..70234	-	153	94984180	-	Dgeo_0072	-	tRNA/rRNA methyltransferase (SpoU)
72	 68.50	0	70231..70722	-	163	94984181	-	Dgeo_0073	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
73	 70.99	+1	70807..71430	-	207	94984182	-	Dgeo_0074	-	hypothetical protein
74	 69.70	0	71427..72053	-	208	94984183	-	Dgeo_0075	-	NUDIX hydrolase
75	 64.87	0	72291..72848	-	185	94984184	-	Dgeo_0076	-	DinB
76	 69.86	0	72893..73894	-	333	94984185	-	Dgeo_0077	-	dihydrouridine synthase, DuS
77	 69.03	0	74053..74559	+	168	94984186	-	Dgeo_0078	-	GCN5-related N-acetyltransferase
78	 70.13	0	74592..75341	+	249	94984187	-	Dgeo_0079	-	acetylglutamate kinase
79	 69.29	0	75346..75954	-	202	94984188	-	Dgeo_0080	-	ribosomal protein N-acetyltransferase, putative
80	 72.13	+1	75968..77083	-	371	94984189	-	Dgeo_0081	-	phosphoribosylaminoimidazole carboxylase, ATPase subunit
81	 70.97	+1	77080..77613	-	177	94984190	-	Dgeo_0082	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
82	 71.11	+1	77636..78850	+	404	94984191	-	Dgeo_0083	-	FolC bifunctional protein
83	 66.67	0	79358..79795	+	145	94984192	-	Dgeo_0084	-	hypothetical protein
84	 65.96	0	80110..80535	-	141	94984193	-	Dgeo_0085	-	hypothetical protein
85	 63.13	0	80725..81318	+	197	94984194	-	Dgeo_0086	-	hypothetical protein
86	 67.26	0	81377..82045	+	222	94984195	-	Dgeo_0087	-	two component transcriptional regulator
87	 67.78	0	82042..83121	+	359	94984196	-	Dgeo_0088	-	periplasmic sensor signal transduction histidine kinase
88	 66.95	0	83147..85648	-	833	94984197	-	Dgeo_0089	-	ATPase, P type cation/copper-transporter
89	 63.47	0	85816..86034	+	72	94984198	-	Dgeo_0090	-	heavy metal transport/detoxification protein
90	 64.06	0	86034..86378	+	114	94984199	-	Dgeo_0091	-	hypothetical protein
91	 69.27	0	86421..87728	-	435	94984200	-	Dgeo_0092	-	hypothetical protein
92	 67.74	0	87831..88760	+	309	94984201	-	Dgeo_0093	-	porphobilinogen deaminase
93	 69.36	0	88951..89916	+	321	94984202	-	Dgeo_0094	-	asparaginase/glutaminase
94	 65.21	0	89945..90562	-	205	94984203	-	Dgeo_0095	-	DedA family protein
95	 69.74	0	90628..91344	+	238	94984204	-	Dgeo_0096	-	HAD family hydrolase
96	 65.17	0	91376..92311	-	311	94984205	-	Dgeo_0097	-	twin-arginine translocation pathway signal
97	 67.55	0	92543..93220	-	225	94984206	-	Dgeo_0098	-	short-chain dehydrogenase/reductase SDR
98	 71.44	+1	93423..94889	-	488	94984207	-	Dgeo_0099	-	UDP-N-acetylmuramyl-tripeptide synthetases
99	 69.53	0	94990..95373	+	127	94984208	-	Dgeo_0100	-	ArsR family transcriptional regulator
100	 61.86	-1	95398..96021	-	207	94984209	-	Dgeo_0101	-	deoxynucleoside kinase
66.82	MEAN

3.70	STD DEV
