IslandPath Analysis: Corynebacterium glutamicum ATCC 13032

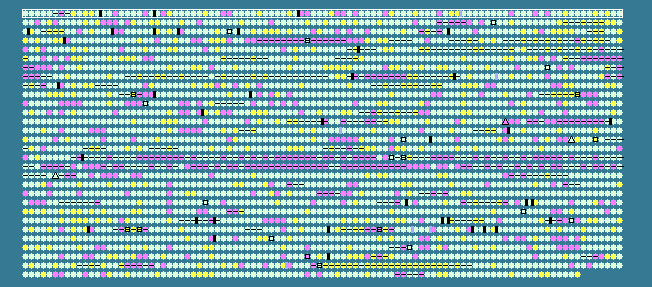

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 54.31   STD DEV: 3.83
Corynebacterium glutamicum ATCC 13032, complete genome - 1..3309401
2993 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 54.10	0	1..1575	+	524	19551251	dnaA	NCgl0001	-	chromosomal replication initiation protein
2	 56.88	0	2292..3476	+	394	19551252	-	NCgl0002	-	DNA polymerase III subunit beta
3	 55.70	0	3585..4769	+	394	19551253	recF	NCgl0003	-	recombination protein F
4	 55.12	0	4766..5302	+	178	19551254	-	NCgl0004	-	hypothetical protein
5	 55.91	0	5435..7489	+	684	19551255	gyrB	NCgl0005	-	DNA gyrase subunit B
6	 51.08	0	7830..8798	+	322	19551256	-	NCgl0006	-	hypothetical protein
7	 48.68	-1	8795..9400	-	201	19551257	-	NCgl0007	-	hypothetical protein
8	 55.18	0	9471..9914	-	147	19551258	-	NCgl0008	-	hypothetical protein
9	 58.66	+1	10104..11177	-	357	23308766	-	NCgl0009	-	transcriptional regulator
10	 54.55	0	11260..11523	-	87	19551260	-	NCgl0010	-	hypothetical protein
11	 59.04	+1	11520..11768	-	82	19551261	-	NCgl0011	-	hypothetical protein
12	 59.43	+1	11831..14401	+	856	19551262	-	NCgl0012	-	DNA gyrase subunit A
13	 51.88	0	14405..14749	+	114	19551263	-	NCgl0013	-	hypothetical protein
14	 51.46	0	15206..16132	-	308	19551264	-	NCgl0014	-	uncharacterized membrane protein
15	 52.06	0	16314..17210	+	298	19551265	-	NCgl0015	-	transcriptional regulator
16	 49.52	-1	17260..17673	+	137	19551266	-	NCgl0016	-	hypothetical protein
17	 52.92	0	17857..18729	-	290	19551267	-	NCgl0017	-	cytochrome C biogenesis protein
18	 53.99	0	18733..19497	-	254	19551268	-	NCgl0018	-	protein-disulfide isomerase
19	 54.30	0	19705..20076	+	123	19551269	-	NCgl0019	-	transcriptional regulator
20	 55.02	0	20073..21068	+	331	19551270	-	NCgl0020	-	Zn-dependent protease with chaperone function
21	 50.09	-1	21597..22127	+	176	19551272	-	NCgl0021	-	5'-nucleotidase/2',3'-cyclic phosphodiesterase or related esterase
22	 53.43	0	22164..23402	+	412	19551273	-	NCgl0022	-	5'-nucleotidase/2',3'-cyclic phosphodiesterase or related esterase
23	 56.39	0	24295..24732	+	145	23308767	-	NCgl0023	-	stress-induced protein
24	 45.27	-2	24882..26573	-	563	19551275	-	NCgl0024	-	transcriptional regulator
25	 58.63	+1	26819..28099	-	426	19551276	-	NCgl0025	-	hypothetical protein
26	 51.52	0	28161..29117	-	318	19551277	-	NCgl0026	-	ABC-type transporter, periplasmic component
27	 51.17	0	29114..29965	-	283	19551278	-	NCgl0027	-	ABC-type transporter, permease component
28	 54.39	0	29995..30654	+	219	19551279	-	NCgl0028	-	ABC-type transporter, ATPase component
29	 54.37	0	30697..31680	+	327	23308768	-	NCgl0029	-	ABC-type transporter, periplasmic component
30	 53.90	0	31677..32702	+	341	19551281	-	NCgl0030	-	ABC-type transporter, permease component
31	 58.66	+1	32699..33460	+	253	19551282	-	NCgl0031	-	ABC-type transporter, ATPase component
32	 55.97	0	33462..34274	-	270	19551283	-	NCgl0032	-	hypothetical protein
33	 57.24	0	34330..34902	+	190	19551284	-	NCgl0033	-	peptidyl-prolyl cis-trans isomerase (rotamase)
34	 49.42	-1	34982..35671	+	229	19551285	-	NCgl0034	-	uncharacterized membrane protein
35	 50.35	-1	36244..37242	-	332	19551286	-	NCgl0035	-	AraC-type DNA-binding domain-containing protein
36	 54.75	0	37245..38201	+	318	19551287	-	NCgl0036	-	ABC-type transporter, permease component
37	 56.41	0	38202..38981	+	259	19551288	-	NCgl0037	-	ABC-type transporter, ATPase component
38	 53.58	0	38978..39802	+	274	19551289	-	NCgl0038	-	siderophore-interacting protein
39	 51.65	0	40186..40458	-	90	19551290	-	NCgl0039	-	putative septation inhibitor protein
40	 58.94	+1	40573..42513	-	646	19551291	-	NCgl0040	-	serine/threonine protein kinase
41	 55.67	0	42510..43919	-	469	19551292	-	NCgl0041	-	serine/threonine protein kinase
42	 55.86	0	43923..45347	-	474	19551293	-	NCgl0042	-	cell division protein FtsI
43	 55.13	0	45344..46669	-	441	19551294	-	NCgl0043	-	cell division membrane protein
44	 54.87	0	46666..48021	-	451	19551295	-	NCgl0044	-	protein serine/threonine phosphatase
45	 58.28	+1	48021..48485	-	154	19551296	-	NCgl0045	-	FHA-domain-containing protein
46	 51.67	0	48502..49368	-	288	19551297	-	NCgl0046	-	hypothetical protein
47	 49.79	-1	49894..50616	-	240	19551298	-	NCgl0047	-	hypothetical protein
48	 45.36	-2	50963..51436	-	157	19551299	-	NCgl0048	-	hypothetical protein
49	 57.64	0	51623..53095	-	490	19551300	-	NCgl0049	-	NAD-dependent aldehyde dehydrogenase
50	 55.80	0	53055..54011	+	318	23308769	-	NCgl0050	-	phenol 2-monooxygenase
51	 52.74	0	54179..55549	+	456	19551302	-	NCgl0051	-	Zn-dependent hydrolase
52	 60.51	+1	55626..56372	-	248	19551303	-	NCgl0052	-	hypothetical protein
53	 48.64	-1	56383..56676	-	97	19551304	-	NCgl0053	-	rhodanese-related sulfurtransferase
54	 49.83	-1	56677..57270	-	197	19551305	-	NCgl0054	-	rhodanese-related sulfurtransferase
55	 52.33	0	57397..57654	+	85	19551306	-	NCgl0055	-	hypothetical protein
56	 49.42	-1	58087..58944	+	285	19551307	-	NCgl0056	-	hypothetical protein
57	 52.55	0	59091..59933	+	280	19551308	-	NCgl0057	-	hypothetical protein
58	 54.20	0	59952..60665	+	237	19551309	-	NCgl0058	-	hypothetical protein
59	 54.11	0	60669..62324	+	551	23308770	-	NCgl0059	-	hypothetical protein
60	 56.51	0	62387..63508	-	373	19551311	-	NCgl0060	-	Mg2+ and Co2+ transporter protein
61	 49.33	-1	63591..64040	-	149	19551312	-	NCgl0061	-	4-oxalocrotonate tautomerase-like protein
62	 58.58	+1	64163..65461	+	432	19551313	-	NCgl0062	-	chloride channel EriC-like protein
63	 55.56	0	65505..66197	-	230	19551314	-	NCgl0063	-	nicotinamide mononucleotide transporter
64	 56.64	0	66599..67975	+	458	19551315	-	NCgl0064	-	ATPase related to phosphate starvation-inducible protein PhoH
65	 53.23	0	68248..68634	-	128	19551316	-	NCgl0065	-	hypothetical protein
66	 60.14	+1	68717..70186	-	489	23308771	-	NCgl0066	-	H+/citrate symporter
67	 53.99	0	70506..72161	+	551	19551318	-	NCgl0067	-	two-component system sensory transduction histidine kinase
68	 55.56	0	72161..72817	+	218	19551319	-	NCgl0068	-	two-component system response regulator
69	 51.69	0	72814..73728	-	304	19551320	-	NCgl0069	-	phosphoglycerate dehydrogenase or related dehydrogenase
70	 50.69	0	73844..74275	+	143	19551321	-	NCgl0070	-	hypothetical protein
71	 54.63	0	74490..75494	+	334	19551322	-	NCgl0071	-	biotin synthase
72	 57.92	0	75506..75745	+	79	23308772	-	NCgl0072	-	hypothetical protein
73	 57.89	0	75697..76038	+	113	23308773	-	NCgl0073	-	hypothetical protein
74	 52.89	0	82117..83568	-	483	19551324	-	NCgl0074	-	permease
75	 53.12	0	83688..84935	-	415	19551325	-	NCgl0075	-	cytosine deaminase or related metal-dependent hydrolase
76	 54.05	0	85095..85403	-	102	19551326	-	NCgl0076	-	hypothetical protein
77	 57.75	0	85660..86220	-	186	19551328	-	NCgl0077	-	hypothetical protein
78	 57.31	0	86657..87244	+	195	19551329	-	NCgl0078	-	Sir2 family NAD-dependent protein deacetylase
79	 54.36	0	87558..88532	-	324	19551330	-	NCgl0079	-	acetyltransferase or hydrolase
80	 56.81	0	88542..89444	-	300	19551331	-	NCgl0080	-	acetyltransferase or hydrolase
81	 53.00	0	89615..90448	+	277	19551332	-	NCgl0081	-	hypothetical protein
82	 48.26	-1	90458..90973	-	171	19551333	-	NCgl0082	-	mar family transcriptional regulator
83	 52.81	0	91174..91476	+	100	19551334	ureA	NCgl0083	-	urease subunit gamma
84	 55.21	0	91503..91991	+	162	19551335	ureB	NCgl0084	-	urease subunit beta
85	 52.66	0	91992..93704	+	570	19551336	ureC	NCgl0085	-	urease subunit alpha
86	 50.42	-1	93729..94202	+	157	19551337	ureE	NCgl0086	-	urease accessory protein UreE
87	 51.54	0	94202..94882	+	226	19551338	-	NCgl0087	-	urease accessory protein UreF
88	 49.84	-1	94899..95516	+	205	19551339	-	NCgl0088	-	Ni2+-binding GTPase
89	 55.52	0	95517..96368	+	283	19551340	-	NCgl0089	-	urease accessory protein UreH
90	 52.31	0	96365..97144	-	259	19551341	-	NCgl0090	-	hydrolase or acyltransferase
91	 57.84	0	97316..98470	-	384	19551342	-	NCgl0091	-	permease
92	 54.64	0	98805..101582	-	925	19551343	-	NCgl0092	-	hypothetical protein
93	 54.95	0	101609..103435	-	608	19551344	-	NCgl0093	-	HSP90 family molecular chaperone
94	 56.03	0	103503..104912	+	469	19551345	-	NCgl0094	-	AMP nucleosidase
95	 57.22	0	105170..105751	-	193	19551346	-	NCgl0095	-	hypothetical protein
96	 58.92	+1	105838..106392	-	184	23308774	-	NCgl0096	-	thiamine pyrophosphate-requiring enzyme
97	 51.45	0	106627..107178	-	183	19551348	-	NCgl0097	-	hypothetical protein
98	 58.28	+1	107435..110893	+	1152	19551349	-	NCgl0098	-	proline dehydrogenase
99	 54.11	0	111374..112321	+	315	19551350	-	NCgl0099	-	oxidoreductase
100	 51.39	0	112470..114086	+	538	19551351	-	NCgl0100	-	putative p-aminobenzoyl-glutamate transporter
54.31	MEAN

3.83	STD DEV
