IslandPath Analysis: Coxiella burnetii Dugway 5J108-111

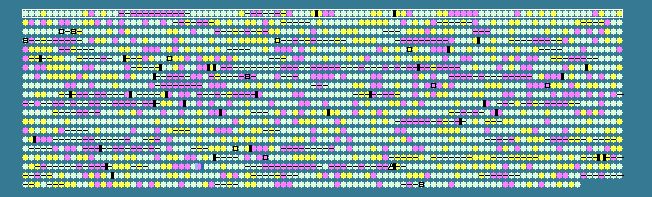

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 42.75   STD DEV: 4.96
Coxiella burnetii Dugway 5J108-111, complete genome - 1..2158758
1993 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 44.69	0	140..1495	+	451	154706441	dnaA	CBUD_0001	-	chromosomal replication initiator protein
2	 43.60	0	1639..2748	+	369	154706526	dnaN	CBUD_0002	-	DNA polymerase III, beta chain
3	 43.20	0	2753..3826	+	357	154707128	recF	CBUD_0003	-	DNA replication and repair protein
4	 46.94	0	4122..6554	+	810	209363643	gyrB	CBUD_0005	-	DNA gyrase subunit B
5	 43.22	0	7796..8068	-	90	154707433	-	CBUD_0006	-	hypothetical protein
6	 43.62	0	8176..9837	-	553	154706378	-	CBUD_0008	-	hypothetical protein
7	 40.87	0	9978..12074	-	698	154705767	-	CBUD_0009	-	hypothetical protein
8	 44.50	0	15536..17371	+	611	154706946	glmS	CBUD_0013	-	glucosamine--fructose-6-phosphate aminotransferase [isomerizing]
9	 43.32	0	17368..17958	+	196	209363644	-	CBUD_0014	-	hypothetical cytosolic protein
10	 39.47	0	18115..18342	+	75	209363645	-	CBUD_0014a	-	hypothetical protein
11	 46.94	0	18347..19213	-	288	154705750	-	CBUD_0015	-	gluconolactonase
12	 39.07	0	22618..23436	+	272	209363646	-	CBUD_0020	-	hypothetical protein
13	 44.26	0	23466..26174	-	902	154707059	polA	CBUD_0021	-	DNA polymerase I
14	 48.19	+1	26225..27853	+	542	154707145	-	CBUD_0022	-	amino acid permease
15	 45.59	0	27777..28298	+	173	209363647	-	CBUD_0023	-	acyl-CoA hydrolase
16	 43.36	0	28427..30370	+	647	154705832	-	CBUD_0024	-	lysine-specific permease
17	 37.95	0	30443..30832	+	129	154707346	-	CBUD_0025	-	cupin superfamily protein
18	 42.86	0	30882..31238	+	118	154707463	-	CBUD_0026	-	hypothetical protein
19	 35.62	-1	31321..31932	+	203	209363648	-	CBUD_0027	-	cupin superfamily protein
20	 37.66	-1	32149..32610	-	153	154707564	-	CBUD_0028	-	acetyltransferase
21	 34.52	-1	32607..33365	-	252	154706970	-	CBUD_0029	-	hypothetical membrane spanning protein
22	 37.04	-1	33374..33670	-	98	209363649	-	CBUD_0030	-	hypothetical protein
23	 34.74	-1	33694..34332	-	212	154706089	-	CBUD_0031	-	hypothetical protein
24	 38.76	0	34522..34650	+	42	209363650	-	CBUD_0032	-	hypothetical protein
25	 38.04	0	34669..34923	+	84	154707024	-	CBUD_0033	-	bacterial regulatory protein, luxR family
26	 36.46	-1	34937..35320	+	127	154706190	-	CBUD_0034	-	bacterial regulatory protein, luxR family
27	 36.46	-1	35396..35683	-	95	154705743	-	CBUD_0035	-	hypothetical protein
28	 45.28	0	36124..36600	-	158	154707121	-	CBUD_0036	-	hypothetical protein
29	 44.47	0	36805..37998	-	397	154706652	-	CBUD_0037	-	export ABC transporter permease protein
30	 42.64	0	38009..38674	-	221	154707096	-	CBUD_0038	-	ABC transporter ATP-binding protein
31	 43.96	0	38667..39842	-	391	154706910	macA	CBUD_0039	-	macrolide-specific efflux protein
32	 45.80	0	39845..41368	-	507	154706192	-	CBUD_0040	-	type I secretion outer membrane protein
33	 44.95	0	41435..42562	+	375	209363651	pdxB	CBUD_0041	-	erythronate-4-phosphate dehydrogenase
34	 41.09	0	42543..42671	+	42	154707187	-	CBUD_0042	-	hypothetical protein
35	 46.08	0	42708..43421	+	237	154706317	-	CBUD_0043	-	outer membrane protein
36	 43.34	0	43569..45557	-	662	154705781	priA	CBUD_0044	-	primosomal protein N'
37	 48.68	+1	45629..46195	+	188	154707506	efp	CBUD_0045	-	protein translation elongation factor P (EF-P)
38	 42.15	0	46134..47165	+	343	209363652	-	CBUD_0046	-	hypothetical protein
39	 37.21	-1	47387..48832	+	481	154706010	-	CBUD_0047	-	hypothetical membrane spanning protein
40	 37.57	-1	48885..50018	+	377	209363653	-	CBUD_0048	-	hypothetical membrane associated protein
41	 40.97	0	50035..50571	-	178	209363654	-	CBUD_0049	-	hypothetical protein
42	 44.18	0	50562..51059	-	165	154706619	-	CBUD_0050	-	hypothetical protein
43	 34.95	-1	51826..52875	+	349	154707221	-	CBUD_0053	-	hypothetical protein
44	 58.01	+2	52884..53114	-	76	209363656	-	CBUD_0053a	-	hypothetical protein
45	 39.05	0	53105..53524	+	139	209363655	-	CBUD_0054	-	hypothetical protein
46	 42.99	0	53529..54377	-	282	154706090	psd	CBUD_0055	-	phosphatidylserine decarboxylase
47	 41.80	0	54384..55529	+	381	209363657	cca	CBUD_0056	-	tRNA nucleotidyltransferase
48	 42.82	0	55563..56816	-	417	209363658	-	CBUD_0057	-	hypothetical protein
49	 47.24	0	56823..57455	+	210	154707663	lolB	CBUD_0058	-	outer-membrane lipoprotein
50	 48.75	+1	57630..58589	+	319	154706735	prs	CBUD_0060	-	ribose-phosphate pyrophosphokinase
51	 38.10	0	58594..60042	+	482	154706083	-	CBUD_0062	-	hypothetical membrane spanning protein
52	 38.41	0	61244..61381	-	45	209363659	-	CBUD_0062a	-	hypothetical protein
53	 43.61	0	61411..62325	+	304	154706011	rfbA	CBUD_0064	-	glucose-1-phosphate thymidylyltransferase
54	 42.17	0	62671..64050	-	459	154707003	-	CBUD_0065	-	protoporphyrinogen oxidase
55	 43.99	0	64052..65308	-	418	154707185	-	CBUD_0066	-	homoserine dehydrogenase
56	 41.21	0	65322..66362	-	346	209363660	-	CBUD_0067	-	UDP-glucose 4-epimerase
57	 40.00	0	66359..66928	-	189	154707208	rfbC	CBUD_0068	-	dTDP-4-dehydrorhamnose 3,5-epimerase
58	 40.73	0	66938..68167	-	409	209363661	-	CBUD_0069	-	aminobutyraldehyde dehydrogenase
59	 49.66	+1	68314..69048	+	244	154705751	-	CBUD_0070	-	LSU ribosomal protein L25P
60	 47.34	0	69055..69618	+	187	154707189	pth	CBUD_0071	-	peptidyl-tRNA hydrolase
61	 44.84	0	69651..70754	+	367	209363662	ychF	CBUD_0072	-	GTP-binding protein, probable translation factor
62	 41.23	0	70758..71162	+	134	209363663	-	CBUD_0073	-	hypothetical protein
63	 51.16	+1	71450..71578	+	42	209363664	-	CBUD_0073a	-	hypothetical protein
64	 50.62	+1	71698..71859	+	53	154706598	-	CBUD_0075	-	hypothetical cytosolic protein
65	 37.75	-1	71961..72572	+	203	154706906	-	CBUD_0076	-	hypothetical membrane spanning protein
66	 45.56	0	72685..73281	-	198	209363665	-	CBUD_0077	-	hypothetical protein
67	 39.84	0	73268..73513	-	81	154706128	-	CBUD_0078	-	hypothetical protein
68	 40.79	0	73635..75056	+	473	209363666	-	CBUD_0079	-	hypothetical protein
69	 39.94	0	75125..75487	+	120	209363667	-	CBUD_0079a	-	hypothetical protein
70	 47.26	0	75622..75822	-	66	209363668	-	CBUD_0081	-	hypothetical protein
71	 50.39	+1	75861..75989	-	42	154705891	-	CBUD_0082	-	hypothetical protein
72	 38.27	0	76043..76528	-	161	209363669	-	CBUD_0083	-	hypothetical protein
73	 37.79	0	76743..78539	+	598	154707050	-	CBUD_0084	-	hypothetical membrane spanning protein
74	 37.42	-1	78532..79926	+	464	154706599	-	CBUD_0086	-	hypothetical protein
75	 37.78	-1	79904..80353	-	149	154706078	-	CBUD_0085	-	GtrA family protein
76	 36.21	-1	81137..81484	-	115	209363670	pilF	CBUD_0088	-	type 4 pili biogenesis protein
77	 43.16	0	81511..82650	-	379	209363671	-	CBUD_0089	-	3-hydroxyisobutyryl-CoA hydrolase
78	 40.87	0	82699..84291	-	530	154706074	oppD/oppF	CBUD_0090	-	oligopeptide transport ATP-binding protein
79	 40.26	0	85829..86839	-	336	154707740	oppB	CBUD_0092	-	oligopeptide transport system permease protein
80	 41.74	0	86864..89098	-	744	154707212	oppA	CBUD_0093	-	oligopeptide-binding protein
81	 45.77	0	89133..90161	+	342	154706630	-	CBUD_0095	-	lysine 2,3-aminomutase
82	 42.27	0	90151..91962	-	603	154707257	-	CBUD_0094	-	hypothetical membrane spanning protein
83	 30.21	-2	92224..92319	-	31	209363672	-	CBUD_0095a	-	hypothetical protein
84	 44.01	0	92340..92882	-	180	209363673	-	CBUD_0096	-	hypothetical membrane associated protein
85	 46.82	0	92885..95146	-	753	209363674	parC	CBUD_0097	-	topoisomerase IV subunit A
86	 44.65	0	95189..95347	+	52	209363675	-	CBUD_0097a	-	hypothetical protein
87	 48.61	+1	95492..95635	-	47	209363676	-	CBUD_0097b	-	hypothetical cytosolic protein
88	 40.06	0	95723..96376	+	217	154707300	-	CBUD_0100	-	hypothetical protein
89	 46.30	0	96663..97310	+	215	154706892	-	CBUD_0102	-	2-polyprenyl-3-methyl-6-methoxy-1,4-benzoquinol hydroxylase
90	 42.74	0	97260..97865	-	201	154706566	pabA	CBUD_0101	-	anthranilate synthase component II
91	 39.66	0	97846..98541	-	231	209363677	rpe	CBUD_0103	-	ribulose-phosphate 3-epimerase
92	 44.12	0	98541..99356	-	271	209363678	mucZ	CBUD_0104	-	mucoidy activation protein
93	 45.72	0	99392..100699	+	435	154706140	gshA	CBUD_0105	-	glutamate--cysteine ligase
94	 46.17	0	100753..101718	+	321	154707771	gshB	CBUD_0106	-	glutathione synthetase
95	 44.58	0	102125..102889	+	254	154706977	-	CBUD_0108	-	SAM-dependent methyltransferase
96	 34.11	-1	102872..104155	-	427	154707531	-	CBUD_0107	-	hypothetical ATPase
97	 50.00	+1	104300..104719	-	139	209363679	-	CBUD_0109	-	HesB protein family
98	 40.65	0	104803..105444	+	213	209363680	def2	CBUD_0110	-	peptide deformylase
99	 40.95	0	105441..105860	+	139	154707724	-	CBUD_0112	-	hypothetical membrane spanning protein
100	 51.15	+1	105857..106030	-	57	154707052	-	CBUD_0111	-	rubredoxin
42.75	MEAN

4.96	STD DEV
