IslandPath Analysis: Clostridium tetani E88

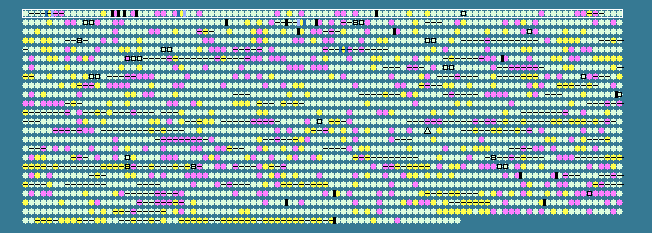

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 28.95   STD DEV: 3.58
Clostridium tetani E88, complete genome - 1..2799251
2373 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 28.08	0	1..2304	-	767	28209835	mecB	CTC00060	-	negative regulator of genetic competence mecB
2	 27.56	0	2487..3923	+	478	28209836	-	CTC00061	-	putative cardiolipin synthetase 2
3	 27.20	0	4027..4548	+	173	28209837	-	CTC00062	-	DNA polymerase
4	 25.85	0	4584..5144	-	186	28209838	-	CTC00064	-	hypothetical protein
5	 53.58	+2	5938..6594	+	218	28209839	-	CTC00065	-	hypothetical protein
6	 22.48	-1	10753..11397	+	214	28209840	-	CTC00066	-	hypothetical protein
7	 23.94	-1	12432..13208	-	258	28209841	-	CTC00067	-	putative polyferredoxin
8	 29.13	0	13557..14816	+	419	28209842	-	CTC00068	-	hypothetical protein
9	 30.30	0	14871..15398	-	175	28209843	-	CTC00069	-	NADH pyrophosphatase
10	 27.56	0	15446..16138	-	230	28209844	-	CTC00070	-	sugar fermentation stimulation protein A
11	 31.78	0	16325..17551	-	408	28209845	-	CTC00071	-	diaminopropionate ammonia-lyase
12	 27.47	0	17824..19581	-	585	28209846	-	CTC00072	-	signal-transduction and transcriptional-control protein
13	 32.33	0	20790..21386	-	198	28209847	recR	CTC00073	-	recombination protein RecR
14	 35.38	+1	21414..21755	-	113	28209848	-	CTC00074	-	hypothetical protein
15	 28.63	0	21830..23488	-	552	28209849	-	CTC00075	-	DNA polymerase III subunits gamma and tau
16	 20.24	-2	24825..25397	-	190	28209850	-	CTC00077	-	hypothetical protein
17	 30.16	0	25611..26051	-	146	28209851	-	CTC00078	-	cytosine deaminase
18	 26.81	0	26462..27028	-	188	28209852	tetR	CTC00079	-	TetR family transcriptional regulator
19	 22.93	-1	27169..28062	+	297	28209853	-	CTC00080	-	phosphatidylserine decarboxylase
20	 31.38	0	28683..29963	-	426	28209854	-	CTC00081	-	seryl-tRNA synthetase
21	 28.11	0	30264..30665	-	133	28209855	-	CTC00082	-	hypothetical protein
22	 27.73	0	30658..32085	-	475	28209856	-	CTC00083	-	dehydrogenase, FAD-dependent
23	 21.88	-1	32094..34310	-	738	28209857	-	CTC00084	-	sensor histidine kinase
24	 24.51	-1	34405..37068	-	887	28209858	-	CTC00086	-	hypothetical protein
25	 27.88	0	37111..37623	-	170	28209859	-	CTC00087	-	transcriptional regulator
26	 21.43	-2	37641..38144	-	167	28209860	-	CTC00088	-	hypothetical protein
27	 53.58	+2	39024..39680	+	218	28209861	-	CTC00089	-	hypothetical protein
28	 31.33	0	43745..46186	-	813	28209862	-	CTC00090	-	DNA gyrase subunit A
29	 32.08	0	46198..48111	-	637	28209863	gyrB	CTC00091	-	DNA gyrase subunit B
30	 25.07	-1	48425..49537	-	370	28209864	recF	CTC00092	-	recombination protein F
31	 26.36	0	49861..50964	-	367	28209865	-	CTC00093	-	DNA polymerase III subunit beta
32	 28.35	0	51225..52589	-	454	161486853	dnaA	CTC00094	-	chromosomal replication initiation protein
33	 27.75	0	53836..54498	+	220	28209867	-	CTC00096	-	putative inner membrane protein translocase component YidC
34	 30.86	0	54491..55138	+	215	28209868	-	CTC00097	-	DNA/RNA-binding protein
35	 28.04	0	55193..56572	+	459	28209869	trmE	CTC00098	-	tRNA modification GTPase TrmE
36	 30.72	0	56582..58453	+	623	28209870	-	CTC00099	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
37	 25.83	0	58475..59194	+	239	28209871	gidB	CTC00100	-	glucose-inhibited division protein B
38	 25.86	0	59273..60088	+	271	28209872	-	CTC00101	-	stage 0 sporulation protein J
39	 29.43	0	60176..60970	+	264	28209873	parA	CTC00102	-	chromosome partitioning protein parA
40	 28.09	0	60963..61820	+	285	28209874	parB	CTC00103	-	chromosome partitioning protein parB
41	 26.10	0	61860..62357	+	165	28209875	-	CTC00104	-	hypothetical protein
42	 29.17	0	62379..62954	-	191	28209876	-	CTC00105	-	hypothetical protein
43	 22.54	-1	63010..64065	-	351	28209877	-	CTC00106	-	hypothetical protein
44	 26.21	0	64302..65186	+	294	28209878	aefA	CTC00107	-	aefA protein
45	 34.47	+1	65777..66214	+	145	28209879	-	CTC00108	-	single-strand binding protein
46	 28.30	0	66688..67005	+	105	28209880	-	CTC00109	-	hypothetical protein
47	 23.54	-1	67019..68008	+	329	28209881	-	CTC00110	-	hypothetical protein
48	 27.02	0	68021..70015	+	664	28209882	-	CTC00111	-	MGPA protein
49	 26.13	0	70012..70455	+	147	28209883	rplI	CTC00112	-	50S ribosomal protein L9
50	 30.52	0	70474..72360	+	628	28209884	-	CTC00113	-	ATP-dependent protease LA
51	 32.36	0	72416..73750	+	444	28209885	-	CTC00114	-	replicative DNA helicase
52	 27.85	0	73857..75389	+	510	28209886	-	CTC00115	-	hypothetical protein
53	 25.05	-1	75542..76000	+	152	28209887	-	CTC00116	-	hypothetical protein
54	 23.92	-1	76265..76795	-	176	28209888	-	CTC00117	-	phosphatidylglycerophosphate synthase
55	 30.85	0	76996..78405	+	469	28209889	-	CTC00118	-	NAD(FAD)-utilizing dehydrogenase
56	 24.11	-1	78842..79600	+	252	28209890	-	CTC00119	-	acyl-acyl carrier protein thioesterase
57	 28.95	0	79615..80892	-	425	28209891	-	CTC00120	-	NAD(FAD)-utilizing dehydrogenase
58	 27.32	0	80957..81355	+	132	28209892	-	CTC00121	-	hypothetical protein
59	 30.88	0	81362..82177	+	271	28209893	-	CTC00122	-	hypothetical protein
60	 25.96	0	82777..83766	-	329	28209894	dnaC	CTC00123	-	DNA replication protein DnaC
61	 27.08	0	83763..84737	-	324	28209895	dnaD	CTC00124	-	DNA replication protein dnaD
62	 30.24	0	84888..85955	+	355	28209896	-	CTC00125	-	hypothetical protein
63	 26.54	0	85948..86403	+	151	28209897	marR	CTC00126	-	MarR family transcriptional regulator
64	 29.45	0	86418..87422	+	334	28209898	-	CTC00127	-	3-oxoacyl-(acyl carrier protein) synthase III
65	 34.06	+1	87656..88618	+	320	28209899	-	CTC00128	-	enoyl-[acyl-carrier protein] reductase (NADH)
66	 30.56	0	88611..89549	+	312	28209900	-	CTC00129	-	acyl-carrier-protein S-malonyltransferase
67	 29.23	0	89557..90312	+	251	28209901	fabG	CTC00130	-	3-ketoacyl-(acyl-carrier-protein) reductase
68	 32.93	+1	90333..91577	+	414	28209902	-	CTC00131	-	3-oxoacyl-(acyl carrier protein) synthase II
69	 26.80	0	91580..92038	+	152	28209903	-	CTC00132	-	biotin carboxyl carrier protein of acetyl-CoA carboxylase
70	 32.17	0	92073..92501	+	142	28209904	fabZ	CTC00133	-	(3R)-hydroxymyristoyl-ACP dehydratase
71	 32.21	0	92509..93849	+	446	28209905	-	CTC00134	-	biotin carboxylase
72	 30.38	0	93861..95588	+	575	28209906	-	CTC00135	-	acetyl-CoA carboxylase carboxyl transferase subunit beta/alpha
73	 27.86	0	95696..96115	+	139	28209907	-	CTC00136	-	tranposase-like
74	 27.90	0	96112..97032	+	306	28209908	-	CTC00137	-	transposase
75	 30.39	0	97100..97609	-	169	28209909	-	CTC00138	-	ferritin
76	 29.23	0	97682..98875	-	397	28209910	-	CTC00139	-	intracellular alkaline serine protease
77	 28.85	0	98954..99421	-	155	28209911	-	CTC00140	-	hypothetical protein
78	 28.05	0	99484..99975	-	163	28209912	-	CTC00141	-	hypothetical protein
79	 26.20	0	100302..100904	+	200	28209913	-	CTC00142	-	ferredoxin-like protein
80	 31.54	0	100960..102351	-	463	28209914	asnC	CTC00143	-	asparaginyl-tRNA synthetase
81	 29.49	0	102883..103350	+	155	28209915	-	CTC00144	-	acetyltransferase
82	 27.54	0	103488..104177	+	229	28209916	ccdA	CTC00145	-	cytochrome c-type biogenesis protein ccdA
83	 26.95	0	104184..104747	+	187	28209917	tlpA	CTC00146	-	thiol:disulfide interchange protein tlpA
84	 29.07	0	104842..105591	-	249	28209918	-	CTC00147	-	stationary-phase survival protein sure
85	 27.05	0	105626..106564	-	312	28209919	-	CTC00148	-	transporter
86	 29.29	0	106667..107161	+	164	28209920	-	CTC00149	-	methionine sulfoxide reductase A
87	 24.11	-1	107204..108049	-	281	28209921	-	CTC00150	-	hypothetical protein
88	 27.20	0	108080..109057	-	325	28209922	-	CTC00151	-	biotin synthase
89	 29.29	0	109200..110387	+	395	28209923	-	CTC00152	-	putative amidohydrolase
90	 26.98	0	110388..111269	-	293	28209924	-	CTC00153	-	transcriptional regulatory protein
91	 32.16	0	111391..112581	+	396	28209925	-	CTC00154	-	hypothetical protein
92	 26.27	0	112660..113367	-	235	28209926	-	CTC00155	-	tRNA pseudouridine synthase A
93	 19.07	-2	113407..113967	-	186	28209927	-	CTC00156	-	hypothetical protein
94	 23.89	-1	113969..114868	-	299	28209928	-	CTC00157	-	hypothetical protein
95	 33.00	+1	115152..115748	+	198	28209929	-	CTC00158	-	superoxide dismutase [Fe]
96	 24.30	-1	115815..116744	-	309	28209930	-	CTC00159	-	sensory transduction protein kinase
97	 27.89	0	116754..117524	-	256	28209931	-	CTC00160	-	hypothetical protein
98	 28.46	0	117502..118425	-	307	28209932	-	CTC00162	-	ABC-type multidrug transport system
99	 27.89	0	118508..119224	-	238	28209933	-	CTC00163	-	transcriptional regulatory protein
100	 25.93	0	120071..120745	+	224	28209934	-	CTC00164	-	putative fibronectin-binding protein
28.95	MEAN

3.58	STD DEV
