IslandPath Analysis: Chromobacterium violaceum ATCC 12472

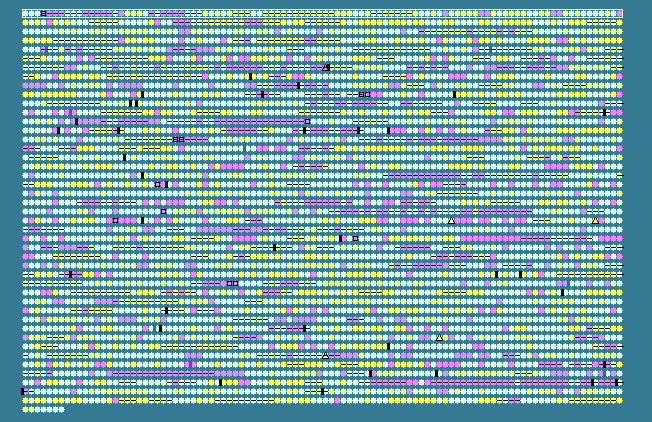

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 64.93   STD DEV: 6.18
Chromobacterium violaceum ATCC 12472, complete genome - 1..4751080
4407 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 64.10	0	245..1648	+	467	34495456	dnaA	CV_0001	-	chromosomal replication iniciator protein DnaA
2	 62.43	0	1691..2800	+	369	34495457	dnaN	CV_0002	-	DNA polymerase III subunit beta
3	 62.28	0	2931..5321	+	796	161594063	gyrB	CV_0003	-	DNA gyrase subunit B
4	 58.33	-1	5504..6547	-	347	34495459	-	CV_0004	-	transposase
5	 57.30	-1	7173..8069	+	298	34495460	-	CV_0005	-	DNA methyltransferase
6	 56.88	-1	8092..10104	+	670	34495461	-	CV_0006	-	site-specific DNA-methyltransferase, cytosine-specific
7	 58.62	-1	10106..12082	+	658	34495462	-	CV_0007	-	hypothetical protein
8	 63.88	0	12493..13101	+	202	34495463	-	CV_0008	-	hypothetical protein
9	 65.67	0	13376..13777	+	133	34495464	-	CV_0009	-	hypothetical protein
10	 65.39	0	13847..14239	+	130	34495465	-	CV_0010	-	hypothetical protein
11	 40.51	-2	14392..14976	-	194	34495466	-	CV_0011	-	hypothetical protein
12	 42.56	-2	14973..16511	-	512	34495467	-	CV_0012	-	hypothetical protein
13	 42.07	-2	16523..17014	-	163	34495468	-	CV_0013	-	hypothetical protein
14	 43.98	-2	17107..17604	-	165	34495469	-	CV_0014	-	hypothetical protein
15	 45.03	-2	17790..18704	-	304	34495470	-	CV_0015	-	hypothetical protein
16	 65.61	0	18704..21343	-	879	34495471	-	CV_0016	-	Vgr related protein
17	 55.01	-1	21787..22515	+	242	34495472	-	CV_0017	-	hypothetical protein
18	 72.72	+1	22655..24619	-	654	34495473	-	CV_0018	-	biotin carboxylase
19	 69.91	0	24623..26227	-	534	34495474	-	CV_0019	-	propionyl CoA carboxylase, beta subunit
20	 71.10	0	26243..27460	-	405	34495475	-	CV_0020	-	MFS family transporter
21	 65.35	0	27453..28664	-	403	34495476	-	CV_0021	-	hypothetical protein
22	 61.39	0	28855..29328	+	157	34495477	-	CV_0022	-	hypothetical protein
23	 65.75	0	29474..32098	+	874	34495478	-	CV_0023	-	Vgr related protein
24	 48.23	-2	32111..34252	+	713	34495479	-	CV_0024	-	hydroxyethylthiazole kinase
25	 31.80	-2	34255..34776	+	173	34495480	-	CV_0025	-	hypothetical protein
26	 37.04	-2	34819..34980	+	53	34495481	-	CV_0026	-	hypothetical protein
27	 35.03	-2	35224..35400	+	58	34495482	-	CV_0027	-	hypothetical protein
28	 63.14	0	35544..35798	-	84	34495483	-	CV_0028	-	hypothetical protein
29	 66.27	0	35832..36329	+	165	34495484	-	CV_0029	-	hypothetical protein
30	 64.51	0	36413..37759	-	448	34495485	-	CV_0030	-	hypothetical protein
31	 69.84	0	37846..39828	-	660	34495486	tar	CV_0031	-	methyl-accepting chemotaxis protein II
32	 66.40	0	40046..40807	-	253	34495487	-	CV_0032	-	MutT/nudix family protein
33	 72.20	+1	40910..41722	+	270	34495488	-	CV_0033	-	ribose-phosphate diphosphokinase
34	 68.21	0	41773..43458	+	561	34495489	nadV	CV_0034	-	putative nicotinate phosphoribosyltransferase
35	 68.60	0	43541..44005	+	154	34495490	-	CV_0035	-	hypothetical protein
36	 73.65	+1	44002..44445	+	147	34495491	-	CV_0036	-	hypothetical protein
37	 69.70	0	44452..44880	-	142	34495492	-	CV_0037	-	hypothetical protein
38	 71.23	+1	44931..46025	-	364	34495493	-	CV_0038	-	histidinol-phosphate aminotransferase
39	 67.57	0	46117..46338	-	73	34495494	-	CV_0039	-	hypothetical protein
40	 65.09	0	46395..46712	+	105	34495495	cyaY	CV_0040	-	frataxin-like protein
41	 77.02	+1	46716..47507	-	263	34495496	-	CV_0041	-	transmembrane protein
42	 73.17	+1	47632..48492	+	286	34495497	-	CV_0042	-	hypothetical protein
43	 73.42	+1	48462..49127	-	221	34495498	-	CV_0043	-	hypothetical protein
44	 69.99	0	49237..50019	+	260	34495499	cysE	CV_0044	-	serine O-acetyltransferase
45	 65.48	0	50286..51128	+	280	34495500	-	CV_0045	-	iron/ascorbate family oxidoreductase
46	 69.97	0	51295..52839	+	514	34495501	pleD	CV_0046	-	pleD gene product
47	 72.18	+1	52836..53270	-	144	34495502	-	CV_0047	-	MarR family transcriptional regulator
48	 69.43	0	53263..54783	-	506	34495503	-	CV_0048	-	transport transmembrane protein
49	 68.95	0	54989..55909	-	306	34495504	gcvA	CV_0049	-	glycine cleavage activator protein
50	 69.23	0	56272..57480	-	402	34495505	hemY	CV_0050	-	protein porphyrin biosynthesis
51	 69.46	0	57484..58521	-	345	34495506	hemX	CV_0051	-	uroporphyrin-III C-methyltransferase
52	 72.81	+1	58518..59249	-	243	34495507	hemD	CV_0052	-	uroporphyrinogen-III synthase
53	 72.32	+1	59246..59776	-	176	34495508	-	CV_0053	-	hypothetical protein
54	 71.08	0	59809..60738	-	309	161594062	hemC	CV_0054	-	porphobilinogen deaminase
55	 71.30	+1	60978..63674	+	898	34495510	ppc	CV_0055	-	phosphoenolpyruvate carboxylase
56	 66.83	0	63812..65059	-	415	34495511	-	CV_0056	-	aminopeptidase
57	 62.45	0	65154..66623	-	489	34495512	lasB	CV_0057	-	class 4 metalloprotease
58	 70.99	0	66623..66946	-	107	34495513	-	CV_0058	-	hypothetical protein
59	 68.38	0	67208..67849	-	213	34495514	pdxH	CV_0059	-	pyridoxamine 5'-phosphate oxidase
60	 66.79	0	67950..68774	-	274	34495515	-	CV_0060	-	endonuclease
61	 72.44	+1	68920..69819	-	299	34495516	-	CV_0061	-	LysR family transcriptional regulator
62	 72.06	+1	69913..70821	+	302	34495517	-	CV_0062	-	transmembrane protein
63	 67.91	0	70905..71711	-	268	34495518	-	CV_0063	-	hypothetical protein
64	 69.89	0	71708..72172	-	154	34495519	-	CV_0064	-	hypothetical protein
65	 71.68	+1	72287..75019	-	910	34495520	-	CV_0065	-	SWI/SNF family helicase
66	 69.59	0	75121..76422	-	433	34495521	-	CV_0066	-	hypothetical protein
67	 67.84	0	76572..77849	-	425	34495522	hemL	CV_0067	-	glutamate-1-semialdehyde aminotransferase
68	 66.85	0	77933..80116	-	727	34495523	-	CV_0068	-	colicin V secretion atp-binding protein
69	 72.34	+1	80118..81368	-	416	34495524	-	CV_0069	-	secretion protein
70	 64.91	0	81588..81758	-	56	34495525	-	CV_0070	-	hypothetical protein
71	 54.80	-1	81884..82060	+	58	34495526	-	CV_0071	-	hypothetical protein
72	 63.06	0	82163..83548	+	461	34495527	-	CV_0072	-	hypothetical protein
73	 69.71	0	83600..84913	-	437	34495528	pilR	CV_0073	-	two-component system, regulatory protein
74	 69.04	0	84906..86462	-	518	34495529	pilS	CV_0074	-	two-component system sensor protein
75	 68.66	0	86462..88813	-	783	34495530	parC	CV_0075	-	DNA topoisomerase IV subunit A
76	 69.50	0	88912..89370	+	152	34495531	-	CV_0076	-	ElaA protein
77	 54.71	-1	89443..92001	-	852	34495532	-	CV_0077	-	TonB-dependent receptor
78	 47.76	-2	92013..92213	+	66	34495533	-	CV_0078	-	hypothetical protein
79	 68.82	0	92405..93658	+	417	34495534	hemA	CV_0079	-	glutamyl-tRNA reductase
80	 66.02	0	93658..94734	+	358	34495535	prfA	CV_0080	-	peptide chain release factor 1
81	 73.73	+1	94886..95494	-	202	34495536	-	CV_0081	-	cytochrome c4
82	 73.53	+1	95560..95967	-	135	34495537	-	CV_0082	-	hypothetical protein
83	 72.96	+1	95977..96405	-	142	34495538	-	CV_0083	-	hypothetical protein
84	 71.34	+1	96405..96725	-	106	34495539	-	CV_0084	-	ArsR family transcriptional regulator
85	 66.95	0	96834..97190	+	118	34495540	-	CV_0085	-	hypothetical protein
86	 67.31	0	97321..99189	+	622	34495541	-	CV_0086	-	hypothetical protein
87	 69.12	0	99343..99993	+	216	34495542	-	CV_0087	-	metallo-beta-lactamase
88	 72.33	+1	99993..100310	+	105	34495543	-	CV_0088	-	methylated-DNA-[protein]-cysteine S-methyltransferase
89	 43.59	-2	100415..100570	-	51	34495544	-	CV_0089	-	hypothetical protein
90	 59.85	0	100557..101348	+	263	34495545	-	CV_0090	-	hypothetical protein
91	 68.56	0	101435..102652	-	405	34495546	-	CV_0091	-	two-component response regulator
92	 66.13	0	103148..105022	+	624	34495547	-	CV_0092	-	ribonuclease II
93	 70.23	0	105298..106953	+	551	34495548	fadD1	CV_0093	-	long chain fatty-acid CoA ligase
94	 68.25	0	107234..108055	-	273	34495549	-	CV_0094	-	hypothetical protein
95	 63.17	0	108255..109883	+	542	34495550	-	CV_0095	-	methyl-accepting chemotaxis transducer
96	 67.75	0	109984..110724	+	246	34495551	-	CV_0096	-	hypothetical protein
97	 63.02	0	110768..111589	-	273	34495552	-	CV_0097	-	hypothetical protein
98	 69.93	0	111946..113292	-	448	34495553	-	CV_0098	-	hypothetical protein
99	 67.61	0	113448..114821	-	457	34495554	pntB	CV_0099	-	NAD(P) transhydrogenase, beta subunit
100	 60.33	0	114824..115123	-	99	34495555	-	CV_0100	-	transmembrane NAD(P) transhydrogenase transmembrane protein
64.93	MEAN

6.18	STD DEV
