IslandPath Analysis: Chlamydia muridarum Nigg

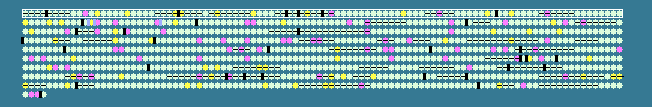

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.58   STD DEV: 2.58
Chlamydia muridarum Nigg, complete genome - 1..1072950
904 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 40.12	0	266..1267	+	333	15834626	hemB	TC0001	-	delta-aminolevulinic acid dehydratase
2	 40.77	0	1300..2697	-	465	15834627	-	TC0002	-	Na(+)-translocating NADH-quinone reductase subunit A
3	 37.96	-1	2719..3150	-	143	15834628	-	TC0003	-	hypothetical protein
4	 39.21	0	3266..5410	+	714	15834629	-	TC0004	-	fused transcript cleavage factor/uncharacterized domain-containing protein
5	 40.65	0	5599..6801	+	400	15834630	-	TC0005	-	aromatic amino acid aminotransferase
6	 40.37	0	6749..7786	+	345	15834631	-	TC0006	-	hypothetical protein
7	 37.81	-1	7797..10877	-	1026	15834632	-	TC0007	-	exodeoxyribonuclease V, beta chain, putative
8	 39.31	0	10885..13962	-	1025	15834633	-	TC0008	-	exodeoxyribonuclease V, gamma subunit, putative
9	 39.70	0	13912..15591	+	559	15834634	-	TC0009	-	hypothetical protein
10	 40.47	0	15620..16432	-	270	15834635	-	TC0010	-	hypothetical protein
11	 33.99	-2	17102..17404	-	100	15834636	-	TC0011	-	hypothetical protein
12	 39.80	0	17361..19958	+	865	15834637	topA	TC0012	-	fused DNA topoisomerase I/SWI domain-containing protein
13	 44.08	+1	19985..20989	-	334	15834638	-	TC0013	-	NifR3/Smm1 family protein
14	 38.05	0	20968..21264	-	98	15834639	-	TC0014	-	hypothetical protein
15	 41.01	0	21367..22746	+	459	15834640	-	TC0015	-	hypothetical protein
16	 43.70	+1	22747..23325	+	192	15834641	-	TC0016	-	hypothetical protein
17	 40.78	0	23316..24590	+	424	15834642	-	TC0017	-	hypothetical protein
18	 44.51	+1	24593..25129	+	178	15834643	-	TC0018	-	5-formyltetrahydrofolate cyclo-ligase, putative
19	 43.94	+1	25348..26412	+	354	15834644	recA	TC0019	-	recombinase A
20	 37.81	-1	26684..28513	+	609	15834645	-	TC0020	-	hypothetical protein
21	 40.56	0	28506..29999	+	497	15834646	-	TC0021	-	exodeoxyribonuclease V, alpha subunit, putative
22	 43.33	+1	30065..30244	+	59	15834647	-	TC0022	-	hypothetical protein
23	 40.14	0	30323..31042	-	239	15834648	-	TC0023	-	ABC transporter, ATP-binding protein
24	 39.67	0	31049..31537	-	162	15834649	-	TC0024	-	hypothetical protein
25	 41.11	0	31534..32343	-	269	15834650	kdsA	TC0025	-	2-dehydro-3-deoxyphosphooctonate aldolase
26	 46.60	+2	32584..32907	+	107	15834651	-	TC0026	-	hypothetical protein
27	 47.57	+2	32801..33088	+	95	15834652	-	TC0027	-	hypothetical protein
28	 39.31	0	33098..33415	+	105	15834653	-	TC0028	-	hypothetical protein
29	 41.77	0	34594..34830	+	78	15834655	-	TC0030	-	hypothetical protein
30	 39.78	0	34919..36391	-	490	15834656	gyrA-1	TC0031	-	DNA topoisomerase IV subunit A
31	 38.78	0	36406..38223	-	605	15834657	gyrB-1	TC0032	-	DNA topoisomerase IV subunit B
32	 43.71	+1	38542..39543	+	333	15834658	hemA	TC0033	-	glutamyl-tRNA reductase
33	 44.53	+1	40220..40621	+	133	15834659	-	TC0034	-	hypothetical protein
34	 41.62	0	40625..43099	+	824	15834660	-	TC0035	-	hypothetical protein
35	 37.65	-1	43144..43398	+	84	15834661	-	TC0036	-	hypothetical protein
36	 39.76	0	43425..43673	+	82	15834662	-	TC0037	-	hypothetical protein
37	 37.56	-1	43699..44148	+	149	15834663	-	TC0038	-	hypothetical protein
38	 38.77	0	44161..44841	+	226	15834664	-	TC0039	-	hypothetical protein
39	 44.92	+1	44843..46171	+	442	15834665	sctN	TC0040	-	type III secretion system ATPase
40	 39.05	0	46194..46700	+	168	15834666	-	TC0041	-	hypothetical protein
41	 39.55	0	46704..47555	+	283	15834667	-	TC0042	-	hypothetical protein
42	 42.78	0	47565..48686	+	373	15834668	sctQ	TC0043	-	type III secretion system protein
43	 40.95	0	48816..50285	+	489	15834669	-	TC0044	-	serine/threonine-protein kinase
44	 40.32	0	51020..53038	+	672	15834670	sctC	TC0045	-	type III secretion protein SctC
45	 40.06	0	53352..54422	-	356	15834671	-	TC0046	-	ATP:guanido phosphotransferase
46	 39.14	0	54412..54945	-	177	15834672	-	TC0047	-	hypothetical protein
47	 40.19	0	55291..55830	-	179	15834673	frr	TC0048	-	ribosome recycling factor
48	 44.31	+1	55827..56564	-	245	15834674	pyrH	TC0049	-	uridylate kinase
49	 41.81	0	56580..57428	-	282	15834675	tsf	TC0050	-	elongation factor Ts
50	 37.83	-1	57425..58270	-	281	15834676	rpsB	TC0051	-	30S ribosomal protein S2
51	 43.90	+1	58653..59816	-	387	15834677	ompA	TC0052	-	major outer membrane protein, porin
52	 28.83	-2	60279..60389	+	36	15834678	-	TC0053	-	hypothetical protein
53	 41.10	0	60401..63643	+	1080	15834679	-	TC0054	-	penicillin-binding protein, putative
54	 39.38	0	63705..64712	+	335	15834680	-	TC0055	-	type III secretion chaperone, putative
55	 40.01	0	65061..66512	+	483	15834681	-	TC0056	-	cysteine desulfurase activator complex subunit SufB
56	 42.19	0	66515..67282	+	255	15834682	-	TC0057	-	ABC transporter, ATP-binding protein
57	 41.54	0	67286..68467	+	393	15834683	-	TC0058	-	hypothetical protein
58	 42.64	0	68470..69672	+	400	15834684	-	TC0059	-	aminotransferase, class V
59	 41.04	0	69809..70651	+	280	15834685	-	TC0060	-	ParB family chromosome partioning protein
60	 42.50	0	70641..71513	-	290	15834686	-	TC0061	-	peptide ABC transporter, ATP-binding protein
61	 40.79	0	71506..72471	-	321	15834687	-	TC0062	-	peptide ABC transporter, ATP-binding protein
62	 39.85	0	72634..73308	+	224	15834688	-	TC0063	-	hypothetical protein
63	 43.64	+1	73311..74591	+	426	15834689	-	TC0064	-	phosphate permease family protein
64	 44.55	+1	74721..75932	+	403	15834690	pgk	TC0065	-	phosphoglycerate kinase
65	 43.28	+1	76176..77180	+	334	15834691	-	TC0066	-	hypothetical protein
66	 43.38	+1	77193..78386	+	397	15834692	-	TC0067	-	hypothetical protein
67	 40.29	0	78466..79644	+	392	15834693	-	TC0068	-	hypothetical protein
68	 42.34	0	79650..80282	-	210	15834694	nth	TC0069	-	endonuclease III
69	 41.87	0	80287..81621	-	444	15834695	trmE	TC0070	-	tRNA modification GTPase TrmE
70	 33.33	-2	81723..81842	-	39	15834696	-	TC0071	-	hypothetical protein
71	 41.06	0	81897..82802	+	301	15834697	psd	TC0072	-	phosphatidylserine decarboxylase
72	 42.91	0	82867..84192	+	441	15834698	-	TC0073	-	hypothetical protein
73	 42.59	0	84449..87355	+	968	15834699	secA	TC0074	-	preprotein translocase subunit SecA
74	 39.70	0	87441..87974	-	177	15834700	-	TC0075	-	hypothetical protein
75	 39.99	0	88050..89522	-	490	15834701	engA	TC0076	-	GTP-binding protein EngA
76	 42.82	0	89637..90869	-	410	15834702	-	TC0077	-	poly(A) polymerase family protein
77	 41.51	0	90884..92143	-	419	15834703	clpX	TC0078	-	ATP-dependent protease ATP-binding subunit
78	 44.61	+1	92153..92764	-	203	15834704	clpP	TC0079	-	ATP-dependent Clp protease proteolytic subunit
79	 39.55	0	92932..94233	-	433	15834705	tig	TC0080	-	trigger factor
80	 39.79	0	94564..98109	+	1181	15834706	-	TC0081	-	SNF2 family helicase
81	 43.60	+1	98114..99214	+	366	15834707	mreB	TC0082	-	cell shape-determining protein MreB
82	 45.11	+1	99211..101010	+	599	15834708	pckA	TC0083	-	phosphoenolpyruvate carboxykinase
83	 39.00	0	101121..103430	+	769	15834709	-	TC0084	-	hypothetical protein
84	 40.24	0	103459..104631	+	390	15834710	-	TC0085	-	hypothetical protein
85	 43.21	+1	104689..105711	-	340	15834711	-	TC0086	-	major outer membrane protein, putative
86	 43.38	+1	105847..106851	-	334	15834712	gpsA	TC0087	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
87	 41.74	0	106848..108215	-	455	15834713	-	TC0088	-	UDP-N-acetylglucosamine pyrophosphorylase, putative
88	 33.61	-2	108232..108594	-	120	15834714	-	TC0089	-	hypothetical protein
89	 43.14	0	108587..109891	-	434	15834715	-	TC0090	-	type III secretion system ATPase
90	 40.00	0	109951..110475	-	174	15834716	-	TC0091	-	hypothetical protein
91	 41.34	0	110480..111478	-	332	15834717	-	TC0092	-	type III secretion system protein
92	 41.89	0	111746..112528	-	260	15834718	-	TC0093	-	NifU-related protein
93	 43.90	+1	112525..113679	-	384	15834719	-	TC0094	-	nifS protein, putative
94	 39.35	0	113634..114314	-	226	15834720	gpmA	TC0095	-	phosphoglyceromutase
95	 38.48	0	115433..115957	+	174	15834722	-	TC0097	-	hypothetical protein
96	 40.72	0	115972..116526	+	184	15834723	-	TC0098	-	biotin--protein ligase
97	 41.75	0	116534..117673	-	379	15834724	-	TC0099	-	cell shape-determining protein MrdB, putative
98	 43.33	+1	117718..119697	-	659	15834725	-	TC0100	-	cation transporter E1-E2 family ATPase
99	 41.77	0	119721..120467	-	248	15834726	-	TC0101	-	hypothetical protein
100	 40.95	0	120506..121792	-	428	15834727	serS	TC0102	-	seryl-tRNA synthetase
40.58	MEAN

2.58	STD DEV
