IslandPath Analysis: Chlorobium chlorochromatii CaD3

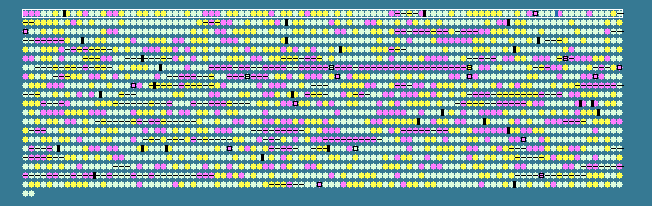

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 44.16   STD DEV: 5.32
Chlorobium chlorochromatii CaD3, complete genome - 1..2572079
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 39.49	0	346..1824	+	492	78187985	-	Cag_0001	-	chromosomal replication initiator protein, DnaA
2	 39.91	0	2113..3237	+	374	78187986	-	Cag_0002	-	DNA polymerase III, beta chain
3	 38.63	-1	3251..4345	+	364	78187987	-	Cag_0003	-	RecF protein
4	 44.90	0	4354..5295	-	313	78187988	-	Cag_0004	-	hypothetical protein
5	 45.66	0	5321..7048	-	575	78187989	-	Cag_0005	-	glucosamine-fructose-6-phosphate aminotransferase, isomerising
6	 47.81	0	7276..8118	-	280	78187990	-	Cag_0006	-	orotidine 5'-phosphate decarboxylase subfamily protein
7	 47.48	0	8311..10410	+	699	78187991	-	Cag_0007	-	peptidase M41, FtsH
8	 48.13	0	10861..12009	+	382	78187992	-	Cag_0008	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
9	 46.04	0	12186..13547	+	453	78187993	-	Cag_0009	-	peptidase M50, putative membrane-associated zinc metallopeptidase
10	 49.63	+1	13563..14636	+	357	78187994	prfA	Cag_0010	-	peptide chain release factor 1
11	 40.06	0	14728..15366	+	212	78187995	-	Cag_0011	-	hypothetical protein
12	 47.44	0	15391..15780	-	129	78187996	-	Cag_0012	-	camphor resistance CrcB protein
13	 42.31	0	15817..16050	-	77	78187997	-	Cag_0013	-	hypothetical protein
14	 49.17	0	16209..16631	+	140	78187998	-	Cag_0014	-	Holliday junction resolvase YqgF
15	 37.85	-1	16701..16988	+	95	78187999	-	Cag_0015	-	hypothetical protein
16	 34.40	-1	16981..17355	+	124	78188000	-	Cag_0016	-	hypothetical protein
17	 48.98	0	17432..18019	+	195	78188001	pyrE	Cag_0017	-	orotate phosphoribosyltransferase
18	 47.52	0	18027..18893	+	288	78188002	-	Cag_0018	-	prephenate dehydrogenase
19	 45.88	0	18890..19750	+	286	78188003	-	Cag_0019	-	putative NAD+ kinase
20	 50.34	+1	19790..21253	+	487	78188004	-	Cag_0020	-	hypothetical protein
21	 47.92	0	21262..22461	+	399	78188005	-	Cag_0021	-	hypothetical protein
22	 41.94	0	22529..23458	-	309	78188006	-	Cag_0022	-	patatin family protein
23	 47.82	0	23776..24714	+	312	78188007	-	Cag_0023	-	peptide chain release factor 2
24	 49.82	+1	24724..25554	+	276	78188008	-	Cag_0024	-	hypothetical protein
25	 43.59	0	25717..26184	-	155	78188009	mscL	Cag_0025	-	large-conductance mechanosensitive channel
26	 47.63	0	26628..28544	+	638	78188010	secD	Cag_0026	-	preprotein translocase subunit SecD
27	 46.84	0	28632..29564	+	310	78188011	secF	Cag_0027	-	preprotein translocase subunit SecF
28	 48.67	0	29679..30995	+	438	78188012	-	Cag_0028	-	peptidyl-prolyl cis-trans isomerase SurA
29	 46.87	0	31358..33271	-	637	78188013	-	Cag_0029	-	DNA gyrase, B subunit
30	 44.88	0	33852..34154	+	100	78188014	-	Cag_0030	-	ferredoxin, 2Fe-2S
31	 32.79	-2	34161..34343	-	60	78188015	-	Cag_0031	-	hypothetical protein
32	 36.92	-1	34369..34647	-	92	78188016	-	Cag_0032	-	hypothetical protein
33	 35.46	-1	34929..36197	-	422	78188017	-	Cag_0033	-	hypothetical protein
34	 47.19	0	36458..37150	-	230	78188018	-	Cag_0034	-	hypothetical protein
35	 47.86	0	37150..38292	-	380	78188019	-	Cag_0035	-	geranylgeranyl reductase
36	 49.32	0	38299..39768	-	489	78188020	-	Cag_0036	-	glycyl-tRNA synthetase
37	 46.93	0	39973..40950	+	325	78188021	-	Cag_0037	-	hypothetical protein
38	 43.49	0	41185..42159	+	324	78188022	-	Cag_0038	-	hypothetical protein
39	 49.63	+1	42581..44194	-	537	78188023	-	Cag_0039	-	EmrB/QacA family drug resistance transporter
40	 50.34	+1	44199..45227	-	342	78188024	-	Cag_0040	-	multidrug resistance protein A
41	 54.44	+1	45345..46718	-	457	78188025	-	Cag_0041	-	outer membrane protein, putative
42	 36.17	-1	47090..48994	-	634	78188026	-	Cag_0042	-	hypothetical protein
43	 45.66	0	49023..49817	-	264	78188027	-	Cag_0043	-	hypothetical protein
44	 48.91	0	49892..51085	-	397	78188028	pgk	Cag_0044	-	phosphoglycerate kinase
45	 49.55	+1	51249..52259	-	336	78188029	-	Cag_0045	-	aminodeoxychorismate lyase
46	 44.65	0	52277..52603	-	108	78188030	-	Cag_0046	-	chorismate mutase, putative
47	 52.68	+1	52929..53915	+	328	78188031	-	Cag_0047	-	methyltransferase
48	 40.26	0	53994..54224	+	76	78188032	-	Cag_0048	-	hypothetical protein
49	 47.74	0	54326..56317	+	663	78188033	-	Cag_0049	-	penicillin-binding protein 3
50	 51.97	+1	56323..57873	+	516	78188034	-	Cag_0050	-	UDP-N-acetylmuramyl-tripeptide synthetase
51	 50.80	+1	58082..59512	+	476	78188035	-	Cag_0051	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate-D-alanyl-D-alanyl ligase
52	 43.09	0	59660..60766	+	368	78188036	-	Cag_0052	-	phospho-N-acetylmuramoyl-pentapeptide transferase
53	 50.04	+1	60769..62163	+	464	78188037	-	Cag_0053	-	UDP-N-acetylmuramoylalanine-D-glutamate ligase
54	 44.03	0	62160..63374	+	404	78188038	-	Cag_0054	-	cell cycle protein FtsW
55	 50.87	+1	63371..64459	+	362	78188039	-	Cag_0055	-	N-acetylglucosaminyltransferase, MurG
56	 46.51	0	64680..66083	+	467	78188040	-	Cag_0056	-	UDP-N-acetylmuramate--alanine ligase
57	 45.09	0	66233..67108	+	291	78188041	-	Cag_0057	-	FtsQ protein, putative
58	 45.80	0	67141..68448	+	435	78188042	-	Cag_0058	-	cell division protein FtsA
59	 46.42	0	68500..69783	+	427	78188043	-	Cag_0059	-	cell division protein FtsZ
60	 47.18	0	69885..71177	+	430	78188044	-	Cag_0060	-	4-hydroxybutyrate coenzyme A transferase
61	 47.14	0	71235..72002	-	255	78188045	-	Cag_0061	-	hypothetical protein
62	 38.19	-1	72153..72440	+	95	78188046	-	Cag_0062	-	hypothetical protein
63	 35.17	-1	72485..72865	+	126	78188047	-	Cag_0063	-	hypothetical protein
64	 42.20	0	72869..73906	+	345	78188048	-	Cag_0064	-	F0F1 ATP synthase subunit A
65	 50.00	+1	74018..74245	+	75	78188049	-	Cag_0065	-	ATP synthase F0, C subunit
66	 41.86	0	74350..74877	+	175	78188050	-	Cag_0066	-	ATP synthase F0, subunit B
67	 40.37	0	74894..75433	+	179	78188051	-	Cag_0067	-	F0F1 ATP synthase subunit delta
68	 44.55	0	75750..76685	+	311	78188052	-	Cag_0068	-	putative lipoprotein
69	 47.05	0	76707..77282	+	191	78188053	-	Cag_0069	-	nicotinate-nucleotide adenylyltransferase
70	 44.30	0	77346..79004	-	552	78188054	argS	Cag_0070	-	arginyl-tRNA synthetase
71	 46.67	0	79067..79771	-	234	78188055	-	Cag_0071	-	Beta-phosphoglucomutase hydrolase
72	 48.83	0	79762..80826	-	354	78188056	-	Cag_0072	-	tryptophanyl-tRNA synthetase
73	 44.86	0	81266..82315	+	349	78188057	-	Cag_0073	-	deoxyhypusine synthase-like protein
74	 42.00	0	82330..82998	+	222	78188058	-	Cag_0074	-	putative translaldolase
75	 47.93	0	83182..85578	-	798	78188059	-	Cag_0075	-	DNA topoisomerase I
76	 49.28	0	85769..87493	+	574	78188060	-	Cag_0076	-	cell wall hydrolase/autolysin
77	 50.41	+1	87595..88578	+	327	78188061	-	Cag_0077	-	biotin--acetyl-CoA-carboxylase ligase
78	 48.64	0	88598..89590	+	330	78188062	-	Cag_0078	-	Elongator protein 3/MiaB/NifB
79	 51.56	+1	89590..90774	+	394	78188063	-	Cag_0079	-	8-amino-7-oxononanoate synthase
80	 50.00	+1	90774..91547	+	257	78188064	-	Cag_0080	-	hypothetical protein
81	 47.33	0	91532..92317	+	261	78188065	-	Cag_0081	-	biotin biosynthesis protein BioC
82	 46.49	0	92326..93009	+	227	78188066	bioD	Cag_0082	-	dithiobiotin synthetase
83	 50.31	+1	93049..94332	+	427	78188067	-	Cag_0083	-	adenosylmethionine--8-amino-7-oxononanoate aminotransferase
84	 41.21	0	94409..94738	-	109	78188068	-	Cag_0084	-	XRE family transcriptional regulator
85	 39.94	0	94725..95057	-	110	78188069	-	Cag_0085	-	phage-like
86	 40.29	0	95231..96466	+	411	78188070	-	Cag_0086	-	transposase
87	 45.38	0	96733..97122	+	129	78188071	-	Cag_0087	-	Iojap-related protein
88	 45.52	0	97415..99901	+	828	78188072	-	Cag_0088	-	DNA gyrase, subunit A
89	 44.56	0	100407..102116	+	569	78188073	-	Cag_0090	-	CTP synthetase
90	 39.22	0	107762..108169	+	135	78188074	-	Cag_0091	-	hypothetical protein
91	 46.40	0	108181..108708	+	175	78188075	-	Cag_0092	-	hypothetical protein
92	 45.24	0	108712..109719	+	335	78188076	-	Cag_0093	-	heptosyltransferase
93	 42.36	0	109940..110338	+	132	78188077	rpsF	Cag_0094	-	30S ribosomal protein S6
94	 41.18	0	110399..110857	+	152	78188078	-	Cag_0095	-	single-strand binding protein
95	 40.14	0	110910..111188	+	92	78188079	rpsR	Cag_0096	-	30S ribosomal protein S18
96	 43.64	0	111223..111678	+	151	78188080	rplI	Cag_0097	-	50S ribosomal protein L9
97	 43.92	0	111785..112417	-	210	78188081	-	Cag_0098	-	YgfB and YecA
98	 42.22	0	112665..113891	+	408	78188082	-	Cag_0099	-	sulfide dehydrogenase, flavoprotein subunit, putative
99	 49.16	0	114064..115485	+	473	78188083	trmE	Cag_0100	-	tRNA modification GTPase TrmE
100	 44.39	0	115674..116975	-	433	78188084	-	Cag_0101	-	hypothetical protein
44.16	MEAN

5.32	STD DEV
