IslandPathversion 1.0

IslandPath Analysis: Chlamydophila abortus S26/3

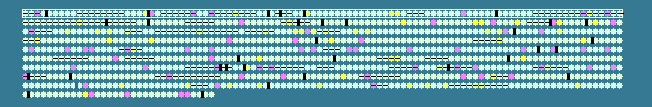

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.23 STD DEV: 2.43
Chlamydophila abortus S26/3, complete genome - 1..1144377
932 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 40.96	0	148..1143	+	331	62184648	hemB	CAB001	-	delta-aminolevulinic acid dehydratase
2	 40.31	0	1159..2577	-	472	62184649	-	CAB002	-	Na(+)-translocating NADH-quinone reductase subunit A
3	 33.79	-2	2600..3034	-	144	62184650	-	CAB003	-	hypothetical protein
4	 37.98	0	3147..5300	+	717	62184651	-	CAB004	-	fused transcript cleavage factor/uncharacterized domain-containing protein
5	 38.53	0	5450..6643	+	397	62184652	-	CAB005	-	aromatic amino acid aminotransferase
6	 39.67	0	6841..7944	+	367	62184653	-	CAB006	-	hypothetical protein
7	 37.54	-1	7904..11041	-	1045	62184654	-	CAB007	-	putative UvrD/REP helicase
8	 37.60	-1	11028..14096	-	1022	62184655	-	CAB008	-	hypothetical protein
9	 38.82	0	14095..15807	+	570	62184656	-	CAB009	-	hypothetical protein
10	 40.77	0	15832..16812	-	326	62184657	-	CAB010	-	hypothetical protein
11	 39.05	0	17032..17661	+	209	62184658	rpsD	CAB011	-	30S ribosomal protein S4
12	 42.18	0	17729..18598	-	289	62184659	-	CAB012	-	endonuclease IV
13	 41.61	0	18664..20307	+	547	62184660	-	CAB013	-	hypothetical protein
14	 41.72	0	20414..21700	+	428	62184661	-	CAB014	-	hypothetical protein
15	 43.59	+1	21806..23725	+	639	62184662	-	CAB015	-	hypothetical protein
16	 38.41	0	23916..26516	-	866	62184663	-	CAB016	-	hypothetical protein
17	 38.98	0	26660..29317	+	885	62184664	-	CAB017	-	hypothetical protein
18	 40.26	0	29348..29578	+	76	62184665	-	CAB018	-	hypothetical protein
19	 38.59	0	29575..30297	-	240	62184666	-	CAB019	-	putative ABC transporter ATP-binding protein
20	 39.92	0	30305..30790	-	161	62184667	dsk1	CAB020	-	putative lipoprotein
21	 44.57	+1	30787..31596	-	269	62184668	kdsA	CAB021	-	2-dehydro-3-deoxyphosphooctonate aldolase
22	 36.29	-1	32041..32277	-	78	62184669	-	CAB022	-	hypothetical protein
23	 38.24	0	32396..33373	-	325	62184670	rluD	CAB023	-	putative pseudouridine synthase
24	 40.78	0	33572..33880	-	102	62184671	-	CAB024	-	hypothetical protein
25	 41.84	0	33882..34175	-	97	62184672	-	CAB025	-	hypothetical protein
26	 39.24	0	34288..35727	-	479	62184673	-	CAB026	-	DNA topoisomerase IV subunit A
27	 38.58	0	35731..37539	-	602	62184674	gyrB_2	CAB027	-	DNA topoisomerase IV subunit B
28	 37.46	-1	38121..39137	+	338	62184675	hemA	CAB028	-	glutamyl-tRNA reductase
29	 25.00	-2	39246..39389	+	47	62184676	-	CAB029	-	hypothetical protein
30	 39.05	0	39486..39887	+	133	62184677	-	CAB030	-	hypothetical protein
31	 41.56	0	39907..42288	+	793	62184678	-	CAB031	-	hypothetical protein
32	 36.17	-1	42314..42595	+	93	62184679	-	CAB032	-	hypothetical protein
33	 38.43	0	42611..42865	+	84	62184680	-	CAB033	-	hypothetical protein
34	 36.89	-1	42884..43333	+	149	62184681	-	CAB034	-	hypothetical protein
35	 39.16	0	43378..44046	+	222	62184682	-	CAB035	-	hypothetical protein
36	 46.43	+2	44048..45376	+	442	62184683	-	CAB036	-	type III secretion system ATPase
37	 37.76	-1	45397..45915	+	172	62184684	-	CAB037	-	hypothetical protein
38	 41.02	0	45906..46751	+	281	62184685	-	CAB038	-	hypothetical protein
39	 42.56	0	46764..47879	+	371	62184686	-	CAB039	-	type III secretion system protein
40	 39.30	0	47897..49405	+	502	62184687	-	CAB040	-	putative serine/threonine-protein kinase
41	 40.89	0	49402..52128	+	908	62184688	-	CAB041	-	putative general secretion protein
42	 39.46	0	52771..53847	-	358	62184689	-	CAB042	-	ATP:guanido phosphotransferase
43	 40.66	0	53831..54349	-	172	62184690	-	CAB043	-	hypothetical protein
44	 37.38	-1	54754..55296	-	180	62184691	frr	CAB044	-	ribosome recycling factor
45	 40.89	0	55280..56020	-	246	62184692	pyrH	CAB045	-	uridylate kinase
46	 39.81	0	56036..56884	-	282	62184693	tsf	CAB046	-	elongation factor Ts
47	 36.94	-1	56884..57714	-	276	62184694	rpsB	CAB047	-	30S ribosomal protein S2
48	 44.19	+1	58095..59264	-	389	62184695	ompA	CAB048	-	major outer membrane protein precursor
49	 41.25	0	59869..63141	+	1090	62184696	-	CAB049	-	putative penicillin-binding protein
50	 39.98	0	63209..64216	+	335	62184697	-	CAB050	-	hypothetical protein
51	 40.21	0	64552..66006	+	484	62184698	-	CAB051	-	cysteine desulfurase activator complex subunit SufB
52	 39.71	0	66010..66777	+	255	62184699	-	CAB052	-	ABC transporter ATP-binding protein
53	 39.93	0	66792..68018	+	408	62184700	-	CAB053	-	putative ABC transport protein
54	 43.24	+1	68050..69270	+	406	62184701	-	CAB054	-	putative cysteine desulfurase
55	 39.92	0	69274..70062	-	262	62184702	-	CAB055	-	hypothetical protein
56	 38.53	0	70256..70909	-	217	62184703	-	CAB056	-	hypothetical protein
57	 41.43	0	71150..71989	+	279	62184704	-	CAB057	-	putative chromosome partitioning protein
58	 39.53	0	72028..72996	-	322	62184705	-	CAB058	-	putative peptide ABC transport ATP-binding protein
59	 42.47	0	72989..73951	-	320	62184706	dppD	CAB059	-	putative peptide ABC transport ATP-binding protein
60	 39.85	0	74005..74679	+	224	62184707	-	CAB060	-	hypothetical protein
61	 42.00	0	74686..75966	+	426	62184708	-	CAB061	-	putative phosphate permease
62	 44.14	+1	76004..77215	+	403	62184709	pgk	CAB062	-	phosphoglycerate kinase
63	 44.75	+1	77681..79186	+	501	62184710	-	CAB063	-	hypothetical protein
64	 41.69	0	79200..80372	+	390	62184711	-	CAB064	-	hypothetical protein
65	 39.65	0	80525..81679	+	384	62184712	-	CAB065	-	hypothetical protein
66	 39.12	0	82921..83283	-	120	62184713	-	CAB068	-	hypothetical protein
67	 43.09	+1	83366..84667	-	433	62184714	-	CAB069	-	putative D-alanyl-d-alanine carboxypeptidase
68	 38.73	0	85199..85624	-	141	62184715	-	CAB071	-	putative sigma regulatory factor-histidine kinase
69	 41.83	0	85611..86210	-	199	62184716	-	CAB072	-	putative lipoprotein
70	 37.62	-1	86227..87183	-	318	62184717	-	CAB073	-	putative lipoprotein
71	 41.36	0	87336..88220	+	294	62184718	-	CAB074	-	putative outer membrane protein
72	 39.74	0	88217..91963	-	1248	62184719	dnaE	CAB075	-	DNA polymerase III subunit alpha
73	 40.35	0	91970..93337	-	455	62184720	-	CAB076	-	putative hexose phosphate transport protein
74	 36.32	-1	93583..93783	+	66	62184721	-	CAB077	-	hypothetical protein
75	 42.23	0	93851..95143	+	430	62184722	hisS	CAB078	-	histidyl-tRNA synthetase
76	 40.00	0	95118..96872	+	584	62184723	aspS	CAB079	-	aspartyl-tRNA synthetase
77	 38.93	0	96948..97715	+	255	62184724	mip	CAB080	-	putative macrophage infectivity potentiator lipoprotein
78	 42.68	+1	97712..98182	+	156	62184725	-	CAB081	-	putative rRNA methylase
79	 40.78	0	98179..98487	-	102	62184726	trxA	CAB082	-	putative thioredoxin
80	 38.87	0	99612..100334	+	240	62184727	-	CAB083	-	hypothetical protein
81	 40.48	0	100313..100774	+	153	62184728	-	CAB084	-	hypothetical protein
82	 38.80	0	100784..101533	+	249	62184729	dnaF	CAB085	-	DNA polymerase III subunit epsilon
83	 40.34	0	101692..102162	+	156	62184730	-	CAB086	-	putative acyl-CoA thioester hydrolase
84	 42.50	0	102170..103795	+	541	62184731	lnt	CAB087	-	apolipoprotein N-acyltransferase
85	 41.72	0	103810..104667	+	285	62184732	lpxC	CAB088	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
86	 41.94	0	104682..105146	+	154	62184733	fabZ	CAB089	-	(3R)-hydroxymyristoyl-ACP dehydratase
87	 42.02	0	105156..105995	+	279	62184734	lpxA	CAB090	-	UDP-N-acetylglucosamine acyltransferase
88	 42.65	0	105985..106950	+	321	62184735	fmt	CAB091	-	methionyl-tRNA formyltransferase
89	 43.38	+1	107060..108034	+	324	62184736	-	CAB092	-	hypothetical protein
90	 40.99	0	108328..108993	+	221	62184737	rplC	CAB093	-	50S ribosomal protein L3
91	 39.56	0	109010..109684	+	224	62184738	rplD	CAB094	-	50S ribosomal protein L4
92	 39.29	0	109701..110036	+	111	62184739	rplW	CAB095	-	50S ribosomal protein L23
93	 41.87	0	110058..110912	+	284	62184740	rplB	CAB096	-	50S ribosomal protein L2
94	 36.33	-1	110918..111184	+	88	62184741	rpsS	CAB097	-	30S ribosomal protein S19
95	 44.94	+1	111203..111538	+	111	62184742	rplV	CAB098	-	50S ribosomal protein L22
96	 42.56	0	111547..112218	+	223	62184743	rpsC	CAB099	-	30S ribosomal protein S3
97	 42.03	0	112248..112661	+	137	62184744	rplP	CAB100	-	50S ribosomal protein L16
98	 36.53	-1	112668..112886	+	72	62184745	rpmC	CAB100A	-	50S ribosomal protein L29
99	 38.89	0	112879..113130	+	83	62184746	rpsQ	CAB101	-	30S ribosomal protein S17
100	 39.02	0	113165..113533	+	122	62184747	rplN	CAB102	-	50S ribosomal protein L14
40.23	MEAN

2.43	STD DEV
