IslandPath Analysis: Caldicellulosiruptor saccharolyticus DSM 8903

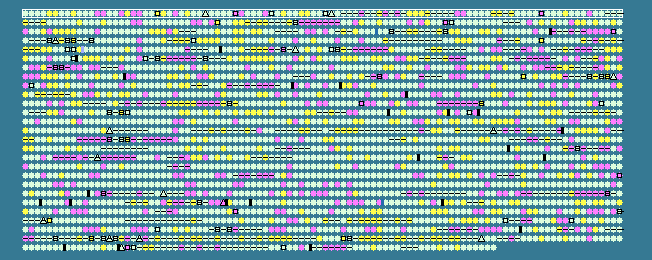

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.37   STD DEV: 3.64
Caldicellulosiruptor saccharolyticus DSM 8903, complete genome - 1..2970275
2679 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 38.75	0	642..2006	+	454	146295086	-	Csac_0001	-	chromosomal replication initiator protein DnaA
2	 38.32	0	2227..3330	+	367	146295087	-	Csac_0002	-	DNA polymerase III, beta subunit
3	 32.29	0	3358..4407	+	349	146295088	-	Csac_0003	-	DNA replication and repair protein RecF
4	 31.93	0	4443..4727	+	94	146295089	-	Csac_0004	-	hypothetical protein
5	 40.23	+1	4778..6691	+	637	146295090	-	Csac_0005	-	DNA gyrase, B subunit
6	 40.45	+1	6711..9140	+	809	146295091	-	Csac_0006	-	DNA gyrase, A subunit
7	 35.53	0	9442..11349	+	635	146295092	-	Csac_0007	-	secreted protein
8	 37.37	0	11759..12724	-	321	146295093	-	Csac_0008	-	hypothetical protein
9	 44.44	+2	12864..13187	-	107	146295094	-	Csac_0009	-	hypothetical protein
10	 37.16	0	13921..14286	+	121	146295095	-	Csac_0011	-	hypothetical protein
11	 32.42	0	15465..16781	+	438	146295096	-	Csac_0012	-	hypothetical protein
12	 32.93	0	16765..17766	+	333	146295097	-	Csac_0013	-	hypothetical protein
13	 30.95	-1	17786..18373	-	195	146295098	-	Csac_0014	-	methyltransferase type 11
14	 31.56	-1	18358..21057	-	899	146295099	-	Csac_0015	-	type III restriction enzyme, res subunit
15	 32.87	0	26120..26335	+	71	146295100	-	Csac_0019	-	hypothetical protein
16	 33.30	0	26442..29489	+	1015	146295101	-	Csac_0020	-	diguanylate cyclase/phosphodiesterase with PAS/PAC and GAF sensor(s)
17	 31.31	-1	29695..30090	+	131	146295102	-	Csac_0021	-	hypothetical protein
18	 39.08	+1	30182..30442	-	86	146295103	-	Csac_0022	-	stage V sporulation protein S
19	 31.51	-1	30620..31333	+	237	146295104	-	Csac_0023	-	hypothetical protein
20	 31.76	0	31374..31883	+	169	146295105	-	Csac_0024	-	hypothetical protein
21	 34.19	0	31978..32790	+	270	146295106	-	Csac_0025	-	hypothetical protein
22	 35.84	0	34690..34968	+	92	146295107	-	Csac_0028	-	hypothetical protein
23	 38.93	0	35032..36228	+	398	146295108	-	Csac_0029	-	IS605 family transposase OrfB
24	 40.63	+1	36588..37943	+	451	146295109	-	Csac_0030	-	tryptophan synthase subunit beta
25	 33.10	0	37971..38399	-	142	146295110	-	Csac_0031	-	hypothetical protein
26	 30.39	-1	38508..39458	-	316	146295111	-	Csac_0032	-	hypothetical protein
27	 36.67	0	39706..40275	+	189	146295112	-	Csac_0033	-	LemA family protein
28	 41.26	+1	40293..41162	+	289	146295113	-	Csac_0034	-	hypothetical protein
29	 37.56	0	41212..41424	-	70	146295114	-	Csac_0035	-	hypothetical protein
30	 38.51	0	42373..42546	-	57	146295115	-	Csac_0037	-	hypothetical protein
31	 35.43	0	43298..44776	+	492	146295116	-	Csac_0040	-	integrase catalytic subunit
32	 32.83	0	44773..45564	+	263	146295117	-	Csac_0041	-	IstB ATP binding domain-containing protein
33	 34.09	0	45921..46319	+	132	146295118	-	Csac_0042	-	hypothetical protein
34	 35.30	0	46365..47786	+	473	146295119	-	Csac_0043	-	CRISPR-associated DxTHG family protein
35	 33.18	0	47866..49179	+	437	146295120	-	Csac_0044	-	hypothetical protein
36	 31.33	-1	49550..50497	-	315	146295121	-	Csac_0045	-	transposase, IS4 family protein
37	 31.83	0	50669..51598	+	309	146295122	-	Csac_0046	-	hypothetical protein
38	 35.06	0	51634..52731	+	365	146295123	-	Csac_0047	-	hypothetical protein
39	 32.11	0	54450..55841	+	463	146295124	-	Csac_0049	-	ATPase
40	 33.33	0	56054..56617	+	187	146295125	-	Csac_0050	-	hypothetical protein
41	 28.84	-1	56614..57147	+	177	146295126	-	Csac_0051	-	hypothetical protein
42	 36.34	0	57933..59162	+	409	146295127	-	Csac_0052	-	transposase, mutator type
43	 36.85	0	59092..59574	-	160	146295128	-	Csac_0053	-	hypothetical protein
44	 41.07	+1	59608..59982	-	124	146295129	-	Csac_0054	-	hypothetical protein
45	 32.44	0	62398..63519	-	373	146295130	-	Csac_0055	-	hypothetical protein
46	 33.86	0	63753..65825	+	690	146295131	-	Csac_0056	-	CRISPR-associated Csh1 family protein
47	 38.98	0	65847..66731	+	294	146295132	-	Csac_0057	-	CRISPR-associated Csh2 family protein
48	 39.44	+1	66752..67504	+	250	146295133	-	Csac_0058	-	CRISPR-associated Cas5 family protein
49	 37.19	0	67597..68037	+	146	146295134	-	Csac_0059	-	hypothetical protein
50	 32.95	0	68072..68863	-	263	146295135	-	Csac_0060	-	IstB ATP binding domain-containing protein
51	 36.34	0	69030..70259	+	409	146295136	-	Csac_0061	-	transposase, mutator type
52	 34.97	0	70189..71655	-	488	146295137	-	Csac_0062	-	integrase catalytic subunit
53	 35.66	0	71675..73819	+	714	146295138	-	Csac_0063	-	CRISPR-associated helicase Cas3
54	 37.99	0	73788..74345	+	185	146295139	-	Csac_0064	-	CRISPR-associated Cas4 family protein
55	 35.05	0	74396..75388	+	330	146295140	-	Csac_0065	-	CRISPR-associated Cas1 family protein
56	 32.58	0	75394..75657	+	87	146295141	-	Csac_0066	-	CRISPR-associated Cas2 family protein
57	 30.06	-1	75848..76795	-	315	146295142	-	Csac_0067	-	zeta toxin family protein
58	 31.91	0	76834..77115	-	93	146295143	-	Csac_0068	-	hypothetical protein
59	 37.41	0	77279..77965	+	228	146295144	-	Csac_0069	-	hypothetical protein
60	 39.15	+1	79662..80039	-	125	146295145	-	Csac_0071	-	hypothetical protein
61	 30.95	-1	80233..81618	+	461	146295146	-	Csac_0072	-	ATPase
62	 36.63	0	81795..82340	+	181	146295147	-	Csac_0073	-	hypothetical protein
63	 29.08	-1	82597..82737	+	46	146295148	-	Csac_0074	-	hypothetical protein
64	 38.65	0	82852..85335	+	827	146295149	-	Csac_0075	-	CRISPR-associated Csm1 family protein
65	 39.17	+1	85367..85777	+	136	146295150	-	Csac_0076	-	CRISPR-associated Csm2 family protein
66	 41.41	+1	85807..86598	+	263	146295151	-	Csac_0077	-	CRISPR-associated RAMP Csm3 family protein
67	 41.44	+1	86642..87652	+	336	146295152	-	Csac_0078	-	CRISPR-associated RAMP Csm4 family protein
68	 39.25	+1	87642..88808	+	388	146295153	-	Csac_0079	-	CRISPR-associated RAMP Csm5 family protein
69	 34.62	0	88805..89428	+	207	146295154	-	Csac_0080	-	hypothetical protein
70	 36.93	0	89762..90178	-	138	146295155	-	Csac_0081	-	hypothetical protein
71	 34.97	0	90267..90449	-	60	146295156	-	Csac_0082	-	YcfA family protein
72	 37.45	0	91213..92184	-	323	146295157	-	Csac_0083	-	hypothetical protein
73	 29.52	-1	92574..92783	-	69	146295158	-	Csac_0084	-	hypothetical protein
74	 30.40	-1	92746..93018	-	90	146295159	-	Csac_0085	-	hypothetical protein
75	 37.80	0	93277..93567	+	96	146295160	-	Csac_0086	-	hypothetical protein
76	 32.48	0	93783..94952	+	389	146295161	-	Csac_0087	-	hypothetical protein
77	 36.09	0	95215..95613	+	132	146295162	-	Csac_0088	-	hypothetical protein
78	 36.90	0	95658..97085	+	475	146295163	-	Csac_0089	-	CRISPR-associated DxTHG family protein
79	 44.63	+2	97392..97745	-	117	146295164	-	Csac_0090	-	SpoVA protein
80	 42.90	+2	97787..98800	-	337	146295165	-	Csac_0091	-	stage V sporulation protein AD
81	 37.91	0	98849..99307	-	152	146295166	-	Csac_0092	-	SpoVA protein
82	 40.38	+1	99520..99732	+	70	146295167	-	Csac_0093	-	hypothetical protein
83	 38.10	0	99799..100008	+	69	146295168	-	Csac_0094	-	hypothetical protein
84	 35.67	0	100328..100840	+	170	146295169	-	Csac_0095	-	hypothetical protein
85	 36.40	0	101485..103275	-	596	146295170	-	Csac_0097	-	ATPase-like protein
86	 34.56	0	103295..105175	-	626	146295171	-	Csac_0098	-	hypothetical protein
87	 31.33	-1	105344..106291	-	315	146295172	-	Csac_0099	-	transposase, IS4 family protein
88	 37.91	0	106745..107422	-	225	146295173	-	Csac_0100	-	exsB protein
89	 37.60	0	107458..107832	-	124	146295174	-	Csac_0101	-	putative endoribonuclease L-PSP
90	 34.84	0	107874..108272	-	132	146295175	-	Csac_0102	-	hypothetical protein
91	 40.51	+1	108440..108634	+	64	146295176	-	Csac_0103	-	thiamineS protein
92	 38.05	0	108656..109567	+	303	146295177	-	Csac_0104	-	PP-loop domain-containing protein
93	 35.32	0	109638..110291	-	217	146295178	-	Csac_0105	-	radical SAM domain-containing protein
94	 32.20	0	111028..111291	+	87	146295179	-	Csac_0106	-	hypothetical protein
95	 31.11	-1	111281..111910	+	209	146295180	-	Csac_0107	-	hypothetical protein
96	 35.29	0	111978..112385	+	135	146295181	-	Csac_0108	-	hypothetical protein
97	 36.71	0	112454..113401	+	315	146295182	-	Csac_0109	-	biotin--acetyl-CoA-carboxylase ligase
98	 38.20	0	113448..114536	+	362	146295183	-	Csac_0110	-	dihydropteroate synthase
99	 34.34	0	114559..114756	+	65	146295184	-	Csac_0111	-	hypothetical protein
100	 38.64	0	114787..115257	+	156	146295185	-	Csac_0112	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
35.37	MEAN

3.64	STD DEV
