IslandPath Analysis: Campylobacter jejuni subsp. jejuni 81116

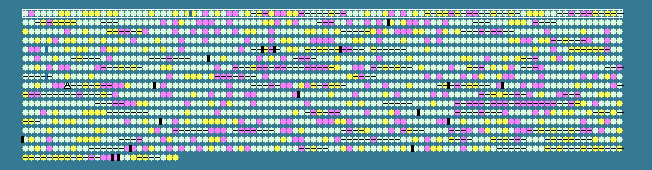

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 30.51 STD DEV: 3.72
Campylobacter jejuni subsp. jejuni 81116, complete genome - 1..1628115
1626 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 30.76	0	1..1323	+	440	157414323	dnaA	C8J_0001	-	chromosomal replication initiation protein
2	 25.66	-1	1483..2550	+	355	157414324	dnaN	C8J_0002	-	DNA polymerase III subunit beta
3	 33.20	0	2579..4888	+	769	157414325	gyrB	C8J_0003	-	DNA gyrase subunit B
4	 32.16	0	4914..5255	-	113	157414326	-	C8J_0004	-	putative periplasmic protein
5	 32.85	0	5258..6496	-	412	157414327	-	C8J_0005	-	hypothetical protein
6	 32.03	0	6706..8007	+	433	157414328	-	C8J_0006	-	Na+/H+ antiporter family protein
7	 34.96	+1	8142..12632	+	1496	157414329	gltB	C8J_0007	-	glutamate synthase, large subunit
8	 34.58	+1	12643..14088	+	481	157414330	gltD	C8J_0008	-	glutamate synthase subunit beta
9	 32.29	0	14089..14664	-	191	157414331	rnhB	C8J_0009	-	ribonuclease HII
10	 27.92	0	14697..14936	-	79	157414332	-	C8J_0010	-	competence protein ComEA
11	 36.27	+1	15001..15648	-	215	157414333	-	C8J_0011	-	rubrerythrin
12	 37.87	+1	15808..17484	+	558	157414334	ilvD	C8J_0012	-	dihydroxy-acid dehydratase
13	 34.48	+1	17496..18020	-	174	157414335	-	C8J_0013	-	putative integral membrane protein
14	 32.44	0	18112..19338	-	408	157414336	-	C8J_0014	-	hypothetical protein
15	 34.52	+1	19415..20089	+	224	157414337	-	C8J_0015	-	putative transcriptional regulatory protein
16	 34.18	0	20110..21636	-	508	157414338	-	C8J_0016	-	disulfide bond formation protein, DsbB family
17	 31.55	0	21648..21815	-	55	157414339	-	C8J_0017	-	hypothetical protein
18	 28.22	0	21921..23699	-	592	157414340	-	C8J_0018	-	MCP domain-containing signal transducer
19	 31.91	0	23689..24603	-	304	157414341	-	C8J_0019	-	cytochrome C551 peroxidase
20	 32.06	0	24699..25565	-	288	157414342	-	C8J_0020	-	fumarylacetoacetate hydrolase family protein
21	 28.96	0	25677..26522	-	281	157414343	-	C8J_0021	-	putative ribosomal pseudouridine synthase
22	 34.01	0	26657..27985	+	442	157414344	purB	C8J_0022	-	adenylosuccinate lyase
23	 33.54	0	28001..30370	+	789	157414345	nrdA	C8J_0023	-	ribonucleotide-diphosphate reductase subunit alpha
24	 31.31	0	30409..31794	-	461	157414346	-	C8J_0024	-	sodium/dicarboxylate symporter
25	 33.97	0	31914..32537	-	207	157414347	-	C8J_0025	-	FAD-dependent thymidylate synthase
26	 34.74	+1	32656..34287	+	543	157414348	pyrG	C8J_0026	-	CTP synthetase
27	 29.39	0	34274..35845	+	523	157414349	recJ	C8J_0027	-	single-stranded-DNA-specific exonuclease RecJ
28	 35.44	+1	35982..36977	+	331	157414350	ansA	C8J_0028	-	L-asparaginase
29	 34.96	+1	43640..45610	+	656	157414351	-	C8J_0029	-	hypothetical protein
30	 33.00	0	45651..47720	+	689	157414352	-	C8J_0030	-	hypothetical protein
31	 25.30	-1	47764..48348	+	194	157414353	-	C8J_0031	-	hypothetical protein
32	 30.04	0	48341..51046	+	901	157414354	-	C8J_0032	-	hypothetical protein
33	 37.34	+1	51081..52751	-	556	157414355	-	C8J_0033	-	hypothetical protein
34	 29.47	0	52981..56685	+	1234	157414356	-	C8J_0034	-	type II restriction-modification enzyme
35	 21.63	-2	56687..59428	+	913	157414357	-	C8J_0035	-	hypothetical protein
36	 21.08	-2	59450..61147	+	565	157414358	-	C8J_0036	-	hypothetical protein
37	 32.76	0	61177..61878	-	233	157414359	-	C8J_0037	-	hypothetical protein
38	 35.33	+1	61875..63077	-	400	157414360	-	C8J_0038	-	Bcr/CflA subfamily drug resistance transporter
39	 31.11	0	63180..64529	+	449	157414361	-	C8J_0039	-	hypothetical protein
40	 36.30	+1	64553..65596	-	347	157414362	-	C8J_0040	-	cytochrome c family protein
41	 25.00	-1	65774..66421	-	215	157414363	-	C8J_0041	-	hypothetical protein
42	 37.37	+1	66421..68229	-	602	157414364	typA	C8J_0042	-	GTP-binding protein TypA
43	 20.99	-2	68364..68687	+	107	157414365	-	C8J_0043	-	hypothetical protein
44	 26.46	-1	68708..70525	+	605	157414366	-	C8J_0044	-	hypothetical protein
45	 36.84	+1	70579..71463	+	294	157414367	flgD	C8J_0045	-	flagellar basal body rod modification protein
46	 34.07	0	71467..73104	+	545	157414368	flgE	C8J_0046	-	flagellar hook protein
47	 25.21	-1	73108..74979	-	623	157414369	-	C8J_0047	-	hypothetical protein
48	 28.19	0	74980..75699	-	239	157414370	-	C8J_0048	-	hypothetical protein
49	 33.14	0	77651..78667	-	338	157414371	trmU	C8J_0050	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
50	 30.69	0	78667..79272	-	201	157414372	-	C8J_0051	-	lysine decarboxylase family protein
51	 32.86	0	79341..80183	-	280	157414373	fliY	C8J_0052	-	flagellar motor switch protein FliY
52	 34.07	0	80180..81259	-	359	157414374	fliM	C8J_0053	-	flagellar motor switch protein FliM
53	 32.61	0	81259..81951	-	230	157414375	fliA	C8J_0054	-	flagellar biosynthesis sigma factor
54	 26.89	0	81932..82288	-	118	157414376	-	C8J_0055	-	hypothetical protein
55	 31.03	0	82307..83173	-	288	157414377	-	C8J_0056	-	ATPase, ParA family
56	 30.45	0	83166..84620	-	484	157414378	flhF	C8J_0057	-	flagellar biosynthesis regulator FlhF
57	 30.59	0	84630..85103	-	157	157414379	folK	C8J_0058	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
58	 35.21	+1	85106..85585	-	159	157414380	aroQ	C8J_0059	-	3-dehydroquinate dehydratase
59	 29.84	0	85676..86905	+	409	157414381	-	C8J_0060	-	chlorohydrolase
60	 32.66	0	86893..87789	+	298	157414382	sppA	C8J_0061	-	signal peptide peptidase SppA, 36K type
61	 34.11	0	87868..88899	+	343	157414383	-	C8J_0062	-	hypothetical protein
62	 23.12	-1	88896..89081	-	61	157414384	-	C8J_0063	-	hypothetical protein
63	 27.59	0	89142..89750	-	202	157414385	-	C8J_0064	-	hypothetical protein
64	 26.23	-1	89753..90400	-	215	157414386	-	C8J_0065	-	hypothetical protein
65	 31.66	0	90579..91235	-	218	157414387	-	C8J_0066	-	hypothetical protein
66	 35.07	+1	91228..92667	-	479	157414388	-	C8J_0067	-	iron-sulfur cluster binding protein
67	 32.11	0	92664..93401	-	245	157414389	-	C8J_0068	-	hypothetical protein
68	 34.76	+1	93524..95206	-	560	157414390	lctP	C8J_0069	-	L-lactate permease
69	 31.58	0	95378..95947	-	189	157414391	cdtC	C8J_0070	-	cytolethal distending toxin
70	 36.84	+1	95958..96755	-	265	157414392	cdtB	C8J_0071	-	cytolethal distending toxin, type I deoxyribonuclease-like protein
71	 34.32	+1	96752..97558	-	268	157414393	cdtA	C8J_0072	-	cytolethal distending toxin
72	 21.37	-2	97672..97905	+	77	157414394	-	C8J_0073	-	hypothetical protein
73	 34.80	+1	97906..99468	+	520	157414395	cydA	C8J_0074	-	cytochrome d ubiquinol oxidase, subunit I
74	 32.62	0	99468..100592	+	374	157414396	cydB	C8J_0075	-	cytochrome d ubiquinol oxidase, subunit II
75	 23.81	-1	100602..100706	+	34	157414397	-	C8J_0076	-	hypothetical protein
76	 26.58	-1	100786..101481	-	231	157414398	-	C8J_0077	-	putative amino acid recemase
77	 29.45	0	101601..102296	-	231	157414399	ung	C8J_0078	-	uracil-DNA glycosylase
78	 33.05	0	102567..103973	+	468	157414400	aspA	C8J_0079	-	aspartate ammonia-lyase
79	 37.07	+1	103990..105327	+	445	157414401	-	C8J_0081	-	anaerobic C4-dicarboxylate transporter
80	 28.34	0	105435..106796	+	453	157414402	-	C8J_0082	-	putative lipoprotein
81	 27.64	0	106806..107174	+	122	157414403	-	C8J_0083	-	putative lipoprotein
82	 34.94	+1	107198..107821	+	207	157414404	-	C8J_0084	-	putative lipoprotein
83	 30.87	0	107903..109240	+	445	157414405	-	C8J_0085	-	putative periplasmic protein
84	 32.83	0	109250..110452	+	400	157414406	-	C8J_0086	-	putative periplasmic protein
85	 35.28	+1	110611..110919	+	102	157414407	rplU	C8J_0087	-	50S ribosomal protein L21
86	 36.86	+1	110930..111184	+	84	157414408	rpmA	C8J_0088	-	50S ribosomal protein L27
87	 35.36	+1	111293..112330	+	345	157414409	-	C8J_0089	-	GTPase ObgE
88	 31.88	0	112453..113208	+	251	157414410	proB	C8J_0090	-	gamma-glutamyl kinase
89	 32.14	0	113282..114199	+	305	157414411	fmt	C8J_0091	-	methionyl-tRNA formyltransferase
90	 28.62	0	114180..114815	+	211	157414412	-	C8J_0092	-	biotin--protein ligase
91	 30.79	0	114812..115597	+	261	157414413	-	C8J_0093	-	chromosome partitioning protein, ParA family
92	 26.40	-1	115603..116439	+	278	157414414	-	C8J_0094	-	chromosome partitioning protein, ParB family
93	 28.64	0	116500..116925	+	141	157414415	atpF'	C8J_0095	-	F0F1 ATP synthase subunit B'
94	 25.73	-1	116936..117448	+	170	157414416	atpF	C8J_0096	-	F0F1 ATP synthase subunit B
95	 21.65	-2	117451..117972	+	173	157414417	atpH	C8J_0097	-	F0F1 ATP synthase subunit delta
96	 35.19	+1	117986..119491	+	501	157414418	atpA	C8J_0098	-	F0F1 ATP synthase subunit alpha
97	 28.47	0	119500..120384	+	294	157414419	atpG	C8J_0099	-	F0F1 ATP synthase subunit gamma
98	 35.41	+1	120409..121806	+	465	157414420	atpD	C8J_0100	-	F0F1 ATP synthase subunit beta
99	 34.87	+1	121810..122199	+	129	157414421	atpC	C8J_0101	-	F0F1 ATP synthase subunit epsilon
100	 29.91	0	122199..122753	+	184	157414422	exbB3	C8J_0102	-	ExbB/TolQ family transport protein
30.51	MEAN

3.72	STD DEV
