IslandPath Analysis: Campylobacter jejuni subsp. doylei 269.97

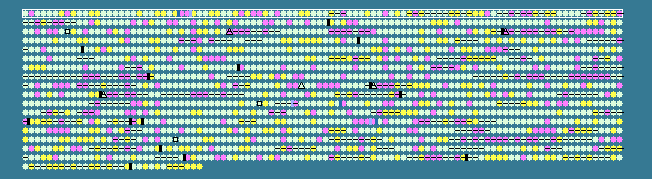

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 30.44   STD DEV: 3.88
Campylobacter jejuni subsp. doylei 269.97, complete genome - 1..1845106
1731 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 30.16	0	1..1323	+	440	153951168	dnaA	JJD26997_0001	-	chromosomal replication initiation protein
2	 25.56	-1	1483..2550	+	355	153952198	dnaN	JJD26997_0002	-	DNA polymerase III subunit beta
3	 33.12	0	2579..4888	+	769	153951349	gyrB	JJD26997_0003	-	DNA gyrase subunit B
4	 31.94	0	4936..6582	-	548	153952107	-	JJD26997_0004	-	acetate permease
5	 28.06	0	6579..6938	-	119	153951210	-	JJD26997_0005	-	hypothetical protein
6	 31.80	0	7169..8470	+	433	153952179	-	JJD26997_0006	-	Na+/H+ antiporter family protein
7	 34.69	+1	8605..13092	+	1495	153951980	-	JJD26997_0007	-	glutamate synthase, large subunit
8	 24.47	-1	13114..14805	+	563	153951216	-	JJD26997_0008	-	hypothetical protein
9	 34.92	+1	14822..16267	+	481	153951673	gltD	JJD26997_0009	-	glutamate synthase subunit beta
10	 32.99	0	16268..16843	-	191	153951148	rnhB	JJD26997_0010	-	ribonuclease HII
11	 28.33	0	16876..17115	-	79	153951474	comEA	JJD26997_0011	-	competence protein ComEA
12	 35.14	+1	17181..17732	-	183	153952482	rbr	JJD26997_0012	-	rubrerythrin
13	 37.45	+1	17988..19664	+	558	153952083	ilvD	JJD26997_0013	-	dihydroxy-acid dehydratase
14	 32.84	0	20162..21388	-	408	153951860	-	JJD26997_0015	-	hypothetical protein
15	 33.63	0	21465..22139	+	224	153950993	-	JJD26997_0016	-	exsB protein
16	 33.92	0	22160..23686	-	508	153950977	-	JJD26997_0017	-	DsbB family disulfide bond formation protein
17	 30.95	0	23698..23865	-	55	153951761	-	JJD26997_0018	-	hypothetical protein
18	 33.10	0	26450..27316	-	288	153951098	-	JJD26997_0023	-	fumarylacetoacetate hydrolase family protein
19	 29.57	0	27427..28329	-	300	153952071	-	JJD26997_0024	-	RNA pseudouridine synthase family protein
20	 34.54	+1	28407..29735	+	442	153951291	purB-1	JJD26997_0025	-	adenylosuccinate lyase
21	 33.76	0	29751..32120	+	789	153952334	nrdA	JJD26997_0026	-	ribonucleotide-diphosphate reductase subunit alpha
22	 31.82	0	32159..33544	-	461	153951390	-	JJD26997_0027	-	sodium/dicarboxylate symporter
23	 34.46	+1	33664..34287	-	207	153952167	thyX	JJD26997_0028	-	FAD-dependent thymidylate synthase
24	 34.99	+1	34406..36037	+	543	153951536	pyrG	JJD26997_0029	-	CTP synthetase
25	 29.71	0	36024..37595	+	523	153952383	recJ	JJD26997_0030	-	single-stranded-DNA-specific exonuclease RecJ
26	 35.05	+1	37681..38727	+	348	153951810	ansA	JJD26997_0031	-	L-asparaginase
27	 24.21	-1	41479..42081	+	200	153951062	rhtC	JJD26997_0035	-	threonine efflux protein
28	 21.28	-2	43048..43188	+	46	153952296	-	JJD26997_0039	-	hypothetical protein
29	 37.34	+1	47433..49103	-	556	153951153	ggt	JJD26997_0042	-	gamma-glutamyltransferase
30	 29.74	0	49333..53091	+	1252	153951784	-	JJD26997_0043	-	type II restriction-modification enzyme
31	 32.49	0	53802..54632	+	276	153951314	-	JJD26997_0046	-	GTP-binding protein LepA
32	 37.79	+1	54598..55965	-	455	153952211	-	JJD26997_0045	-	CitT protein
33	 34.04	0	56076..57065	-	329	153951558	mraY	JJD26997_0047	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
34	 32.68	0	57271..58032	-	253	153951938	-	JJD26997_0048	-	hypothetical protein
35	 31.19	0	58791..60140	+	449	153952213	-	JJD26997_0050	-	hypothetical protein
36	 36.78	+1	60164..61207	-	347	153951027	-	JJD26997_0051	-	cytochrome c family protein
37	 25.77	-1	61385..62032	-	215	153952411	-	JJD26997_0052	-	hypothetical protein
38	 37.04	+1	62032..63840	-	602	153951246	typA	JJD26997_0053	-	GTP-binding protein TypA
39	 22.58	-2	63805..63990	+	61	153951897	-	JJD26997_0054	-	hypothetical protein
40	 26.94	0	64317..66083	+	588	153951142	-	JJD26997_0056	-	hypothetical protein
41	 34.38	+1	66142..67005	+	287	153952103	flgD	JJD26997_0057	-	flagellar basal body rod modification protein
42	 33.70	0	67009..68646	+	545	153951334	flgE-1	JJD26997_0058	-	flagellar hook protein
43	 25.52	-1	68650..70518	-	622	153951498	-	JJD26997_0059	-	hypothetical protein
44	 31.96	0	72256..73272	-	338	153951834	trmU	JJD26997_0062	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
45	 31.20	0	73269..73877	-	202	153951989	-	JJD26997_0063	-	lysine decarboxylase family protein
46	 28.46	0	73996..74733	-	245	153952498	-	JJD26997_0064	-	hypothetical protein
47	 36.11	+1	75063..75206	-	47	153952375	-	JJD26997_0065	-	hypothetical protein
48	 36.67	+1	75558..75737	-	59	153951542	-	JJD26997_0066	-	hypothetical protein
49	 30.99	0	76032..76886	+	284	153951293	-	JJD26997_0067	-	HmcD domain-containing protein
50	 29.17	0	76871..77470	+	199	153952073	-	JJD26997_0068	-	peptidase family protein
51	 33.58	0	77519..78340	-	273	153951920	fliY	JJD26997_0069	-	flagellar motor switch protein FliY
52	 34.07	0	78358..79437	-	359	153951200	fliM	JJD26997_0070	-	flagellar motor switch protein FliM
53	 33.89	0	79437..80153	-	238	153952569	fliA	JJD26997_0071	-	flagellar biosynthesis sigma factor
54	 26.61	0	80110..80466	-	118	153950944	-	JJD26997_0072	-	hypothetical protein
55	 29.64	0	80485..81351	-	288	153951589	-	JJD26997_0073	-	ParaA family ATPase
56	 30.22	0	81351..82796	-	481	153952395	flhF	JJD26997_0074	-	flagellar biosynthesis regulator FlhF
57	 31.01	0	82807..83280	-	157	153951801	folK	JJD26997_0075	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
58	 35.21	+1	83283..83762	-	159	153952575	aroQ	JJD26997_0076	-	3-dehydroquinate dehydratase
59	 29.92	0	83855..85084	+	409	153952082	-	JJD26997_0077	-	chlorohydrolase
60	 33.11	0	85072..85968	+	298	153951329	sppA	JJD26997_0078	-	signal peptide peptidase SppA, 36K type
61	 24.53	-1	86846..87004	-	52	153951109	-	JJD26997_0081	-	hypothetical protein
62	 30.75	0	87775..88431	-	218	153951058	-	JJD26997_0084	-	hypothetical protein
63	 35.14	+1	88424..89863	-	479	153951992	-	JJD26997_0085	-	iron-sulfur cluster binding protein
64	 33.20	0	89860..90597	-	245	153951675	-	JJD26997_0086	-	hypothetical protein
65	 34.05	0	90721..92403	-	560	153952662	lctP	JJD26997_0087	-	L-lactate permease
66	 22.59	-2	93169..93438	+	89	153951159	-	JJD26997_0089	-	hypothetical protein
67	 34.55	+1	93439..95001	+	520	153951686	cydA	JJD26997_0090	-	cytochrome d ubiquinol oxidase, subunit I
68	 32.00	0	95001..96125	+	374	153950972	cydB	JJD26997_0091	-	cytochrome d ubiquinol oxidase, subunit II
69	 27.87	0	96319..97014	-	231	153951898	-	JJD26997_0092	-	putative aspartate racemase
70	 29.31	0	97130..97825	-	231	153951537	ung	JJD26997_0093	-	uracil-DNA glycosylase
71	 33.19	0	98099..99505	+	468	153952003	aspA	JJD26997_0094	-	aspartate ammonia-lyase
72	 37.10	+1	99531..100859	+	442	153951706	dcuA	JJD26997_0095	-	anaerobic C4-dicarboxylate transporter
73	 36.68	+1	101520..104627	+	1035	153952518	-	JJD26997_0096	-	autotransporter beta-domain-containing protein
74	 33.65	0	104880..105815	+	311	153951573	-	JJD26997_0097	-	putative periplasmic protein
75	 34.95	+1	105974..106282	+	102	153952371	rplU	JJD26997_0098	-	50S ribosomal protein L21
76	 37.25	+1	106293..106547	+	84	153951563	rpmA	JJD26997_0099	-	50S ribosomal protein L27
77	 35.65	+1	106654..107691	+	345	153952548	-	JJD26997_0100	-	GTPase ObgE
78	 19.38	-2	108516..108644	-	42	153951144	-	JJD26997_0103	-	hypothetical protein
79	 33.01	0	108654..109571	+	305	153950956	fmt	JJD26997_0105	-	methionyl-tRNA formyltransferase
80	 29.05	0	109534..110187	+	217	153951936	-	JJD26997_0106	-	biotin--protein ligase
81	 31.04	0	110184..110969	+	261	153952401	-	JJD26997_0107	-	ParA family chromosome partitioning ATPase
82	 26.52	-1	110975..111811	+	278	153952129	-	JJD26997_0108	-	ParB family chromosome partitioning protein
83	 28.64	0	111875..112300	+	141	153951555	-	JJD26997_0109	-	F0F1 ATP synthase subunit B'
84	 26.32	-1	112311..112823	+	170	153952313	-	JJD26997_0110	-	F0F1 ATP synthase subunit B
85	 21.84	-2	112826..113347	+	173	153951608	atpH	JJD26997_0111	-	F0F1 ATP synthase subunit delta
86	 35.52	+1	113361..114866	+	501	153952146	atpA	JJD26997_0112	-	F0F1 ATP synthase subunit alpha
87	 28.25	0	114875..115759	+	294	153952196	atpG	JJD26997_0113	-	F0F1 ATP synthase subunit gamma
88	 35.05	+1	115784..117238	+	484	153951038	atpD	JJD26997_0114	-	F0F1 ATP synthase subunit beta
89	 36.15	+1	117238..117627	+	129	153951408	atpC	JJD26997_0115	-	F0F1 ATP synthase subunit epsilon
90	 29.73	0	117627..118181	+	184	153952561	-	JJD26997_0116	-	MotA/TolQ/ExbB proton channel family protein
91	 27.69	0	118190..118579	+	129	153951220	-	JJD26997_0117	-	TonB system transport protein ExbD, putative
92	 29.49	0	118582..119361	+	259	153952317	-	JJD26997_0118	-	TonB domain-containing protein
93	 29.45	0	119371..120579	+	402	153951205	-	JJD26997_0119	-	translocation protein TolB
94	 32.93	0	120656..121153	+	165	153952154	-	JJD26997_0120	-	peptidoglycan-associated lipoprotein Omp18
95	 26.16	-1	121157..122104	+	315	153950982	-	JJD26997_0121	-	hypothetical protein
96	 38.20	+2	122119..122673	+	184	153951916	slyD	JJD26997_0122	-	FKBP-type peptidyl-prolyl cis-trans isomerase SlyD
97	 32.36	0	122673..123593	+	306	153952364	fabD	JJD26997_0123	-	malonyl CoA-acyl carrier protein transacylase
98	 34.21	0	123593..124279	+	228	153952345	mtnA	JJD26997_0124	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
99	 35.83	+1	124276..125037	+	253	153951034	-	JJD26997_0125	-	PP-loop family protein
100	 26.63	0	125034..125555	+	173	153951597	-	JJD26997_0126	-	putative pyrazinamidase/nicotinamidase
30.44	MEAN

3.88	STD DEV
