IslandPath Analysis: Campylobacter jejuni subsp. jejuni NCTC 11168

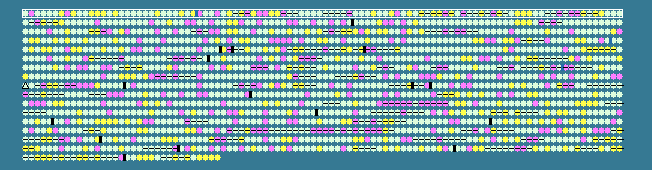

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 30.55   STD DEV: 3.69
Campylobacter jejuni subsp. jejuni NCTC 11168, complete genome - 1..1641481
1634 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 30.08	0	1..1323	+	440	15791400	dnaA	Cj0001	-	chromosomal replication initiation protein
2	 25.94	-1	1483..2550	+	355	15791401	dnaN	Cj0002	-	DNA polymerase III subunit beta
3	 33.16	0	2579..4888	+	769	15791402	gyrB	Cj0003	-	DNA gyrase subunit B
4	 31.87	0	4916..5257	-	113	15791403	-	Cj0004c	-	putative periplasmic protein
5	 32.85	0	5260..6498	-	412	15791404	-	Cj0005c	-	putative molybdenum containing oxidoreductase
6	 31.88	0	6703..8010	+	435	15791405	-	Cj0006	-	Na+/H+ antiporter family protein
7	 34.67	+1	8144..12634	+	1496	15791406	gltB	Cj0007	-	glutamate synthase, large subunit
8	 24.60	-1	12644..14395	+	583	15791407	-	Cj0008	-	hypothetical protein
9	 34.72	+1	14398..15843	+	481	15791408	gltD	Cj0009	-	putative oxidoreductase
10	 32.12	0	15844..16419	-	191	15791409	rnhB	Cj0010c	-	ribonuclease HII
11	 27.08	0	16452..16691	-	79	15791410	-	Cj0011c	-	competence protein ComEA
12	 35.80	+1	16756..17403	-	215	15791411	-	Cj0012c	-	rubrerythrin
13	 36.97	+1	17563..19239	+	558	15791412	ilvD	Cj0013	-	dihydroxy-acid dehydratase
14	 35.05	+1	19251..19775	-	174	15791413	-	Cj0014c	-	putative integral membrane protein
15	 32.36	0	19867..21093	-	408	15791414	-	Cj0015c	-	hypothetical protein
16	 34.22	0	21159..21833	+	224	15791415	-	Cj0016	-	putative transcriptional regulatory protein
17	 33.33	0	21854..23380	-	508	15791416	-	Cj0017c	-	disulfide bond formation protein, DsbB family
18	 31.55	0	23392..23559	-	55	15791417	-	Cj0018c	-	hypothetical protein
19	 27.66	0	23665..25443	-	592	15791418	-	Cj0019c	-	MCP domain-containing signal transducer
20	 31.91	0	25433..26347	-	304	15791419	-	Cj0020c	-	cytochrome C551 peroxidase
21	 31.97	0	26411..27289	-	292	15791420	-	Cj0021c	-	fumarylacetoacetate hydrolase family protein
22	 29.46	0	27402..28304	-	300	15791421	-	Cj0022c	-	putative ribosomal pseudouridine synthase
23	 34.31	+1	28382..29710	+	442	15791422	purB	Cj0023	-	adenylosuccinate lyase
24	 33.67	0	29726..32095	+	789	15791423	nrdA	Cj0024	-	ribonucleotide-diphosphate reductase subunit alpha
25	 31.46	0	32134..33519	-	461	15791424	-	Cj0025c	-	sodium/dicarboxylate symporter
26	 33.65	0	33639..34262	-	207	15791425	thyX	Cj0026c	-	FAD-dependent thymidylate synthase
27	 34.38	+1	34382..36013	+	543	15791426	pyrG	Cj0027	-	CTP synthetase
28	 29.83	0	36000..37571	+	523	15791427	recJ	Cj0028	-	single-stranded-DNA-specific exonuclease RecJ
29	 34.24	0	37667..38662	+	331	15791428	ansA	Cj0029	-	L-asparaginase
30	 20.53	-2	44966..46363	+	465	15791429	-	Cj0030	-	hypothetical protein
31	 30.38	0	46424..49027	+	867	15791430	-	Cj0031	-	type II restriction-modification enzyme
32	 31.09	0	48996..50156	+	386	15791431	-	Cj0032	-	putative type IIS restriction /modification enzyme, C-terminal half
33	 23.74	-1	50156..51937	+	593	15791432	-	Cj0033	-	putative integral membrane protein
34	 32.34	0	51967..52668	-	233	15791433	-	Cj0034c	-	hypothetical protein
35	 35.33	+1	52665..53867	-	400	15791434	-	Cj0035c	-	putative efflux protein
36	 31.04	0	53970..55319	+	449	15791435	-	Cj0036	-	hypothetical protein
37	 36.59	+1	55343..56386	-	347	15791436	-	Cj0037c	-	cytochrome c family protein
38	 25.00	-1	56564..57211	-	215	15791437	-	Cj0038c	-	hypothetical protein
39	 37.26	+1	57211..59019	-	602	15791438	typA	Cj0039c	-	GTP-binding protein TypA
40	 23.15	-2	59154..59477	+	107	15791439	-	Cj0040	-	hypothetical protein
41	 26.38	-1	59493..61289	+	598	15791440	-	Cj0041	-	hypothetical protein
42	 36.50	+1	61343..62227	+	294	15791441	flgD	Cj0042	-	flagellar basal body rod modification protein
43	 34.07	0	62231..63868	+	545	15791442	flgE	Cj0043	-	flagellar hook protein
44	 25.53	-1	63872..65743	-	623	15791443	-	Cj0044c	-	hypothetical protein
45	 28.08	0	65744..66466	-	240	15791444	-	Cj0045c	-	putative iron-binding protein
46	 32.74	0	68532..69548	-	338	15791445	trmU	Cj0053c	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
47	 31.19	0	69548..70153	-	201	15791446	-	Cj0054c	-	lysine decarboxylase family protein
48	 28.48	0	70274..71098	-	274	15791447	-	Cj0055c	-	hypothetical protein
49	 32.85	0	71155..71571	-	138	15791448	-	Cj0056c	-	hypothetical protein
50	 31.11	0	72005..72859	+	284	15791449	-	Cj0057	-	putative periplasmic protein
51	 28.83	0	72844..73443	+	199	15791450	-	Cj0058	-	putative periplasmic protein
52	 33.10	0	73492..74334	-	280	15791451	fliY	Cj0059c	-	flagellar motor switch protein FliY
53	 33.80	0	74331..75410	-	359	15791452	fliM	Cj0060c	-	flagellar motor switch protein FliM
54	 32.50	0	75410..76126	-	238	15791453	fliA	Cj0061c	-	flagellar biosynthesis sigma factor
55	 26.89	0	76083..76439	-	118	15791454	-	Cj0062c	-	hypothetical protein
56	 31.26	0	76458..77324	-	288	15791455	-	Cj0063c	-	ATPase, ParA family
57	 30.58	0	77317..78771	-	484	15791456	flhF	Cj0064c	-	flagellar biosynthesis regulator FlhF
58	 30.59	0	78781..79254	-	157	15791457	folK	Cj0065c	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
59	 35.21	+1	79257..79736	-	159	15791458	aroQ	Cj0066c	-	3-dehydroquinate dehydratase
60	 28.86	0	79827..81056	+	409	15791459	-	Cj0067	-	chlorohydrolase
61	 33.00	0	81044..81940	+	298	15791460	pspA	Cj0068	-	signal peptide peptidase SppA, 36K type
62	 34.30	+1	82019..83050	+	343	15791461	-	Cj0069	-	hypothetical protein
63	 25.16	-1	83047..83205	-	52	15791462	-	Cj0070c	-	hypothetical protein
64	 30.75	0	84087..84743	-	218	15791463	-	Cj0073c	-	hypothetical protein
65	 34.79	+1	84736..86175	-	479	15791464	-	Cj0074c	-	iron-sulfur cluster binding protein
66	 33.20	0	86172..86912	-	246	15791465	-	Cj0075c	-	cysteine-rich domain protein
67	 35.12	+1	87036..88718	-	560	15791466	lctP	Cj0076c	-	L-lactate permease
68	 31.23	0	88890..89459	-	189	15791467	cdtC	Cj0077c	-	cytolethal distending toxin
69	 36.34	+1	89470..90267	-	265	15791468	cdtB	Cj0078c	-	cytolethal distending toxin
70	 34.32	+1	90264..91070	-	268	15791469	cdtA	Cj0079c	-	cytolethal distending toxin
71	 21.48	-2	91147..91416	+	89	15791470	-	Cj0080	-	hypothetical protein
72	 34.68	+1	91417..92979	+	520	15791471	cydA	Cj0081	-	cytochrome d ubiquinol oxidase, subunit I
73	 31.29	0	92979..94103	+	374	15791472	cydB	Cj0082	-	cytochrome d ubiquinol oxidase, subunit II
74	 26.58	-1	94297..94992	-	231	15791473	-	Cj0085c	-	putative amino acid recemase
75	 28.88	0	95108..95803	-	231	15791474	ung	Cj0086c	-	uracil-DNA glycosylase
76	 33.26	0	96074..97480	+	468	15791475	aspA	Cj0087	-	aspartate ammonia-lyase
77	 37.22	+1	97496..98833	+	445	15791476	dcuA	Cj0088	-	anaerobic C4-dicarboxylate transporter
78	 27.68	0	98941..100302	+	453	15791477	-	Cj0089	-	putative lipoprotein
79	 26.83	-1	100312..100680	+	122	15791478	-	Cj0090	-	putative lipoprotein
80	 34.78	+1	100704..101327	+	207	15791479	-	Cj0091	-	putative lipoprotein
81	 31.17	0	101410..102747	+	445	15791480	-	Cj0092	-	putative periplasmic protein
82	 32.50	0	102757..103959	+	400	15791481	-	Cj0093	-	putative periplasmic protein
83	 35.28	+1	104118..104426	+	102	15791482	rplU	Cj0094	-	50S ribosomal protein L21
84	 37.25	+1	104437..104691	+	84	15791483	rpmA	Cj0095	-	50S ribosomal protein L27
85	 35.90	+1	104798..105850	+	350	15791484	obgE	Cj0096	-	GTPase ObgE
86	 32.28	0	105955..106710	+	251	15791485	proB	Cj0097	-	gamma-glutamyl kinase
87	 32.46	0	106784..107701	+	305	15791486	fmt	Cj0098	-	methionyl-tRNA formyltransferase
88	 29.36	0	107664..108317	+	217	15791487	birA	Cj0099	-	biotin--protein ligase
89	 30.92	0	108314..109099	+	261	15791488	-	Cj0100	-	chromosome partitioning protein, ParA family
90	 26.40	-1	109105..109941	+	278	15791489	-	Cj0101	-	chromosome partitioning protein, ParB family
91	 28.40	0	110002..110427	+	141	15791490	atpF'	Cj0102	-	F0F1 ATP synthase subunit B'
92	 25.93	-1	110438..110950	+	170	15791491	atpF	Cj0103	-	F0F1 ATP synthase subunit B
93	 21.84	-2	110953..111474	+	173	15791492	atpH	Cj0104	-	F0F1 ATP synthase subunit delta
94	 35.19	+1	111488..112993	+	501	15791493	atpA	Cj0105	-	F0F1 ATP synthase subunit alpha
95	 28.93	0	113002..113886	+	294	15791494	atpG	Cj0106	-	F0F1 ATP synthase subunit gamma
96	 35.41	+1	113912..115309	+	465	15791495	atpD	Cj0107	-	F0F1 ATP synthase subunit beta
97	 35.13	+1	115313..115702	+	129	15791496	atpC	Cj0108	-	F0F1 ATP synthase subunit epsilon
98	 29.73	0	115702..116256	+	184	15791497	exbB3	Cj0109	-	ExbB\TolQ family transport protein
99	 28.46	0	116265..116654	+	129	15791498	exbD3	Cj0110	-	ExbD\TolR family transport protein
100	 28.72	0	116657..117436	+	259	15791499	-	Cj0111	-	TonB domain protein
30.55	MEAN

3.69	STD DEV
