IslandPath Analysis: Carboxydothermus hydrogenoformans Z-2901

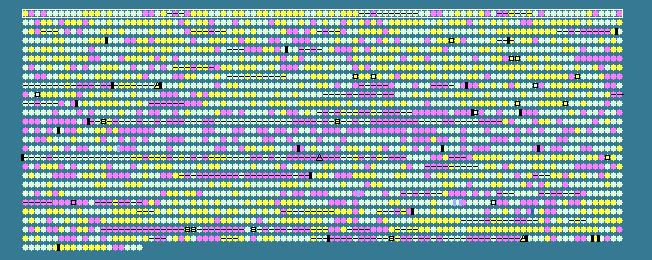

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.28 STD DEV: 5.58
Carboxydothermus hydrogenoformans Z-2901, complete genome - 1..2401520
2620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 46.67	0	225..359	+	44	78043997	rpmH	CHY_0001	-	50S ribosomal protein L34
2	 32.76	-1	426..776	+	116	78045102	rnpA	CHY_0002	-	ribonuclease P protein component
3	 39.47	0	769..996	+	75	78043459	-	CHY_0003	-	hypothetical protein
4	 36.76	0	1004..1675	+	223	78043134	-	CHY_0004	-	sporulation associated-membrane protein
5	 42.19	0	1662..2282	+	206	78045166	jag	CHY_0005	-	jag protein
6	 40.55	0	2359..3744	+	461	78044593	trmE	CHY_0006	-	tRNA modification GTPase TrmE
7	 43.99	0	3754..5649	+	631	78043339	gidA1	CHY_0007	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
8	 41.10	0	5633..6340	+	235	78044839	gidB	CHY_0008	-	glucose-inhibited division protein B
9	 44.05	0	6483..7247	+	254	78043660	soj	CHY_0009	-	sporulation initiation inhibitor protein soj
10	 43.90	0	7237..8097	+	286	78043063	-	CHY_0010	-	stage 0 sporulation protein J
11	 48.35	+1	8127..9278	+	383	78044965	-	CHY_0011	-	cysteine desulfurase family protein
12	 47.97	+1	9471..10502	+	343	78043356	-	CHY_0012	-	hypothetical protein
13	 47.87	+1	10537..11430	+	297	78044734	-	CHY_0013	-	LysR family transcriptional regulator
14	 43.36	0	11478..12644	-	388	78042797	-	CHY_0014	-	hypothetical protein
15	 46.45	0	12646..13392	-	248	78043590	-	CHY_0015	-	hypothetical protein
16	 44.28	0	13393..14196	-	267	78043673	-	CHY_0016	-	hypothetical protein
17	 38.99	0	14277..14771	+	164	78043587	-	CHY_0017	-	hypothetical protein
18	 41.00	0	14773..15411	+	212	78042838	-	CHY_0018	-	phosphoribosyl transferase domain-containing protein
19	 43.88	0	15458..15694	+	78	78044281	-	CHY_0019	-	hypothetical protein
20	 40.10	0	15615..16205	-	196	78043277	-	CHY_0020	-	hypothetical protein
21	 37.11	0	16298..17302	+	334	78044479	-	CHY_0021	-	hypothetical protein
22	 36.05	0	17312..17863	+	183	78045219	-	CHY_0022	-	hypothetical protein
23	 42.46	0	17854..19245	+	463	78043016	-	CHY_0023	-	putative aminopeptidase 1
24	 47.00	+1	19380..19796	+	138	78045022	-	CHY_0024	-	hypothetical protein
25	 42.40	0	19798..20679	-	293	78045025	-	CHY_0025	-	hypothetical protein
26	 36.53	0	20666..21478	-	270	78042960	-	CHY_0026	-	putative DNA ligase, ATP-dependent
27	 38.80	0	21494..22279	-	261	78043847	-	CHY_0027	-	KU domain-containing protein
28	 21.30	-2	22346..22453	-	35	78044067	-	CHY_0028	-	hypothetical protein
29	 45.13	0	22437..23648	+	403	78044623	-	CHY_0029	-	putative inner membrane protein
30	 48.29	+1	23650..23883	+	77	78044446	-	CHY_0030	-	hypothetical protein
31	 48.85	+1	23931..25019	-	362	78044617	ychF	CHY_0031	-	translation-associated GTPase
32	 39.80	0	25089..25289	-	66	78043835	-	CHY_0032	-	hypothetical protein
33	 43.04	0	25282..26136	-	284	78045203	-	CHY_0033	-	mechanosensitive ion channel family protein
34	 48.36	+1	26291..28180	-	629	78043206	cooSV	CHY_0034	-	carbon-monoxide dehydrogenase, catalytic subunit
35	 43.64	0	28352..28642	+	96	78042831	rpsF	CHY_0035	-	30S ribosomal protein S6
36	 48.15	+1	28661..29092	+	143	78044015	-	CHY_0036	-	single-strand binding protein
37	 45.02	0	29111..29341	+	76	78043292	rpsR	CHY_0037	-	30S ribosomal protein S18
38	 42.42	0	29465..30454	+	329	78044007	-	CHY_0038	-	hypothetical protein
39	 38.60	0	30426..30881	+	151	78043341	rplI	CHY_0039	-	ribosomal protein L9
40	 47.45	+1	30884..32782	+	632	78043822	-	CHY_0040	-	putative ATP-dependent protease La
41	 46.32	0	32795..34126	+	443	78043236	dnaB	CHY_0041	-	replicative DNA helicase
42	 43.89	0	34295..34957	+	220	78044629	-	CHY_0042	-	hypothetical protein
43	 48.20	+1	35012..36067	+	351	78044081	-	CHY_0043	-	putative keto/oxoacid ferredoxin oxidoreductase, alpha subunit
44	 48.12	+1	36081..36824	+	247	78043364	-	CHY_0044	-	putative keto/oxoacid ferredoxin oxidoreductase, beta subunit
45	 49.29	+1	36827..37390	+	187	78043393	-	CHY_0045	-	putative keto/oxoacid ferredoxin oxidoreductase, gamma subunit
46	 53.16	+2	37406..37642	+	78	78044911	-	CHY_0046	-	putative keto/oxoacid ferredoxin oxidoreductase, delta subunit
47	 45.81	0	37724..39238	-	504	78042679	-	CHY_0047	-	serine protease
48	 38.16	0	39312..39518	+	68	78044185	-	CHY_0048	-	hypothetical protein
49	 44.02	0	39554..40882	+	442	78045175	cad	CHY_0049	-	lysine decarboxylase
50	 45.42	0	40882..41493	+	203	78044441	tmk	CHY_0050	-	thymidylate kinase
51	 41.42	0	41486..42289	+	267	78043743	-	CHY_0051	-	putative DNA polymerase III, delta prime subunit
52	 45.82	0	42345..43193	+	282	78042958	-	CHY_0052	-	putative tpl protein
53	 44.54	0	43159..43524	+	121	78042983	-	CHY_0053	-	hypothetical protein
54	 47.87	+1	43493..44242	+	249	78043617	-	CHY_0054	-	hypothetical protein
55	 46.17	0	44242..45051	+	269	78043091	-	CHY_0055	-	hypothetical protein
56	 46.92	+1	45171..46046	+	291	78043675	-	CHY_0056	-	putative osmotically inducible protein
57	 44.56	0	46164..47276	+	370	78044578	-	CHY_0057	-	putative serine protease Do
58	 43.33	0	47337..47816	+	159	78045158	-	CHY_0058	-	hypothetical protein
59	 34.98	-1	48186..49094	-	302	78042746	-	CHY_0059	-	LysR family transcriptional regulator
60	 40.54	0	49465..50865	+	466	78043316	-	CHY_0060	-	anion transporter family protein
61	 39.36	0	50977..51822	+	281	78044230	-	CHY_0061	-	fumarate hydratase
62	 40.90	0	51846..52400	+	184	78043076	-	CHY_0062	-	fumarate hydratase
63	 41.11	0	52405..54114	+	569	78044723	frdA	CHY_0063	-	fumarate reductase, flavoprotein subunit
64	 40.36	0	54115..55068	+	317	78044013	frdB1	CHY_0064	-	fumarate reductase, iron-sulfur subunit
65	 40.28	0	55194..56057	+	287	78043435	-	CHY_0065	-	putative succinate/fumarate oxidoreductase
66	 39.94	0	56176..57432	+	418	78043041	-	CHY_0066	-	hypothetical protein
67	 43.74	0	57665..58933	+	422	78044497	dsdA	CHY_0067	-	D-serine dehydratase
68	 38.40	0	59035..60396	+	453	78044612	-	CHY_0068	-	sodium transporter family protein
69	 34.22	-1	60721..61173	+	150	78044032	-	CHY_0069	-	nucleotidyltransferase domain-containing protein
70	 29.89	-2	61166..61600	+	144	78043071	-	CHY_0070	-	hypothetical protein
71	 43.09	0	61752..61874	+	40	78043490	-	CHY_0071	-	hypothetical protein
72	 43.53	0	61861..62223	+	120	78042932	glnB	CHY_0072	-	nitrogen regulatory protein P-II
73	 44.87	0	62220..63536	+	438	78044978	amt	CHY_0073	-	ammonium transporter
74	 41.03	0	63684..64853	+	389	78043610	-	CHY_0074	-	EAL domain-containing protein
75	 46.67	0	64901..66355	-	484	78043036	-	CHY_0075	-	amino acid carrier protein
76	 42.83	0	66711..67805	+	364	78045094	-	CHY_0076	-	PfkB family kinase
77	 45.25	0	67802..68716	+	304	78044666	-	CHY_0077	-	indigoidine systhesis protein,-like protein
78	 36.99	0	68796..69260	+	154	78043315	-	CHY_0078	-	hypothetical protein
79	 39.24	0	69282..70094	+	270	78042827	-	CHY_0079	-	amidohydrolase family protein
80	 35.43	-1	70160..70588	+	142	78044920	-	CHY_0080	-	nucleotidyltransferase domain-containing protein
81	 25.71	-2	70715..70819	+	34	78044342	-	CHY_0081	-	hypothetical protein
82	 46.89	+1	70812..71261	+	149	78042741	-	CHY_0082	-	universal stress family protein
83	 41.09	0	71306..71692	-	128	78043278	-	CHY_0083	-	putative carbon monoxide oxidation system transcription regulator CooA-2
84	 40.48	0	71950..72117	-	55	78044922	-	CHY_0084	-	hypothetical protein
85	 51.23	+1	72111..74021	-	636	78044574	cooSII	CHY_0085	-	carbon-monoxide dehydrogenase, catalytic subunit
86	 41.15	0	74040..74474	-	144	78045112	cooF1	CHY_0086	-	iron-sulfur cluster-binding protein CooF
87	 25.64	-2	74633..74749	-	38	78044551	-	CHY_0087	-	hypothetical protein
88	 43.32	0	74861..76042	+	393	78044152	-	CHY_0088	-	RND family efflux transporter MFP subunit
89	 43.29	0	76039..76731	+	230	78043038	-	CHY_0089	-	ABC transporter, ATP-binding protein
90	 43.06	0	76742..77944	+	400	78042731	-	CHY_0090	-	ABC transporter, permease protein
91	 39.23	0	77959..79416	+	485	78043258	-	CHY_0091	-	sensor histidine kinase
92	 44.26	0	79413..80117	+	234	78045188	-	CHY_0092	-	DNA-binding response regulator
93	 41.24	0	80149..80325	-	58	78043357	-	CHY_0093	-	hypothetical protein
94	 44.55	0	80332..81240	-	302	78043294	-	CHY_0094	-	SPFH domain-containing protein/band 7 family protein
95	 46.63	0	81616..82743	-	375	78042752	-	CHY_0095	-	iron-sulfur cluster-binding protein
96	 29.03	-2	82826..82918	-	30	78042650	-	CHY_0096	-	hypothetical protein
97	 40.00	0	82973..83872	+	299	78043821	-	CHY_0097	-	radical SAM domain-containing protein
98	 44.06	0	83978..85198	+	406	78042642	-	CHY_0098	-	putative transporter
99	 44.64	0	85120..86331	+	403	78044996	-	CHY_0099	-	putative methylase
100	 30.97	-1	86372..87769	+	465	78044501	-	CHY_0100	-	ATP-binding protein
41.28	MEAN

5.58	STD DEV
