IslandPath Analysis: Campylobacter hominis ATCC BAA-381

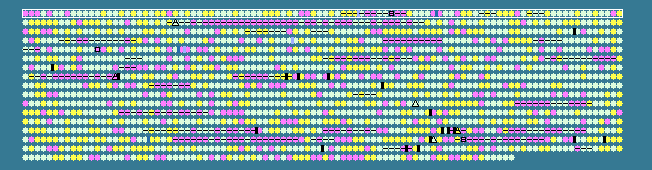

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 31.82   STD DEV: 5.24
Campylobacter hominis ATCC BAA-381, complete genome - 1..1711273
1682 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 28.01	0	1..1314	+	437	154148526	dnaA	CHAB381_0001	-	chromosomal replication initiator protein DnaA
2	 18.70	-2	1311..1433	+	40	154149297	-	CHAB381_0002	-	hypothetical protein
3	 27.26	0	1447..2517	+	356	154148349	dnaN	CHAB381_0003	-	DNA polymerase III subunit beta
4	 33.46	0	2528..4834	+	768	154148768	gyrB	CHAB381_0004	-	DNA gyrase subunit B
5	 24.43	-1	4834..6225	+	463	154148235	-	CHAB381_0005	-	putative diguanylate cyclase/phosphodiesterase
6	 29.91	0	6227..6781	+	184	154148610	-	CHAB381_0006	-	NADPH-dependent 7-cyano-7-deazaguanine reductase (NADPH-dependent nitrile oxidoreductase)
7	 31.20	0	6778..7995	+	405	154148070	-	CHAB381_0007	-	hydrolase
8	 26.90	0	8147..8566	+	139	154148458	-	CHAB381_0008	-	hypothetical protein
9	 33.33	0	8610..9230	-	206	154149206	-	CHAB381_0009	-	Ham1 family protein
10	 32.79	0	9309..10601	+	430	154148436	-	CHAB381_0010	-	multidrug-efflux transporter
11	 32.92	0	10598..11809	+	403	154149154	-	CHAB381_0011	-	molybdopterin binding domain-containing protein
12	 30.81	0	11819..12451	+	210	154149065	-	CHAB381_0012	-	carbonate dehydratase
13	 30.31	0	12448..14496	+	682	154148112	-	CHAB381_0013	-	mechanosensitive ion channel family protein
14	 36.98	0	14483..14674	+	63	154147892	-	CHAB381_0014	-	hypothetical protein
15	 31.55	0	14889..16682	+	597	154149027	-	CHAB381_0015	-	putative 5-methylcytosine-specific restriction enzyme B
16	 31.81	0	16776..18089	+	437	154148587	tig	CHAB381_0016	-	trigger factor
17	 37.41	+1	18089..18676	+	195	154148860	clpP	CHAB381_0017	-	ATP-dependent Clp protease proteolytic subunit
18	 30.23	0	18673..19188	+	171	154149172	def	CHAB381_0018	-	peptide deformylase
19	 36.76	0	19185..20702	+	505	154148439	-	CHAB381_0019	-	putative Mg chelatase-like protein
20	 33.40	0	20699..22171	+	490	154148276	-	CHAB381_0020	-	YjeF-related protein
21	 35.41	0	22153..22731	+	192	154149015	purN	CHAB381_0021	-	phosphoribosylglycinamide formyltransferase
22	 32.43	0	22990..24318	+	442	154148418	-	CHAB381_0022	-	magnesium and cobalt efflux protein CorC
23	 39.01	+1	24346..25191	+	281	154149222	ttdA	CHAB381_0023	-	fumarate hydratase
24	 39.75	+1	25202..25762	+	186	154148686	fumB	CHAB381_0024	-	fumarate hydratase, class I
25	 25.17	-1	26169..26315	+	48	154148001	-	CHAB381_0025	-	hypothetical protein
26	 36.68	0	26381..27097	+	238	154148732	-	CHAB381_0026	-	protein YegH
27	 32.43	0	27130..27573	+	147	154148291	-	CHAB381_0027	-	hypothetical protein
28	 35.85	0	27657..28847	+	396	154149005	nhaA	CHAB381_0028	-	Na+/H+ antiporter NhaA
29	 35.24	0	28834..29304	+	156	154148464	ribH	CHAB381_0029	-	riboflavin synthase subunit beta
30	 35.10	0	29306..29701	+	131	154149182	nusB	CHAB381_0030	-	transcription antitermination protein NusB
31	 35.67	0	29698..30381	+	227	154148641	pyrF	CHAB381_0031	-	orotidine 5'-phosphate decarboxylase
32	 37.39	+1	30524..31336	-	270	154149351	-	CHAB381_0032	-	peptidase M48, Ste24p
33	 34.20	0	31652..32572	-	306	154149040	-	CHAB381_0033	-	auxin efflux carrier (AEC) family protein
34	 34.05	0	32839..33813	-	324	154147873	-	CHAB381_0034	-	putative transporter
35	 32.37	0	33806..34219	-	137	154148901	-	CHAB381_0035	-	putative periplasmic protein
36	 36.52	0	34540..35010	+	156	154148599	moaC	CHAB381_0036	-	molybdenum cofactor biosynthesis protein C
37	 29.59	0	34988..35254	+	88	154149521	-	CHAB381_0037	-	hypothetical protein
38	 29.21	0	35264..36475	+	403	154148408	-	CHAB381_0038	-	hypothetical protein
39	 34.27	0	36540..36752	+	70	154148128	rpsU	CHAB381_0039	-	30S ribosomal protein S21
40	 30.45	0	36847..37470	+	207	154148536	-	CHAB381_0040	-	hypothetical protein
41	 38.29	+1	37787..38371	+	194	154149253	folE	CHAB381_0041	-	GTP cyclohydrolase I
42	 40.97	+1	38443..39633	+	396	154148303	nifS	CHAB381_0042	-	NifS family cysteine desulfurase
43	 39.68	+1	39647..40639	+	330	154148924	-	CHAB381_0043	-	nitrogen fixation protein NifU
44	 28.95	0	41321..41434	-	37	154149259	-	CHAB381_0044	-	hypothetical protein
45	 36.55	0	41881..42813	+	310	154148917	-	CHAB381_0045	-	glycerate dehydrogenase
46	 33.49	0	43307..44581	+	424	154148911	-	CHAB381_0047	-	coproporphyrinogen III oxidase
47	 20.29	-2	44613..44750	-	45	154148429	-	CHAB381_0048	-	hypothetical protein
48	 22.39	-1	44926..45126	+	66	154148240	-	CHAB381_0049	-	hypothetical protein
49	 38.45	+1	45659..46636	-	325	154148301	trpS	CHAB381_0050	-	tryptophanyl-tRNA synthetase
50	 30.16	0	46648..47151	-	167	154149247	-	CHAB381_0051	-	hypothetical protein
51	 32.16	0	47155..47667	-	170	154148531	aroK	CHAB381_0052	-	shikimate kinase
52	 35.43	0	47657..49039	-	460	154149467	-	CHAB381_0053	-	GTP-binding protein EngA
53	 34.68	0	49139..50032	+	297	154148280	-	CHAB381_0054	-	integral membrane protein
54	 40.20	+1	50042..50857	+	271	154148818	kdsA	CHAB381_0055	-	2-dehydro-3-deoxyphosphooctonate aldolase
55	 36.70	0	50992..51258	+	88	154149305	-	CHAB381_0056	-	cytosine-specific methyltransferase NlaX (M.NlaX)
56	 37.62	+1	53815..55026	-	403	154148609	lys1	CHAB381_0061	-	saccharopine dehydrogenase
57	 30.40	0	59435..60526	-	363	154148129	-	CHAB381_0063	-	hypothetical protein
58	 28.22	0	60529..61584	-	351	154147883	-	CHAB381_0064	-	modification methylase EcoRI (adenine-specificmethyltransferase EcoRI) (M.EcoRI)
59	 27.12	0	61595..62689	-	364	154148820	-	CHAB381_0065	-	modification methylase EcoRI (adenine-specificmethyltransferase EcoRI) (M.EcoRI)
60	 32.08	0	63206..63841	+	211	154148044	-	CHAB381_0066	-	hypothetical protein
61	 28.72	0	63950..64621	+	223	154149506	-	CHAB381_0067	-	hypothetical protein
62	 23.40	-1	64738..64878	+	46	154149451	-	CHAB381_0068	-	transposase
63	 25.45	-1	65290..65454	+	54	154148332	-	CHAB381_0069	-	ComE operon protein 1
64	 21.97	-1	65672..65803	-	43	154148412	-	CHAB381_0070	-	hypothetical protein
65	 38.39	+1	66054..68882	-	942	154148692	uvrA	CHAB381_0072	-	excinuclease ABC subunit A
66	 32.14	0	69049..69549	+	166	154149170	-	CHAB381_0073	-	hypothetical protein
67	 30.84	0	69537..70697	+	386	154148346	-	CHAB381_0074	-	hypothetical protein
68	 34.90	0	70699..71337	+	212	154149480	-	CHAB381_0075	-	3-oxoacyl-[acyl-carrier protein] reductase
69	 25.00	-1	71354..71521	+	55	154148564	-	CHAB381_0076	-	hypothetical protein
70	 18.14	-2	75181..75417	+	78	154147977	-	CHAB381_0079	-	hypothetical protein
71	 35.25	0	75446..76747	-	433	154149098	-	CHAB381_0080	-	putative aminotransferase
72	 28.57	0	76759..77682	+	307	154147961	-	CHAB381_0081	-	ATPase
73	 25.79	-1	77849..78007	-	52	154148984	-	CHAB381_0082	-	hypothetical protein
74	 42.31	+2	78002..78313	+	103	154148252	rpsJ	CHAB381_0083	-	30S ribosomal protein S10
75	 36.81	0	78324..78899	+	191	154148794	rplC	CHAB381_0084	-	50S ribosomal protein L3
76	 35.12	0	78896..79510	+	204	154148894	rplD	CHAB381_0085	-	50S ribosomal protein L4
77	 34.40	0	79512..79793	+	93	154148877	rplW	CHAB381_0086	-	50S ribosomal protein L23
78	 37.67	+1	79795..80625	+	276	154147959	rplB	CHAB381_0087	-	50S ribosomal protein L2
79	 32.62	0	80625..80906	+	93	154149120	rpsS	CHAB381_0088	-	30S ribosomal protein S19
80	 36.97	0	80916..81245	+	109	154149283	rplV	CHAB381_0089	-	50S ribosomal protein L22
81	 35.34	0	81248..81943	+	231	154149468	rpsC	CHAB381_0090	-	30S ribosomal protein S3
82	 36.62	0	81946..82371	+	141	154148600	rplP	CHAB381_0091	-	50S ribosomal protein L16
83	 26.88	0	82358..82543	+	61	154149231	rpmC	CHAB381_0092	-	50S ribosomal protein L29
84	 32.94	0	82554..82805	+	83	154148095	rpsQ	CHAB381_0093	-	30S ribosomal protein S17
85	 38.75	+1	82805..83173	+	122	154148791	rplN	CHAB381_0094	-	50S ribosomal protein L14
86	 30.74	0	83173..83403	+	76	154148233	rplX	CHAB381_0095	-	50S ribosomal protein L24
87	 31.32	0	83407..83952	+	181	154148087	-	CHAB381_0096	-	50S ribosomal protein L5
88	 38.17	+1	83954..84139	+	61	154149067	rpsN	CHAB381_0097	-	ribosomal protein S14p/S29e
89	 32.58	0	84149..84544	+	131	154149530	rpsH	CHAB381_0098	-	30S ribosomal protein S8
90	 34.26	0	84620..85156	+	178	154148630	-	CHAB381_0099	-	50S ribosomal protein L6
91	 31.09	0	85166..85522	+	118	154148292	rplR	CHAB381_0100	-	50S ribosomal protein L18
92	 31.97	0	85532..85972	+	146	154148935	rpsE	CHAB381_0101	-	30S ribosomal protein S5
93	 36.32	0	85983..86384	+	133	154148588	rplO	CHAB381_0102	-	50S ribosomal protein L15
94	 33.49	0	86384..87649	+	421	154149113	-	CHAB381_0103	-	preprotein translocase subunit SecY
95	 34.78	0	87649..88407	+	252	154148348	map	CHAB381_0104	-	methionine aminopeptidase
96	 37.55	+1	88404..88877	+	157	154149511	ybaK	CHAB381_0105	-	YbaK/ebsC protein
97	 31.72	0	88904..89521	+	205	154148799	-	CHAB381_0106	-	putative methyl transferase
98	 30.40	0	89982..90800	-	272	154149336	dapF	CHAB381_0107	-	diaminopimelate epimerase
99	 26.57	-1	90775..91380	-	201	154148632	coaE	CHAB381_0108	-	dephospho-CoA kinase
100	 37.70	+1	91454..92437	+	327	154148180	purM	CHAB381_0109	-	phosphoribosylaminoimidazole synthetase
31.82	MEAN

5.24	STD DEV
