IslandPath Analysis: Campylobacter fetus subsp. fetus 82-40

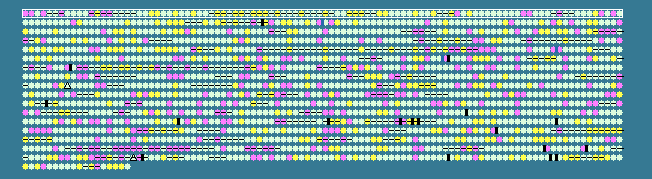

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 33.55   STD DEV: 3.71
Campylobacter fetus subsp. fetus 82-40, complete genome - 1..1773615
1719 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 28.91	-1	1..1311	+	436	118474813	dnaA	CFF8240_0001	-	chromosomal replication initiation protein
2	 25.30	-2	1449..2519	+	356	118475405	dnaN	CFF8240_0002	-	DNA polymerase III subunit beta
3	 32.08	0	2528..4849	+	773	118474635	gyrB	CFF8240_0003	-	DNA gyrase subunit B
4	 22.99	-2	4849..6231	+	460	118475336	-	CFF8240_0004	-	diguanylate cyclase/phosphodiesterase, putative
5	 34.01	0	6234..6674	+	146	118475406	queF	CFF8240_0005	-	7-cyano-7-deazaguanine reductase
6	 34.64	0	6684..7904	+	406	118474660	-	CFF8240_0006	-	hydrolase
7	 28.37	-1	8055..8477	+	140	118474423	-	CFF8240_0007	-	hypothetical protein
8	 34.06	0	8478..10118	-	546	118474252	-	CFF8240_0008	-	flagellar hook protein
9	 35.35	0	10115..10906	-	263	118475635	flgD	CFF8240_0009	-	flagellar basal body rod modification protein
10	 30.15	0	10964..12565	-	533	118474297	-	CFF8240_0010	-	hypothetical protein
11	 32.42	0	12725..13927	+	400	118474563	-	CFF8240_0011	-	Bcr/CflA subfamily drug resistance transporter
12	 26.67	-1	13920..14054	+	44	118474098	-	CFF8240_0012	-	hypothetical protein
13	 41.29	+2	14014..15822	+	602	118474951	typA	CFF8240_0013	-	GTP-binding protein TypA/BipA
14	 27.78	-1	15822..16505	+	227	118475627	-	CFF8240_0014	-	hypothetical protein
15	 28.15	-1	16546..17607	-	353	118474655	-	CFF8240_0015	-	putative helix-turn-helix containsing protein
16	 33.16	0	17615..18184	-	189	118475400	rnhB	CFF8240_0016	-	ribonuclease HII
17	 33.23	0	18177..19154	-	325	118475138	-	CFF8240_0017	-	integral membrane protein
18	 34.06	0	19281..20240	+	319	118474259	-	CFF8240_0018	-	ferric cations import ATP-binding protein FbpC 1
19	 34.76	0	20250..20879	-	209	118474901	-	CFF8240_0019	-	Hsp12 variant C
20	 35.77	0	21001..21945	-	314	118474270	-	CFF8240_0020	-	cation efflux family protein
21	 36.33	0	22265..24334	+	689	118474565	nrdD	CFF8240_0021	-	anaerobic ribonucleoside triphosphate reductase
22	 38.46	+1	24547..25911	+	454	118474748	-	CFF8240_0022	-	putative nicotinate phosphoribosyltransferase
23	 37.04	0	25922..26083	+	53	118474776	-	CFF8240_0023	-	hypothetical protein
24	 32.89	0	26077..26748	+	223	118475730	-	CFF8240_0024	-	anaerobic ribonucleoside-triphosphate reductase activating protein
25	 36.07	0	26797..27345	-	182	118474544	-	CFF8240_0025	-	cytolethal distending toxin A/C family protein
26	 41.20	+2	27345..28145	-	266	118474325	-	CFF8240_0026	-	cytolethal distending toxin
27	 36.98	0	28154..28975	-	273	118475240	-	CFF8240_0027	-	cytolethal distending toxin A
28	 32.92	0	29351..29839	-	162	118474144	-	CFF8240_0028	-	putative transformation system protein
29	 38.71	+1	30007..31029	+	340	118474076	nrdF	CFF8240_0029	-	ribonucleotide-diphosphate reductase subunit beta
30	 35.29	0	31019..31681	+	220	118474993	-	CFF8240_0030	-	nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
31	 35.71	0	31739..32368	+	209	118475384	pcm	CFF8240_0031	-	protein-L-isoaspartate O-methyltransferase
32	 36.10	0	32443..33093	+	216	118474751	-	CFF8240_0032	-	superoxide dismutase(Fe)
33	 40.38	+1	33549..33860	+	103	118475131	rpsJ	CFF8240_0033	-	30S ribosomal protein S10
34	 40.41	+1	33879..34457	+	192	118474609	rplC	CFF8240_0034	-	50S ribosomal protein L3
35	 36.42	0	34454..35068	+	204	118474924	rplD	CFF8240_0035	-	50S ribosomal protein L4
36	 37.23	0	35071..35352	+	93	118474455	rplW	CFF8240_0036	-	50S ribosomal protein L23
37	 39.47	+1	35354..36184	+	276	118474857	rplB	CFF8240_0037	-	50S ribosomal protein L2
38	 35.82	0	36187..36468	+	93	118474223	rpsS	CFF8240_0038	-	30S ribosomal protein S19
39	 39.64	+1	36478..36810	+	110	118475310	rplV	CFF8240_0039	-	50S ribosomal protein L22
40	 39.63	+1	36812..37510	+	232	118474301	rpsC	CFF8240_0040	-	30S ribosomal protein S3
41	 38.03	+1	37513..37938	+	141	118475204	rplP	CFF8240_0041	-	50S ribosomal protein L16
42	 32.80	0	37925..38110	+	61	118474438	rpmC	CFF8240_0042	-	50S ribosomal protein L29
43	 37.21	0	38121..38378	+	85	118475461	rpsQ	CFF8240_0043	-	30S ribosomal protein S17
44	 36.86	0	38378..38746	+	122	118475201	rplN	CFF8240_0044	-	50S ribosomal protein L14
45	 35.04	0	38746..38979	+	77	118475687	rplX	CFF8240_0045	-	50S ribosomal protein L24
46	 35.36	0	38982..39524	+	180	118474581	rplE	CFF8240_0046	-	50S ribosomal protein L5
47	 38.71	+1	39526..39711	+	61	118474752	rpsN	CFF8240_0047	-	30S ribosomal protein S14
48	 35.10	0	39722..40117	+	131	118475769	rpsH	CFF8240_0048	-	30S ribosomal protein S8
49	 36.50	0	40239..40775	+	178	118475079	rplF	CFF8240_0049	-	50S ribosomal protein L6
50	 35.85	0	40785..41141	+	118	118475606	rplR	CFF8240_0050	-	50S ribosomal protein L18
51	 38.51	+1	41156..41599	+	147	118475155	rpsE	CFF8240_0051	-	30S ribosomal protein S5
52	 36.32	0	41609..42010	+	133	118474217	rplO	CFF8240_0052	-	50S ribosomal protein L15
53	 35.39	0	42010..43272	+	420	118474381	secY	CFF8240_0053	-	preprotein translocase subunit SecY
54	 35.97	0	43274..44032	+	252	118475152	map	CFF8240_0054	-	methionine aminopeptidase
55	 38.36	+1	44281..44499	+	72	118474616	infA	CFF8240_0055	-	translation initiation factor IF-1
56	 38.21	+1	44776..45144	+	122	118475454	rpsM	CFF8240_0056	-	30S ribosomal protein S13
57	 39.44	+1	45154..45546	+	130	118474117	rpsK	CFF8240_0057	-	30S ribosomal protein S11
58	 36.20	0	45574..46200	+	208	118474712	rpsD	CFF8240_0058	-	30S ribosomal protein S4
59	 34.73	0	46213..47211	+	332	118475267	rpoA	CFF8240_0059	-	DNA-directed RNA polymerase subunit alpha
60	 39.22	+1	47230..47586	+	118	118474282	rplQ	CFF8240_0060	-	50S ribosomal protein L17
61	 39.33	+1	47811..48077	+	88	118475450	-	CFF8240_0061	-	NifU family protein
62	 30.78	0	48067..48615	+	182	118474868	-	CFF8240_0062	-	hypothetical protein
63	 34.11	0	48596..49885	+	429	118475066	murE	CFF8240_0063	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
64	 33.62	0	49905..50252	+	115	118474436	panD	CFF8240_0064	-	aspartate alpha-decarboxylase
65	 32.91	0	50740..52386	+	548	118474988	-	CFF8240_0065	-	methyl-accepting chemotaxis protein
66	 38.78	+1	52452..52763	+	103	118474266	-	CFF8240_0066	-	hypothetical protein
67	 32.31	0	52765..53841	+	358	118474184	-	CFF8240_0067	-	PDZ domain-containing protein
68	 35.97	0	53838..54671	+	277	118475576	-	CFF8240_0068	-	geranyltranstransferase
69	 38.43	+1	54677..56578	+	633	118475100	tkt	CFF8240_0069	-	transketolase
70	 36.78	0	56727..58175	+	482	118474863	-	CFF8240_0070	-	aldehyde dehydrogenase A
71	 35.32	0	58286..58486	-	66	118475652	-	CFF8240_0071	-	hypothetical protein
72	 40.21	+1	58470..60548	-	692	118475482	-	CFF8240_0072	-	carbon starvation protein A
73	 29.35	-1	60741..60941	+	66	118474422	thiS	CFF8240_0073	-	thiamine biosynthesis protein ThiS
74	 32.91	0	61168..61881	+	237	118475169	thiF	CFF8240_0074	-	thiamine biosynthesis protein ThiF
75	 38.32	+1	61874..62635	+	253	118474167	thiG	CFF8240_0075	-	thiazole synthase
76	 36.35	0	62657..63817	+	386	118474071	thiH	CFF8240_0076	-	thiamine biosynthesis protein ThiH
77	 33.82	0	63867..64484	-	205	118475029	-	CFF8240_0077	-	hypothetical protein
78	 36.94	0	64560..65390	+	276	118474242	galU	CFF8240_0078	-	UTP-glucose-1-phosphate uridylyltransferase
79	 33.75	0	65377..66582	+	401	118474952	pgi	CFF8240_0079	-	glucose-6-phosphate isomerase
80	 34.93	0	66787..67224	+	145	118475381	-	CFF8240_0080	-	starvation-inducible DNA-binding protein Dps
81	 32.28	0	67285..67851	-	188	118475197	-	CFF8240_0081	-	YceI
82	 30.97	0	68014..68394	-	126	118474631	-	CFF8240_0082	-	HIT family protein
83	 33.17	0	68391..69002	-	203	118475385	bioD	CFF8240_0083	-	dethiobiotin synthase
84	 25.51	-2	68999..69688	-	229	118474058	-	CFF8240_0084	-	putative biotin synthesis protein
85	 27.97	-1	69678..70292	-	204	118475704	-	CFF8240_0085	-	hypothetical protein
86	 32.61	0	70273..71379	-	368	118474862	-	CFF8240_0086	-	8-amino-7-oxononanoate synthase
87	 36.41	0	71548..71970	+	140	118475568	-	CFF8240_0087	-	hypothetical protein
88	 33.94	0	71949..72767	+	272	118475686	thiL	CFF8240_0088	-	thiamine monophosphate kinase
89	 33.16	0	72745..73878	+	377	118474715	truD	CFF8240_0089	-	tRNA pseudouridine synthase D
90	 29.03	-1	74353..74538	-	61	118474193	-	CFF8240_0090	-	hypothetical protein
91	 35.38	0	74552..74941	-	129	118474829	fliS	CFF8240_0091	-	flagellar protein FliS
92	 33.17	0	74952..76775	-	607	118474377	-	CFF8240_0092	-	flagellar capping protein
93	 33.60	0	76779..77159	-	126	118475281	-	CFF8240_0093	-	flagellar protein FlaG
94	 31.90	0	77281..77628	+	115	118474478	-	CFF8240_0094	-	hypothetical protein
95	 33.16	0	77612..78193	+	193	118475452	-	CFF8240_0095	-	putative methyltransferase
96	 37.90	+1	78255..79304	+	349	118475075	flgI	CFF8240_0096	-	flagellar basal body P-ring protein
97	 28.33	-1	79305..79604	+	99	118475721	-	CFF8240_0097	-	hypothetical protein
98	 32.84	0	79661..79864	+	67	118475047	-	CFF8240_0098	-	hypothetical protein
99	 29.66	-1	79904..80338	+	144	118474060	-	CFF8240_0099	-	hypothetical protein
100	 33.93	0	80340..82193	+	617	118474675	flgK	CFF8240_0100	-	flagellar hook-associated protein FlgK
33.55	MEAN

3.71	STD DEV
