IslandPathversion 1.0

IslandPath Analysis: Campylobacter concisus 13826

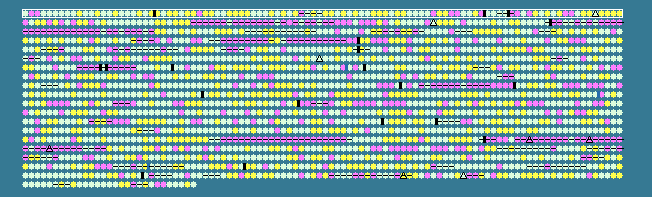

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.18 STD DEV: 5.26
Campylobacter concisus 13826, complete genome - 1..2052007
1929 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 38.83	0	1..1311	+	436	157165209	dnaA	CCC13826_1853	-	chromosomal replication initiation protein
2	 28.57	-2	1319..1465	+	48	157164664	-	CCC13826_1852	-	hypothetical protein
3	 32.96	-1	1465..2532	+	355	157164122	dnaN	CCC13826_1851	-	DNA polymerase III subunit beta
4	 40.87	0	2550..4859	+	769	157165358	gyrB	CCC13826_1850	-	DNA gyrase subunit B
5	 38.69	0	4878..5474	+	198	157165026	-	CCC13826_1849	-	response regulator
6	 39.97	0	5474..6709	+	411	157164264	-	CCC13826_1848	-	hypothetical protein
7	 37.01	0	6907..7341	+	144	157163969	-	CCC13826_1847	-	hypothetical protein
8	 38.57	0	7624..8043	-	139	157165170	-	CCC13826_1846	-	RDD family protein
9	 41.82	0	8045..8209	-	54	157164618	-	CCC13826_1845	-	hypothetical protein
10	 46.44	+1	8277..9260	-	327	157164168	purM	CCC13826_1844	-	phosphoribosylaminoimidazole synthetase
11	 38.97	0	9340..9942	+	200	157164538	coaE	CCC13826_1842	-	dephospho-CoA kinase
12	 39.29	0	9932..10552	-	206	157165577	thiD	CCC13826_1843	-	phosphomethylpyrimidine kinase
13	 45.43	+1	10628..11371	+	247	157163987	dapF	CCC13826_1841	-	diaminopimelate epimerase
14	 37.54	0	11782..12138	-	118	157163866	rplT	CCC13826_1840	-	50S ribosomal protein L20
15	 42.19	0	12237..12428	-	63	157165502	rpmI	CCC13826_1839	-	50S ribosomal protein L35
16	 42.75	0	12630..14126	+	498	157165243	-	CCC13826_1838	-	S-layer-RTX protein
17	 35.71	0	14162..14287	-	41	157164406	-	CCC13826_2207	-	hypothetical protein
18	 40.00	0	14345..14494	+	49	157164597	amyH	CCC13826_1837	-	large repetitive protein
19	 38.56	0	16954..17412	+	152	157165050	-	CCC13826_1835	-	hypothetical protein
20	 46.44	+1	17417..18301	+	294	157165493	-	CCC13826_1834	-	putative DNA-binding protein II
21	 41.99	0	19366..20070	-	234	157165304	-	CCC13826_1831	-	NapC/NirT cytochrome c family, N- region
22	 44.14	0	20067..20501	-	144	157164892	-	CCC13826_1830	-	flavocytochrome c heme subunit
23	 45.45	+1	22403..23821	-	472	157164089	azlD	CCC13826_1827	-	branched-chain amino acid transport protein
24	 38.95	0	23910..24425	-	171	157164496	-	CCC13826_1826	-	hypothetical protein
25	 44.56	+1	24466..25650	-	394	157165173	-	CCC13826_1825	-	recombination factor protein RarA
26	 43.31	0	25653..26183	-	176	157164605	-	CCC13826_1824	-	hypothetical protein
27	 39.12	0	26263..26556	+	97	157165279	-	CCC13826_1823	-	hypothetical protein
28	 44.73	+1	26558..27250	-	230	157165679	ung	CCC13826_1822	-	uracil-DNA glycosylase
29	 43.58	0	27313..27888	+	191	157164521	-	CCC13826_1821	-	YbaK/prolyl-tRNA synthetases associated domain-containing protein
30	 22.50	-2	28111..28230	-	39	157164817	-	CCC13826_1820	-	hypothetical protein
31	 44.43	0	28230..30050	+	606	157165430	thrS	CCC13826_1819	-	threonyl-tRNA synthetase
32	 43.37	0	30068..30565	+	165	157164257	infC	CCC13826_1818	-	translation initiation factor IF-3
33	 40.32	0	31050..31235	-	61	157164795	-	CCC13826_1817	-	hypothetical protein
34	 38.67	0	31250..31474	+	74	157165132	-	CCC13826_1816	-	multifunctional CCA protein
35	 50.04	+2	31623..32981	-	452	157163997	-	CCC13826_1815	-	glutamate dehydrogenase
36	 44.68	+1	33151..33723	-	190	157164219	-	CCC13826_1814	-	endonuclease/exonuclease/phosphatase
37	 45.38	+1	33823..34752	+	309	157165636	-	CCC13826_1813	-	PQQ repeat-containing protein
38	 45.97	+1	34793..36232	-	479	157165069	-	CCC13826_1812	-	acetyl-CoA carboxylase
39	 40.84	0	36349..36894	-	181	157164444	-	CCC13826_1811	-	hypothetical protein
40	 36.64	0	37348..37710	-	120	157165440	-	CCC13826_1809	-	TM2
41	 39.29	0	37700..38152	-	150	157165011	lspA	CCC13826_1808	-	lipoprotein signal peptidase
42	 42.88	0	38145..39485	-	446	157164280	glmM	CCC13826_1807	-	phosphoglucosamine mutase
43	 37.41	0	39643..39912	+	89	157165436	rpsT	CCC13826_1806	-	30S ribosomal protein S20
44	 43.63	0	39927..40994	+	355	157165147	prfA	CCC13826_1805	-	peptide chain release factor 1
45	 38.57	0	41306..41725	+	139	157164064	-	CCC13826_1804	-	ModE family transcriptional regulator
46	 46.55	+1	42087..43652	+	521	157164095	-	CCC13826_1803	-	FAD binding domain-containing protein
47	 32.48	-1	43679..43912	-	77	157165631	-	CCC13826_1802	-	hypothetical protein
48	 40.71	0	43903..44268	-	121	157165215	-	CCC13826_1801	-	diacylglycerol kinase (dagk; diglyceride kinase; dgk)
49	 45.59	+1	44323..45081	+	252	157164085	xth	CCC13826_1799	-	exodeoxyribonuclease III
50	 41.58	0	45078..45635	-	185	157164761	ftsI	CCC13826_1800	-	cell division protein
51	 42.80	0	45744..46493	+	249	157165387	-	CCC13826_1798	-	hypothetical protein
52	 43.00	0	46490..47368	+	292	157164508	-	CCC13826_1796	-	permeases of the drug/metabolite transporter
53	 40.63	0	47365..48090	-	241	157165657	flgB	CCC13826_1797	-	flagellar basal-body rod protein
54	 45.04	+1	48137..48529	+	130	157165152	-	CCC13826_1794	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
55	 40.00	0	48520..48894	-	124	157164717	-	CCC13826_1795	-	SsrA-binding protein
56	 43.56	0	49025..49933	+	302	157165776	-	CCC13826_1793	-	putative carbon storage regulator-like protein
57	 40.36	0	49936..51429	+	497	157164262	-	CCC13826_1792	-	tRNA pseudouridine synthase B
58	 39.59	0	51426..52208	+	260	157164968	pcrA	CCC13826_1791	-	ATP-dependent DNA helicase PcrA
59	 43.37	0	52218..53024	+	268	157164381	pepF	CCC13826_1789	-	oligoendopeptidase F
60	 44.82	+1	53005..54336	-	443	157163861	-	CCC13826_1790	-	hypothetical protein
61	 43.80	0	54736..55461	-	241	157165761	-	CCC13826_1787	-	S-adenosylmethionine synthetase (methionineadenosyltransferase; AdoMet synthetase; MAT)
62	 40.61	0	55454..56044	-	196	157165734	purN	CCC13826_1786	-	phosphoribosylglycinamide formyltransferase
63	 45.16	+1	56026..57429	-	467	157164112	-	CCC13826_1785	-	preprotein translocase, YajC subunit
64	 44.95	+1	57431..58936	-	501	157164155	-	CCC13826_1784	-	putative Mg chelatase-like protein
65	 38.54	0	58933..59451	-	172	157165463	def	CCC13826_1783	-	peptide deformylase
66	 41.62	0	59453..60490	-	345	157165307	-	CCC13826_1782	-	diguanylate cyclase
67	 42.30	0	60499..61089	-	196	157164595	clpP	CCC13826_1781	-	ATP-dependent Clp protease proteolytic subunit
68	 40.02	0	61089..62420	-	443	157165093	tig	CCC13826_1780	-	trigger factor
69	 25.45	-2	62410..62574	+	54	157164771	-	CCC13826_1779	-	GGDEF domain-containing protein
70	 45.55	+1	62558..63130	+	190	157164234	folE	CCC13826_1778	-	GTP cyclohydrolase I
71	 49.77	+2	63127..64434	+	435	157163914	fliI	CCC13826_1777	-	flagellum-specific ATP synthase
72	 30.93	-1	64467..65132	-	221	157165541	-	CCC13826_1776	-	ATPase
73	 33.61	-1	65129..66202	-	357	157164868	-	CCC13826_1775	-	endonuclease III
74	 39.70	0	66218..67960	-	580	157164483	cysK	CCC13826_1774	-	cysteine synthase A
75	 42.57	0	67960..69627	-	555	157164072	cysE	CCC13826_1773	-	acyl-CoA synthetase
76	 42.83	0	69636..70877	-	413	157165373	-	CCC13826_1772	-	outer membrane protein transport protein (ompp1/fadl/todx)
77	 31.00	-1	71722..72192	-	156	157164416	-	CCC13826_1105	-	hypothetical protein
78	 37.97	0	72544..74961	-	805	157163903	-	CCC13826_1107	-	mechanosensitive ion channel family protein
79	 37.62	0	74954..75817	-	287	157165555	-	CCC13826_1108	-	cytochrome c551 peroxidase (cytochrome cperoxidase; CCP)
80	 37.66	0	75965..76426	+	153	157164654	-	CCC13826_1109	-	hypothetical protein
81	 38.22	0	76552..77022	+	156	157165742	-	CCC13826_1110	-	N-terminal methylation domain-containing protein
82	 17.46	-2	77673..77798	+	41	157165251	-	CCC13826_1116	-	putative ABC transport system periplasmic substrate-binding protein
83	 31.88	-1	78363..78500	+	45	157164631	-	CCC13826_1117	-	ABC transporter ATP-binding protein
84	 36.67	0	78666..78785	-	39	157164947	-	CCC13826_2215	-	hypothetical protein
85	 35.19	0	78775..78936	-	53	157165370	-	CCC13826_1118	-	hypothetical protein
86	 45.50	+1	79367..81808	-	813	157164059	-	CCC13826_1119	-	hypothetical protein
87	 41.40	0	81829..82398	-	189	157163976	-	CCC13826_1120	-	putative cytochrome c-type haem-binding periplasmic protein
88	 42.80	0	84172..84879	-	235	157165774	-	CCC13826_1122	-	flagellar basal body rod modification protein
89	 39.40	0	84888..86288	-	466	157164274	hydD	CCC13826_1123	-	quinone-reactive Ni/Fe hydrogenase
90	 46.70	+1	86450..88252	+	600	157165061	typA	CCC13826_1124	-	GTP-binding protein TypA/BipA
91	 30.41	-1	88335..88505	-	56	157165446	hydB	CCC13826_1125	-	quinone-reactive Ni/Fe hydrogenase, large subunit
92	 28.68	-1	88800..88928	-	42	157164248	hydA	CCC13826_1126	-	quinone-reactive Ni/Fe hydrogenase, small subunit
93	 38.30	0	89151..89573	-	140	157165549	-	CCC13826_1127	-	hypothetical protein
94	 47.29	+1	89551..90453	-	300	157165095	-	CCC13826_1128	-	phosphate acetyltransferase (phosphotransacetylase)
95	 47.05	+1	90459..91136	-	225	157164788	-	CCC13826_1129	-	lipoprotein
96	 42.47	0	91126..91530	-	134	157164365	xerC	CCC13826_1130	-	integrase/recombinase
97	 44.39	0	91515..92183	-	222	157165672	-	CCC13826_1131	-	curli production assembly/transport component CsgG subfamily protein
98	 46.16	+1	92228..93568	-	446	157165272	-	CCC13826_1132	-	mate efflux family protein
99	 43.85	0	93720..94499	+	259	157164998	-	CCC13826_1133	-	putative CoA-substrate-specific enzyme activase, putative
100	 46.20	+1	94486..95643	+	385	157164669	murF	CCC13826_1134	-	UDP-MurNac-pentapeptide presynthetase
39.18	MEAN

5.26	STD DEV
