IslandPath Analysis: Burkholderia xenovorans LB400

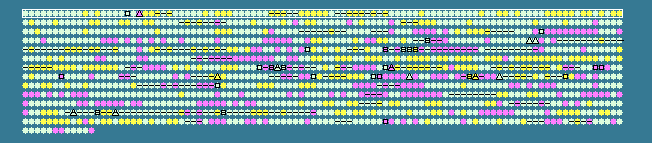

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).



No RNA data available

A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 61.84   STD DEV: 4.19
Burkholderia xenovorans LB400 chromosome 3, complete genome - 1..1471779
1312 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 63.53	0	477..1370	+	297	91780072	-	Bxe_C0001	-	hypothetical protein
2	 65.07	0	1472..2221	+	249	91780073	-	Bxe_C0002	-	hypothetical protein
3	 58.87	0	2190..2561	-	123	91780074	-	Bxe_C0003	-	hypothetical protein
4	 63.82	0	2708..6364	+	1218	91780075	-	Bxe_C0004	-	5-oxoprolinase (ATP-hydrolyzing)
5	 63.74	0	6440..7225	+	261	91780076	-	Bxe_C0005	-	hypothetical protein
6	 61.65	0	7222..8178	+	318	91780077	-	Bxe_C0006	-	hypothetical protein
7	 60.21	0	8232..9206	+	324	91780078	-	Bxe_C0007	-	LysR family transcriptional regulator
8	 59.74	0	9459..10556	+	365	91780079	-	Bxe_C0008	-	OmpC family outer membrane porin
9	 62.70	0	10717..12252	+	511	91780080	-	Bxe_C0009	-	methyl-accepting chemotaxis sensory transducer
10	 63.02	0	12370..13275	-	301	91780081	-	Bxe_C0010	-	LysR family transcriptional regulator
11	 68.09	+1	13396..14238	+	280	91780082	-	Bxe_C0011	-	hypothetical protein
12	 63.39	0	14332..15093	+	253	91780083	-	Bxe_C0012	-	putative short-chain dehydrogenase
13	 65.38	0	15595..17154	+	519	91780084	-	Bxe_C0013	-	putative monooxygenase
14	 64.54	0	17726..20269	+	847	91780085	-	Bxe_C0015	-	diguanylate cyclase/phosphodiesterase with PAS/PAC sensor(s)
15	 63.33	0	20514..21803	+	429	91780086	-	Bxe_C0016	-	hypothetical protein
16	 62.28	0	21847..22848	-	333	91780087	-	Bxe_C0017	-	response regulator receiver domain-containing protein
17	 59.59	0	22851..24080	-	409	91780088	-	Bxe_C0018	-	seriplasmic sensor signal transduction histidine kinase
18	 61.68	0	24930..26252	+	440	91780089	-	Bxe_C0019	-	putative transposase
19	 63.50	0	26316..27263	+	315	91780090	-	Bxe_C0020	-	hypothetical protein
20	 57.36	-1	27563..28561	-	332	91780091	-	Bxe_C0021	-	putative integrase
21	 67.02	+1	28889..29749	+	286	91780092	-	Bxe_C0022	-	hypothetical protein
22	 65.35	0	30007..30768	-	253	91780093	-	Bxe_C0023	-	hypothetical protein
23	 71.99	+2	30904..32124	+	406	91780094	-	Bxe_C0024	-	hypothetical protein
24	 62.88	0	32134..32820	+	228	91780095	-	Bxe_C0025	-	hypothetical protein
25	 66.29	+1	33148..33414	+	88	91780096	-	Bxe_C0026	-	hypothetical protein
26	 63.00	0	33416..34015	+	199	91780097	-	Bxe_C0027	-	hypothetical protein
27	 61.69	0	34233..35036	-	267	91780098	-	Bxe_C0028	-	CO metabolism transcriptional regulator RcoM2
28	 65.28	0	35467..36333	+	288	91780099	-	Bxe_C0029	-	carbon monoxide dehydrogenase, medium subunit
29	 60.15	0	36380..36901	+	173	91780100	-	Bxe_C0030	-	carbon monoxide dehydrogenase, small subunit
30	 63.89	0	36918..39329	+	803	91780101	coxL	Bxe_C0031	-	carbon monoxide dehydrogenase, large subunit apoprotein
31	 68.28	+1	39430..40050	+	206	91780102	-	Bxe_C0032	-	putative carbon monoxide dehydrogenase, CoxG subunit
32	 62.30	0	40066..40959	+	297	91780103	-	Bxe_C0033	-	putative ATPase
33	 70.74	+2	40953..42155	+	400	91780104	-	Bxe_C0034	-	putative carbon monoxide dehydrogenase, CoxE subunit
34	 67.82	+1	42166..43206	+	346	91780105	-	Bxe_C0035	-	sulfurylase large subunit, molybdopterin cytosine dinucleotide biosynthesis / sulfurylase small subunit, molybdopterin cytosine dinucleotide biosynthesis
35	 66.08	+1	43203..43880	+	225	91780106	-	Bxe_C0036	-	molybdenum cofactor cytidylyltransferase
36	 63.54	0	43906..44289	-	127	91780107	-	Bxe_C0037	-	hypothetical protein
37	 61.03	0	44434..45498	-	354	91780108	-	Bxe_C0038	-	high-affinity nickel transporter
38	 63.18	0	45639..46097	+	152	91780109	-	Bxe_C0039	-	CopG family transcriptional regulator
39	 64.55	0	46310..46687	+	125	91780110	-	Bxe_C0040	-	hypothetical protein
40	 64.52	0	46777..49242	+	821	91780111	-	Bxe_C0041	-	putative TonB-dependent siderophore receptor
41	 64.32	0	49331..50182	-	283	91780112	-	Bxe_C0042	-	H+-transporting two-sector ATPase, gamma subunit
42	 68.24	+1	50251..51843	-	530	91780113	-	Bxe_C0043	-	ATP synthase F1, alpha subunit
43	 70.28	+2	51824..52570	-	248	91780114	-	Bxe_C0044	-	H+-transporting two-sector ATPase, B/B' subunit
44	 65.86	0	52584..52832	-	82	91780115	-	Bxe_C0045	-	F0F1 ATP synthase subunit C
45	 63.93	0	52829..53596	-	255	91780116	-	Bxe_C0046	-	F0F1 ATP synthase subunit A
46	 64.42	0	53801..54112	-	103	91780117	-	Bxe_C0047	-	putative ATP synthesis-related protein
47	 67.38	+1	54109..54528	-	139	91780118	-	Bxe_C0048	-	F0F1 ATP synthase subunit epsilon
48	 69.50	+1	54525..56006	-	493	91780119	-	Bxe_C0049	-	F0F1 ATP synthase subunit beta
49	 65.76	0	56010..56783	-	257	91780120	-	Bxe_C0050	-	enoyl-(acyl carrier protein) reductase
50	 66.42	+1	56780..57973	-	397	91780121	-	Bxe_C0051	-	acetate kinase
51	 66.74	+1	57970..59376	-	468	91780122	-	Bxe_C0052	-	bifunctional enoyl-CoA hydratase/phosphate acetyltransferase
52	 65.11	0	59386..61182	-	598	91780123	-	Bxe_C0053	-	putative poly-beta-hydroxybutyrate polymerase
53	 59.11	0	61363..61746	-	127	91780124	-	Bxe_C0054	-	hypothetical protein
54	 64.52	0	61778..63175	+	465	91780125	-	Bxe_C0055	-	GntR family transcriptional regulator
55	 66.67	+1	63364..64398	+	344	91780126	-	Bxe_C0056	-	threonine dehydratase
56	 68.46	+1	64395..65396	+	333	91780127	-	Bxe_C0057	-	ornithine cyclodeaminase
57	 67.05	+1	65505..66554	+	349	91780128	-	Bxe_C0058	-	hypothetical protein
58	 62.40	0	66564..67055	+	163	91780129	-	Bxe_C0059	-	AsnC family transcriptional regulator
59	 67.06	+1	67198..68721	+	507	91780130	-	Bxe_C0060	-	succinate semialdehyde dehydrogenase
60	 62.80	0	68762..70159	+	465	91780131	-	Bxe_C0061	-	hypothetical protein
61	 66.39	+1	70323..71417	-	364	91780132	-	Bxe_C0062	-	putative Zinc-binding dehydrogenase
62	 63.06	0	71489..72709	-	406	91780133	-	Bxe_C0063	-	putative peptidase
63	 61.83	0	73245..74030	+	261	91780134	-	Bxe_C0064	-	polar amino acid ABC transporter ATPase
64	 65.01	0	74087..74929	+	280	91780135	-	Bxe_C0065	-	polar amino acid ABC transporter periplasmic ligand-binding protein
65	 63.18	0	75004..75663	+	219	91780136	-	Bxe_C0066	-	polar amino acid ABC transporter inner membrane protein
66	 61.67	0	75668..76327	+	219	91780137	-	Bxe_C0067	-	polar amino acid ABC transporter inner membrane protein
67	 66.54	+1	76331..77110	+	259	91780138	-	Bxe_C0068	-	putative isomerase
68	 59.94	0	77191..78528	+	445	91780139	-	Bxe_C0069	-	major facilitator superfamily metabolite/H(+) symporter
69	 60.53	0	78946..79629	+	227	91780140	-	Bxe_C0070	-	hypothetical protein
70	 63.39	0	80250..81956	-	568	91780141	-	Bxe_C0072	-	GAF sensor hybrid histidine kinase
71	 62.30	0	82059..82310	-	83	91780142	-	Bxe_C0073	-	hypothetical protein
72	 61.37	0	82361..82870	+	169	91780143	-	Bxe_C0074	-	hypothetical protein
73	 61.32	0	82954..84057	+	367	91780144	-	Bxe_C0075	-	hypothetical protein
74	 60.51	0	84153..85403	+	416	91780145	-	Bxe_C0076	-	putative phosphatidylserine decarboxylase
75	 61.39	0	85507..86643	-	378	91780146	-	Bxe_C0077	-	putative glutathione-independent formaldehyde dehydrogenase
76	 65.30	0	86964..87917	+	317	91780147	-	Bxe_C0078	-	putative Zinc-binding dehydrogenase
77	 66.96	+1	88074..89102	+	342	91780148	-	Bxe_C0079	-	putative cytochrome c oxidase subunit II
78	 64.22	0	89132..91174	+	680	91780149	-	Bxe_C0080	-	putative cytochrome c oxidase subunit I
79	 61.16	0	91176..91829	+	217	91780150	-	Bxe_C0081	-	putative cytochrome c oxidase subunit III
80	 67.84	+1	91814..92239	+	141	91780151	-	Bxe_C0082	-	hypothetical protein
81	 67.72	+1	92242..93663	+	473	91780152	-	Bxe_C0083	-	putative alcohol dehydrogenase cytochrome c subunit
82	 63.44	0	93861..96155	-	764	91780153	-	Bxe_C0084	-	oxidoreductase alpha (molybdopterin) subunit
83	 67.14	+1	96282..97133	-	283	91780154	-	Bxe_C0085	-	taurine ABC transporter inner membrane protein
84	 64.91	0	97130..97924	-	264	91780155	-	Bxe_C0086	-	ABC taurine transporter, ATPase subunit
85	 64.71	0	97921..98943	-	340	91780156	-	Bxe_C0087	-	ABC taurine transporter, periplasmic ligand binding protein
86	 62.33	0	99417..100823	+	468	91780157	-	Bxe_C0088	-	putative selenium binding protein
87	 65.04	0	100820..101497	+	225	91780158	-	Bxe_C0089	-	hypothetical protein
88	 65.74	0	101700..102887	-	395	91780159	-	Bxe_C0090	-	branched chain amino acid ABC transporter periplasmic ligand-binding protein
89	 65.80	0	103004..103579	-	191	91780160	-	Bxe_C0091	-	alkylhydroperoxidase-related
90	 69.47	+1	103576..104145	-	189	91780161	-	Bxe_C0092	-	hypothetical protein
91	 66.87	+1	104198..105694	-	498	91780162	-	Bxe_C0093	-	putative oxidoreductase
92	 67.28	+1	105691..106671	-	326	91780163	-	Bxe_C0094	-	LysR family transcriptional regulator
93	 64.17	0	107022..108221	+	399	91780164	-	Bxe_C0095	-	branched chain amino acid ABC transporter periplasmic ligand-binding protein
94	 66.28	+1	108268..110091	+	607	91780165	-	Bxe_C0096	-	branched chain amino acid ABC transporter inner membrane protein
95	 67.22	+1	110102..111010	+	302	91780166	-	Bxe_C0097	-	branched chain amino acid ABC transporter ATPase
96	 63.88	0	111007..111795	+	262	91780167	-	Bxe_C0098	-	branched chain amino acid ABC transporter ATPase
97	 67.27	+1	111916..112749	-	277	91780168	-	Bxe_C0099	-	nitrate/nitrite/cyanate ABC transporter inner membrane protein
98	 63.73	0	112742..113932	-	396	91780169	-	Bxe_C0100	-	nitrate/nitrite/cyanate ABC transporter periplasmic ligand-binding protein
99	 68.05	+1	113948..114742	-	264	91780170	-	Bxe_C0101	-	nitrate/nitrite/cyanate ABC transporter ATPase
100	 69.02	+1	114739..115842	-	367	91780171	-	Bxe_C0102	-	putative acyl-CoA dehydrogenase
61.84	MEAN

4.19	STD DEV
