IslandPathversion 1.0

IslandPath Analysis: Burkholderia vietnamiensis G4

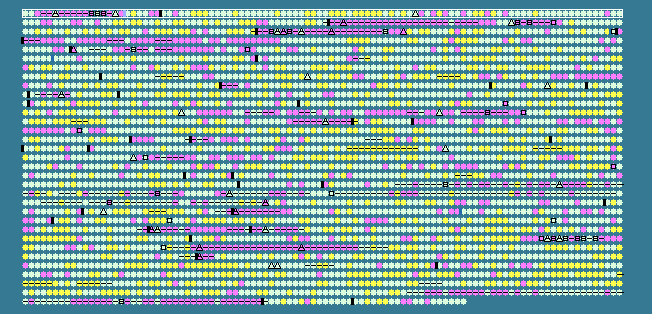

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.40 STD DEV: 5.53
Burkholderia vietnamiensis G4 chromosome 1, complete sequence - 1..3652814
3274 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 66.03	0	294..1871	+	525	134294129	dnaA	Bcep1808_0001	-	chromosomal replication initiation protein
2	 64.32	0	2040..3146	+	368	134294130	-	Bcep1808_0002	-	DNA polymerase III subunit beta
3	 62.26	0	3340..5814	+	824	134294131	gyrB	Bcep1808_0003	-	DNA gyrase subunit B
4	 60.45	-1	6157..9279	-	1040	134294132	-	Bcep1808_0004	-	HsdR family type I site-specific deoxyribonuclease
5	 52.43	-2	9276..10223	-	315	134294133	-	Bcep1808_0005	-	hypothetical protein
6	 65.45	0	11102..12658	+	518	134294134	-	Bcep1808_0007	-	integrase catalytic subunit
7	 62.27	0	12675..13424	+	249	134294135	-	Bcep1808_0008	-	IstB ATP binding domain-containing protein
8	 60.62	-1	14191..15777	-	528	134294136	-	Bcep1808_0009	-	N-6 DNA methylase
9	 60.93	0	16111..16389	-	92	134294137	-	Bcep1808_0010	-	hypothetical protein
10	 62.65	0	16644..17414	+	256	134294138	-	Bcep1808_0011	-	hypothetical protein
11	 57.70	-1	17414..18160	+	248	134294139	-	Bcep1808_0012	-	hypothetical protein
12	 62.70	0	18956..20191	+	411	134294140	-	Bcep1808_0015	-	transposase IS116/IS110/IS902 family protein
13	 62.95	0	20121..21305	-	394	134294141	-	Bcep1808_0016	-	transposase, mutator type
14	 56.57	-1	21342..22658	-	438	134294142	-	Bcep1808_0017	-	transposase IS3/IS911 family protein
15	 54.74	-2	23088..23414	-	108	134294143	-	Bcep1808_0019	-	hypothetical protein
16	 68.75	0	24413..25468	-	351	134294144	-	Bcep1808_0021	-	integrase catalytic subunit
17	 56.70	-1	26336..26626	-	96	134294145	-	Bcep1808_0022	-	hypothetical protein
18	 66.29	0	32363..32896	-	177	134294146	-	Bcep1808_0023	-	cytochrome B561
19	 71.63	0	32893..33981	-	362	134294147	-	Bcep1808_0024	-	catalase domain-containing protein
20	 68.59	0	34138..34656	+	172	134294148	-	Bcep1808_0025	-	ECF subfamily RNA polymerase sigma-24 factor
21	 67.72	0	34653..35414	+	253	134294149	-	Bcep1808_0026	-	putative transmembrane anti-sigma factor
22	 59.19	-1	35911..37047	-	378	134294150	-	Bcep1808_0027	-	hypothetical protein
23	 56.06	-1	37518..37715	-	65	134294151	-	Bcep1808_0028	-	hypothetical protein
24	 67.82	0	38113..38982	-	289	134294152	-	Bcep1808_0029	-	RNA polymerase sigma factor SigJ
25	 66.88	0	38982..39458	-	158	134294153	-	Bcep1808_0030	-	alkylhydroperoxidase
26	 60.44	-1	39688..40008	+	106	134294154	-	Bcep1808_0031	-	hypothetical protein
27	 69.43	0	40013..41242	+	409	134294155	-	Bcep1808_0032	-	hypothetical protein
28	 69.03	0	41226..42239	+	337	134294156	-	Bcep1808_0033	-	hypothetical protein
29	 73.27	+1	42471..42773	+	100	134294157	-	Bcep1808_0034	-	hypothetical protein
30	 71.37	0	42830..43084	+	84	134294158	-	Bcep1808_0035	-	hypothetical protein
31	 71.88	0	43273..43656	+	127	134294159	-	Bcep1808_0036	-	hypothetical protein
32	 69.05	0	43912..46938	-	1008	134294160	-	Bcep1808_0037	-	type III restriction enzyme, res subunit
33	 68.50	0	46938..48956	-	672	134294161	-	Bcep1808_0038	-	site-specific DNA-methyltransferase (adenine-specific)
34	 66.05	0	49292..50422	-	376	134294162	-	Bcep1808_0039	-	outer membrane protein (porin)-like protein
35	 68.58	0	50702..51379	-	225	134294163	-	Bcep1808_0040	-	two component transcriptional regulator
36	 71.86	0	51394..52761	-	455	134294164	-	Bcep1808_0041	-	integral membrane sensor signal transduction histidine kinase
37	 67.48	0	52842..53699	-	285	134294165	-	Bcep1808_0042	-	binding-protein-dependent transport systems inner membrane component
38	 66.79	0	53745..54542	-	265	134294166	-	Bcep1808_0043	-	ABC transporter related
39	 67.36	0	54667..55671	-	334	134294167	-	Bcep1808_0044	-	ABC nitrate/sulfonate/bicarbonate transporter, periplasmic ligand binding protein
40	 68.97	0	55817..56599	-	260	134294168	-	Bcep1808_0045	-	flagellar biosynthetic protein FliR
41	 68.50	0	56628..56900	-	90	134294169	fliQ	Bcep1808_0046	-	flagellar biosynthesis protein FliQ
42	 65.62	0	56916..57677	-	253	134294170	fliP	Bcep1808_0047	-	flagellar biosynthesis protein FliP
43	 77.18	+1	57714..58274	-	186	134294171	-	Bcep1808_0048	-	flagellar biosynthesis protein, FliO
44	 69.80	0	58280..58789	-	169	134294172	-	Bcep1808_0049	-	flagellar motor switch protein FliN
45	 63.66	0	58782..59780	-	332	134294173	fliM	Bcep1808_0050	-	flagellar motor switch protein FliM
46	 68.16	0	59803..60339	-	178	134294174	fliL	Bcep1808_0051	-	flagellar basal body-associated protein FliL
47	 68.60	0	60562..61284	-	240	134294175	-	Bcep1808_0052	-	LrgB family protein
48	 73.79	+1	61298..61774	-	158	134294176	-	Bcep1808_0053	-	LrgA family protein
49	 70.77	0	61913..62839	+	308	134294177	-	Bcep1808_0054	-	LysR family transcriptional regulator
50	 67.82	0	62966..64528	-	520	134294178	-	Bcep1808_0055	-	EmrB/QacA family drug resistance transporter
51	 69.68	0	64704..65201	-	165	134294179	-	Bcep1808_0056	-	MarR family transcriptional regulator
52	 72.79	+1	65375..65668	+	97	134294180	-	Bcep1808_0057	-	hypothetical protein
53	 73.11	+1	65956..67491	+	511	134294181	-	Bcep1808_0058	-	RND efflux system outer membrane lipoprotein
54	 73.26	+1	67520..68308	-	262	134294182	-	Bcep1808_0059	-	hypothetical protein
55	 69.63	0	68340..68846	-	168	134294183	-	Bcep1808_0060	-	general secretion pathway M protein
56	 73.90	+1	68843..70210	-	455	134294184	-	Bcep1808_0061	-	general secretion pathway protein L
57	 70.66	0	70235..71335	-	366	134294185	-	Bcep1808_0062	-	general secretion pathway protein K
58	 72.34	+1	71338..72042	-	234	134294186	-	Bcep1808_0063	-	putative general secretion pathway protein J
59	 69.90	0	72020..72421	-	133	134294187	-	Bcep1808_0064	-	general secretion pathway protein I
60	 73.63	+1	72424..72954	-	176	134294188	-	Bcep1808_0065	-	general secretion pathway protein H
61	 63.80	0	72997..73449	-	150	134294189	-	Bcep1808_0066	-	general secretion pathway protein G
62	 72.02	+1	73623..74033	+	136	134294190	-	Bcep1808_0067	-	hypothetical protein
63	 69.38	0	74064..75281	-	405	134294191	-	Bcep1808_0068	-	general secretion pathway protein F
64	 69.93	0	75286..76785	-	499	134294192	-	Bcep1808_0069	-	general secretory pathway protein E
65	 67.74	0	76782..79106	-	774	134294193	-	Bcep1808_0070	-	general secretion pathway protein D
66	 68.75	0	79219..80274	-	351	134294194	-	Bcep1808_0071	-	integrase catalytic subunit
67	 62.17	0	80547..81080	+	177	134294195	-	Bcep1808_0072	-	lytic transglycosylase, catalytic
68	 66.06	0	81226..82536	+	436	134294196	-	Bcep1808_0073	-	cobalamin synthesis protein, P47K
69	 60.93	0	82677..82955	-	92	134294197	-	Bcep1808_0074	-	histone family protein DNA-binding protein
70	 71.97	+1	83345..85306	+	653	134294198	mnmC	Bcep1808_0075	-	5-methylaminomethyl-2-thiouridine methyltransferase
71	 58.41	-1	85590..85928	+	112	134294199	-	Bcep1808_0076	-	hypothetical protein
72	 65.02	0	85979..87193	+	404	134294200	-	Bcep1808_0077	-	sodium/hydrogen exchanger
73	 63.53	0	87208..88323	+	371	134294201	-	Bcep1808_0078	-	carboxylate-amine ligase
74	 53.33	-2	88333..88647	+	104	134294202	-	Bcep1808_0079	-	hypothetical protein
75	 68.70	0	88828..89466	+	212	134294203	-	Bcep1808_0080	-	MarR family transcriptional regulator
76	 70.89	0	89495..90205	+	236	134294204	-	Bcep1808_0081	-	glutamine amidotransferase
77	 70.98	0	90361..91473	+	370	134294205	-	Bcep1808_0082	-	NADH:flavin oxidoreductase/NADH oxidase
78	 62.34	0	91657..92187	+	176	134294206	-	Bcep1808_0083	-	nuclear protein SET
79	 69.90	0	92329..93813	-	494	134294207	-	Bcep1808_0084	-	integral membrane sensor signal transduction histidine kinase
80	 66.38	0	93943..94635	-	230	134294208	-	Bcep1808_0085	-	two component transcriptional regulator
81	 57.85	-1	94728..94988	+	86	134294209	-	Bcep1808_0086	-	hypothetical protein
82	 65.05	0	95082..95390	-	102	134294210	phhB	Bcep1808_0087	-	pterin-4-alpha-carbinolamine dehydratase
83	 67.89	0	95544..96527	-	327	134294211	phhA	Bcep1808_0088	-	phenylalanine 4-monooxygenase
84	 66.05	0	96577..97062	+	161	134294212	-	Bcep1808_0089	-	AsnC family transcriptional regulator
85	 67.23	0	97142..97675	-	177	134294213	-	Bcep1808_0090	-	adenylate cyclase
86	 70.39	0	97762..98700	-	312	134294214	-	Bcep1808_0091	-	LysR family transcriptional regulator
87	 69.16	0	98826..100511	+	561	134294215	-	Bcep1808_0092	-	glucose-methanol-choline oxidoreductase
88	 65.51	0	100965..101744	+	259	134294216	-	Bcep1808_0093	-	ABC transporter related
89	 67.59	0	101741..102496	+	251	134294217	-	Bcep1808_0094	-	ABC transporter related
90	 64.58	0	102574..103773	+	399	134294218	-	Bcep1808_0095	-	branched chain amino acid ABC transporter periplasmic ligand-binding protein
91	 64.44	0	103836..104777	+	313	134294219	-	Bcep1808_0096	-	inner-membrane translocator
92	 67.79	0	104777..105751	+	324	134294220	-	Bcep1808_0097	-	inner-membrane translocator
93	 65.80	0	106824..107981	+	385	134294221	-	Bcep1808_0098	-	extracellular ligand-binding receptor
94	 66.04	0	108075..109199	+	374	134294222	-	Bcep1808_0099	-	inner-membrane translocator
95	 67.39	0	109204..110988	+	594	134294223	-	Bcep1808_0100	-	ABC transporter related
96	 65.34	0	110988..111743	+	251	134294224	-	Bcep1808_0101	-	ABC transporter related
97	 63.77	0	112214..114184	+	656	134294225	-	Bcep1808_0102	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
98	 62.01	0	114181..114867	+	228	134294226	-	Bcep1808_0103	-	methyltransferase GidB
99	 63.59	0	114918..115697	+	259	134294227	-	Bcep1808_0104	-	chromosome segregation ATPase
100	 66.22	0	115729..116622	+	297	134294228	-	Bcep1808_0105	-	chromosome segregation DNA-binding protein
66.40	MEAN

5.53	STD DEV
