IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei 668

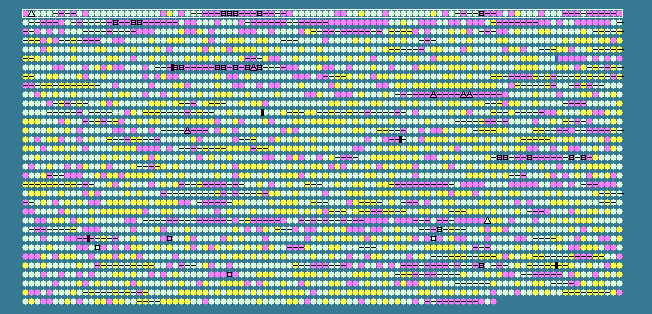

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.81 STD DEV: 6.02
Burkholderia pseudomallei 668 chromosome II, complete sequence - 1..3127456
3279 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 62.79	0	1..1188	+	395	126442804	-	BURPS668_A0001	-	chromosome segregation ATPases
2	 64.37	0	1282..2325	-	347	126444313	-	BURPS668_A0002	-	integrase
3	 68.24	0	2488..2868	-	126	126443504	-	BURPS668_A0003	-	Serine/threonine protein kinase
4	 68.97	0	2948..3556	-	202	126445514	-	BURPS668_A0004	-	DNA-binding protein
5	 66.83	0	3724..4923	+	399	126444614	kbl	BURPS668_A0005	-	2-amino-3-ketobutyrate coenzyme A ligase
6	 64.44	0	4936..5967	+	343	126443724	tdh	BURPS668_A0006	-	L-threonine 3-dehydrogenase
7	 61.33	-1	5976..6275	+	99	126442785	-	BURPS668_A0007	-	hypothetical protein
8	 67.43	0	6400..7053	-	217	126445124	-	BURPS668_A0008	-	YceI like family protein
9	 61.24	-1	6983..7111	+	42	126443977	-	BURPS668_A0009	-	hypothetical protein
10	 70.39	0	7143..7760	+	205	126444495	-	BURPS668_A0010	-	TetR family transcriptional regulator
11	 63.38	0	7732..8340	+	202	126442463	-	BURPS668_A0012	-	hypothetical protein
12	 66.67	0	8310..8561	-	83	126445390	-	BURPS668_A0011	-	ttbk1 protein
13	 67.26	0	8562..9578	-	338	126443517	-	BURPS668_A0013	-	succinylglutamate desuccinylase
14	 66.67	0	9577..9762	+	61	126444940	-	BURPS668_A0014	-	hypothetical protein
15	 67.67	0	9863..11053	-	396	126445543	-	BURPS668_A0015	-	tartrate dehydrogenase
16	 67.32	0	11117..12034	+	305	126442738	-	BURPS668_A0016	-	putative HTH-type transcriptional regulator YeaT
17	 66.44	0	12562..12996	+	144	126443640	-	BURPS668_A0017	-	hypothetical protein
18	 67.50	0	13000..13239	+	79	126443576	-	BURPS668_A0018	-	hypothetical protein
19	 65.54	0	13424..14047	+	207	126444699	-	BURPS668_A0019	-	glutathione S-transferase family protein
20	 68.42	0	14143..14256	-	37	126445418	-	BURPS668_A0020	-	hypothetical protein
21	 70.41	0	14473..15006	-	177	126444032	-	BURPS668_A0021	-	hypothetical protein
22	 66.10	0	15017..16255	-	412	126443284	-	BURPS668_A0022	-	patatin family phospholipase
23	 65.90	0	16252..17037	-	261	126445551	bdhA	BURPS668_A0023	-	3-hydroxybutyrate dehydrogenase
24	 61.89	0	17084..18025	-	313	126445532	-	BURPS668_A0024	-	acetoacetate decarboxylase
25	 71.52	0	18283..18879	+	198	126444620	-	BURPS668_A0025	-	PAP2 family protein
26	 65.82	0	18902..19138	-	78	126443240	-	BURPS668_A0026	-	hypothetical protein
27	 63.41	0	19110..19232	+	40	126442375	-	BURPS668_A0027	-	hypothetical protein
28	 71.08	0	19332..19580	+	82	126445281	-	BURPS668_A0028	-	hypothetical protein
29	 68.48	0	19904..20731	-	275	126444748	-	BURPS668_A0029	-	siderophore-interacting protein
30	 68.51	0	20771..21475	-	234	126443255	-	BURPS668_A0030	-	PadR family transcriptional regulator
31	 55.80	-1	21983..22258	+	91	126444114	-	BURPS668_A0031	-	hypothetical protein
32	 53.54	-2	22331..23008	-	225	126443770	-	BURPS668_A0032	-	hypothetical protein
33	 50.85	-2	23433..24437	-	334	126443025	-	BURPS668_A0033	-	helix-hairpin-helix DNA-binding motif-containing protein
34	 57.63	-1	26431..26751	+	106	126443779	-	BURPS668_A0034	-	bacteriophage/transposase fusion protein
35	 56.44	-1	27039..27302	+	87	126442782	-	BURPS668_A0035	-	transposase subfamily protein
36	 61.75	-1	27326..28159	+	277	126445341	tISRso14b	BURPS668_A0036	-	isrso14-transposase orfb
37	 53.46	-2	28300..28458	-	52	126444452	-	BURPS668_A0037	-	hypothetical protein
38	 57.48	-1	28825..30609	+	594	126444278	-	BURPS668_A0038	-	hypothetical protein
39	 58.83	-1	30596..32395	+	599	126443338	-	BURPS668_A0039	-	UvrD/REP helicase
40	 64.24	0	32701..32865	-	54	126443010	-	BURPS668_A0040	-	ISPsy18, transposase
41	 53.10	-2	33011..34027	-	338	126444325	-	BURPS668_A0041	-	hypothetical protein
42	 44.00	-2	34039..34188	-	49	126443117	-	BURPS668_A0042	-	hypothetical protein
43	 65.25	0	35648..37054	+	468	126443804	-	BURPS668_A0043	-	cytochrome P450
44	 55.22	-2	37204..37404	+	66	126444773	-	BURPS668_A0044	-	hypothetical protein
45	 64.32	0	37578..38429	+	283	126443766	-	BURPS668_A0045	-	hypothetical protein
46	 66.79	0	38426..39259	+	277	126444962	-	BURPS668_A0046	-	hypothetical protein
47	 66.77	0	39256..41199	+	647	126444059	-	BURPS668_A0047	-	Fe-S oxidoreductase
48	 68.28	0	41213..42202	+	329	126444303	-	BURPS668_A0048	-	SAM-dependent methyltransferases
49	 68.28	0	42374..42994	-	206	126443319	-	BURPS668_A0049	-	LysE family protein
50	 69.46	0	43102..43995	+	297	126442838	-	BURPS668_A0050	-	chromosome replication initiation inhibitor protein
51	 67.59	0	44087..44842	-	251	126443969	-	BURPS668_A0051	-	cAMP-binding proteins - catabolite gene activator and regulatory subunit of cAMP-dependent protein kinases
52	 67.52	0	44992..45459	-	155	126443533	-	BURPS668_A0052	-	universal stress protein
53	 63.04	0	45525..45662	-	45	126443254	-	BURPS668_A0053	-	hypothetical protein
54	 63.20	0	45883..46113	+	76	126442364	-	BURPS668_A0054	-	hypothetical protein
55	 70.23	0	46254..46562	-	102	126444691	-	BURPS668_A0055	-	hypothetical protein
56	 69.26	0	46549..46857	-	102	126443763	-	BURPS668_A0056	-	hypothetical protein
57	 71.60	0	46891..48471	+	526	126443729	-	BURPS668_A0057	-	NAD-dependent aldehyde dehydrogenases
58	 65.61	0	48477..49418	+	313	126442974	-	BURPS668_A0058	-	gluconolactonase
59	 70.47	0	49475..50236	-	253	126445195	-	BURPS668_A0059	-	hypothetical protein
60	 69.30	0	50288..50704	-	138	126444491	-	BURPS668_A0060	-	hypothetical protein
61	 59.92	-1	50972..51208	+	78	126445478	-	BURPS668_A0061	-	hypothetical protein
62	 66.67	0	51332..52255	+	307	126442890	-	BURPS668_A0062	-	serine acetyltransferase, plasmid
63	 67.04	0	52556..53359	-	267	126444053	-	BURPS668_A0063	-	short chain dehydrogenase/reductase family oxidoreductase
64	 66.78	0	53360..54238	-	292	126444767	folE	BURPS668_A0064	-	GTP cyclohydrolase I
65	 68.40	0	54226..55149	-	307	126442565	-	BURPS668_A0065	-	LysR family transcriptional regulator
66	 68.60	0	55248..56489	+	413	126443265	pobA	BURPS668_A0066	-	4-hydroxybenzoate 3-monooxygenase
67	 66.67	0	56562..57410	+	282	126444496	pcaI	BURPS668_A0067	-	3-oxoadipate CoA-transferase, A subunit
68	 65.75	0	57429..58085	+	218	126445278	pcaJ	BURPS668_A0068	-	3-oxoadipate CoA-transferase, B subunit
69	 71.96	0	58221..59579	+	452	126443036	pcaB	BURPS668_A0069	-	3-carboxy-cis,cis-muconate cycloisomerase
70	 67.43	0	59592..60377	+	261	126443742	pcaD	BURPS668_A0070	-	3-oxoadipate enol-lactonase
71	 63.82	0	60393..60779	+	128	126442829	pcaC	BURPS668_A0071	-	4-carboxymuconolactone decarboxylase
72	 68.95	0	60947..62302	+	451	126443546	pcaK	BURPS668_A0072	-	4-hydroxybenzoate transporter
73	 66.67	0	62370..62618	-	82	126442571	-	BURPS668_A0073	-	hypothetical protein
74	 63.59	0	62719..63336	-	205	126443166	-	BURPS668_A0074	-	LysE family translocator protein
75	 68.38	0	64096..64212	+	38	126444781	-	BURPS668_A0075	-	Orn/DAP/Arg decarboxylase family protein
76	 66.18	0	64368..65393	+	341	126445505	-	BURPS668_A0076	-	hypothetical protein
77	 64.06	0	65533..66261	-	242	126443802	-	BURPS668_A0077	-	IS6 family transposase
78	 55.83	-1	66266..66745	-	159	126444528	-	BURPS668_A0078	-	LysE family protein
79	 64.07	0	66772..67809	-	345	126444298	-	BURPS668_A0079	-	hypothetical protein
80	 63.10	0	67867..68790	-	307	126445013	-	BURPS668_A0080	-	hypothetical protein
81	 70.41	0	68906..70162	-	418	126444934	-	BURPS668_A0081	-	major facilitator transporter
82	 61.77	-1	70149..70577	-	142	126442602	-	BURPS668_A0082	-	ChrB protein
83	 73.94	+1	70618..70782	+	54	126443896	-	BURPS668_A0083	-	hypothetical protein
84	 67.42	0	70979..72169	-	396	126442944	chrA	BURPS668_A0084	-	chromate ion transporter protein ChrA
85	 67.77	0	72166..73161	-	331	126444120	chrB	BURPS668_A0085	-	chrB protein
86	 70.66	0	73365..73790	-	141	126443161	-	BURPS668_A0086	-	hypothetical protein
87	 62.84	0	74103..74651	+	182	126442877	-	BURPS668_A0087	-	hypothetical protein
88	 66.34	0	74704..75006	+	100	126443605	-	BURPS668_A0088	-	plastocyanin/azurin family copper binding protein
89	 66.81	0	75015..75710	+	231	126444344	-	BURPS668_A0089	-	RNA polymerase sigma factor
90	 70.18	0	76187..82102	+	1971	126445075	uvrA	BURPS668_A0090	-	excinuclease ABC, A subunit
91	 54.17	-2	82661..82780	-	39	126443855	-	BURPS668_A0091	-	hypothetical protein
92	 57.35	-1	82779..82982	+	67	126443096	-	BURPS668_A0092	-	hypothetical protein
93	 61.69	-1	83135..83395	-	86	126442900	-	BURPS668_A0093	-	hypothetical protein
94	 64.46	0	83537..83944	-	135	126445466	-	BURPS668_A0094	-	hypothetical protein
95	 57.72	-1	83935..84057	+	40	126444198	-	BURPS668_A0095	-	hypothetical protein
96	 58.97	-1	84054..84326	+	90	126443616	-	BURPS668_A0096	-	hypothetical protein
97	 53.03	-2	84333..84464	-	43	126443951	-	BURPS668_A0097	-	hypothetical protein
98	 59.33	-1	84609..84935	-	108	126443446	-	BURPS668_A0098	-	H-NS histone family protein
99	 55.95	-1	84941..85108	-	55	126443125	-	BURPS668_A0099	-	hypothetical protein
100	 63.27	0	85459..86811	+	450	126444904	-	BURPS668_A0100	-	MFS transporter, metabolite:H+ symporter (MHS) family protein
67.81	MEAN

6.02	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
