IslandPath Analysis: Burkholderia multivorans ATCC 17616

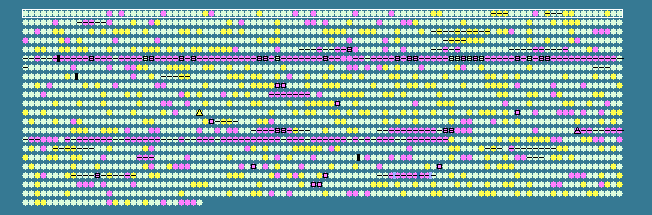

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 67.12   STD DEV: 4.16
Burkholderia multivorans ATCC 17616 chromosome 2, complete sequence - 1..2473162
2130 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 64.89	0	1..1182	+	393	189351979	smc	BMULJ_03196	-	SMC protein
2	 65.88	0	1323..2336	-	337	189351980	-	BMULJ_03197	-	tyrosine recombinase
3	 67.96	0	2443..2829	-	128	189351981	-	BMULJ_03198	-	putative serine/threonine protein kinase
4	 69.77	0	2955..3566	-	203	189351982	-	BMULJ_03199	-	XRE family transcriptional regulator
5	 66.08	0	3732..4931	+	399	189351983	kbl	BMULJ_03200	-	glycine C-acetyltransferase
6	 63.65	0	4945..5973	+	342	189351984	tdh	BMULJ_03201	-	threonine 3-dehydrogenase
7	 66.99	0	6673..7299	+	208	189351985	-	BMULJ_03202	-	TetR family transcriptional regulator
8	 64.58	0	7353..7832	+	159	189351986	-	BMULJ_03203	-	hypothetical protein
9	 66.67	0	8371..9456	-	361	189351987	ttuC	BMULJ_03204	-	tartrate dehydrogenase
10	 67.97	0	9578..10501	+	307	189351988	-	BMULJ_03205	-	LysR family transcriptional regulator
11	 66.44	0	10820..11254	-	144	189351989	-	BMULJ_03206	-	hypothetical protein
12	 67.31	0	11926..12390	-	154	189351990	-	BMULJ_03207	-	hypothetical protein
13	 66.17	0	12451..13668	-	405	189351991	-	BMULJ_03208	-	patatin-like phospholipase
14	 64.25	0	13665..14450	-	261	189351992	bdh	BMULJ_03209	-	3-hydroxybutyrate dehydrogenase
15	 62.75	-1	14501..15241	-	246	189351993	adc	BMULJ_03210	-	acetoacetate decarboxylase
16	 70.10	0	15677..16258	+	193	189351994	-	BMULJ_03211	-	membrane-associated phospholipid phosphatase
17	 63.11	0	16315..16539	-	74	189351995	-	BMULJ_03212	-	hypothetical protein
18	 69.86	0	16712..17524	-	270	189351996	-	BMULJ_03213	-	putative siderophore-interacting protein
19	 70.52	0	17559..18311	-	250	189351997	-	BMULJ_03214	-	PadR-like family transcriptional regulator
20	 68.04	0	18514..19170	+	218	189351998	-	BMULJ_03215	-	hypothetical protein
21	 67.63	0	19246..19968	-	240	189351999	kduD	BMULJ_03216	-	2-deoxy-D-gluconate 3-dehydrogenase
22	 70.59	0	19946..21067	-	373	189352000	gutB	BMULJ_03217	-	L-iditol 2-dehydrogenase
23	 67.73	0	21069..22379	-	436	189352001	-	BMULJ_03218	-	permease of the major facilitator superfamily
24	 60.30	-1	22398..22931	-	177	189352002	-	BMULJ_03219	-	2,4'-dihydroxyacetophenone dioxygenase
25	 67.99	0	23105..24085	+	326	189352003	-	BMULJ_03220	-	AraC family transcriptional regulator
26	 65.82	0	24148..25095	-	315	189352004	-	BMULJ_03221	-	NADP-dependent aryl-alcohol dehydrogenase
27	 67.95	0	25390..26010	-	206	189352005	-	BMULJ_03222	-	putative LysE family lysine efflux permease
28	 69.46	0	26110..27003	+	297	189352006	iciA	BMULJ_03223	-	LysR family chromosome initiation inhibitor
29	 65.33	0	27073..27819	-	248	189352007	fnr	BMULJ_03224	-	CRP/FNR family anaerobic regulatory protein
30	 66.67	0	28037..28513	-	158	189352008	uspA	BMULJ_03225	-	UspA family universal stress protein
31	 71.05	0	28849..29259	-	136	189352009	-	BMULJ_03226	-	hypothetical protein
32	 62.82	-1	29538..29771	+	77	189352010	-	BMULJ_03227	-	hypothetical protein
33	 68.30	0	29908..30828	+	306	189352011	cysE	BMULJ_03228	-	serine O-acetyltransferase
34	 68.78	0	30989..31792	-	267	189352012	-	BMULJ_03229	-	putative short-chain alcohol dehydrogenase
35	 64.13	0	31793..32422	-	209	189352013	folE	BMULJ_03230	-	GTP cyclohydrolase I
36	 67.85	0	32512..33438	-	308	189352014	pcaR	BMULJ_03231	-	LysR family transcriptional regulator
37	 68.69	0	33600..34832	+	410	189352015	pobA	BMULJ_03232	-	p-hydroxybenzoate 3-monooxygenase
38	 66.95	0	34976..35689	+	237	189352016	pcaI	BMULJ_03233	-	3-oxoadipate CoA-transferase alpha subunit
39	 66.06	0	35709..36362	+	217	189352017	pcaJ	BMULJ_03234	-	3-oxoadipate CoA-transferase beta subunit
40	 71.76	+1	36443..37798	+	451	189352018	purB	BMULJ_03235	-	adenylosuccinate lyase
41	 68.07	0	37816..38601	+	261	189352019	pcaD	BMULJ_03236	-	3-oxoadipate enol lactonase
42	 64.60	0	38612..38998	+	128	189352020	pcaC	BMULJ_03237	-	4-carboxymuconolactone decarboxylase
43	 67.18	0	39168..40526	+	452	189352021	pcaK	BMULJ_03238	-	4-hydroxybenzoate transporter
44	 65.86	0	40697..40945	-	82	189352022	-	BMULJ_03239	-	hypothetical protein
45	 65.05	0	41049..41666	-	205	189352023	-	BMULJ_03240	-	putative threonine efflux protein
46	 61.59	-1	41901..42176	+	91	189352024	-	BMULJ_03241	-	hypothetical protein
47	 67.44	0	42188..43225	+	345	189352025	-	BMULJ_03242	-	CDF family cation efflux system protein
48	 66.67	0	43222..43413	+	63	189352026	-	BMULJ_03243	-	predicted Fe-S protein
49	 59.62	-1	44117..44272	-	51	189352027	-	BMULJ_03244	-	hypothetical protein
50	 68.15	0	44474..45148	+	224	189352028	-	BMULJ_03245	-	phosphoglycerate mutase family protein
51	 68.70	0	45180..46211	+	343	189352029	-	BMULJ_03246	-	putative aminoglycoside phosphotransferase
52	 65.49	0	46255..47019	+	254	189352030	cbr	BMULJ_03247	-	NADPH-dependent carbonyl reductase
53	 68.77	0	47027..47785	+	252	189352031	fabG	BMULJ_03248	-	3-oxoacyl-[acyl-carrier protein] reductase
54	 66.91	0	47820..49064	+	414	189352032	acd	BMULJ_03249	-	acyl-CoA dehydrogenase
55	 66.11	0	49163..50059	+	298	189352033	-	BMULJ_03250	-	LysR family transcriptional regulator
56	 62.52	-1	50069..50791	-	240	189352034	-	BMULJ_03251	-	GntR family transcriptional regulator
57	 67.72	0	50841..51887	-	348	189352035	prdF	BMULJ_03252	-	proline racemase
58	 68.89	0	51900..53381	-	493	189352036	betB	BMULJ_03253	-	betaine-aldehyde dehydrogenase
59	 68.77	0	53407..54690	-	427	189352037	dadA	BMULJ_03254	-	D-amino-acid dehydrogenase
60	 65.98	0	54696..55712	-	338	189352038	prdF	BMULJ_03255	-	proline racemase
61	 64.05	0	55770..56648	-	292	189352039	dapA	BMULJ_03256	-	dihydrodipicolinate synthase
62	 62.61	-1	56682..57347	-	221	189352040	-	BMULJ_03257	-	polar amino acid transport system permease protein
63	 64.88	0	57358..58029	-	223	189352041	-	BMULJ_03258	-	polar amino acid transport system permease protein
64	 63.93	0	58040..58879	-	279	189352042	-	BMULJ_03259	-	polar amino acid transport system ATP-binding protein
65	 65.11	0	58974..59807	-	277	189352043	-	BMULJ_03260	-	ABC amino acid transporter periplasmic ligand-binding protein
66	 64.86	0	60193..61302	-	369	189352044	-	BMULJ_03261	-	conserved DnaJ-class molecular chaperone
67	 67.63	0	61368..63743	-	791	189352045	polB	BMULJ_03262	-	DNA polymerase II
68	 70.13	0	63858..65444	-	528	189352046	-	BMULJ_03263	-	EAL domain (diguanylate phosphodiesterase) protein
69	 71.70	+1	65828..66145	-	105	189352047	-	BMULJ_03264	-	hypothetical protein
70	 73.27	+1	66535..67185	+	216	189352048	-	BMULJ_03265	-	putative dihydroxyacid dehydratase/phosphogluconate dehydratase
71	 64.15	0	67346..67663	+	105	189352049	groES	BMULJ_03266	-	chaperonin GroES
72	 67.22	0	67744..69366	+	540	189352050	groEL	BMULJ_03267	-	chaperonin GroEL
73	 67.82	0	69491..70360	-	289	189352051	-	BMULJ_03268	-	hypothetical protein
74	 68.21	0	70432..71337	-	301	189352052	-	BMULJ_03269	-	Mn-containing catalase
75	 67.12	0	71706..73043	+	445	189352053	-	BMULJ_03270	-	Nramp family metal ion transporter
76	 67.36	0	73108..73542	-	144	189352054	-	BMULJ_03271	-	predicted phosphatase/phosphohexomutase
77	 69.90	0	73869..75227	-	452	189352055	ndh	BMULJ_03272	-	NADH dehydrogenase
78	 67.67	0	75385..76284	+	299	189352056	-	BMULJ_03273	-	LysR family transcriptional regulator
79	 71.67	+1	76312..76491	-	59	189352057	-	BMULJ_03274	-	hypothetical protein
80	 70.71	0	76687..77625	+	312	189352058	-	BMULJ_03275	-	AraC family transcriptional regulator
81	 71.32	+1	77793..78674	+	293	189352059	-	BMULJ_03276	-	predicted nucleoside-diphosphate-sugar epimerase
82	 67.50	0	78735..79931	-	398	189352060	benE	BMULJ_03277	-	benzoate membrane transport protein
83	 68.42	0	80048..81073	-	341	189352061	-	BMULJ_03278	-	fatty acid desaturase domain protein
84	 69.33	0	81400..82224	+	274	189352062	-	BMULJ_03279	-	putative ABC phosphate/phosphonate transporter periplasmic ligand-binding protein
85	 67.17	0	82251..83645	-	464	189352063	dbpA	BMULJ_03280	-	ATP-independent RNA helicase
86	 61.62	-1	83642..83839	-	65	189352064	-	BMULJ_03281	-	hypothetical protein
87	 63.78	0	84285..84872	-	195	189352065	-	BMULJ_03282	-	hypothetical protein
88	 71.47	+1	85364..86299	-	311	189352066	-	BMULJ_03283	-	LysR family transcriptional regulator
89	 70.26	0	86404..87627	+	407	189352067	allC	BMULJ_03284	-	allantoate amidohydrolase
90	 65.17	0	87785..88252	+	155	189352068	-	BMULJ_03285	-	hypothetical protein
91	 71.07	0	88380..89219	+	279	189352069	fabG	BMULJ_03286	-	3-oxoacyl-[acyl-carrier protein] reductase
92	 70.64	0	89338..90117	-	259	189352070	surE	BMULJ_03287	-	5'-nucleotidase
93	 69.00	0	90419..90718	-	99	189352071	-	BMULJ_03288	-	hypothetical protein
94	 69.12	0	90711..91445	-	244	189352072	-	BMULJ_03289	-	branched-chain amino acid permease
95	 64.92	0	91570..92028	+	152	189352073	-	BMULJ_03290	-	AsnC family transcriptional regulator
96	 65.09	0	92160..92729	+	189	189352074	-	BMULJ_03291	-	hypothetical protein
97	 67.27	0	92869..93201	-	110	189352075	-	BMULJ_03292	-	hypothetical protein
98	 75.17	+1	93246..94679	-	477	189352076	-	BMULJ_03293	-	permease of the major facilitator superfamily
99	 67.63	0	94679..95407	-	242	189352077	-	BMULJ_03294	-	hypothetical protein
100	 69.72	0	95602..95928	+	108	189352078	trxA	BMULJ_03295	-	thioredoxin 1
67.12	MEAN

4.16	STD DEV
