IslandPath Analysis: Burkholderia multivorans ATCC 17616

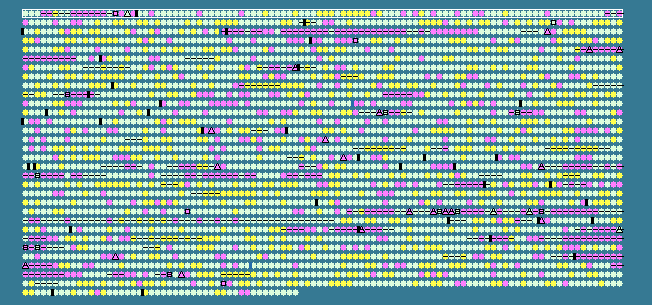

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 66.81   STD DEV: 4.63
Burkholderia multivorans ATCC 17616 chromosome 1, complete sequence - 1..3448466
3146 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 65.78	0	74..1648	+	524	161523181	-	Bmul_0001	-	chromosomal replication initiation protein
2	 63.78	0	1817..2923	+	368	161523182	-	Bmul_0002	-	DNA polymerase III subunit beta
3	 63.35	0	3115..5589	+	824	161523183	-	Bmul_0003	-	DNA gyrase subunit B
4	 58.98	-1	5706..6746	-	346	161523184	-	Bmul_0004	-	restriction endonuclease
5	 63.11	0	7465..7998	-	177	161523185	-	Bmul_0005	-	cytochrome B561
6	 70.79	0	7995..9086	-	363	161523186	-	Bmul_0006	-	catalase domain-containing protein
7	 68.40	0	9242..9760	+	172	161523187	-	Bmul_0007	-	ECF subfamily RNA polymerase sigma-24 factor
8	 68.64	0	9757..10518	+	253	161523188	-	Bmul_0008	-	putative transmembrane anti-sigma factor
9	 57.66	-1	10913..11878	-	321	161523189	-	Bmul_0009	-	hypothetical protein
10	 55.44	-2	11875..12774	-	299	161523190	-	Bmul_0010	-	hypothetical protein
11	 58.53	-1	13024..14142	-	372	161523191	-	Bmul_0011	-	hypothetical protein
12	 59.59	-1	14239..15312	-	357	161523192	-	Bmul_0012	-	hypothetical protein
13	 56.99	-2	15309..16889	-	526	161523193	-	Bmul_0013	-	hypothetical protein
14	 61.18	-1	16892..17638	-	248	161523194	-	Bmul_0014	-	hypothetical protein
15	 65.09	0	17601..18044	-	147	161523195	-	Bmul_0015	-	IstB ATP binding domain-containing protein
16	 58.59	-1	18095..19456	-	453	161523196	-	Bmul_0016	-	transposase IS116/IS110/IS902 family protein
17	 61.25	-1	19878..20246	-	122	161523197	-	Bmul_0017	-	IstB ATP binding domain-containing protein
18	 66.08	0	20251..21783	-	510	161523198	-	Bmul_0018	-	integrase catalytic region
19	 63.06	0	21939..24131	-	730	161523199	-	Bmul_0019	-	type VI secretion system Vgr family protein
20	 67.13	0	25082..25951	-	289	161523200	-	Bmul_0020	-	RNA polymerase sigma factor SigJ
21	 66.24	0	25951..26424	-	157	161523201	-	Bmul_0021	-	alkylhydroperoxidase
22	 63.17	0	26732..27046	+	104	161523202	-	Bmul_0022	-	hypothetical protein
23	 68.15	0	27051..28265	+	404	161523203	-	Bmul_0023	-	hypothetical protein
24	 68.05	0	28249..29262	+	337	161523204	-	Bmul_0024	-	hypothetical protein
25	 69.76	0	29507..29797	+	96	161523205	-	Bmul_0025	-	hypothetical protein
26	 69.02	0	29853..30107	+	84	161523206	-	Bmul_0026	-	hypothetical protein
27	 68.85	0	30314..30679	+	121	161523207	-	Bmul_0027	-	hypothetical protein
28	 68.09	0	30898..33924	-	1008	161523208	-	Bmul_0028	-	type III restriction protein res subunit
29	 67.92	0	33924..35990	-	688	161523209	-	Bmul_0029	-	site-specific DNA-methyltransferase (adenine-specific)
30	 60.87	-1	36347..37036	+	229	161523210	-	Bmul_0030	-	two component LuxR family transcriptional regulator
31	 63.40	0	37084..38217	-	377	161523211	-	Bmul_0031	-	outer membrane protein (porin)-like protein
32	 67.40	0	38493..39170	-	225	161523212	-	Bmul_0032	-	two component transcriptional regulator
33	 69.88	0	39184..40551	-	455	161523213	-	Bmul_0033	-	integral membrane sensor signal transduction histidine kinase
34	 67.25	0	40637..41494	-	285	161523214	-	Bmul_0034	-	binding-protein-dependent transport systems inner membrane component
35	 65.66	0	41511..42308	-	265	161523215	-	Bmul_0035	-	ABC transporter related
36	 67.76	0	42416..43420	-	334	161523216	-	Bmul_0036	-	NMT1/THI5-like domain-containing protein
37	 60.49	-1	43984..44469	+	161	161523217	-	Bmul_0037	-	abortive infection protein
38	 68.20	0	44568..45350	-	260	161523218	-	Bmul_0038	-	flagellar biosynthetic protein FliR
39	 69.23	0	45374..45646	-	90	161523219	-	Bmul_0039	-	flagellar biosynthesis protein FliQ
40	 65.75	0	45663..46424	-	253	161523220	-	Bmul_0040	-	flagellar biosynthesis protein FliP
41	 76.04	+1	46466..47041	-	191	161523221	-	Bmul_0041	-	flagellar biosynthesis protein FliO
42	 68.54	0	47038..47517	-	159	161523222	-	Bmul_0042	-	flagellar motor switch protein FliN
43	 63.46	0	47510..48508	-	332	161523223	-	Bmul_0043	-	flagellar motor switch protein FliM
44	 68.16	0	48531..49064	-	177	161523224	-	Bmul_0044	-	flagellar basal body-associated protein FliL
45	 68.33	0	49143..49865	-	240	161523225	-	Bmul_0045	-	LrgB family protein
46	 74.27	+1	49891..50337	-	148	161523226	-	Bmul_0046	-	LrgA family protein
47	 69.36	0	50477..51403	+	308	161523227	-	Bmul_0047	-	LysR family transcriptional regulator
48	 66.86	0	51492..53054	-	520	161523228	-	Bmul_0048	-	EmrB/QacA family drug resistance transporter
49	 68.30	0	53215..53703	-	162	161523229	-	Bmul_0049	-	MarR family transcriptional regulator
50	 71.74	+1	53877..54152	+	91	161523230	-	Bmul_0050	-	hypothetical protein
51	 71.34	0	54348..55931	+	527	161523231	-	Bmul_0051	-	RND efflux system outer membrane lipoprotein
52	 72.24	+1	55977..56765	-	262	161523232	-	Bmul_0052	-	hypothetical protein
53	 69.03	0	56797..57303	-	168	161523233	-	Bmul_0053	-	general secretion pathway M protein
54	 73.49	+1	57300..58706	-	468	161523234	-	Bmul_0054	-	general secretion pathway protein L
55	 71.11	0	58731..59855	-	374	161523235	-	Bmul_0055	-	general secretion pathway protein K
56	 71.41	0	59862..60557	-	231	161523236	-	Bmul_0056	-	putative general secretion pathway protein J
57	 70.78	0	60535..60972	-	145	161523237	-	Bmul_0057	-	general secretion pathway protein I
58	 72.51	+1	60975..61607	-	210	161523238	-	Bmul_0058	-	general secretion pathway protein H
59	 63.13	0	61647..62099	-	150	161523239	-	Bmul_0059	-	general secretion pathway protein G
60	 72.75	+1	62277..62687	+	136	161523240	-	Bmul_0060	-	hypothetical protein
61	 68.80	0	62718..63935	-	405	161523241	-	Bmul_0061	-	general secretion pathway protein F
62	 68.74	0	63940..65436	-	498	161523242	-	Bmul_0062	-	general secretory pathway protein E
63	 67.31	0	65433..67760	-	775	161523243	-	Bmul_0063	-	general secretion pathway protein D
64	 63.09	0	68123..68569	+	148	161523244	-	Bmul_0064	-	lytic transglycosylase catalytic
65	 67.20	0	68733..70034	+	433	161523245	-	Bmul_0065	-	cobalamin synthesis protein P47K
66	 60.57	-1	70150..70428	-	92	161523246	-	Bmul_0066	-	histone family protein DNA-binding protein
67	 70.92	0	70818..72791	+	657	161523247	-	Bmul_0067	-	5-methylaminomethyl-2-thiouridine methyltransferase
68	 64.68	0	73325..74680	+	451	161523248	-	Bmul_0068	-	sodium/hydrogen exchanger
69	 63.08	0	74698..75813	+	371	161523249	-	Bmul_0069	-	carboxylate-amine ligase
70	 68.23	0	76324..76962	+	212	161523250	-	Bmul_0070	-	MarR family transcriptional regulator
71	 69.34	0	76991..77701	+	236	161523251	-	Bmul_0071	-	glutamine amidotransferase
72	 69.36	0	77885..78997	+	370	161523252	-	Bmul_0072	-	NADH:flavin oxidoreductase/NADH oxidase
73	 61.05	-1	79203..79736	+	177	161523253	-	Bmul_0073	-	nuclear protein SET
74	 69.37	0	79780..81261	-	493	161523254	-	Bmul_0074	-	integral membrane sensor signal transduction histidine kinase
75	 65.22	0	81392..82084	-	230	161523255	-	Bmul_0075	-	two component transcriptional regulator
76	 59.39	-1	82178..82438	+	86	161523256	-	Bmul_0076	-	hypothetical protein
77	 61.81	-1	82547..82855	-	102	161523257	-	Bmul_0077	-	pterin-4-alpha-carbinolamine dehydratase
78	 67.90	0	82972..83946	-	324	161523258	-	Bmul_0078	-	phenylalanine 4-monooxygenase
79	 66.05	0	84005..84490	+	161	161523259	-	Bmul_0079	-	AsnC family transcriptional regulator
80	 68.54	0	84581..85114	-	177	161523260	-	Bmul_0080	-	adenylate cyclase
81	 70.93	0	85253..86191	-	312	161523261	-	Bmul_0081	-	LysR family transcriptional regulator
82	 68.68	0	86400..88136	+	578	161523262	-	Bmul_0082	-	glucose-methanol-choline oxidoreductase
83	 65.00	0	88572..89351	+	259	161523263	-	Bmul_0083	-	ABC transporter related
84	 66.40	0	89348..90103	+	251	161523264	-	Bmul_0084	-	ABC transporter related
85	 63.83	0	90180..91379	+	399	161523265	-	Bmul_0085	-	branched chain amino acid ABC transporter periplasmic ligand-binding protein
86	 64.86	0	91512..92396	+	294	161523266	-	Bmul_0086	-	inner-membrane translocator
87	 67.08	0	92396..93370	+	324	161523267	-	Bmul_0087	-	inner-membrane translocator
88	 62.28	0	93418..94374	+	318	161523268	-	Bmul_0088	-	hypothetical protein
89	 66.23	0	94451..95608	+	385	161523269	-	Bmul_0089	-	extracellular ligand-binding receptor
90	 66.95	0	95798..96853	+	351	161523270	-	Bmul_0090	-	inner-membrane translocator
91	 67.39	0	96858..98642	+	594	161523271	-	Bmul_0091	-	ABC transporter related
92	 67.33	0	98642..99397	+	251	161523272	-	Bmul_0092	-	ABC transporter related
93	 65.96	0	99741..101711	+	656	161523273	-	Bmul_0093	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
94	 64.92	0	101708..102394	+	228	161523274	-	Bmul_0094	-	methyltransferase GidB
95	 63.85	0	102447..103226	+	259	161523275	-	Bmul_0095	-	cobyrinic acid ac-diamide synthase
96	 66.11	0	103257..104150	+	297	161523276	-	Bmul_0096	-	parB-like partition protein
97	 68.07	0	104158..105294	+	378	161523277	-	Bmul_0097	-	citrate transporter
98	 61.79	-1	105422..105667	+	81	161523278	-	Bmul_0098	-	hypothetical protein
99	 66.10	0	105882..106406	+	174	161523279	-	Bmul_0099	-	F0F1-type ATP synthase subunit I-like protein
100	 61.27	-1	106517..107368	+	283	161523280	-	Bmul_0100	-	F0F1 ATP synthase subunit A
66.81	MEAN

4.63	STD DEV
