IslandPath Analysis: Burkholderia mallei NCTC 10229

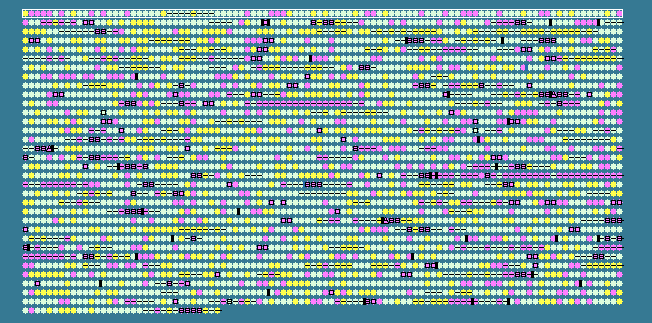

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 67.88   STD DEV: 4.75
Burkholderia mallei NCTC 10229 chromosome I, complete sequence - 1..3458208
3333 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 74.74	+1	81..959	+	292	124384050	-	BMA10229_A0001	-	hypothetical protein
2	 59.47	-1	1194..1568	+	124	124386277	rpsF	BMA10229_A0002	-	30S ribosomal protein S6
3	 64.00	0	1605..1904	+	99	124385536	priB	BMA10229_A0003	-	primosomal replication protein n
4	 60.14	-1	1907..2182	+	91	124384536	rpsR	BMA10229_A0004	-	30S ribosomal protein S18
5	 63.36	0	2210..2662	+	150	124384613	rplI	BMA10229_A0005	-	50S ribosomal protein L9
6	 65.37	0	2806..4188	+	460	124385320	dnaB	BMA10229_A0006	-	replicative DNA helicase
7	 60.77	-1	4327..4953	+	208	124383509	-	BMA10229_A0007	-	hypothetical protein
8	 65.58	0	4964..5974	+	336	124386492	-	BMA10229_A0008	-	phosphate transporter family protein
9	 74.10	+1	6210..7433	-	407	124385202	-	BMA10229_A0009	-	NLP/P60 family lipoprotein
10	 67.83	0	7673..9307	-	544	124383804	-	BMA10229_A0010	-	PhoH family protein
11	 65.49	0	9350..9604	+	84	124383359	-	BMA10229_A0011	-	hypothetical protein
12	 61.26	-1	9798..10259	-	153	124385854	-	BMA10229_A0012	-	anti-oxidant AhpCTSA family protein
13	 69.45	0	10349..11245	-	298	124386484	-	BMA10229_A0013	-	polysaccharide deacetylase family protein
14	 61.46	-1	11261..12316	-	351	124383888	-	BMA10229_A0014	-	hypothetical protein
15	 71.20	0	12313..13260	-	315	124384607	-	BMA10229_A0015	-	hypothetical protein
16	 66.47	0	13257..14264	-	335	124386023	-	BMA10229_A0016	-	glycosyl transferase, group 2 family protein
17	 67.19	0	14271..15422	-	383	124383514	-	BMA10229_A0017	-	aminotransferase
18	 63.44	0	15549..15920	-	123	124384126	-	BMA10229_A0018	-	hypothetical protein
19	 68.63	0	15917..17647	-	576	124383526	-	BMA10229_A0019	-	dolichyl-phosphate-mannose-protein mannosyltransferase family protein
20	 64.80	0	17816..18190	-	124	124383807	-	BMA10229_A0020	-	hypothetical protein
21	 65.69	0	18752..19771	+	339	124386649	-	BMA10229_A0021	-	aminotransferase, classes I and II
22	 67.95	0	19816..21144	+	442	124385647	hom	BMA10229_A0022	-	homoserine dehydrogenase
23	 66.94	0	21152..22603	+	483	124384010	thrC	BMA10229_A0023	-	threonine synthase
24	 71.38	0	23379..24671	+	430	124384914	moeA-2	BMA10229_A0024	-	molybdopterin biosynthesis moeA protein
25	 71.32	0	24693..24950	+	85	124385449	moaD	BMA10229_A0025	-	molybdopterin converting factor, subunit 1
26	 67.89	0	24961..25449	+	162	124385226	moaE	BMA10229_A0026	-	molybdopterin converting factor, subunit 2
27	 67.77	0	25771..26313	-	180	124386131	-	BMA10229_A0027	-	hypothetical protein
28	 65.86	0	26497..26994	+	165	124383404	-	BMA10229_A0028	-	Rrf2 family protein
29	 80.70	+2	26991..27104	+	37	124384987	-	BMA10229_A0029	-	hypothetical protein
30	 65.97	0	27198..29795	+	865	124385885	clpB	BMA10229_A0030	-	ATP-dependent Clp protease, ATP-binding subunit ClpB
31	 66.43	0	30034..30456	-	140	124386247	-	BMA10229_A0031	-	hypothetical protein
32	 71.26	0	30535..31230	-	231	124383988	-	BMA10229_A0032	-	hypothetical protein
33	 66.67	0	31499..31993	+	164	124384343	-	BMA10229_A0033	-	MerR family transcriptional regulator
34	 65.66	0	31942..32340	+	132	124385510	-	BMA10229_A0034	-	carboxymuconolactone decarboxylase family protein
35	 69.76	0	32731..34086	-	451	124385828	-	BMA10229_A0035	-	putative multidrug resistance protein NorM
36	 69.30	0	34090..35838	-	582	124383703	-	BMA10229_A0036	-	hypothetical protein
37	 70.37	0	35866..36108	+	80	124385132	-	BMA10229_A0038	-	hypothetical protein
38	 56.44	-2	36062..36325	-	87	124384089	rpmE2	BMA10229_A0037	-	50S ribosomal protein L31 type B
39	 67.14	0	36540..37385	-	281	124384517	-	BMA10229_A0039	-	hypothetical protein
40	 67.76	0	37428..38984	-	518	124383554	-	BMA10229_A0040	-	major facilitator transporter
41	 70.86	0	38981..39481	-	166	124386091	-	BMA10229_A0041	-	MerR family transcriptional regulator
42	 61.92	-1	39618..40880	-	420	124385334	rho	BMA10229_A0042	-	transcription termination factor Rho
43	 55.56	-2	40944..41069	-	41	124384665	-	BMA10229_A0043	-	hypothetical protein
44	 61.77	-1	41076..41402	-	108	124384408	trx	BMA10229_A0044	-	thioredoxin
45	 73.12	+1	42066..44543	+	825	124386554	-	BMA10229_A0045	-	DNA polymerase III subunits gamma and tau
46	 64.83	0	44640..44966	+	108	124385489	-	BMA10229_A0046	-	hypothetical protein
47	 68.99	0	44998..45600	+	200	124385650	recR	BMA10229_A0047	-	recombination protein RecR
48	 69.57	0	45670..46875	+	401	124384295	-	BMA10229_A0049	-	CAIB/BAIF family protein
49	 78.29	+2	46827..46955	-	42	124384956	-	BMA10229_A0048	-	hypothetical protein
50	 66.93	0	46980..47741	+	253	124384804	surE	BMA10229_A0050	-	stationary phase survival protein SurE
51	 73.37	+1	47738..48706	+	322	124386039	pcm	BMA10229_A0051	-	protein-L-isoaspartate O-methyltransferase
52	 68.01	0	48718..49608	+	296	124385128	-	BMA10229_A0052	-	putative lipoprotein NlpD
53	 64.63	0	49620..50699	+	359	124385284	rpoS	BMA10229_A0053	-	RNA polymerase sigma factor RpoS
54	 64.74	0	50707..51483	+	258	124384361	-	BMA10229_A0054	-	hypothetical protein
55	 69.19	0	51493..51690	+	65	124386331	-	BMA10229_A0056	-	hypothetical protein
56	 71.89	0	51657..52517	-	286	124383859	-	BMA10229_A0055	-	endonuclease/exonuclease/phosphatase family protein
57	 67.10	0	52595..53992	+	465	124385031	rumA	BMA10229_A0057	-	23S rRNA 5-methyluridine methyltransferase
58	 63.95	0	54066..54764	-	232	124385615	-	BMA10229_A0058	-	hypothetical protein
59	 62.91	-1	55013..55438	+	141	124384473	ndk	BMA10229_A0059	-	nucleoside diphosphate kinase
60	 65.44	0	55480..56616	+	378	124383540	-	BMA10229_A0060	-	radical SAM protein
61	 73.63	+1	56683..57846	+	387	124386325	-	BMA10229_A0061	-	hypothetical protein
62	 69.46	0	57990..59240	+	416	124385778	ispG	BMA10229_A0062	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
63	 65.40	0	59259..60599	+	446	124385953	hisS	BMA10229_A0063	-	histidyl-tRNA synthetase
64	 67.46	0	60652..61281	+	209	124385333	-	BMA10229_A0064	-	hypothetical protein
65	 69.11	0	61326..62471	+	381	124384205	-	BMA10229_A0065	-	putative lipoprotein
66	 66.07	0	62746..64083	+	445	124383522	engA	BMA10229_A0066	-	GTP-binding protein EngA
67	 54.17	-2	64218..64457	+	79	124383448	hfq	BMA10229_A0067	-	RNA-binding protein Hfq
68	 66.07	0	64529..65692	+	387	124386447	hflX	BMA10229_A0068	-	GTP-binding protein HflX
69	 69.93	0	65738..67087	+	449	124384316	hflK	BMA10229_A0069	-	ftsH protease activity modulator HflK
70	 69.67	0	67104..68003	+	299	124383417	hflC	BMA10229_A0070	-	ftsH protease activity modulator HflC
71	 61.98	-1	68028..68219	+	63	124385774	-	BMA10229_A0071	-	hypothetical protein
72	 70.76	0	68331..69479	+	382	124384850	hisZ	BMA10229_A0072	-	ATP phosphoribosyltransferase regulatory subunit
73	 67.04	0	69604..70950	+	448	124384688	purA	BMA10229_A0073	-	adenylosuccinate synthetase
74	 63.33	0	70951..71550	+	199	124383667	-	BMA10229_A0074	-	phosphoribosyl transferase domain-containing protein
75	 58.76	-1	71682..71858	-	58	124386055	-	BMA10229_A0075	-	hypothetical protein
76	 63.92	0	71841..73733	+	630	124385081	kup	BMA10229_A0076	-	potassium uptake protein
77	 68.73	0	73968..76292	-	774	124384978	-	BMA10229_A0077	-	putative tex protein
78	 65.04	0	76299..76421	+	40	124384250	-	BMA10229_A0078	-	hypothetical protein
79	 68.13	0	76432..77181	+	249	124385155	-	BMA10229_A0079	-	putative lipoprotein
80	 57.87	-2	77290..77505	+	71	124385856	-	BMA10229_A0080	-	hypothetical protein
81	 69.59	0	77568..79826	+	752	124384589	-	BMA10229_A0081	-	putative ATP-dependent helicase
82	 64.73	0	80002..80826	-	274	124384405	comL	BMA10229_A0082	-	competence lipoprotein ComL
83	 71.11	0	80898..82067	+	389	124385530	-	BMA10229_A0083	-	RluA family pseudouridine synthase
84	 74.79	+1	82074..82910	+	278	124386252	-	BMA10229_A0084	-	hypothetical protein
85	 67.66	0	83427..85241	+	604	124383320	phaC	BMA10229_A0085	-	poly(R)-hydroxyalkanoic acid synthase, class I
86	 69.29	0	85338..86519	+	393	124384894	phbA	BMA10229_A0086	-	acetyl-CoA acetyltransferase
87	 63.70	0	86645..87385	+	246	124385773	phbB-1	BMA10229_A0087	-	acetyacetyl-CoA reductase
88	 54.97	-2	87522..88094	+	190	124386439	phaR	BMA10229_A0088	-	polyhydroxyalkanoate synthesis repressor PhaR
89	 65.95	0	88665..90056	+	463	124384882	-	BMA10229_A0089	-	putative tRNA modifying protein
90	 72.49	0	90059..90985	+	308	124385617	-	BMA10229_A0090	-	carbohydrate kinase
91	 69.87	0	91081..92265	+	394	124385106	-	BMA10229_A0091	-	beta-ketothiolase
92	 74.91	+1	92282..92863	+	193	124384061	-	BMA10229_A0092	-	hypothetical protein
93	 66.84	0	93164..94348	+	394	124383625	metC	BMA10229_A0093	-	cystathionine beta-lyase
94	 67.73	0	94612..95457	-	281	124384487	serB	BMA10229_A0094	-	phosphoserine phosphatase
95	 68.29	0	95500..96237	+	245	124385381	-	BMA10229_A0095	-	hypothetical protein
96	 66.85	0	96308..96853	+	181	124386327	-	BMA10229_A0096	-	hypothetical protein
97	 69.60	0	97521..98339	-	272	124385968	-	BMA10229_A0097	-	hypothetical protein
98	 74.28	+1	98336..99031	-	231	124384909	-	BMA10229_A0098	-	ABC transporter, ATP-binding protein
99	 70.16	0	99165..101657	+	830	124385936	-	BMA10229_A0099	-	AsmA family protein
100	 63.11	-1	101908..103707	+	599	124384967	-	BMA10229_A0100	-	ABC transporter, ATP-binding protein
67.88	MEAN

4.75	STD DEV
