IslandPath Analysis: Burkholderia cenocepacia HI2424

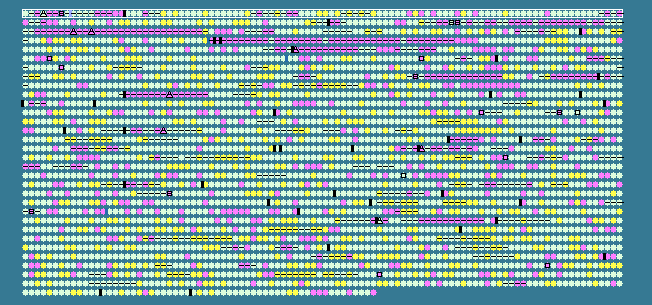

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 66.90   STD DEV: 4.32
Burkholderia cenocepacia HI2424 chromosome 1, complete sequence - 1..3483902
3159 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 65.97	0	178..1755	+	525	116688025	dnaA	Bcen2424_0001	-	chromosomal replication initiation protein
2	 63.87	0	1926..3032	+	368	116688026	-	Bcen2424_0002	-	DNA polymerase III subunit beta
3	 62.14	-1	3224..5698	+	824	116688027	gyrB	Bcen2424_0003	-	DNA gyrase subunit B
4	 64.74	0	6509..8014	+	501	116688028	-	Bcen2424_0004	-	integrase catalytic subunit
5	 59.65	-1	8007..8804	+	265	116688029	-	Bcen2424_0005	-	IstB ATP binding domain-containing protein
6	 47.86	-2	8871..8987	-	38	116688030	-	Bcen2424_0006	-	DNA (cytosine-5-)-methyltransferase
7	 57.09	-2	9308..9568	+	86	116688031	-	Bcen2424_0007	-	transposase IS3/IS911 family protein
8	 64.15	0	9607..9924	+	105	116688032	-	Bcen2424_0008	-	putative insertion element protein
9	 66.10	0	15657..16187	-	176	116688033	-	Bcen2424_0009	-	cytochrome B561
10	 70.26	0	16187..17272	-	361	116688034	-	Bcen2424_0010	-	catalase domain-containing protein
11	 67.43	0	17431..17952	+	173	116688035	-	Bcen2424_0011	-	ECF subfamily RNA polymerase sigma-24 factor
12	 67.72	0	17949..18707	+	252	116688036	-	Bcen2424_0012	-	putative transmembrane anti-sigma factor
13	 60.55	-1	19024..19350	+	108	116688037	-	Bcen2424_0013	-	hypothetical protein
14	 58.81	-1	19296..19613	-	105	116688038	-	Bcen2424_0014	-	hypothetical protein
15	 59.30	-1	19796..20053	-	85	116688039	-	Bcen2424_0015	-	hypothetical protein
16	 60.91	-1	20072..20401	-	109	116688040	-	Bcen2424_0016	-	hypothetical protein
17	 58.24	-2	20433..20693	-	86	116688041	-	Bcen2424_0017	-	hypothetical protein
18	 65.89	0	21686..22201	+	171	116688042	-	Bcen2424_0018	-	hypothetical protein
19	 67.35	0	22304..23185	-	293	116688043	-	Bcen2424_0019	-	RNA polymerase sigma factor SigJ
20	 66.88	0	23185..23661	-	158	116688044	-	Bcen2424_0020	-	alkylhydroperoxidase
21	 58.97	-1	24004..24237	+	77	116688045	-	Bcen2424_0021	-	hypothetical protein
22	 69.27	0	24242..25468	+	408	116688046	-	Bcen2424_0022	-	hypothetical protein
23	 67.95	0	25452..26465	+	337	116688047	-	Bcen2424_0023	-	hypothetical protein
24	 70.96	0	26759..27061	+	100	116688048	-	Bcen2424_0024	-	hypothetical protein
25	 69.48	0	27114..27326	+	70	116688049	-	Bcen2424_0025	-	hypothetical protein
26	 70.87	0	27514..27870	+	118	116688050	-	Bcen2424_0026	-	hypothetical protein
27	 68.52	0	28136..31162	-	1008	116688051	-	Bcen2424_0027	-	type III restriction enzyme, res subunit
28	 68.05	0	31162..33180	-	672	116688052	-	Bcen2424_0028	-	site-specific DNA-methyltransferase (adenine-specific)
29	 64.45	0	33540..34667	-	375	116688053	-	Bcen2424_0029	-	outer membrane protein (porin)-like protein
30	 67.85	0	34950..35627	-	225	116688054	-	Bcen2424_0030	-	two component transcriptional regulator
31	 70.39	0	35641..37008	-	455	116688055	-	Bcen2424_0031	-	periplasmic sensor signal transduction histidine kinase
32	 66.55	0	37097..37954	-	285	116688056	-	Bcen2424_0032	-	binding-protein-dependent transport systems inner membrane component
33	 66.04	0	38014..38811	-	265	116688057	-	Bcen2424_0033	-	ABC transporter related
34	 67.86	0	38933..39937	-	334	116688058	-	Bcen2424_0034	-	ABC nitrate/sulfonate/bicarbonate transporter, periplasmic ligand binding protein
35	 68.33	0	40123..40905	-	260	116688059	-	Bcen2424_0035	-	flagellar biosynthetic protein FliR
36	 68.86	0	40930..41202	-	90	116688060	fliQ	Bcen2424_0036	-	flagellar biosynthesis protein FliQ
37	 65.09	0	41220..41981	-	253	116688061	fliP	Bcen2424_0037	-	flagellar biosynthesis protein FliP
38	 75.43	+1	42018..42599	-	193	116688062	-	Bcen2424_0038	-	flagellar biosynthesis protein, FliO
39	 67.69	0	42596..43084	-	162	116688063	-	Bcen2424_0039	-	flagellar motor switch protein FliN
40	 63.26	0	43077..44075	-	332	116688064	fliM	Bcen2424_0040	-	flagellar motor switch protein FliM
41	 68.35	0	44098..44631	-	177	116688065	fliL	Bcen2424_0041	-	flagellar basal body-associated protein FliL
42	 67.91	0	44844..45566	-	240	116688066	-	Bcen2424_0042	-	LrgB family protein
43	 74.26	+1	45580..46053	-	157	116688067	-	Bcen2424_0043	-	LrgA family protein
44	 70.33	0	46195..47121	+	308	116688068	-	Bcen2424_0044	-	LysR family transcriptional regulator
45	 61.24	-1	47146..47532	-	128	116688069	-	Bcen2424_0045	-	PilT domain-containing protein
46	 61.85	-1	47529..47777	-	82	116688070	-	Bcen2424_0046	-	prevent-host-death family protein
47	 67.50	0	47883..49445	-	520	116688071	-	Bcen2424_0047	-	EmrB/QacA family drug resistance transporter
48	 67.69	0	49622..50110	-	162	116688072	-	Bcen2424_0048	-	MarR family transcriptional regulator
49	 69.79	0	50285..50572	+	95	116688073	-	Bcen2424_0049	-	hypothetical protein
50	 72.01	+1	50854..52425	+	523	116688074	-	Bcen2424_0050	-	RND efflux system outer membrane lipoprotein
51	 71.27	+1	52457..53281	-	274	116688075	-	Bcen2424_0051	-	hypothetical protein
52	 67.85	0	53282..53788	-	168	116688076	-	Bcen2424_0052	-	general secretion pathway M protein
53	 73.44	+1	53785..55158	-	457	116688077	-	Bcen2424_0053	-	general secretion pathway protein L
54	 70.00	0	55185..56294	-	369	116688078	-	Bcen2424_0054	-	general secretion pathway protein K
55	 71.24	+1	56297..56995	-	232	116688079	-	Bcen2424_0055	-	general secretion pathway protein
56	 69.65	0	56973..57374	-	133	116688080	-	Bcen2424_0056	-	general secretion pathway protein I
57	 71.23	+1	57377..57946	-	189	116688081	-	Bcen2424_0057	-	general secretion pathway protein H
58	 64.46	0	57986..58438	-	150	116688082	-	Bcen2424_0058	-	general secretion pathway protein G
59	 71.78	+1	58614..59024	+	136	116688083	-	Bcen2424_0059	-	hypothetical protein
60	 68.47	0	59062..60279	-	405	116688084	-	Bcen2424_0060	-	general secretion pathway protein F
61	 68.67	0	60284..61783	-	499	116688085	-	Bcen2424_0061	-	general secretory pathway protein E
62	 66.58	0	61780..64104	-	774	116688086	-	Bcen2424_0062	-	general secretion pathway protein D
63	 64.04	0	64473..64967	+	164	116688087	-	Bcen2424_0063	-	lytic transglycosylase, catalytic
64	 66.06	0	65121..66434	+	437	116688088	-	Bcen2424_0064	-	cobalamin synthesis protein, P47K
65	 60.93	-1	66563..66841	-	92	116688089	-	Bcen2424_0065	-	histone family protein DNA-binding protein
66	 72.31	+1	67230..69161	+	643	116688090	mnmC	Bcen2424_0066	-	5-methylaminomethyl-2-thiouridine methyltransferase
67	 59.02	-1	69463..69789	+	108	116688091	-	Bcen2424_0067	-	hypothetical protein
68	 65.68	0	69833..71047	+	404	116688092	-	Bcen2424_0068	-	sodium/hydrogen exchanger
69	 62.81	0	71062..72177	+	371	116688093	-	Bcen2424_0069	-	carboxylate-amine ligase
70	 67.29	0	72682..73320	+	212	116688094	-	Bcen2424_0070	-	MarR family transcriptional regulator
71	 70.18	0	73349..74059	+	236	116688095	-	Bcen2424_0071	-	glutamine amidotransferase
72	 70.26	0	74288..75400	+	370	116688096	-	Bcen2424_0072	-	NADH:flavin oxidoreductase/NADH oxidase
73	 62.52	-1	75578..76108	+	176	116688097	-	Bcen2424_0073	-	nuclear protein SET
74	 70.44	0	76270..77754	-	494	116688098	-	Bcen2424_0074	-	periplasmic sensor signal transduction histidine kinase
75	 65.95	0	77876..78568	-	230	116688099	-	Bcen2424_0075	-	two component transcriptional regulator
76	 57.85	-2	78661..78921	+	86	116688100	-	Bcen2424_0076	-	hypothetical protein
77	 65.37	0	79021..79329	-	102	116688101	phhB	Bcen2424_0077	-	pterin-4-alpha-carbinolamine dehydratase
78	 67.71	0	79461..80423	-	320	116688102	phhA	Bcen2424_0078	-	phenylalanine 4-monooxygenase
79	 65.84	0	80493..80978	+	161	116688103	-	Bcen2424_0079	-	AsnC family transcriptional regulator
80	 68.91	0	81045..81578	-	177	116688104	-	Bcen2424_0080	-	adenylate cyclase
81	 71.35	+1	81787..82725	-	312	116688105	-	Bcen2424_0081	-	LysR family transcriptional regulator
82	 68.34	0	82916..84652	+	578	116688106	-	Bcen2424_0082	-	glucose-methanol-choline oxidoreductase
83	 65.64	0	85086..85865	+	259	116688107	-	Bcen2424_0083	-	ABC transporter related
84	 67.72	0	85862..86617	+	251	116688108	-	Bcen2424_0084	-	ABC transporter related
85	 64.92	0	86695..87894	+	399	116688109	-	Bcen2424_0085	-	branched chain amino acid ABC transporter periplasmic ligand-binding protein
86	 65.21	0	87945..88907	+	320	116688110	-	Bcen2424_0086	-	inner-membrane translocator
87	 67.69	0	88907..89884	+	325	116688111	-	Bcen2424_0087	-	inner-membrane translocator
88	 55.67	-2	89996..90295	+	99	116688112	-	Bcen2424_0088	-	hypothetical protein
89	 66.93	0	90949..92106	+	385	116688113	-	Bcen2424_0089	-	extracellular ligand-binding receptor
90	 67.09	0	92176..93360	+	394	116688114	-	Bcen2424_0090	-	inner-membrane translocator
91	 67.28	0	93365..95149	+	594	116688115	-	Bcen2424_0091	-	ABC transporter related
92	 66.93	0	95149..95904	+	251	116688116	-	Bcen2424_0092	-	ABC transporter related
93	 65.25	0	96438..98408	+	656	116688117	-	Bcen2424_0093	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
94	 63.76	0	98405..99091	+	228	116688118	-	Bcen2424_0094	-	methyltransferase GidB
95	 63.59	0	99143..99922	+	259	116688119	-	Bcen2424_0095	-	cobyrinic acid a,c-diamide synthase
96	 65.03	0	99930..100847	+	305	116688120	-	Bcen2424_0096	-	parB-like partition proteins
97	 67.46	0	100858..101988	+	376	116688121	-	Bcen2424_0097	-	citrate transporter
98	 58.18	-2	102123..102440	+	105	116688122	-	Bcen2424_0098	-	hypothetical protein
99	 65.14	0	102555..103079	+	174	116688123	-	Bcen2424_0099	-	F0F1-type ATP synthase subunit I-like protein
100	 60.92	-1	103190..104041	+	283	116688124	-	Bcen2424_0100	-	F0F1 ATP synthase subunit A
66.90	MEAN

4.32	STD DEV
