IslandPath Analysis: Brucella suis 1330

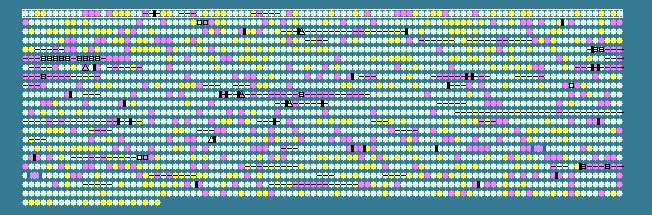

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 57.00   STD DEV: 4.33
Brucella suis 1330 chromosome I, complete sequence - 1..2107794
2123 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 60.23	0	784..2274	+	496	23500917	dnaA	BR0001	-	chromosomal replication initiation protein
2	 58.79	0	2503..3696	+	397	23500918	dnaN	BR0002	-	DNA polymerase III subunit beta
3	 61.30	0	3878..5032	+	384	23500919	recF	BR0003	-	recombination protein F
4	 61.43	+1	5070..5852	+	260	23500920	moeB	BR0004	-	molybdopterin biosynthesis protein MoeB
5	 57.47	0	5869..6825	-	318	23500921	-	BR0005	-	D-isomer specific 2-hydroxyacid dehydrogenase family protein
6	 59.10	0	6822..8447	-	541	23500922	-	BR0006	-	ABC transporter, ATP-binding protein
7	 58.16	0	8471..9610	-	379	23500923	-	BR0007	-	ABC transporter, permease protein
8	 55.92	0	9610..10707	-	365	23500924	-	BR0008	-	ABC transporter, permease protein
9	 57.74	0	10819..12633	-	604	23500925	-	BR0009	-	ABC transporter, periplasmic substrate-binding protein, putative
10	 55.97	0	12680..14548	-	622	23500926	-	BR0010	-	ABC transporter, periplasmic substrate-binding protein, putative
11	 53.40	0	14779..15102	-	107	23500927	-	BR0011	-	hypothetical protein
12	 47.76	-2	15148..15348	-	66	23500928	-	BR0012	-	hypothetical protein
13	 36.47	-2	15388..15738	-	116	23500929	-	BR0013	-	hypothetical protein
14	 59.26	0	16003..17109	-	368	23500930	-	BR0014	-	branched-chain amino acid ABC transporter, perisplasmic amino acid-binding protein, putative
15	 52.74	0	17381..17581	+	66	23500931	-	BR0015	-	hypothetical protein
16	 61.64	+1	17578..18372	-	264	23500932	-	BR0016	-	enoyl-CoA hydratase
17	 62.12	+1	19224..21245	-	673	23500933	-	BR0018	-	biotin carboxylase
18	 62.25	+1	21257..22864	-	535	23500934	-	BR0019	-	carboxyl transferase family protein
19	 59.09	0	22864..24012	-	382	23500935	ivd	BR0020	-	isovaleryl-CoA dehydrogenase
20	 59.98	0	24189..26177	-	662	23500936	-	BR0021	-	acetoacetyl-CoA synthetase
21	 53.33	0	26362..26796	-	144	23500937	-	BR0022	-	hypothetical protein
22	 54.81	0	26973..28094	-	373	23500938	-	BR0023	-	hypothetical protein
23	 55.99	0	28617..29000	-	127	23500939	-	BR0024	-	hypothetical protein
24	 61.20	0	29385..30737	+	450	23500940	aroA	BR0025	-	3-phosphoshikimate 1-carboxyvinyltransferase
25	 62.42	+1	30734..31393	+	219	23500941	cmk	BR0026	-	cytidylate kinase
26	 58.02	0	31609..33309	+	566	23500942	rpsA	BR0027	-	30S ribosomal protein S1
27	 59.84	0	33727..34737	-	336	23500943	-	BR0028	-	hypothetical protein
28	 57.33	0	34853..35752	+	299	23500944	-	BR0029	-	LysR family transcriptional regulator
29	 29.17	-2	35746..36321	-	191	23500945	-	BR0030	-	hypothetical protein
30	 55.22	0	36357..37640	-	427	23500946	-	BR0031	-	transglycosylase, putative
31	 60.73	0	37656..38261	-	201	23500947	recR	BR0032	-	recombination protein RecR
32	 59.88	0	38392..38715	-	107	23500948	-	BR0033	-	hypothetical protein
33	 61.80	+1	38740..40548	-	602	23500949	dnaX	BR0034	-	DNA polymerase III subunits gamma and tau
34	 61.73	+1	40829..41233	+	134	23500950	-	BR0035	-	hypothetical protein
35	 60.02	0	41262..42209	+	315	23500951	-	BR0036	-	MutT/nudix family protein
36	 58.68	0	42210..43073	-	287	23500952	pheA	BR0037	-	prephenate dehydratase
37	 60.45	0	43162..43917	-	251	23500953	kdsB	BR0038	-	3-deoxy-manno-octulosonate cytidylyltransferase
38	 56.98	0	44295..44903	+	202	23500954	-	BR0039	-	cytochrome c, membrane-bound
39	 61.70	+1	44948..45913	-	321	23500955	-	BR0040	-	hypothetical protein
40	 50.49	-1	45969..46277	+	102	23500956	-	BR0041	-	hypothetical protein
41	 55.75	0	46440..47465	+	341	23500957	cyoA	BR0042	-	ubiquinol oxidase, subunit II
42	 58.03	0	47545..49524	+	659	23500958	qoxB	BR0043	-	ubiquinol oxidase subunit I
43	 57.94	0	49528..50157	+	209	23500959	-	BR0044	-	ubiquinol oxidase subunit III
44	 55.19	0	50157..50522	+	121	23500960	qoxD	BR0045	-	ubiquinol oxidase subunit IV
45	 50.54	-1	50519..50797	-	92	23500961	-	BR0046	-	hypothetical protein
46	 64.29	+1	50973..51560	+	195	23500962	-	BR0047	-	hypothetical protein
47	 59.27	0	52156..54075	+	639	23500963	-	BR0048	-	hypothetical protein
48	 59.89	0	54264..58811	+	1515	23500964	-	BR0049	-	hypothetical protein
49	 57.44	0	58956..59681	+	241	23500965	-	BR0050	-	putative lipoprotein
50	 55.56	0	59732..59947	-	71	23500966	-	BR0051	-	hypothetical protein
51	 59.52	0	60017..60520	-	167	23500967	-	BR0052	-	hypothetical protein
52	 61.35	+1	60857..61063	-	68	23500968	-	BR0053	-	hypothetical protein
53	 58.61	0	61074..62078	-	334	23500969	-	BR0054	-	hypothetical protein
54	 59.90	0	62213..62611	-	132	23500970	-	BR0055	-	hypothetical protein
55	 58.59	0	62864..63259	-	131	23500971	-	BR0056	-	glyoxalase family protein
56	 62.20	+1	63456..64619	+	387	23500972	-	BR0057	-	mrp-related protein
57	 57.90	0	64824..66455	-	543	23500973	pgm	BR0058	-	phosphoglucomutase
58	 44.62	-2	66511..66696	-	61	23500974	-	BR0059	-	hypothetical protein
59	 59.84	0	66671..67564	-	297	23500975	-	BR0060	-	LysR family transcriptional regulator
60	 54.65	0	67689..68612	+	307	23500976	-	BR0061	-	dienelactone hydrolase domain-containing protein
61	 58.94	0	68685..69383	+	232	23500977	frcK	BR0062	-	putative fructose transport system kinase
62	 58.99	0	69483..70172	+	229	23500978	-	BR0063	-	fumarylacetoacetate hydrolase family protein
63	 52.60	-1	70192..70383	+	63	23500979	-	BR0064	-	hypothetical protein
64	 46.30	-2	70445..70660	+	71	23500980	-	BR0065	-	hypothetical protein
65	 51.85	-1	70826..71014	+	62	23500981	-	BR0066	-	hypothetical protein
66	 62.50	+1	71029..71892	+	287	23500982	-	BR0067	-	transglycosylase SLT domain-containing protein
67	 57.84	0	72078..72734	+	218	23500983	-	BR0068	-	hemolysin III family channel protein
68	 60.42	0	72875..76108	-	1077	23500984	dnaE2	BR0069	-	error-prone DNA polymerase
69	 64.81	+1	76108..77559	-	483	23500985	-	BR0070	-	hypothetical protein
70	 63.89	+1	77585..78448	-	287	23500986	-	BR0071	-	hypothetical protein
71	 52.99	0	78967..81189	+	740	23500987	-	BR0072	-	outer membrane protein
72	 53.73	0	81398..81946	+	182	23500988	-	BR0073	-	hypothetical protein
73	 58.15	0	82025..83245	-	406	23500989	argG	BR0074	-	argininosuccinate synthase
74	 57.74	0	84095..84598	-	167	23500990	-	BR0076	-	hypothetical protein
75	 59.30	0	84632..85867	-	411	23500991	-	BR0077	-	hypothetical protein
76	 51.04	-1	85811..86002	+	63	23500992	-	BR0078	-	hypothetical protein
77	 55.38	0	85987..86181	+	64	23500993	-	BR0079	-	hypothetical protein
78	 57.54	0	86127..86630	-	167	23500994	-	BR0080	-	hypothetical protein
79	 63.28	+1	87070..87453	-	127	23500995	-	BR0081	-	hypothetical protein
80	 54.76	0	87541..87834	-	97	23500996	phhB	BR0082	-	pterin-4-alpha-carbinolamine dehydratase
81	 55.61	0	88061..88666	+	201	23500997	-	BR0083	-	phosphotyrosine protein phosphatase
82	 61.25	0	88576..89166	-	196	23500998	-	BR0084	-	hypothetical protein
83	 56.06	0	89347..90072	-	241	23500999	-	BR0085	-	lipase/acylhydrolase domain-containing protein
84	 61.73	+1	90219..90947	+	242	23501000	-	BR0086	-	ABC transporter, ATP-binding protein
85	 61.65	+1	90944..93493	+	849	23501001	-	BR0087	-	ABC transporter, permease protein
86	 57.99	0	93727..94464	+	245	23501002	-	BR0088	-	hypothetical protein
87	 59.44	0	94579..95118	+	179	23501003	pat	BR0089	-	phosphinothricin N-acetyltransferase
88	 54.48	0	95138..95539	-	133	23501004	-	BR0090	-	hypothetical protein
89	 57.01	0	96089..96823	-	244	23501005	-	BR0091	-	hypothetical protein
90	 56.74	0	96976..97116	-	46	23501006	-	BR0092	-	hypothetical protein
91	 60.16	0	97100..99787	-	895	23501007	acnA	BR0093	-	aconitate hydratase
92	 58.33	0	100131..100778	+	215	23501008	ccmA	BR0094	-	cytochrome c biogenesis protein CcmA
93	 62.31	+1	100778..101443	+	221	23501009	ccmB	BR0095	-	heme exporter protein CcmB
94	 58.40	0	101501..102286	+	261	23501010	ccmC	BR0096	-	heme exporter protein CcmC
95	 56.90	0	102283..102456	+	57	23501011	-	BR0097	-	heme exporter protein D
96	 59.15	0	102453..103064	+	203	23501012	cycY	BR0098	-	thioredoxin family thiol:disulfide interchange protein
97	 61.00	0	103313..105148	-	611	23501013	ilvD	BR0099	-	dihydroxy-acid dehydratase
98	 54.35	0	105330..105467	+	45	23501014	-	BR0100	-	hypothetical protein
99	 61.02	0	105548..105901	-	117	23501015	-	BR0101	-	hypothetical protein
100	 59.52	0	106006..106383	-	125	23501016	-	BR0102	-	response regulator, putative
57.00	MEAN

4.33	STD DEV
