IslandPath Analysis: Brucella melitensis biovar Abortus 2308

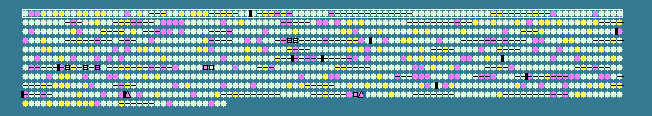

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 57.35   STD DEV: 3.92
Brucella melitensis biovar Abortus 2308 chromosome II, complete sequence - 1..1156948
1034 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 54.02	0	155..1348	+	397	83268958	repC	BAB2_0001	-	replication protein C
2	 52.27	-1	1551..1814	+	87	83268959	-	BAB2_0002	-	hypothetical protein
3	 51.75	-1	1963..2076	+	37	83268960	-	BAB2_0003	-	hypothetical protein
4	 61.78	+1	2092..3033	+	313	83268961	-	BAB2_0004	-	ribokinase:carbohydrate kinase, PfkB
5	 56.36	0	3110..4108	-	332	83268962	-	BAB2_0005	-	inosine/uridine-preferring nucleoside hydrolase
6	 61.94	+1	4907..5986	-	359	83268963	-	BAB2_0007	-	inner-membrane translocator
7	 62.53	+1	6048..7619	-	523	83268964	-	BAB2_0008	-	ABC transporter ATPase
8	 55.92	0	7622..8728	-	368	83268965	-	BAB2_0009	-	adenine nucleotide translocator 1:basic membrane lipoprotein
9	 58.13	0	8972..9580	+	202	83268966	-	BAB2_0010	-	hypothetical protein
10	 62.24	+1	9552..10184	-	210	83268967	-	BAB2_0011	-	enterobactin synthetase component D
11	 61.65	+1	10267..11043	-	258	83268968	-	BAB2_0012	-	2,3-dihydroxybenzoate-2,3-dehydrogenase
12	 60.82	0	11043..11915	-	290	83268969	-	BAB2_0013	-	isochorismatase hydrolase family protein
13	 60.99	0	11967..13586	-	539	83268970	entE	BAB2_0014	-	enterobactin synthase subunit E
14	 61.48	+1	13693..14868	-	391	83268971	-	BAB2_0015	-	isochorismate synthase:anthranilate synthase component I and chorismate binding protein
15	 58.79	0	14940..16349	+	469	83268972	-	BAB2_0016	-	condensation domain-containing protein
16	 57.92	0	16397..17185	-	262	83268973	-	BAB2_0017	-	molybdopterin oxidoreductase:twin-arginine translocation pathway signal
17	 55.93	0	17182..17991	-	269	83268974	-	BAB2_0018	-	nickel-dependent hydrogenase b-type cytochrome subunit
18	 51.48	-1	18052..18321	-	89	83268975	-	BAB2_0019	-	hypothetical protein
19	 60.00	0	18506..19030	+	174	83268976	-	BAB2_0020	-	sigma-70 region 2
20	 63.84	+1	19020..19655	+	211	83268977	-	BAB2_0021	-	extracytoplasmic function alternative sigma factor
21	 58.70	0	19701..20441	-	246	83268978	-	BAB2_0022	-	GntR family regulatory protein
22	 55.58	0	20559..21974	+	471	83268979	-	BAB2_0023	-	Leu/Ile/Val-binding family protein
23	 57.58	0	22016..23005	+	329	83268980	-	BAB2_0024	-	inner-membrane translocator
24	 61.26	0	23009..24229	+	406	83268981	-	BAB2_0025	-	inner-membrane translocator
25	 58.83	0	24229..24981	+	250	83268982	-	BAB2_0026	-	ABC transporter ATPase
26	 58.58	0	24981..25697	+	238	83268983	-	BAB2_0027	-	ABC transporter:AAA ATPase
27	 61.28	+1	25749..26231	+	160	83268984	-	BAB2_0028	-	glyoxalase/bleomycin resistance protein/dioxygenase
28	 59.08	0	26235..26972	+	245	83268985	-	BAB2_0029	-	Short-chain dehydrogenase/reductase SDR:glucose/ribitol dehydrogenase
29	 62.37	+1	27852..30041	+	729	83268986	-	BAB2_0031	-	dehydrogenase, E1 component:transketolase, central region:transketolase, C terminal
30	 61.93	+1	30060..31325	+	421	83268987	-	BAB2_0032	-	branched-chain alpha-keto acid dehydrogenase subunit E2
31	 61.70	+1	31426..32211	+	261	83268988	-	BAB2_0033	-	shikimate/quinate 5-dehydrogenase
32	 59.57	0	32695..32976	-	93	83268989	-	BAB2_0035	-	hypothetical protein
33	 59.31	0	33090..35807	+	905	83268990	-	BAB2_0036	-	H+ transporting ATPase
34	 64.90	+1	35905..36243	+	112	83268991	-	BAB2_0037	-	hypothetical protein
35	 61.27	+1	36374..36577	+	67	83268992	-	BAB2_0038	-	hypothetical protein
36	 59.27	0	36579..37295	+	238	83268993	-	BAB2_0039	-	MgtC/SapB transporter
37	 57.89	0	37370..38440	+	356	83268994	-	BAB2_0040	-	ATPase-like ATP-binding protein
38	 55.24	0	38437..39075	+	212	83268995	-	BAB2_0041	-	LuxR family regulatory protein
39	 54.27	0	39461..39823	-	120	83268996	-	BAB2_0042	-	response regulator receiver
40	 58.36	0	40142..41032	+	296	83268997	-	BAB2_0043	-	N-formylglutamate amidohydrolase
41	 61.13	0	41194..41970	+	258	83268998	-	BAB2_0044	-	inositol phosphatase/fructose-1,6-bisphosphatase
42	 61.14	0	42021..43016	-	331	83268999	-	BAB2_0045	-	alpha/beta fold hydrolase
43	 48.61	-2	43056..43271	-	71	83269000	-	BAB2_0046	-	hypothetical protein
44	 62.16	+1	43366..43764	-	132	83269001	-	BAB2_0047	-	antifreeze protein, type I
45	 48.10	-2	43816..44025	+	69	83269002	-	BAB2_0048	-	hypothetical protein
46	 54.76	0	43998..44249	+	83	83269003	-	BAB2_0049	-	hypothetical protein
47	 56.05	0	44328..44798	+	156	83269004	-	BAB2_0050	-	heat shock protein Hsp20
48	 59.90	0	44936..45985	-	349	83269005	-	BAB2_0051	-	low-specificity threonine aldolase
49	 55.79	0	46254..46538	-	94	83269006	-	BAB2_0052	-	hypothetical protein
50	 60.33	0	46628..51379	+	1583	83269007	gltB	BAB2_0053	-	glutamate synthase glutamate synthase amidotransferase subunit
51	 60.48	0	51461..52915	+	484	83269008	gltD	BAB2_0054	-	glutamate synthase subunit beta
52	 53.21	-1	52960..54363	-	467	83269009	-	BAB2_0055	-	amino acid transporter
53	 58.77	0	54581..55732	-	383	83269010	-	BAB2_0056	-	hypothetical protein
54	 57.42	0	55983..56501	-	172	83269011	-	BAB2_0057	-	outer membrane protein OprF
55	 58.40	0	56647..57735	-	362	83269012	-	BAB2_0058	-	type II secretion system protein E
56	 58.53	0	57716..58882	-	388	83269013	-	BAB2_0059	-	Glutelin:proline-rich region: conjugation TrbI-like protein
57	 57.59	0	58879..59748	-	289	83269014	-	BAB2_0060	-	Type IV secretion system CagX conjugation protein
58	 55.69	0	59745..60464	-	239	83269015	-	BAB2_0061	-	VirB8
59	 58.05	0	60467..60640	-	57	83269016	-	BAB2_0062	-	type IV secretion system protein VirB7 KO: K03202 type IV secretion system protein VirB7
60	 55.56	0	60804..61847	-	347	83269017	-	BAB2_0063	-	Beta and gamma crystallin:Pollen allergen Poa pIX/Phl pVI, C-terminal:Sodium:dicarboxylate symporter:TrbL/VirB6 plasmid conju...
61	 56.21	0	62031..62747	-	238	83269018	-	BAB2_0064	-	attachment mediating protein virB5 homolog KO: K03200 type IV secretion system protein VirB5
62	 55.57	0	62752..65247	-	831	83269019	-	BAB2_0065	-	shikimate kinase
63	 55.27	0	65247..65597	-	116	83269020	-	BAB2_0066	-	Type IV secretory pathway, VirB3-like
64	 56.29	0	65611..65928	-	105	83269021	-	BAB2_0067	-	type IV secretion system protein VirB2 KO: K03197 type IV secretion system protein VirB2
65	 56.49	0	66364..67080	-	238	83269022	-	BAB2_0068	-	SLT domain-containing protein
66	 59.32	0	67584..68822	-	412	83269023	-	BAB2_0069	-	peptidoglycan binding domain-containing protein
67	 56.94	0	69222..70115	+	297	83269024	galU	BAB2_0070	-	UTP-glucose-1-phosphate uridylyltransferase:nucleotidyl transferase
68	 60.23	0	70168..71706	-	512	83269025	-	BAB2_0071	-	hypothetical protein
69	 59.68	0	71847..72848	+	333	83269026	-	BAB2_0072	-	CBS domain-containing protein:cytochrome b5:sugar isomerase (SIS):KpsF/GutQ family protein
70	 57.48	0	72971..73438	-	155	83269027	-	BAB2_0073	-	nodulation protein nfed, c-terminal only
71	 58.97	0	73459..74445	-	328	83269028	-	BAB2_0074	-	Band 7 protein:stomatin
72	 58.07	0	74578..75636	-	352	83269029	hemH	BAB2_0075	-	ferrochelatase
73	 60.37	0	75774..76154	-	126	83269030	omp10	BAB2_0076	-	lipoprotein Omp10
74	 58.23	0	76296..77741	-	481	83269031	-	BAB2_0077	-	homospermidine synthase
75	 59.47	0	77853..78533	-	226	83269032	-	BAB2_0078	-	hypothetical protein
76	 59.23	0	78467..79636	-	389	83269033	-	BAB2_0079	-	para-aminobenzoate synthase component I
77	 56.90	0	79646..81508	-	620	83269034	pepF	BAB2_0080	-	peptidase M3:neutral zinc metallopeptidases, zinc-binding region
78	 59.56	0	81856..83346	+	496	83269035	-	BAB2_0081	-	response regulator receiver
79	 64.05	+1	83687..85600	+	637	83269036	-	BAB2_0082	-	ATP/GTP-binding motif-containing protein
80	 62.38	+1	85666..86271	-	201	83269037	-	BAB2_0083	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
81	 59.80	0	86463..87074	-	203	83269038	-	BAB2_0084	-	hypothetical protein
82	 56.78	0	87172..88122	+	316	83269039	-	BAB2_0085	-	rhodanese-like protein
83	 55.07	0	88157..88363	+	68	83269040	-	BAB2_0086	-	hypothetical protein
84	 56.48	0	88403..89158	+	251	83269041	modA	BAB2_0087	-	molybdenum ABC transporter periplasmic-binding protein
85	 59.97	0	89169..89855	+	228	83269042	modB	BAB2_0088	-	molybdate ABC transporter permease protein
86	 61.48	+1	89852..90931	+	359	83269043	-	BAB2_0089	-	ABC transporter ATPase
87	 56.05	0	91001..91678	+	225	83269044	-	BAB2_0090	-	GCN5-related N-acetyltransferase
88	 55.24	0	91665..91874	+	69	83269045	-	BAB2_0091	-	hypothetical protein
89	 42.75	-2	91926..92201	-	91	83269046	-	BAB2_0092	-	hypothetical protein
90	 59.51	0	92816..93919	-	367	83269047	-	BAB2_0094	-	Delayed-early response protein/equilibrative nucleoside transporter
91	 54.33	0	93919..94623	-	234	83269048	-	BAB2_0095	-	hypothetical protein
92	 59.73	0	94663..95556	-	297	83269049	-	BAB2_0096	-	transcriptional regulator LysR
93	 60.53	0	95560..96765	-	401	83269050	-	BAB2_0097	-	amidase
94	 60.23	0	97350..98483	+	377	83269051	-	BAB2_0098	-	Orn/DAP/Arg decarboxylase family protein
95	 59.74	0	98559..100277	-	572	83269052	-	BAB2_0099	-	lipopolysaccharide biosynthesis
96	 38.41	-2	100294..100431	-	45	83269053	-	BAB2_0100	-	hypothetical protein
97	 55.48	0	100403..101305	-	300	83269054	-	BAB2_0101	-	hypothetical protein
98	 57.06	0	102024..103178	-	384	83269055	-	BAB2_0104	-	hypothetical protein
99	 54.08	0	103350..104342	+	330	83269056	-	BAB2_0105	-	glycosyl transferase family protein
100	 56.18	0	104311..105636	+	441	83269057	-	BAB2_0106	-	hypothetical protein
57.35	MEAN

3.92	STD DEV
