IslandPath Analysis: Brucella melitensis biovar Abortus 2308

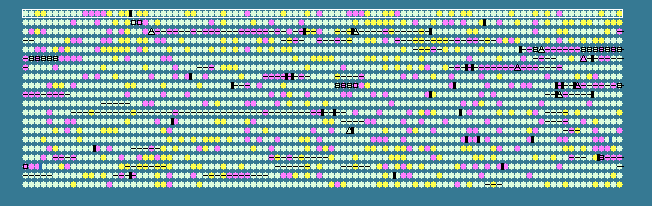

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 57.25   STD DEV: 4.06
Brucella melitensis biovar Abortus 2308 chromosome I, complete sequence - 1..2121359
2000 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 60.23	0	784..2274	+	496	82698933	dnaA	BAB1_0001	-	chromosomal replication initiation protein
2	 58.71	0	2503..3696	+	397	82698934	dnaN	BAB1_0002	-	DNA polymerase III subunit beta
3	 61.39	+1	3878..5032	+	384	82698935	recF	BAB1_0003	-	recombination protein F
4	 61.43	+1	5070..5852	+	260	82698936	-	BAB1_0004	-	molybdopterin biosynthesis protein MoeB
5	 57.37	0	5869..6825	-	318	82698937	-	BAB1_0005	-	pyridine nucleotide-disulphide oxidoreductase
6	 59.04	0	6822..8447	-	541	82698938	-	BAB1_0006	-	ABC transporter ATPase
7	 57.89	0	8471..9610	-	379	82698939	-	BAB1_0007	-	binding-protein dependent transport system inner membrane protein
8	 55.83	0	9610..10707	-	365	82698940	-	BAB1_0008	-	binding-protein dependent transport system inner membrane protein
9	 57.41	0	10819..12633	-	604	82698941	-	BAB1_0009	-	solute-binding family 5 protein
10	 56.07	0	12680..14548	-	622	82698942	-	BAB1_0010	-	solute-binding family 5 protein
11	 53.40	0	14779..15102	-	107	82698943	-	BAB1_0011	-	hypothetical protein
12	 48.26	-2	15148..15348	-	66	82698944	-	BAB1_0012	-	hypothetical protein
13	 35.61	-2	15388..15738	-	116	82698945	-	BAB1_0013	-	hypothetical protein
14	 52.74	-1	17380..17580	+	66	82698946	-	BAB1_0015	-	hypothetical protein
15	 61.51	+1	17577..18371	-	264	82698947	-	BAB1_0016	-	enoyl-CoA hydratase
16	 59.38	0	18368..19231	-	287	82698948	-	BAB1_0017	-	hydroxymethylglutaryl-CoA lyase
17	 62.07	+1	19224..21245	-	673	82698949	-	BAB1_0018	-	carbamoyl-phosphate synthase subunit L
18	 62.00	+1	21257..22864	-	535	82698950	-	BAB1_0019	-	carboxyl transferase
19	 55.99	0	24879..25262	-	127	82698951	-	BAB1_0022	-	hypothetical protein
20	 61.20	0	25647..26999	+	450	82698952	aroA	BAB1_0023	-	3-phosphoshikimate 1-carboxyvinyltransferase
21	 62.73	+1	26996..27655	+	219	82698953	cmk	BAB1_0024	-	cytidylate kinase
22	 57.91	0	27871..29571	+	566	82698954	rpsA	BAB1_0025	-	30S ribosomal protein S1
23	 59.74	0	29989..30999	-	336	82698955	-	BAB1_0026	-	hypothetical protein
24	 57.33	0	31115..32014	+	299	82698956	-	BAB1_0027	-	transcriptional regulator LysR
25	 55.22	0	32619..33902	-	427	82698957	-	BAB1_0028	-	transglycosylase, putative
26	 60.73	0	33918..34523	-	201	82698958	recR	BAB1_0029	-	recombination protein RecR
27	 59.88	0	34654..34977	-	107	82698959	-	BAB1_0030	-	hypothetical protein
28	 61.91	+1	35002..36810	-	602	82698960	-	BAB1_0031	-	DNA polymerase III subunits gamma and tau
29	 61.48	+1	37092..37496	+	134	82698961	-	BAB1_0032	-	hit1 protein
30	 60.02	0	37525..38472	+	315	82698962	-	BAB1_0033	-	NUDIX hydrolase
31	 58.80	0	38473..39336	-	287	82698963	pheA	BAB1_0034	-	prephenate dehydratase
32	 60.58	0	39425..40180	-	251	82698964	-	BAB1_0035	-	3-deoxy-manno-octulosonate cytidylyltransferase
33	 56.81	0	40558..41166	+	202	82698965	-	BAB1_0036	-	cytochrome c heme-binding site:cytochrome c, class IA/ IB:cytochrome c, class I:cytochrome c, class IC
34	 61.49	+1	41211..42176	-	321	82698966	-	BAB1_0037	-	molybdopterin biosynthesis enzyme
35	 55.75	0	42703..43728	+	341	82698967	-	BAB1_0038	-	copper center Cu(A):cytochrome o ubiquinol oxidase subunit II
36	 57.94	0	45790..46419	+	209	82698968	-	BAB1_0041	-	cytochrome c oxidase, subunit III
37	 55.46	0	46419..46784	+	121	82698969	qoxD	BAB1_0042	-	cytochrome C oxidase subunit IV
38	 50.18	-1	46781..47059	-	92	82698970	-	BAB1_0043	-	hypothetical protein
39	 59.17	0	48232..50151	+	639	82698971	-	BAB1_0045	-	surface antigen (D15)
40	 59.87	0	50340..54887	+	1515	82698972	-	BAB1_0046	-	hypothetical protein
41	 57.44	0	55032..55757	+	241	82698973	-	BAB1_0047	-	ErfK/YbiS/YcfS/YnhG:twin-arginine translocation pathway signal
42	 55.56	0	55808..56023	-	71	82698974	-	BAB1_0048	-	hypothetical protein
43	 59.72	0	56093..56596	-	167	82698975	-	BAB1_0049	-	hypothetical protein
44	 61.35	+1	56934..57140	-	68	82698976	-	BAB1_0050	-	hypothetical protein
45	 58.61	0	57151..58155	-	334	82698977	-	BAB1_0051	-	hypothetical protein
46	 59.65	0	58290..58688	-	132	82698978	-	BAB1_0052	-	hypothetical protein
47	 58.33	0	58909..59304	-	131	82698979	-	BAB1_0053	-	glyoxalase/bleomycin resistance protein/dioxygenase
48	 62.20	+1	59501..60664	+	387	82698980	-	BAB1_0054	-	TonB-dependent receptor protein
49	 57.84	0	60853..62484	-	543	82698981	pgm	BAB1_0055	-	phosphoglucomutase
50	 44.62	-2	62540..62725	-	61	82698982	-	BAB1_0056	-	hypothetical protein
51	 59.73	0	62700..63593	-	297	82698983	-	BAB1_0057	-	transcriptional regulator LysR
52	 54.65	0	63718..64641	+	307	82698984	-	BAB1_0058	-	esterase/lipase/thioesterase, active site
53	 58.94	0	64714..65412	+	232	82698985	frcK	BAB1_0059	-	putative fructose transport system kinase
54	 58.84	0	65512..66201	+	229	82698986	-	BAB1_0060	-	fumarylacetoacetate (FAA) hydrolase
55	 52.60	-1	66221..66412	+	63	82698987	-	BAB1_0061	-	hypothetical protein
56	 46.76	-2	66474..66689	+	71	82698988	-	BAB1_0062	-	hypothetical protein
57	 51.85	-1	66855..67043	+	62	82698989	-	BAB1_0063	-	hypothetical protein
58	 62.38	+1	67058..67921	+	287	82698990	-	BAB1_0064	-	SLT domain-containing protein
59	 57.84	0	68103..68759	+	218	82698991	-	BAB1_0065	-	Hly-III related proteins
60	 60.39	0	68900..72133	-	1077	82698992	dnaE2	BAB1_0066	-	error-prone DNA polymerase
61	 65.01	+1	72133..73584	-	483	82698993	-	BAB1_0067	-	hypothetical protein
62	 64.00	+1	73610..74473	-	287	82698994	-	BAB1_0068	-	hypothetical protein
63	 52.85	-1	74910..78911	+	1333	82698995	-	BAB1_0069	-	hypothetical protein
64	 53.92	0	79120..79668	+	182	82698996	-	BAB1_0070	-	hypothetical protein
65	 58.23	0	79747..80967	-	406	82698997	-	BAB1_0071	-	argininosuccinate synthase
66	 56.82	0	81154..81813	+	219	82698998	-	BAB1_0072	-	lysine exporter protein LysE/YggA
67	 57.94	0	81817..82320	-	167	82698999	-	BAB1_0073	-	hypothetical protein
68	 59.14	0	82354..83589	-	411	82699000	-	BAB1_0074	-	hypothetical protein
69	 57.54	0	83849..84352	-	167	82699001	-	BAB1_0075	-	hypothetical protein
70	 63.54	+1	84800..85183	-	127	82699002	-	BAB1_0076	-	hypothetical protein
71	 54.76	0	85271..85564	-	97	82699003	phhB	BAB1_0077	-	pterin-4-alpha-carbinolamine dehydratase
72	 61.25	0	86304..86894	-	196	82699004	-	BAB1_0080	-	2`-5` RNA ligase, putative
73	 56.06	0	87075..87800	-	241	82699005	-	BAB1_0081	-	GDSL family lipase
74	 61.87	+1	87947..88675	+	242	82699006	-	BAB1_0082	-	sugar ABC transporter ATPase
75	 61.73	+1	88672..91221	+	849	82699007	-	BAB1_0083	-	hypothetical protein
76	 57.86	0	91455..92192	+	245	82699008	-	BAB1_0084	-	hypothetical protein
77	 54.73	0	92865..93266	-	133	82699009	-	BAB1_0087	-	hypothetical protein
78	 57.14	0	93816..94550	-	244	82699010	-	BAB1_0088	-	hypothetical protein
79	 56.74	0	94703..94843	-	46	82699011	-	BAB1_0089	-	hypothetical protein
80	 60.27	0	94827..97514	-	895	82699012	-	BAB1_0090	-	aconitate hydratase
81	 58.33	0	97858..98505	+	215	82699013	ccmA	BAB1_0091	-	cytochrome c biogenesis protein CcmA
82	 62.31	+1	98505..99170	+	221	82699014	ccmB	BAB1_0092	-	SecY protein:cytochrome c-type biogenesis protein CcmB
83	 58.40	0	99228..100013	+	261	82699015	ccmC	BAB1_0093	-	cytochrome c assembly protein:cytochrome c-type biogenesis protein CcmC
84	 56.90	0	100010..100183	+	57	82699016	-	BAB1_0094	-	Heme exporter protein D (CcmD)
85	 59.31	0	100180..100791	+	203	82699017	-	BAB1_0095	-	thiol:disulfide oxidoreductase DsbE
86	 61.00	0	101040..102875	-	611	82699018	ilvD	BAB1_0096	-	dihydroxy-acid dehydratase
87	 54.35	0	103056..103193	+	45	82699019	-	BAB1_0097	-	hypothetical protein
88	 61.30	0	103274..103627	-	117	82699020	-	BAB1_0098	-	hypothetical protein
89	 59.52	0	103732..104109	-	125	82699021	-	BAB1_0099	-	response regulator receiver
90	 49.37	-1	104284..104520	-	78	82699022	-	BAB1_0100	-	transcriptional regulator, putative
91	 56.79	0	105173..105577	+	134	82699023	-	BAB1_0101	-	hypothetical protein
92	 57.02	0	105663..106367	-	234	82699024	-	BAB1_0102	-	formate/nitrite transporter
93	 53.97	0	106439..107257	+	272	82699025	-	BAB1_0103	-	hypothetical protein
94	 57.73	0	107535..108563	+	342	82699026	-	BAB1_0104	-	sulfate-/thiosulfate-binding protein
95	 59.40	0	108658..109524	+	288	82699027	-	BAB1_0105	-	binding-protein dependent transport system inner membrane protein
96	 59.05	0	109514..110380	+	288	82699028	cysW-1	BAB1_0106	-	binding-protein dependent transport system inner membrane protein
97	 61.39	+1	110478..111557	+	359	82699029	-	BAB1_0107	-	ABC transporter ATPase
98	 60.53	0	112348..120546	+	2732	82699030	-	BAB1_0108	-	cyclic beta 1-2 glucan synthetase
99	 58.39	0	120636..121940	+	434	82699031	pncB	BAB1_0109	-	nicotinate phosphoribosyltransferase
100	 60.77	0	121982..122812	-	276	82699032	-	BAB1_0110	-	phenazine biosynthesis PhzC/PhzF protein
57.25	MEAN

4.06	STD DEV
