IslandPath Analysis: Brucella canis ATCC 23365

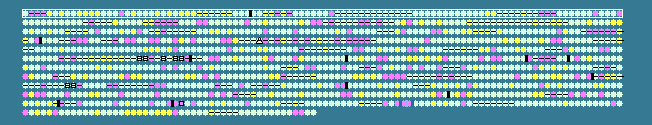

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 57.04   STD DEV: 4.25
Brucella canis ATCC 23365 chromosome II, complete sequence - 1..1206800
1149 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 54.02	0	155..1348	+	397	161620095	repC	BCAN_B0003	-	replication protein C
2	 47.33	-2	1413..1562	-	49	161620096	-	BCAN_B0004	-	hypothetical protein
3	 52.27	-1	1551..1814	+	87	161620097	-	BCAN_B0005	-	hypothetical protein
4	 51.75	-1	1963..2076	+	37	161620098	-	BCAN_B0006	-	hypothetical protein
5	 62.00	+1	2092..3033	+	313	161620099	rbsK	BCAN_B0007	-	ribokinase
6	 56.56	0	3110..4108	-	332	161620100	-	BCAN_B0008	-	inosine-uridine preferring nucleoside hydrolase
7	 63.16	+1	4131..5042	-	303	161620101	-	BCAN_B0009	-	inner-membrane translocator
8	 55.92	0	7745..8851	-	368	161620102	bmpA	BCAN_B0012	-	basic membrane protein A precursor
9	 58.46	0	9095..9703	+	202	161620103	-	BCAN_B0013	-	hypothetical protein
10	 62.75	+1	9675..10415	-	246	161620104	entD	BCAN_B0014	-	4'-phosphopantetheinyl transferase entD
11	 61.52	+1	10390..11166	-	258	161620105	-	BCAN_B0015	-	2,3-dihydroxybenzoate-2,3-dehydrogenase
12	 60.82	0	11166..12038	-	290	161620106	phzD	BCAN_B0016	-	isochorismatase
13	 60.93	0	12090..13709	-	539	161620107	-	BCAN_B0017	-	enterobactin synthase subunit E
14	 58.87	0	15062..16471	+	469	161620108	tycC	BCAN_B0019	-	tyrocidine synthetase 3
15	 58.05	0	16519..17307	-	262	161620109	-	BCAN_B0020	-	oxidoreductase, molybdopterin-binding protein
16	 55.68	0	17304..18113	-	269	161620110	-	BCAN_B0021	-	HupC/HyaC/HydC family protein
17	 50.98	-1	18174..18428	-	84	161620111	-	BCAN_B0022	-	pentapeptide MXKDX repeat-containing protein
18	 59.81	0	18613..19137	+	174	161620112	-	BCAN_B0023	-	sigma-70 family RNA polymerase sigma factor
19	 63.68	+1	19127..19762	+	211	161620113	-	BCAN_B0024	-	hypothetical protein
20	 58.57	0	19808..20548	-	246	161620114	-	BCAN_B0025	-	GntR domain-containing protein
21	 55.44	0	20666..22081	+	471	161620115	-	BCAN_B0026	-	hypothetical protein
22	 57.58	0	22123..23112	+	329	161620116	-	BCAN_B0027	-	inner-membrane translocator
23	 61.34	+1	23116..24336	+	406	161620117	-	BCAN_B0028	-	inner-membrane translocator
24	 58.72	0	25088..25804	+	238	161620118	-	BCAN_B0030	-	ABC transporter related
25	 61.28	+1	25856..26338	+	160	161620119	-	BCAN_B0031	-	hypothetical protein
26	 59.08	0	26342..27079	+	245	161620120	fabG	BCAN_B0032	-	3-oxoacyl-(acyl-carrier-protein) reductase
27	 63.48	+1	27097..27849	+	250	161620121	cpnA	BCAN_B0033	-	cyclopentanol dehydrogenase
28	 62.24	+1	27959..30148	+	729	161620122	-	BCAN_B0034	-	dehydrogenase E1 component
29	 61.53	+1	30167..31432	+	421	161620123	-	BCAN_B0035	-	branched-chain alpha-keto acid dehydrogenase subunit E2
30	 61.70	+1	31533..32318	+	261	161620124	-	BCAN_B0036	-	shikimate dehydrogenase substrate binding subunit
31	 64.97	+1	32598..32891	+	97	161620125	-	BCAN_B0037	-	hypothetical protein
32	 59.57	0	32845..33126	-	93	161620126	-	BCAN_B0038	-	hypothetical protein
33	 59.27	0	33244..35961	+	905	161620127	mgtA	BCAN_B0039	-	magnesium-translocating P-type ATPase
34	 64.67	+1	36046..36396	+	116	161620128	-	BCAN_B0040	-	hypothetical protein
35	 60.78	0	36527..36730	+	67	161620129	-	BCAN_B0041	-	hypothetical protein
36	 59.14	0	36732..37448	+	238	161620130	-	BCAN_B0042	-	MgtC-magnesium transport family protein
37	 57.89	0	37523..38593	+	356	161620131	fixL	BCAN_B0043	-	sensor protein fixL
38	 55.40	0	38590..39228	+	212	161620132	dctR	BCAN_B0044	-	C4-dicarboxylate transport transcriptional regulatory protein dctR
39	 54.27	0	39614..39976	-	120	161620133	-	BCAN_B0046	-	hypothetical protein
40	 58.36	0	40295..41185	+	296	161620134	-	BCAN_B0047	-	N-formylglutamate amidohydrolase
41	 61.13	0	41347..42123	+	258	161620135	-	BCAN_B0048	-	histidinol-phosphate phosphatase
42	 61.24	0	42174..43169	-	331	161620136	-	BCAN_B0049	-	lysophospholipase
43	 49.54	-1	43209..43424	-	71	161620137	-	BCAN_B0050	-	hypothetical protein
44	 62.16	+1	43519..43917	-	132	161620138	-	BCAN_B0051	-	hypothetical protein
45	 48.57	-1	43969..44178	+	69	161620139	-	BCAN_B0052	-	hypothetical protein
46	 54.76	0	44151..44402	+	83	161620140	-	BCAN_B0053	-	hypothetical protein
47	 56.05	0	44481..44951	+	156	161620141	hspD	BCAN_B0054	-	small heat shock protein hspD
48	 60.00	0	45089..46138	-	349	161620142	ltaE	BCAN_B0055	-	low specificity L-threonine aldolase
49	 55.79	0	46407..46691	-	94	161620143	-	BCAN_B0056	-	hypothetical protein
50	 60.23	0	46781..51532	+	1583	161620144	-	BCAN_B0057	-	glutamate synthase large subunit protein
51	 60.48	0	51614..53068	+	484	161620145	gltD	BCAN_B0058	-	glutamate synthase subunit beta
52	 52.92	0	53113..54516	-	467	161620146	-	BCAN_B0059	-	amino acid permease-associated region
53	 58.85	0	54734..55885	-	383	161620147	-	BCAN_B0060	-	hypothetical protein
54	 57.23	0	56136..56654	-	172	161620148	-	BCAN_B0061	-	TraQ protein
55	 58.66	0	56803..57888	-	361	161620149	-	BCAN_B0062	-	P-type DNA transfer ATPase VirB11
56	 58.76	0	57869..59044	-	391	161620150	-	BCAN_B0063	-	hypothetical protein
57	 57.59	0	59041..59910	-	289	161620151	-	BCAN_B0064	-	P-type conjugative transfer protein VirB9
58	 55.83	0	59907..60626	-	239	161620152	-	BCAN_B0065	-	Type IV secretion system protein virB8
59	 58.05	0	60629..60802	-	57	161620153	-	BCAN_B0066	-	TraI protein
60	 55.56	0	60966..62009	-	347	161620154	-	BCAN_B0067	-	hypothetical protein
61	 56.07	0	62193..62909	-	238	161620155	-	BCAN_B0068	-	P-type DNA transfer protein VirB5
62	 55.49	0	62914..65409	-	831	161620156	-	BCAN_B0069	-	type IV secretion/conjugal transfer ATPase
63	 55.56	0	65409..65759	-	116	161620157	-	BCAN_B0070	-	TraD protein
64	 56.29	0	65773..66090	-	105	161620158	-	BCAN_B0071	-	TraC protein
65	 56.76	0	66526..67242	-	238	161620159	-	BCAN_B0072	-	TraA protein
66	 59.17	0	67746..68972	-	408	161620160	-	BCAN_B0073	-	lytic murein transglycosylase
67	 56.94	0	69384..70277	+	297	161620161	galU	BCAN_B0074	-	UTP-glucose-1-phosphate uridylyltransferase
68	 60.26	0	70330..71874	-	514	161620162	-	BCAN_B0075	-	hypothetical protein
69	 59.58	0	72015..73016	+	333	161620163	-	BCAN_B0076	-	KpsF/GutQ family sugar isomerase
70	 57.48	0	73163..73630	-	155	161620164	-	BCAN_B0077	-	hypothetical protein
71	 58.97	0	73651..74637	-	328	161620165	-	BCAN_B0078	-	band 7 protein
72	 58.07	0	74770..75828	-	352	161620166	hemH	BCAN_B0079	-	ferrochelatase
73	 60.37	0	75966..76346	-	126	161620167	-	BCAN_B0080	-	Outer membrane lipoprotein Omp10
74	 58.16	0	76488..77933	-	481	161620168	hss	BCAN_B0081	-	homospermidine synthase
75	 59.32	0	78045..78725	-	226	161620169	-	BCAN_B0082	-	hypothetical protein
76	 59.32	0	78659..79828	-	389	161620170	pabB	BCAN_B0083	-	para-aminobenzoate synthase component I
77	 56.90	0	79838..81700	-	620	161620171	-	BCAN_B0084	-	pepF/M3 family oligoendopeptidase
78	 64.00	+1	83878..85791	+	637	161620172	-	BCAN_B0086	-	angiomotin
79	 60.98	0	85857..86594	-	245	161620173	eda	BCAN_B0087	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
80	 57.73	0	87396..88313	+	305	161620174	-	BCAN_B0089	-	rhodanese family protein
81	 55.07	0	88348..88554	+	68	161620175	-	BCAN_B0090	-	hypothetical protein
82	 56.75	0	88594..89349	+	251	161620176	modA	BCAN_B0091	-	molybdate ABC transporter, periplasmic molybdate-binding protein
83	 59.97	0	89360..90046	+	228	161620177	modB	BCAN_B0092	-	molybdate ABC transporter permease protein
84	 61.20	0	90043..91122	+	359	161620178	modC	BCAN_B0093	-	molybdate ABC transporter, ATP-binding protein
85	 55.75	0	91192..91869	+	225	161620179	-	BCAN_B0094	-	GCN5-related N-acetyltransferase
86	 55.88	0	91862..92065	+	67	161620180	-	BCAN_B0095	-	hypothetical protein
87	 37.07	-2	92117..92464	-	115	161620181	-	BCAN_B0096	-	hypothetical protein
88	 45.51	-2	92157..92312	+	51	161620182	-	BCAN_B0097	-	hypothetical protein
89	 37.04	-2	92522..92872	-	116	161620183	-	BCAN_B0098	-	hypothetical protein
90	 59.42	0	93014..94117	-	367	161620184	-	BCAN_B0099	-	high-affinity nickel-transporter
91	 54.04	0	94117..94821	-	234	161620185	-	BCAN_B0100	-	hypothetical protein
92	 59.84	0	94861..95754	-	297	161620186	-	BCAN_B0101	-	LysR family transcriptional regulator
93	 60.20	0	95758..96963	-	401	161620187	-	BCAN_B0102	-	amidase
94	 60.05	0	97548..98681	+	377	161620188	ldc	BCAN_B0104	-	lysine/ornithine decarboxylase
95	 59.69	0	98757..100475	-	572	161620189	-	BCAN_B0105	-	lipopolysaccharide biosynthesis protein
96	 38.41	-2	100492..100629	-	45	161620190	-	BCAN_B0106	-	hypothetical protein
97	 55.59	0	100601..101503	-	300	161620191	-	BCAN_B0107	-	hypothetical protein
98	 54.86	0	101461..102222	-	253	161620192	-	BCAN_B0108	-	WecB/TagA/CpsF family glycosyl transferase
99	 56.34	0	102223..103413	-	396	161620193	-	BCAN_B0109	-	hypothetical protein
100	 39.53	-2	103371..103499	+	42	161620194	-	BCAN_B0110	-	hypothetical protein
57.04	MEAN

4.25	STD DEV
