IslandPath Analysis: Bordetella pertussis Tohama I

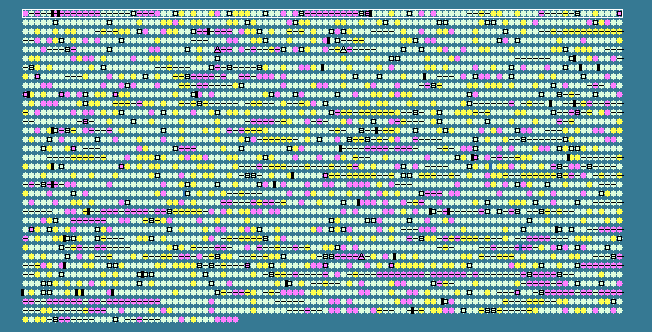

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 67.71   STD DEV: 3.90
Bordetella pertussis Tohama I, complete genome - 1..4086189
3436 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 62.34	-1	1..1920	+	639	33591276	gidA	BP0001	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
2	 66.23	0	1917..2609	+	230	33591277	gidB	BP0002	-	glucose inhibited division protein B
3	 62.16	-1	2606..3403	+	265	33591278	parA	BP0003	-	ParA family protein
4	 67.32	0	3410..4171	+	253	33591279	-	BP0004	-	GNAT family acetyltransferase
5	 67.65	0	4215..5132	+	305	33591280	parB	BP0005	-	chromosome partitioning protein ParB
6	 62.64	-1	6722..7912	+	396	33591281	tuf	BP0007	-	elongation factor Tu
7	 58.79	-2	8151..8531	+	126	33591282	secE	BP0008	-	preprotein translocase subunit SecE
8	 54.49	-2	8541..9074	+	177	33591283	nusG	BP0009	-	transcription antitermination protein NusG
9	 63.19	-1	9138..9569	+	143	33591284	rplK	BP0010	-	50S ribosomal protein L11
10	 64.09	0	9572..10270	+	232	33591285	rplA	BP0011	-	50S ribosomal protein L1
11	 61.14	-1	10513..11037	+	174	33591286	rplJ	BP0013	-	50S ribosomal protein L10
12	 62.76	-1	11119..11502	+	127	33591287	rplL	BP0014	-	50S ribosomal protein L7/L12
13	 63.31	-1	11662..15774	+	1370	33591288	rpoB	BP0015	-	DNA-directed RNA polymerase subunit beta
14	 64.24	0	15774..20018	+	1414	33591289	rpoC	BP0016	-	DNA-directed RNA polymerase subunit beta'
15	 65.93	0	20127..20531	-	134	33591290	-	BP0017	-	putative lipoprotein
16	 70.92	0	20772..21947	+	391	33591291	-	BP0018	-	hypothetical protein
17	 68.20	0	24353..25459	-	368	33591292	-	BP0020	-	putative peptidoglycan binding protein
18	 69.36	0	26471..27286	+	271	33591293	-	BP0022	-	two-component response regulator
19	 64.98	0	27283..28233	-	316	33591294	-	BP0023	-	transposase
20	 60.23	-1	28675..29109	-	144	33591295	-	BP0025	-	hypothetical protein
21	 63.08	-1	29142..30368	-	408	33591296	-	BP0026	-	putative thiolase
22	 56.22	-2	30365..30862	-	165	33591297	-	BP0027	-	MaoC family protein
23	 62.93	-1	31070..31978	-	302	33591298	-	BP0028	-	putative transcriptional regulator
24	 66.67	0	32215..33006	+	263	33591299	-	BP0029	-	enoyl-CoA hydratase
25	 68.71	0	33049..34470	+	473	33591300	-	BP0030	-	hypothetical protein
26	 65.09	0	34626..35576	+	316	33591301	-	BP0031	-	transposase
27	 72.21	+1	35573..36763	-	396	33591302	-	BP0032	-	transporter
28	 66.12	0	37013..37924	+	303	33591303	glyQ	BP0033	-	glycyl-tRNA synthetase subunit alpha
29	 71.34	0	37926..40064	+	712	33591304	glyS	BP0034	-	glycyl-tRNA synthetase beta chain
30	 70.00	0	40061..40600	+	179	33591305	-	BP0035	-	D,D-heptose 1,7-bisphosphate phosphatase
31	 67.08	0	40604..41332	+	242	33591306	-	BP0036	-	acyltransferase
32	 71.25	0	41319..42212	+	297	33591307	-	BP0037	-	hypothetical protein
33	 59.85	-2	42283..42678	+	131	33591308	gloA	BP0038	-	lactoylglutathione lyase
34	 68.36	0	42688..43218	+	176	33591309	def	BP0039	-	peptide deformylase
35	 65.19	0	43664..44614	+	316	33591310	-	BP0041	-	transposase
36	 73.04	+1	45201..45749	+	182	33591311	-	BP0043	-	hypothetical protein
37	 72.15	+1	45721..45957	-	78	33591312	-	BP0044	-	transcriptional regulator
38	 71.36	0	46085..46978	+	297	33591313	-	BP0045	-	hypothetical protein
39	 67.39	0	48148..49395	+	415	33591314	metX	BP0047	-	homoserine O-acetyltransferase
40	 67.64	0	49392..50006	+	204	33591315	-	BP0048	-	hypothetical protein
41	 65.09	0	50142..51092	+	316	33591316	-	BP0049	-	transposase
42	 70.79	0	51180..52391	+	403	33591317	ampG	BP0050	-	muropeptide transporter
43	 70.48	0	53623..54357	-	244	33591318	-	BP0053	-	putative aspartate/glutamate racemase
44	 63.77	-1	54978..55667	-	229	33591319	gltK	BP0055	-	glutamate/aspartate transport system permease protein
45	 64.91	0	55664..56458	-	264	33591320	gltJ	BP0056	-	glutamate/aspartate transport system permease protein
46	 63.44	-1	56505..57404	-	299	33591321	-	BP0057	-	amino-acid ABC transporter binding protein precursor
47	 64.98	0	57498..58448	-	316	33591322	-	BP0058	-	transposase
48	 62.35	-1	59249..60475	-	408	33591323	-	BP0060	-	hypothetical protein
49	 62.38	-1	60475..60894	-	139	33591324	-	BP0061	-	putative DNA-binding protein
50	 52.65	-2	61078..62019	-	313	33591325	-	BP0062	-	hypothetical protein
51	 51.85	-2	62443..63279	-	278	33591327	-	BP0063	-	hypothetical protein
52	 51.72	-2	63474..64055	-	193	33591328	-	BP0064	-	hypothetical protein
53	 42.90	-2	64068..64370	-	100	33591329	-	BP0065	-	putative ferredoxin
54	 51.13	-2	64489..65550	-	353	33591330	-	BP0066	-	oxidoreductase
55	 48.83	-2	65582..66775	-	397	33591331	-	BP0067	-	integral membrane protein
56	 50.68	-2	67483..68664	-	393	33591332	-	BP0069	-	hypothetical protein
57	 64.98	0	69086..70036	+	316	33591333	-	BP0071	-	transposase
58	 59.37	-2	70130..70444	+	104	33591334	-	BP0072	-	transposase
59	 64.73	0	71637..73544	+	635	33591335	htpG	BP0074	-	heat shock protein 90
60	 69.57	0	73706..74326	-	206	33591336	-	BP0075	-	glutathione S-transferase
61	 71.13	0	74358..74939	-	193	33591337	ampD	BP0076	-	N-acetyl-anhydromuranmyl-L-alanine amidase
62	 76.59	+2	75028..75279	-	83	33591338	-	BP0077	-	hypothetical protein
63	 68.21	0	75281..76123	-	280	33591339	-	BP0078	-	hypothetical protein
64	 68.58	0	76229..77638	+	469	33591340	ffh	BP0079	-	signal recognition particle protein
65	 65.09	0	77635..78585	-	316	33591341	-	BP0080	-	transposase
66	 65.07	0	79601..81475	-	624	33591342	bplL	BP0082	-	lipopolysaccharide biosynthesis protein
67	 60.43	-1	82823..83527	-	234	33591343	bplI	BP0085	-	lipopolysaccharide biosynthesis protein
68	 66.41	0	83524..84696	-	390	33591344	bplH	BP0086	-	putative glycosyl transferase
69	 60.10	-1	84892..85485	-	197	33591345	bplG	BP0087	-	sugar transferase
70	 67.40	0	85482..86714	-	410	33591346	bplF	BP0088	-	lipopolysaccharide biosynthesis protein
71	 68.02	0	86732..87991	-	419	33591347	bplE	BP0089	-	glycosyl transferase
72	 68.50	0	88015..89103	-	362	33591348	bplD	BP0090	-	UDP-N-acetylglucosamine 2-epimerase
73	 66.21	0	89111..90211	-	366	33591349	bplC	BP0091	-	lipopolysaccharide biosynthesis protein
74	 66.15	0	90215..90790	-	191	33591350	bplB	BP0092	-	acetyltransferase
75	 65.43	0	90794..91846	-	350	33591351	bplA	BP0093	-	oxidoreductase
76	 68.75	0	91977..92984	+	335	33591352	rfaC	BP0094	-	heptosyltransferase
77	 74.20	+1	92986..94272	+	428	33591353	kdtA	BP0095	-	3-deoxy-D-manno-octulosonic-acid transferase
78	 67.31	0	94289..94444	-	51	33591354	-	BP0096	-	hypothetical protein
79	 74.25	+1	94469..95272	-	267	33591355	baf	BP0097	-	pantothenate kinase
80	 72.43	+1	95269..96135	-	288	33591356	birA	BP0098	-	putative biotin protein ligase
81	 68.79	0	96210..97340	+	376	33591357	-	BP0099	-	putative integral membrane protein
82	 67.98	0	97340..98179	+	279	33591358	-	BP0100	-	ABC transporter ATP-binding protein
83	 75.46	+1	99112..99714	+	200	33591359	-	BP0101A	-	hypothetical protein
84	 70.64	0	99744..100397	+	217	33591360	-	BP0101B	-	hypothetical protein
85	 67.78	0	100530..101786	+	418	33591361	-	BP0102	-	putative penicillin-binding protein precursor
86	 66.67	0	101834..102733	+	299	33591362	-	BP0103	-	class IV aminotransferase
87	 61.59	-1	102809..103084	+	91	33591363	-	BP0104	-	hypothetical protein
88	 69.08	0	103092..103754	+	220	33591364	lipB	BP0105	-	lipoyltransferase
89	 66.37	0	103816..104817	+	333	33591365	lipA	BP0106	-	lipoyl synthase
90	 67.40	0	104832..105380	-	182	33591366	rfbC	BP0107	-	dTDP-4-dehydrorhamnose 3,5-epimerase
91	 72.91	+1	105438..106334	-	298	33591367	rfbD	BP0108	-	dTDP-4-dehydrorhamnose reductase
92	 68.93	0	106331..107392	-	353	33591368	rfbB	BP0109	-	dTDP-glucose 4,6-dehydratase
93	 64.77	0	107428..108378	-	316	33591369	-	BP0110	-	transposase
94	 69.51	0	109278..110471	+	397	33591370	metC	BP0112	-	cystathionine beta-lyase
95	 66.67	0	110553..111182	-	209	33591371	dsbA	BP0113	-	thiol:disulfide interchange protein DsbA precursor
96	 72.22	+1	111244..111927	-	227	33591372	-	BP0114	-	hypothetical protein
97	 68.85	0	111937..113724	-	595	33591373	argS	BP0115	-	arginyl-tRNA synthetase
98	 66.40	0	113874..114254	+	126	33591374	-	BP0116	-	hypothetical protein
99	 68.89	0	114303..114662	+	119	33591375	-	BP0117	-	hypothetical protein
100	 61.75	-1	114945..115961	+	338	33591376	-	BP0118	-	transposase for IS1663
67.71	MEAN

3.90	STD DEV
