IslandPath Analysis: Bdellovibrio bacteriovorus HD100

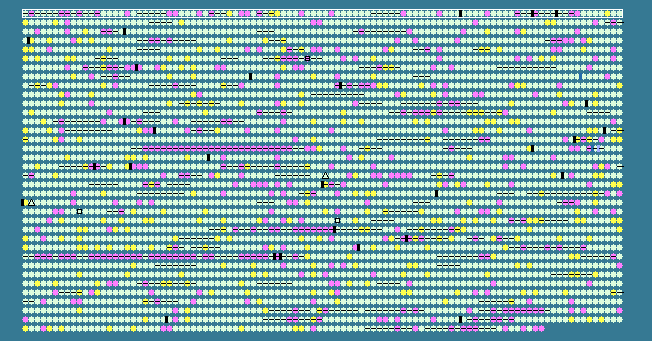

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 50.40   STD DEV: 3.19
Bdellovibrio bacteriovorus HD100, complete genome - 1..3782950
3587 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 48.45	0	1..1416	+	471	42521651	dnaA	Bd0001	-	chromosomal replication initiator protein dnaA
2	 43.18	-2	1649..2755	+	368	42521652	dnaN	Bd0002	-	DNA polymerase III, beta subunit
3	 47.02	-1	2755..3879	+	374	42521653	-	Bd0003	-	DNA repair and genetic recombination protein
4	 48.04	0	3966..6386	+	806	42521654	-	Bd0004	-	DNA gyrase subunit B
5	 50.72	0	6410..8893	+	827	42521655	gyrA	Bd0005	-	DNA gyrase subunit A
6	 48.50	0	8895..9692	+	265	42521656	-	Bd0006	-	hypothetical protein
7	 43.04	-2	9692..9928	+	78	42521657	-	Bd0007	-	hypothetical protein
8	 44.54	-1	9925..10281	+	118	42521658	-	Bd0008	-	hypothetical protein
9	 48.12	0	10271..10960	+	229	42521659	atpB	Bd0009	-	ATP synthase F0, A subunit
10	 45.60	-1	10993..11310	+	105	42521660	atpE/H	Bd0010	-	ATP synthase subunit C
11	 47.84	0	11409..12332	-	307	42521661	-	Bd0011	-	hypothetical protein
12	 48.67	0	12474..12962	+	162	42521662	-	Bd0012	-	hypothetical protein
13	 46.83	-1	13006..13983	+	325	42521663	-	Bd0013	-	putative transcriptional regulator
14	 50.29	0	14017..15384	-	455	42521664	pmm	Bd0014	-	hypothetical protein
15	 51.10	0	15432..16382	-	316	42521665	pdxA	Bd0015	-	pyridoxal phosphate biosynthetic protein
16	 48.27	0	16375..17298	-	307	42521666	surA	Bd0017	-	survival protein SurA precursor
17	 50.57	0	17312..18280	-	322	42521667	ppiC	Bd0018	-	parvulin-like peptidyl-prolyl isomerase
18	 46.42	-1	18293..19102	-	269	42521668	ppiD	Bd0019	-	hypothetical protein
19	 49.85	0	19150..19815	-	221	42521669	-	Bd0020	-	putative lipoprotein
20	 51.50	0	19818..20786	-	322	42521670	etfA	Bd0021	-	electron transfer flavoprotein subunit alpha
21	 48.32	0	20797..21570	-	257	42521671	etfB	Bd0022	-	electron transfer flavoprotein beta-subunit
22	 50.00	0	21751..22410	+	219	42521672	sdhC	Bd0024	-	putative cytochrome B subunit
23	 53.00	0	22422..24338	+	638	42521673	sdhA	Bd0025	-	succinate dehydrogenase flavoprotein subunit
24	 52.85	0	24349..25137	+	262	42521674	sdhB	Bd0026	-	succinate dehydrogenase/fumarate reductase iron-sulfur subunit
25	 44.44	-1	25438..25689	+	83	42521675	-	Bd0027	-	hypothetical protein
26	 40.86	-2	25701..25793	+	30	42521676	-	Bd0028	-	hypothetical protein
27	 49.76	0	25900..27543	+	547	42521677	-	Bd0029	-	subtilase
28	 50.40	0	27613..28497	-	294	42521678	pcbD	Bd0030	-	alpha/beta fold family hydrolase
29	 51.88	0	28509..29198	-	229	42521679	-	Bd0031	-	hypothetical protein
30	 42.92	-2	29347..29805	+	152	42521680	rpsF	Bd0032	-	30S ribosomal protein S6
31	 48.93	0	29825..30715	+	296	42521681	-	Bd0033	-	hypothetical protein
32	 43.47	-2	30732..31175	+	147	42521682	rplI	Bd0034	-	50S ribosomal protein L9
33	 49.89	0	31347..32222	+	291	42521683	-	Bd0035	-	trypsin
34	 52.45	0	32299..32502	-	67	42521684	-	Bd0036	-	hypothetical protein
35	 54.15	+1	32617..33543	-	308	42521685	-	Bd0037	-	putative oxidoreductase
36	 51.06	0	33558..34973	-	471	42521686	dnaB	Bd0038	-	hypothetical protein
37	 40.33	-2	35076..35375	-	99	42521687	fis	Bd0039	-	site-specific DNA inversion stimulation factor
38	 43.04	-2	35411..36049	-	212	42521688	-	Bd0040	-	radical activating enzyme
39	 51.29	0	36142..38535	+	797	42521689	ftsK	Bd0041	-	cell division protein FtsK
40	 44.33	-1	38608..39180	+	190	42521690	-	Bd0042	-	hypothetical protein
41	 48.21	0	39184..40050	+	288	42521691	-	Bd0043	-	hypothetical protein
42	 57.41	+2	40034..40249	+	71	42521692	-	Bd0044	-	hypothetical protein
43	 54.66	+1	40246..41103	+	285	42521693	dapF	Bd0045	-	hypothetical protein
44	 50.45	0	41100..41981	+	293	42521694	dapA	Bd0046	-	dihydrodipicolinate synthase
45	 50.58	0	41978..42667	+	229	42521695	dapB	Bd0047	-	hypothetical protein
46	 52.55	0	42664..43173	+	169	42521696	-	Bd0048	-	hypothetical protein
47	 46.91	-1	43235..43882	+	215	42521697	talC	Bd0049	-	putative translaldolase
48	 52.03	0	43882..44325	+	147	42521698	-	Bd0050	-	hypothetical protein
49	 51.82	0	44375..46489	+	704	42521699	-	Bd0051	-	hypothetical protein
50	 52.35	0	46473..47729	-	418	42521700	murD	Bd0052	-	hypothetical protein
51	 49.86	0	47846..49267	+	473	42521701	-	Bd0054	-	hypothetical protein
52	 41.03	-2	49361..49555	+	64	42521702	-	Bd0055	-	hypothetical protein
53	 53.85	+1	49662..50582	+	306	42521703	-	Bd0056	-	hypothetical protein
54	 53.19	0	50579..52633	-	684	42521704	lig	Bd0057	-	DNA ligase
55	 50.35	0	52687..52968	+	93	42521705	gatC	Bd0058	-	glutamyl-tRNA(Gln) amidotransferase (subunit C)
56	 53.02	0	52978..54450	+	490	42521706	gatA	Bd0059	-	glutamyl-tRNA(Gln) amidotransferase, A subunit
57	 50.21	0	54440..55873	+	477	42521707	gatB	Bd0060	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
58	 51.37	0	55889..56803	+	304	42521708	-	Bd0061	-	hypothetical protein
59	 47.42	0	56811..57236	+	141	42521709	-	Bd0062	-	hypothetical protein
60	 53.33	0	57326..58705	+	459	42521710	-	Bd0063	-	hypothetical protein
61	 50.68	0	58773..59141	-	122	42521711	-	Bd0064	-	hypothetical protein
62	 51.55	0	59532..61277	+	581	42521712	rho	Bd0065	-	transcription termination factor Rho
63	 51.30	0	61343..61804	-	153	42521713	-	Bd0067	-	hypothetical protein
64	 38.62	-2	62139..62384	+	81	42521714	rpmE	Bd0068	-	50S ribosomal protein L31
65	 50.65	0	62532..63605	+	357	42521715	prfA	Bd0069	-	peptide chain release factor RF-1
66	 50.11	0	63609..64490	+	293	42521716	hemK	Bd0070	-	HemK protein
67	 53.41	0	64492..65736	+	414	42521717	murA	Bd0071	-	UDP-N-acetylglucosamine enolpyruvyl transferase
68	 51.07	0	65780..66574	-	264	42521718	-	Bd0072	-	hypothetical protein
69	 49.50	0	66708..67610	-	300	42521719	-	Bd0073	-	polysaccharide deacetylase-related protein
70	 46.37	-1	67752..68150	-	132	42521720	-	Bd0074	-	hypothetical protein
71	 52.04	0	68363..71308	+	981	42521721	-	Bd0075	-	hypothetical protein
72	 49.51	0	71336..71644	+	102	42521722	-	Bd0076	-	hypothetical protein
73	 50.15	0	71677..72972	+	431	42521723	serS	Bd0077	-	seryl-tRNA synthetase
74	 48.95	0	73283..74095	+	270	42521724	-	Bd0078	-	hypothetical protein
75	 48.89	0	74102..74776	+	224	42521725	dedA	Bd0080	-	DedA protein
76	 48.26	0	74777..76726	-	649	42521726	cyaB	Bd0081	-	adenylate cyclase, putative
77	 52.92	0	76710..78767	-	685	42521727	-	Bd0082	-	hypothetical protein
78	 45.43	-1	78886..79290	+	134	42521728	-	Bd0083	-	hypothetical protein
79	 49.38	0	79300..80421	+	373	42521729	-	Bd0084	-	hypothetical protein
80	 48.72	0	80485..80952	+	155	42521730	-	Bd0085	-	cytidine/deoxycytidylate deaminase family protein
81	 51.08	0	80969..83047	+	692	42521731	-	Bd0086	-	hypothetical protein
82	 46.98	-1	83103..83615	+	170	42521732	-	Bd0087	-	GTP cyclohydrolase I
83	 46.15	-1	83846..84274	+	142	42521733	-	Bd0088	-	hypothetical protein
84	 51.34	0	84356..85216	+	286	42521734	-	Bd0089	-	hypothetical protein
85	 48.72	0	85438..85905	+	155	42521735	-	Bd0090	-	hypothetical protein
86	 42.64	-2	86377..86634	-	85	42521736	-	Bd0091	-	hypothetical protein
87	 48.87	0	86828..87535	+	235	42521737	-	Bd0092	-	putative cytochrome b
88	 49.03	0	87560..88075	+	171	42521738	-	Bd0093	-	hypothetical protein
89	 52.85	0	88127..88582	+	151	42521739	-	Bd0094	-	hypothetical protein
90	 48.97	0	88821..89933	+	370	42521740	-	Bd0095	-	hypothetical protein
91	 51.72	0	89941..90636	+	231	42521741	-	Bd0096	-	hypothetical protein
92	 45.21	-1	90797..91099	+	100	42521742	groES	Bd0097	-	chaperonin groES
93	 46.68	-1	91156..92796	+	546	42521743	groEL	Bd0099	-	60 kDa chaperonin
94	 51.10	0	92858..94444	-	528	42521744	-	Bd0100	-	hypothetical protein
95	 52.45	0	94522..95703	+	393	42521745	-	Bd0101	-	hypothetical protein
96	 48.35	0	95746..96138	+	130	42521746	cheY	Bd0102	-	chemotaxis response regulator
97	 49.81	0	96125..96385	+	86	42521747	-	Bd0103	-	hypothetical protein
98	 57.19	+2	96873..97178	-	101	42521748	-	Bd0108	-	hit locus orf4
99	 48.76	0	97194..98846	-	550	42521749	-	Bd0109	-	cell wall-associated protein precursor wapA
100	 49.32	0	98877..99752	-	291	42521750	TadB	Bd0110	-	hypothetical protein
50.40	MEAN

3.19	STD DEV
