IslandPath Analysis: Bacillus clausii KSM-K16

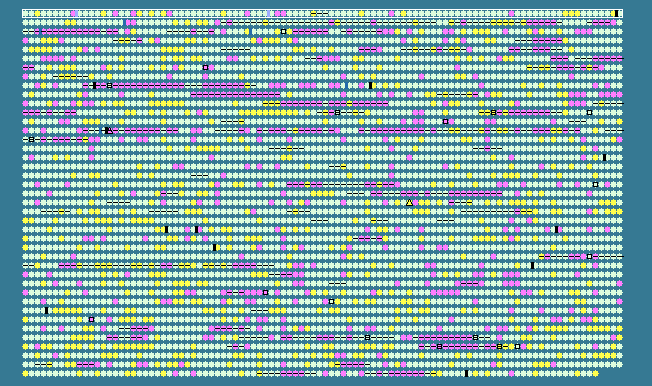

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 44.68   STD DEV: 4.04
Bacillus clausii KSM-K16, complete genome - 1..4303871
4096 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 42.92	0	183..1538	+	451	56961783	dnaA	ABC0001	-	chromosomal replication initiation protein
2	 41.38	0	1708..2850	+	380	56961784	dnaN	ABC0002	-	DNA polymerase III subunit beta
3	 49.32	+1	3015..3233	+	72	56961785	-	ABC0003	-	hypothetical protein
4	 45.31	0	3236..4354	+	372	56961786	recF	ABC0004	-	recombination protein F
5	 42.76	0	4358..4654	+	98	56961787	-	ABC0005	-	hypothetical protein
6	 47.04	0	4680..6605	+	641	56961788	gyrB	ABC0006	-	DNA gyrase subunit B
7	 46.57	0	6654..9146	+	830	56961789	gyrA	ABC0007	-	DNA gyrase subunit A
8	 44.55	0	9505..10485	+	326	56961790	-	ABC0008	-	oxidoreductase
9	 32.50	-2	10781..11380	+	199	56961791	-	ABC0009	-	bacteriocin transport permease
10	 42.16	0	17308..18111	-	267	56961792	-	ABC0010	-	hypothetical protein
11	 45.61	0	18387..19844	+	485	56961793	guaB	ABC0011	-	inositol-5-monophosphate dehydrogenase
12	 45.97	0	19990..21279	+	429	56961794	dacA	ABC0012	-	D-alanyl-D-alanine carboxypeptidase
13	 47.61	0	21418..22692	+	424	56961795	serS	ABC0013	-	seryl-tRNA synthetase
14	 49.52	+1	22706..23533	+	275	56961796	mtnU	ABC0014	-	methylthioribose recycling protein
15	 46.71	0	23557..25245	+	562	56961797	-	ABC0015	-	regulator of polyketide synthase expression
16	 39.73	-1	25496..26887	-	463	56961798	rocR	ABC0016	-	transcriptional activator of arginine utilization operon
17	 43.21	0	27106..28320	+	404	56961799	rocD	ABC0017	-	ornithine--oxo-acid transaminase
18	 41.72	0	28703..30121	+	472	56961800	-	ABC0018	-	NahC family Na(+)/H(+) antiporter
19	 33.71	-2	30316..30582	+	88	56961801	-	ABC0019	-	hypothetical protein
20	 48.87	+1	30802..31992	+	396	56961802	-	ABC0020	-	Xaa-Pro dipeptidase
21	 47.42	0	32011..33210	+	399	56961803	-	ABC0021	-	cystathionine gamma-synthase
22	 51.09	+1	33213..34406	+	397	56961804	-	ABC0022	-	N-acyl-L-amino acid amidohydrolase
23	 46.74	0	34415..35473	+	352	56961805	-	ABC0023	-	homoserine dehydrogenase
24	 49.10	+1	35487..36932	+	481	56961806	-	ABC0024	-	NADP-dependent glyceraldehyde-3-phosphate dehydrogenase
25	 34.21	-2	37105..37560	-	151	56961807	-	ABC0025	-	hypothetical protein
26	 44.44	0	37759..38559	+	266	56961808	-	ABC0026	-	glutamine ABC transporter substrate-binding protein
27	 43.66	0	38602..39240	+	212	56961809	-	ABC0027	-	glutamine ABC transporter permease
28	 46.47	0	39237..39959	+	240	56961810	-	ABC0028	-	glutamine ABC transporter ATP-binding protein
29	 46.27	0	40016..41035	-	339	56961811	-	ABC0029	-	oligopeptide ABC transporter ATP-binding protein
30	 46.22	0	41004..42035	-	343	56961812	-	ABC0030	-	oligopeptide ABC transporter ATP-binding protein
31	 44.06	0	42054..43004	-	316	56961813	-	ABC0031	-	oligopeptide ABC transporter permease
32	 44.44	0	43027..43917	-	296	56961814	-	ABC0032	-	oligopeptide ABC transporter permease
33	 44.22	0	44413..46020	+	535	56961815	-	ABC0033	-	oligopeptide ABC transporter substrate-binding protein
34	 48.80	+1	46387..46884	+	165	56961816	-	ABC0034	-	cytosine/adenosine deaminase
35	 47.77	0	47446..48027	-	193	56961817	-	ABC0035	-	ATP-dependent Clp protease proteolytic subunit
36	 45.21	0	48047..48787	-	246	56961818	-	ABC0036	-	DNA-directed RNA polymerase ECF-type sigma factor
37	 45.93	0	48867..50549	+	560	56961819	dnaX	ABC0037	-	DNA-directed DNA polymerase III gamma and tau DnaX
38	 39.94	-1	50559..50876	+	105	56961820	-	ABC0038	-	hypothetical protein
39	 45.00	0	50889..51488	+	199	56961821	recR	ABC0039	-	recombination protein RecR
40	 42.54	0	51501..51728	+	75	56961822	-	ABC0040	-	hypothetical protein
41	 43.18	0	51796..52059	+	87	56961823	bofA	ABC0041	-	inhibition of the pro-sigma-K processing machinery
42	 43.63	0	58065..59297	+	410	56961824	-	ABC0042	-	1,3-propanediol dehydrogenase
43	 30.00	-2	59311..59430	+	39	56961825	-	ABC0043	-	hypothetical protein
44	 38.30	-1	59448..60956	+	502	56961826	-	ABC0044	-	two-component sensor histidine kinase
45	 42.36	0	60953..62404	+	483	56961827	-	ABC0045	-	transcriptional regulator
46	 44.48	0	62619..63668	+	349	56961828	adhA	ABC0046	-	alcohol dehydrogenase
47	 45.49	0	63684..65180	+	498	56961829	dhaS	ABC0047	-	aldehyde dehydrogenase
48	 46.85	0	65516..66484	+	322	56961830	-	ABC0048	-	hypothetical protein
49	 50.38	+1	66939..68375	+	478	56961831	-	ABC0049	-	lysine decarboxylase
50	 46.11	0	68378..69019	+	213	56961832	tmk	ABC0050	-	thymidylate kinase
51	 44.85	0	69041..69370	+	109	56961833	-	ABC0051	-	hypothetical protein
52	 47.75	0	69377..70375	+	332	56961834	holB	ABC0052	-	DNA polymerase III subunit delta'
53	 44.57	0	70379..71206	+	275	56961835	-	ABC0053	-	hypothetical protein
54	 45.00	0	71211..71570	+	119	56961836	-	ABC0054	-	DNA replication intiation control protein YabA
55	 47.68	0	71665..72396	+	243	56961837	-	ABC0055	-	hypothetical protein
56	 45.83	0	72393..72656	+	87	56961838	-	ABC0056	-	hypothetical protein
57	 49.13	+1	72653..73519	+	288	56961839	-	ABC0057	-	corrin/porphyrin methyltransferase
58	 41.40	0	73568..73852	-	94	56961840	abrB	ABC0058	-	transition state regulatory protein
59	 45.04	0	74104..75051	+	315	56961841	-	ABC0059	-	hypothetical protein
60	 46.97	0	75067..76899	+	610	56961842	-	ABC0060	-	hypothetical protein
61	 45.27	0	77214..79181	+	655	56961843	metS	ABC0061	-	methionyl-tRNA synthetase
62	 39.14	-1	79252..79716	-	154	56961844	-	ABC0062	-	transcriptional regulator
63	 44.41	0	80070..81053	+	327	56961845	pelB	ABC0063	-	pectate lyase
64	 48.41	0	81418..83049	+	543	56961846	-	ABC0064	-	ABC transporter ATP-binding protein
65	 41.74	0	83153..83806	-	217	56961847	-	ABC0065	-	hypothetical protein
66	 44.01	0	83949..85652	+	567	56961848	-	ABC0066	-	hypothetical protein
67	 45.95	0	85832..86608	+	258	56961849	-	ABC0067	-	TatD family deoxyribonuclease
68	 47.05	0	86634..88040	+	468	56961850	-	ABC0068	-	hypothetical protein
69	 46.35	0	88033..88716	+	227	56961851	rnmV	ABC0069	-	ribonuclease M5
70	 46.69	0	88703..89593	+	296	56961852	ksgA	ABC0070	-	dimethyladenosine transferase
71	 45.16	0	89648..90526	+	292	56961853	-	ABC0071	-	hypothetical protein
72	 42.80	0	90824..91087	+	87	56961854	veg	ABC0072	-	veg protein
73	 43.50	0	91205..91381	+	58	56961855	sspF	ABC0073	-	small acid-soluble spore protein
74	 47.99	0	91560..92453	+	297	56961856	ispE	ABC0074	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
75	 44.72	0	92485..93318	+	277	56961857	purR	ABC0075	-	purine operon repressor
76	 44.35	0	93332..93703	+	123	56961858	-	ABC0076	-	translation initiation inhibitor
77	 47.14	0	93858..94154	+	98	56961859	spoVG	ABC0077	-	regulatory protein SpoVG
78	 46.30	0	94479..95843	+	454	56961860	gcaD	ABC0078	-	UDP-N-acetylglucosamine pyrophosphorylase
79	 45.11	0	95869..96819	+	316	56961861	prs	ABC0079	-	ribose-phosphate pyrophosphokinase
80	 44.90	0	96939..97595	+	218	56961862	ctc	ABC0080	-	50S ribosomal protein L25/general stress protein Ctc
81	 42.11	0	97653..98210	+	185	56961863	pth	ABC0081	-	peptidyl-tRNA hydrolase
82	 41.03	0	98364..98597	+	77	56961864	-	ABC0082	-	hypothetical protein
83	 45.13	0	98869..102411	+	1180	56961865	mfd	ABC0083	-	transcription-repair coupling factor
84	 45.19	0	102586..103125	+	179	56961866	spoVT	ABC0084	-	stage V sporulation protein T, transcriptional regulator
85	 41.70	0	103166..103882	+	238	56961867	-	ABC0085	-	hypothetical protein
86	 47.32	0	103913..104977	-	354	56961868	murG	ABC0086	-	N-acetylglucosaminyl transferase
87	 42.11	0	105011..105568	-	185	56961869	-	ABC0087	-	hypothetical protein
88	 48.05	0	105947..107509	+	520	56961870	-	ABC0088	-	hypothetical protein
89	 47.31	0	107523..108989	+	488	56961871	-	ABC0089	-	hypothetical protein
90	 41.41	0	108961..109257	+	98	56961872	-	ABC0090	-	heat shock protein
91	 49.02	+1	109257..109919	+	220	56961873	-	ABC0091	-	hypothetical protein
92	 49.48	+1	110060..111025	-	321	56961874	-	ABC0092	-	2-ketogluconate reductase
93	 48.39	0	111156..111653	+	165	56961875	-	ABC0093	-	ribosomal-protein-alanine acetyltransferase
94	 45.54	0	111735..112799	+	354	56961876	-	ABC0094	-	thioredoxin reductase
95	 44.61	0	112887..113480	+	197	56961877	-	ABC0095	-	hypothetical protein
96	 42.86	0	113615..113929	+	104	56961878	-	ABC0096	-	hypothetical protein
97	 42.73	0	113929..114492	+	187	56961879	-	ABC0097	-	hypothetical protein
98	 44.27	0	114489..114881	+	130	56961880	divIC	ABC0098	-	cell-division initiation protein
99	 49.88	+1	114959..115387	+	142	56961881	-	ABC0099	-	hypothetical protein
100	 46.56	0	115875..117197	+	440	56961882	-	ABC0100	-	magnesium citrate secondary transporter
44.68	MEAN

4.04	STD DEV
