IslandPathversion 1.0

IslandPath Analysis: Bartonella bacilliformis KC583

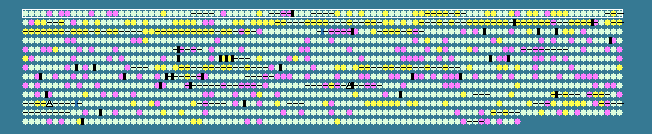

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.00 STD DEV: 4.11
Bartonella bacilliformis KC583, complete genome - 1..1445021
1283 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 37.47	0	213..986	+	257	121602380	-	BARBAKC583_0001	-	hypothetical protein
2	 39.00	0	1105..2004	+	299	121602196	-	BARBAKC583_0003	-	endonuclease/exonuclease/phosphatase family protein
3	 40.01	0	1970..4876	-	968	121601792	polA	BARBAKC583_0002	-	DNA polymerase I
4	 37.02	0	5177..5881	-	234	121602632	dnaQ	BARBAKC583_0004	-	DNA polymerase III, epsilon subunit
5	 34.66	-1	5886..6488	-	200	121602047	coaE	BARBAKC583_0005	-	dephospho-CoA kinase
6	 35.62	0	6485..7360	-	291	121602531	aroE	BARBAKC583_0006	-	shikimate 5-dehydrogenase
7	 35.34	0	7353..7949	-	198	121601838	maf1	BARBAKC583_0007	-	septum formation protein Maf
8	 35.36	0	7946..8785	-	279	121601741	-	BARBAKC583_0008	-	hypothetical protein
9	 36.81	0	9401..10666	+	421	121602564	rho	BARBAKC583_0009	-	transcription termination factor Rho
10	 37.77	0	10700..12007	+	435	121602914	trmE	BARBAKC583_0010	-	tRNA modification GTPase TrmE
11	 38.20	0	12116..13984	+	622	121602359	gidA	BARBAKC583_0011	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
12	 32.10	-1	13984..14631	+	215	121602548	gidB	BARBAKC583_0012	-	glucose-inhibited division protein B
13	 38.22	0	14637..15434	+	265	121601810	parA	BARBAKC583_0013	-	chromosome partitioning protein ParA
14	 37.94	0	15486..16397	+	303	121602744	parB	BARBAKC583_0014	-	chromosome partitioning protein ParB
15	 33.33	-1	16398..16931	-	177	121602022	-	BARBAKC583_0015	-	hypothetical protein
16	 30.63	-2	17303..17968	-	221	121602195	ispZ	BARBAKC583_0016	-	intracellular septation protein A
17	 39.00	0	17965..19128	-	387	121602701	ftsY	BARBAKC583_0017	-	signal recognition particle-docking protein FtsY
18	 38.71	0	19143..20426	-	427	121601837	-	BARBAKC583_0018	-	MiaB family tRNA modification protein
19	 41.46	0	20426..21274	-	282	121602373	dapF	BARBAKC583_0019	-	diaminopimelate epimerase
20	 36.14	0	21533..22066	+	177	121602721	-	BARBAKC583_0020	-	hypothetical protein
21	 38.12	0	22159..23370	+	403	121601984	-	BARBAKC583_0021	-	AFG1 family ATPase
22	 41.20	0	23638..24603	+	321	121601869	mdh	BARBAKC583_0022	-	malate dehydrogenase
23	 40.77	0	24684..25880	+	398	121602774	sucC	BARBAKC583_0023	-	succinyl-CoA synthetase subunit beta
24	 42.75	0	25884..26786	+	300	121602296	sucD	BARBAKC583_0024	-	succinyl-CoA synthetase subunit alpha
25	 40.57	0	26939..29938	+	999	121601785	kgd	BARBAKC583_0025	-	alpha-ketoglutarate decarboxylase
26	 41.21	0	29972..31177	+	401	121602497	sucB	BARBAKC583_0026	-	dihydrolipoamide acetyltransferase
27	 41.58	0	31210..32616	+	468	121601923	lpdA1	BARBAKC583_0027	-	dihydrolipoamide dehydrogenase
28	 37.45	0	32755..33993	-	412	121602016	lys1	BARBAKC583_0028	-	saccharopine dehydrogenase
29	 37.89	0	34049..35146	-	365	121602791	nspC	BARBAKC583_0029	-	carboxynorspermidine decarboxylase
30	 40.79	0	35897..38818	+	973	121602391	phaAB	BARBAKC583_0030	-	putative monovalent cation/H+ antiporter subunit A
31	 40.41	0	38818..39156	+	112	121602327	phaC	BARBAKC583_0031	-	putative monovalent cation/H+ antiporter subunit C
32	 38.32	0	39159..40781	+	540	121602323	phaD	BARBAKC583_0032	-	putative monovalent cation/H+ antiporter subunit D
33	 36.01	0	40778..41263	+	161	121601744	phaE	BARBAKC583_0033	-	putative monovalent cation/H+ antiporter subunit E
34	 35.11	0	41260..41541	+	93	121602155	phaF	BARBAKC583_0034	-	putative monovalent cation/H+ antiporter subunit F
35	 39.69	0	41538..41930	+	130	121602902	phaG	BARBAKC583_0035	-	putative monovalent cation/H+ antiporter subunit G
36	 36.64	0	41962..42354	-	130	121602755	-	BARBAKC583_0036	-	hypothetical protein
37	 40.74	0	42771..43904	-	377	121601842	aroB	BARBAKC583_0037	-	3-dehydroquinate synthase
38	 38.64	0	43873..44418	-	181	121602606	aroK	BARBAKC583_0038	-	shikimate kinase
39	 42.17	0	44758..45696	+	312	121601884	xerD	BARBAKC583_0039	-	tyrosine recombinase XerD
40	 43.47	+1	45772..46728	+	318	121601952	accA	BARBAKC583_0040	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
41	 36.56	0	46764..47507	+	247	121602349	-	BARBAKC583_0041	-	putative lipoprotein
42	 40.31	0	48142..49230	-	362	121602162	-	BARBAKC583_0042	-	D-alanyl-D-alanine carboxypeptidase family protein
43	 40.02	0	49321..50127	-	268	121602410	-	BARBAKC583_0043	-	acyltransferase family protein
44	 28.79	-2	50162..50293	+	43	121602874	-	BARBAKC583_0044	-	hypothetical protein
45	 28.42	-2	50598..50780	+	60	121602172	-	BARBAKC583_0045	-	hypothetical protein
46	 37.60	0	51054..52037	+	327	121602742	-	BARBAKC583_0047	-	ABC transporter, periplasmic substrate-binding protein
47	 41.05	0	52089..52982	+	297	121602006	-	BARBAKC583_0048	-	ABC transporter, permease protein
48	 40.75	0	52979..53773	+	264	121601862	-	BARBAKC583_0049	-	ABC transporter, ATP-binding protein
49	 39.27	0	53777..54820	+	347	121602554	holA	BARBAKC583_0050	-	DNA polymerase III subunit delta
50	 37.06	0	54956..55813	+	285	121601639	-	BARBAKC583_0051	-	YihY family protein
51	 42.17	0	55832..56329	+	165	121602371	-	BARBAKC583_0052	-	hypothetical protein
52	 37.05	0	56331..57029	-	232	121601981	-	BARBAKC583_0053	-	anti-oxidant AhpCTSA family protein
53	 42.83	0	57063..58463	+	466	121602654	argH	BARBAKC583_0054	-	argininosuccinate lyase
54	 37.22	0	58522..58701	+	59	121601851	-	BARBAKC583_0055	-	putative lipoprotein
55	 43.45	+1	58710..59984	+	424	121602458	lysA	BARBAKC583_0056	-	diaminopimelate decarboxylase
56	 42.10	0	60099..62516	+	805	121602289	-	BARBAKC583_0057	-	hypothetical protein
57	 42.59	0	62798..63532	+	244	121601849	-	BARBAKC583_0058	-	putative SAM-dependent methyltransferase protein
58	 37.70	0	63674..64360	-	228	121602098	-	BARBAKC583_0059	-	DNA-binding response regulator
59	 42.36	0	64391..64999	+	202	121602271	-	BARBAKC583_0061	-	hypothetical protein
60	 41.49	0	64996..65424	-	142	121601905	-	BARBAKC583_0060	-	hypothetical protein
61	 47.03	+1	65516..66610	-	364	121602834	-	BARBAKC583_0062	-	O-sialoglycoprotein endopeptidase
62	 38.48	0	66916..68352	+	478	121601740	-	BARBAKC583_0063	-	hypothetical protein
63	 41.17	0	68364..69959	+	531	121602299	-	BARBAKC583_0064	-	hypothetical protein
64	 39.32	0	70042..70809	+	255	121601781	-	BARBAKC583_0065	-	glutamine amidotransferase
65	 41.19	0	71085..75794	-	1569	121602339	-	BARBAKC583_0066	-	glutamate dehydrogenase, NAD-specific
66	 42.62	0	76074..76730	+	218	121601926	-	BARBAKC583_0067	-	carbonic anhydrase
67	 43.73	+1	76976..78523	+	515	121602489	ffh	BARBAKC583_0068	-	signal recognition particle protein
68	 47.38	+2	78953..79315	+	120	121601853	rpsP	BARBAKC583_0069	-	30S ribosomal protein S16
69	 48.31	+2	79464..79670	-	68	121602399	-	BARBAKC583_0070	-	hypothetical protein
70	 43.80	+1	79755..80786	+	343	121601682	-	BARBAKC583_0071	-	heat shock protein HtpX
71	 43.18	+1	80897..82267	+	456	121602907	-	BARBAKC583_0072	-	putative ribosomal RNA small subunit methyltransferase B
72	 41.99	0	82335..84044	+	569	121602167	-	BARBAKC583_0073	-	heparinase II/III-like family protein
73	 43.29	+1	84215..85831	+	538	121602743	purH	BARBAKC583_0074	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
74	 39.87	0	85996..86148	+	50	121602557	-	BARBAKC583_0075	-	hypothetical protein
75	 42.01	0	86488..87294	-	268	121601878	-	BARBAKC583_0076	-	SurF1 family protein
76	 39.06	0	87569..87865	+	98	121602432	rpmB	BARBAKC583_0077	-	50S ribosomal protein L28
77	 39.82	0	87990..88652	+	220	121602178	-	BARBAKC583_0078	-	hypothetical protein
78	 42.77	0	88851..90746	-	631	121601803	cobT	BARBAKC583_0079	-	cobaltochelatase, CobT subunit
79	 42.65	0	90761..91747	-	328	121602689	cobS	BARBAKC583_0080	-	cobaltochelatase, CobS subunit
80	 38.00	0	92015..92635	-	206	121602240	-	BARBAKC583_0081	-	DnaJ domain-containing protein
81	 37.99	0	92751..93029	+	92	121602779	-	BARBAKC583_0082	-	BolA family protein
82	 44.69	+1	93072..94040	-	322	121602434	xerC	BARBAKC583_0083	-	site-specific tyrosine recombinase XerC
83	 34.43	-1	94043..94864	-	273	121601700	-	BARBAKC583_0084	-	SapC family protein
84	 41.15	0	94994..95569	+	191	121602541	rimM	BARBAKC583_0085	-	16S rRNA processing protein RimM
85	 47.93	+2	95619..96317	+	232	121601797	trmD	BARBAKC583_0086	-	tRNA (guanine-N1)-methyltransferase
86	 45.80	+1	96523..96963	+	146	121602787	rplS	BARBAKC583_0087	-	50S ribosomal protein L19
87	 41.29	0	97559..97960	+	133	121602258	sdhC	BARBAKC583_0088	-	succinate dehydrogenase, cytochrome b556 subunit
88	 33.33	-1	97979..98365	+	128	121602811	sdhD	BARBAKC583_0089	-	succinate dehydrogenase, hydrophobic membrane anchor protein
89	 46.21	+1	98370..100217	+	615	121602021	sdhA	BARBAKC583_0090	-	succinate dehydrogenase flavoprotein subunit
90	 42.56	0	100233..101012	+	259	121601659	sdhB	BARBAKC583_0091	-	succinate dehydrogenase iron-sulfur subunit
91	 44.79	+1	101601..102848	-	415	121602163	-	BARBAKC583_0092	-	2-octaprenyl-6-methoxyphenyl hydroxylase
92	 41.43	0	103019..105439	+	806	121601872	-	BARBAKC583_0093	-	FtsK/SpoIIIE family protein
93	 40.13	0	105736..106368	+	210	121602483	-	BARBAKC583_0094	-	LolA family protein
94	 40.20	0	106374..107189	+	271	121602111	xth1	BARBAKC583_0095	-	exodeoxyribonuclease III
95	 41.83	0	107648..108847	+	399	121602670	-	BARBAKC583_0096	-	putative macrolide-specific efflux protein MacA
96	 41.60	0	108876..110882	+	668	121602095	macB	BARBAKC583_0097	-	macrolide-specific ABC-type efflux carrier MacB
97	 38.10	0	111411..112019	-	202	121602686	-	BARBAKC583_0098	-	hypothetical protein
98	 38.87	0	112169..113143	-	324	121601779	-	BARBAKC583_0099	-	FtsX family protein
99	 43.48	+1	113136..113795	-	219	121602165	ftsE	BARBAKC583_0100	-	cell division ATP-binding protein FtsE
100	 42.32	0	113949..115907	-	652	121601882	acsA	BARBAKC583_0101	-	acetyl-CoA synthetase
39.00	MEAN

4.11	STD DEV
